Rittal 3239708 Blue e+ filter fan 110/125 m³/h, 230 V, RAL 9005

Your rating:
Average rating
product review for Rittal 3239708 Blue e+ filter fan 110/125 m³/h, 230 V, RAL 9005
( 4.5 / 5 ) 2 ratings
Rittal 3239708
This image may differ from the desired article.
Rittal 3239708Rittal 3239708Rittal 3239708Rittal 3239708Rittal 3239708
108,33 EUR
( 128,91 EUR incl. VAT )
≈ £90.67  |  ≈ $119.05
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 3239708 Blue e+ filter fan 110/125 m³/h, 230 V, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683809
Mfg Part No: 3239708
UPC/EAN: 4028177998209
Weight:1.04 kg
Type:SK 3239.708

Product information for Rittal 3239708:

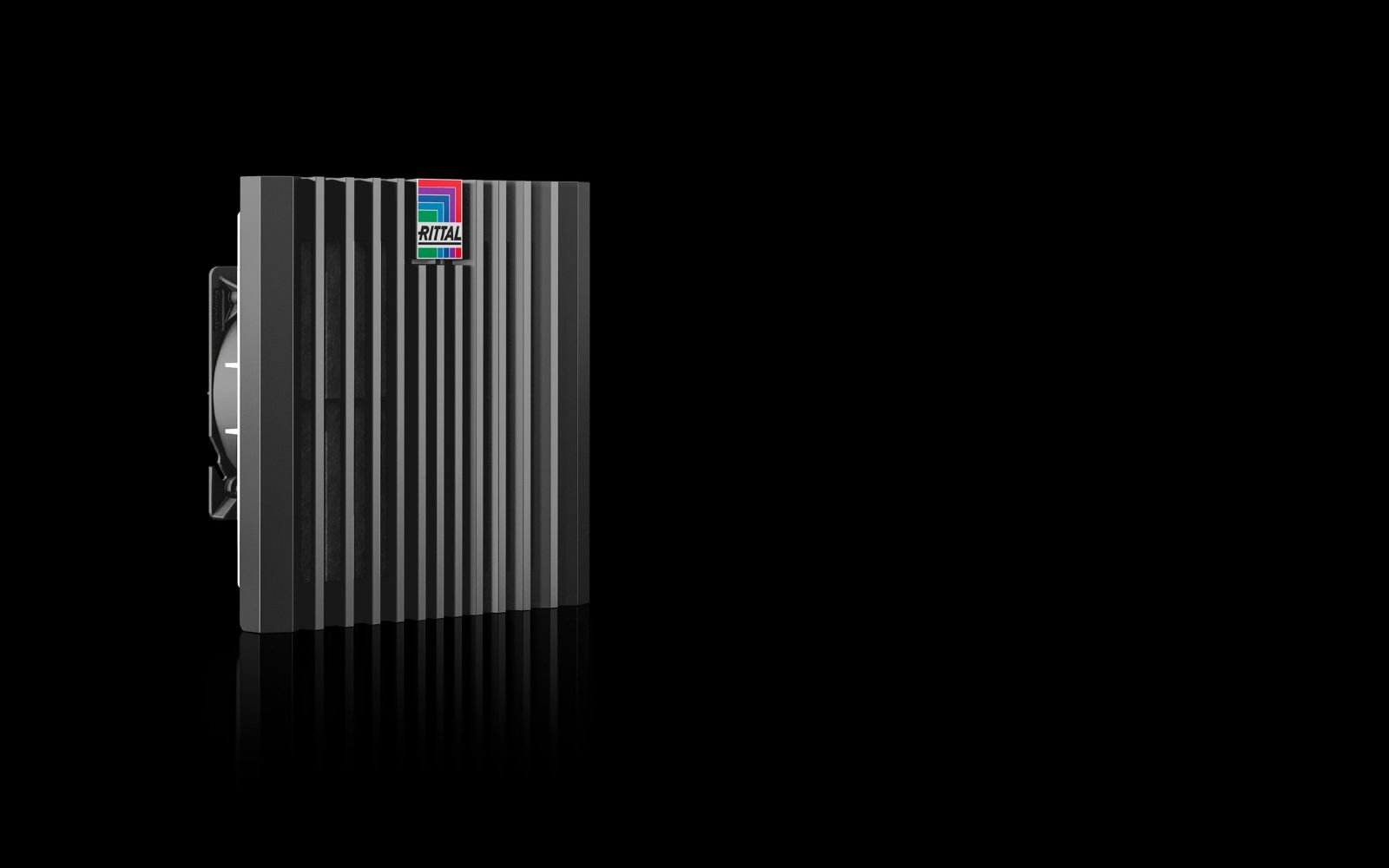

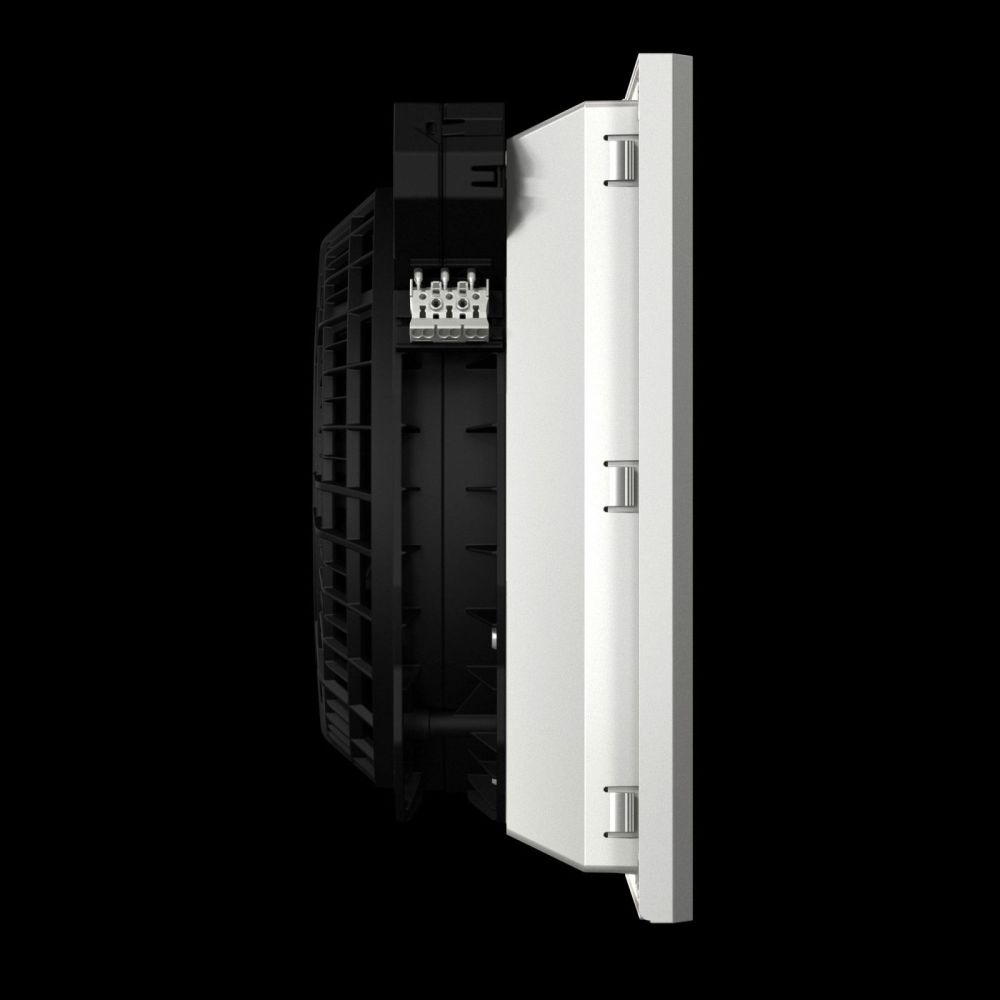

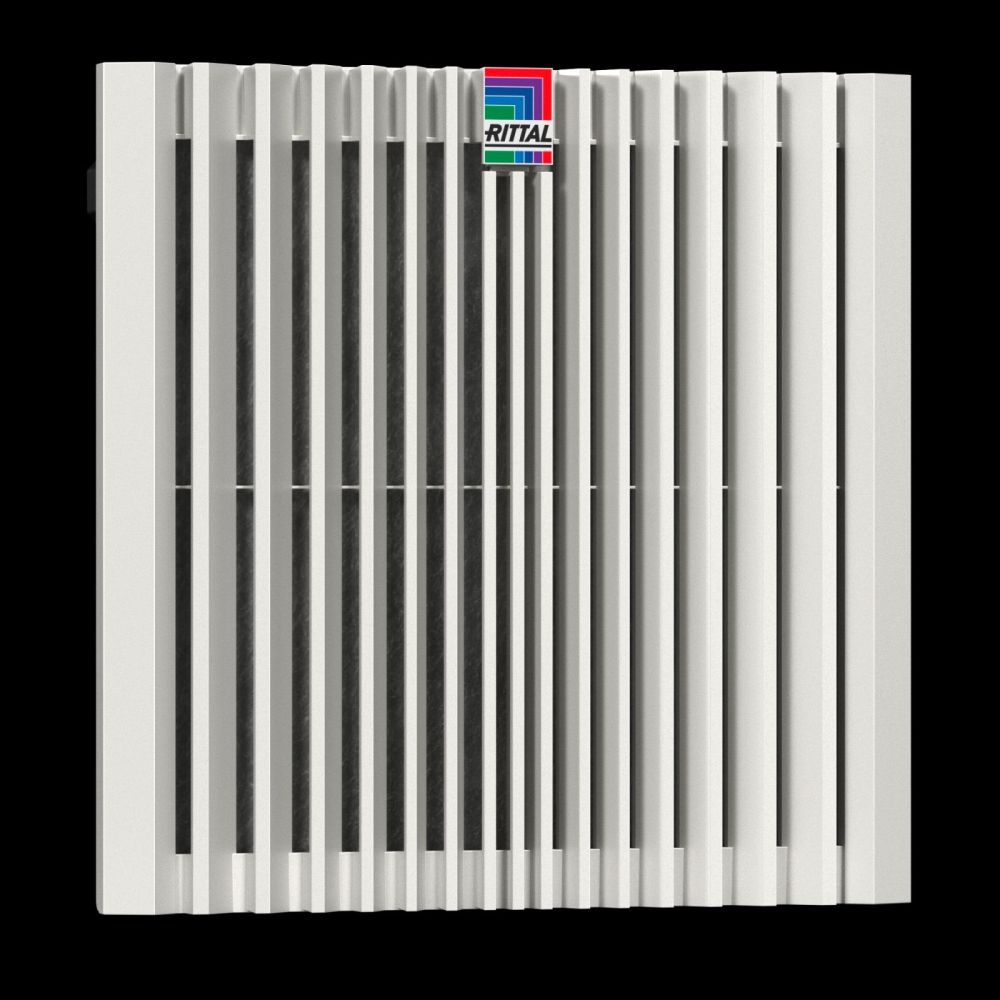

The Rittal SK 3239.708 is a filter fan for enclosure climate control, designed for wall mounting on enclosures and other housings. The unit serves for ventilation and cooling of electrical and electronic components inside enclosures, while simultaneously providing dust and particle filtration. The unit is finished in RAL 9005 and made of plastic, offering high mechanical stability and corrosion resistance. The diagonal fan technology ensures improved pressure stability and more uniform air distribution within the enclosure, resulting in consistent cooling performance. Air exits diagonally, supporting even cooling of components.

Applications include industrial plants, automation technology, machine building, and other environments where enclosures are subject to continuous load. The fan is suitable for indoor and outdoor use, with protection rating varying according to additional equipment. Standardly, the unit offers protection rating IP 54 with fleece or pleated filter, ensuring protection against dust and splashing water. With additional absorber mat, it reaches IP 55, and with spray water hood, IP 56, providing sufficient protection even under heavy rainfall or splashing water conditions. According to NEMA standards, the unit corresponds to Type 12 with fleece or pleated filter, and Type 3, 3R, 4, 4X when using a spray water hood.

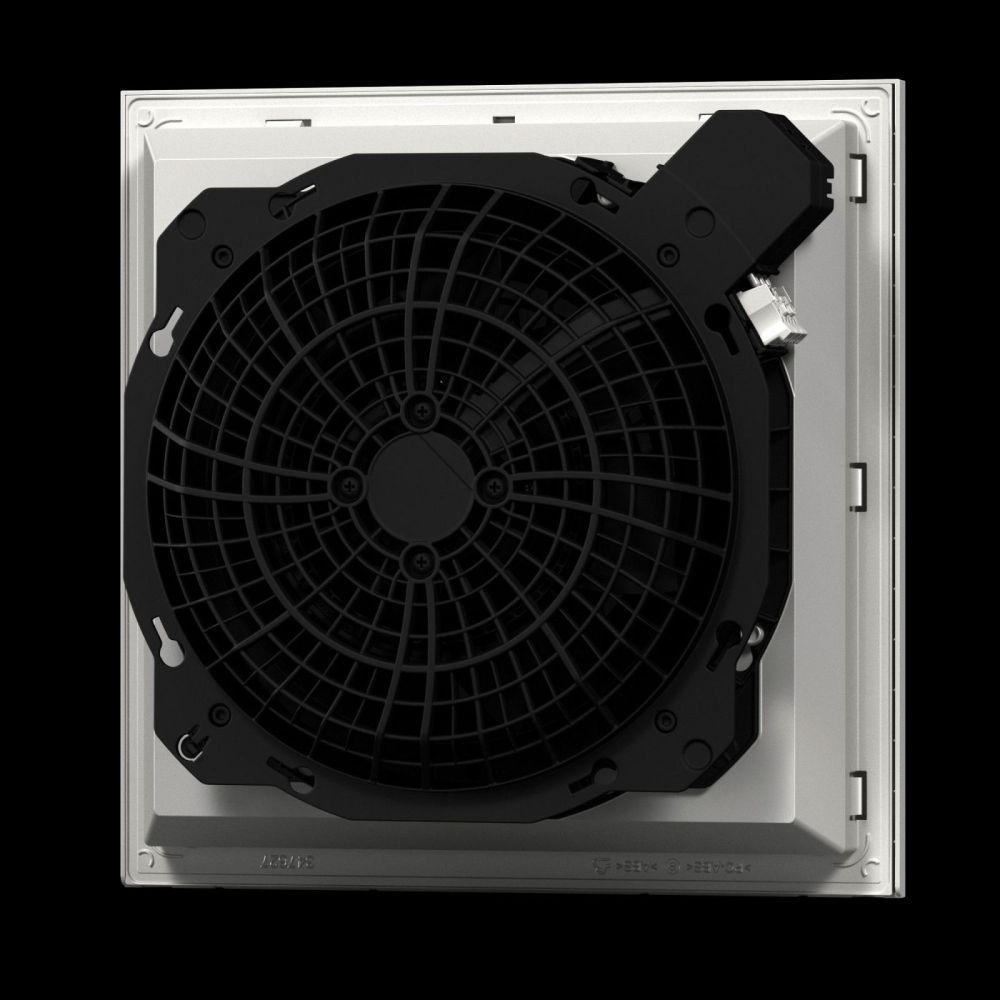

Functions and equipment in detail include an axial fan with split-pole motor, ensuring reliable and quiet operation. Airflow is 110 m³/h at 50 Hz and 125 m³/h at 60 Hz when supplied with pleated filter. With a fleece filter, airflow reduces to 100 m³/h (50 Hz) or 115 m³/h (60 Hz). Airflow further decreases when an outlet filter is installed: 92 m³/h (50 Hz) or 104 m³/h (60 Hz) with pleated filter, and 75 m³/h (50 Hz) or 86 m³/h (60 Hz) with fleece filter. The rated power is 14.7 W at 50 Hz and 16.5 W at 60 Hz, with rated current max. 0.1 A (50 Hz) or 0.12 A (60 Hz). The rated operating voltage is 230 V, 1~, 50 Hz/60 Hz. The sound pressure level is 51 dB(A) (50 Hz) and 54 dB(A) (60 Hz), representing acceptable noise emissions for industrial environments.

Technology explained simply shows that the fan features tool-free mounting, enabled by optimized snap hooks. Mounting is done into a pre-defined cutout of 177 mm width and height, with an installation depth of 84 mm. Overall dimensions of the unit are 204 mm (width) × 204 mm (height) × 105 mm (depth). Electrical connection is made via spring-loaded terminals, enabling quick and secure connection. The unit is fully ready for installation and supplied with pleated filter, ensuring immediate commissioning. An opening mechanism on the louver grille facilitates filter replacement without requiring tools.

Compatibility and accessories include various extensions that increase protection rating or enhance functionality. These include outlet filters in RAL 9005, replacement filter mats with filtration efficiency of 95 %, spray water hoods made of stainless steel, absorber mats for IP 54, as well as thermostats, speed controllers, and digital temperature display and control units. These components can be combined according to requirements to optimize operational safety and efficiency.

Mounting and installation are performed via tool-free mounting on the designated surface. The unit is inserted into the mounting cutout (177 mm × 177 mm) and secured by snap hooks. Electrical connection is made via spring-loaded terminals. Operating temperature ranges from -15 °C to 55 °C, and storage temperature from -30 °C to 70 °C. A fuse of 2 A is required to ensure safe operation.

Operational advantages include high airflow, easy mounting, and user-friendly filter replacement. The diagonal fan technology ensures uniform air distribution, stabilizing cooling performance. Integrated filtration protects internal components from contamination, increasing device lifespan. The unit is suitable for use in various industrial environments, with protection rating adjustable according to additional equipment. The combination of filter fan, diagonal fan technology, IP 54, and tool-free mounting makes this device a reliable solution for enclosure climate control.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanAxial, split-pole motor
Airflow free blowing (with pleated filter)At 50 Hz: 110 m³/h, At 60 Hz: 125 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 92 m³/h, At 60 Hz: 104 m³/h
Airflow free-blowing (with filter)At 50 Hz: 100 m³/h, At 60 Hz: 115 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 75 m³/h, At 60 Hz: 86 m³/h
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 14.7 W, At 60 Hz: 16.5 W
Rated current max.At 50 Hz: 0.1 A, At 60 Hz: 0.12 A
Width204 mm
Height204 mm
Depth105 mm
Built-in depth84 mm
Mounting cutoutCutout width: 177 mm, cutout height: 177 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 2 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-15 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 51 dB(A), At 60 Hz: 54 dB(A)


Product data sheet
Datasheet for Rittal 3239708, EAN: 4028177998209
