Rittal 2746010 command panel, 597x597x36 mm, for mounting on AX instead

Your rating:
Average rating
product review for Rittal 2746010 command panel, 597x597x36 mm, for mounting on AX instead
( 4 / 5 ) 5 ratings
Rittal 2746010
This image may differ from the desired article.
Rittal 2746010Rittal 2746010Rittal 2746010
-12% 148,70 EUR 169,30 EUR
( 176,95 EUR incl. VAT )
≈ £124.46  |  ≈ $163.42
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 2746010 command panel, 597x597x36 mm, for mounting on AX instead
Datasheet:file_download Download
Lieske Part No.:1593452
Mfg Part No: 2746010
UPC/EAN: 4028177938564
Weight:4.72 kg
Type:AX 2746010

Product information for Rittal 2746010:

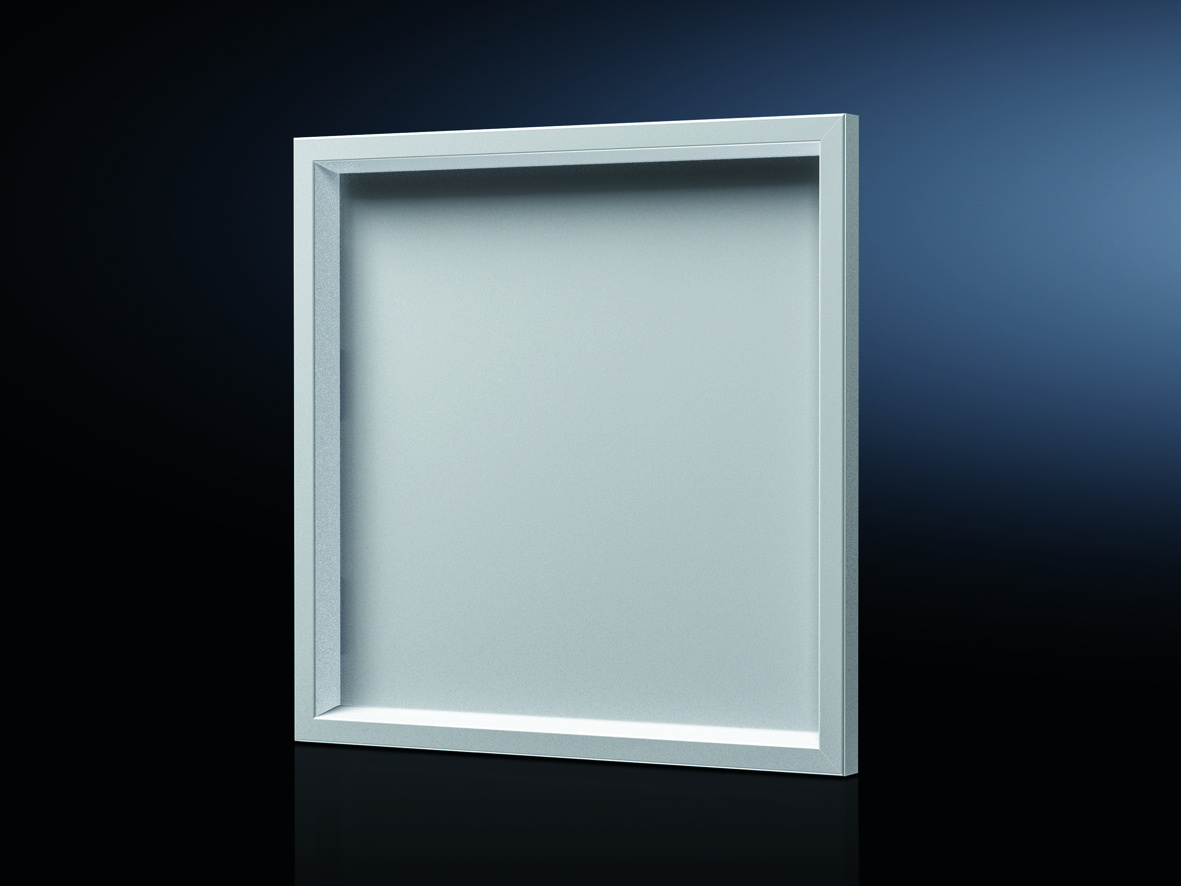

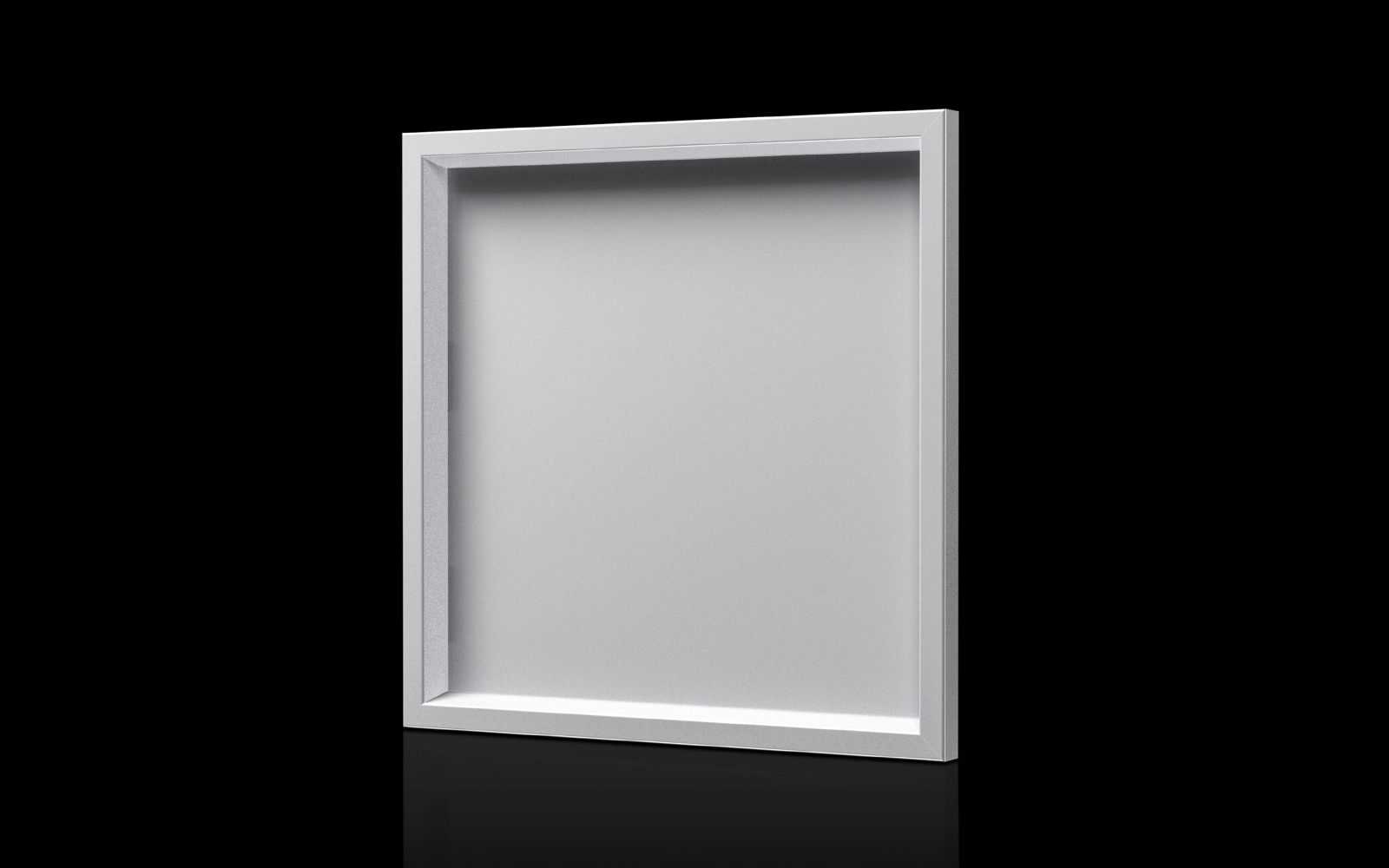

The Rittal AX 2746010 is an operator panel for use with AX enclosures having a width and height of 600 mm each. It serves as a replacement for the standard door or as a mounting surface on designated areas, enabling the installation of control elements, indicators, or control devices directly on the enclosure. The panel consists of an aluminium frame with an internally mounted 3 mm thick aluminium plate, which is naturally anodized. The overall dimensions are 597 mm width, 597 mm height, and 36 mm depth. The usable mounting area measures 527 mm in width and height, providing sufficient space for various components.

Applications

The operator panel is specifically designed for use with AX enclosures having a width and height of at least 600 mm. It is mounted in place of the door or on designated surfaces to enable direct operation of devices within the enclosure. Its use is typical in industrial environments where a secure and accessible control surface is required, for example in automation technology, manufacturing technology, or machine control systems.

Functions and Equipment in Detail

The panel is supplied with an aluminium frame, a panel plate, hinges, and retaining brackets. The aluminium plate is 3 mm thick and provides a stable base for mounting switches, indicators, or other components. The hinges allow for secure attachment to the enclosure, while the retaining brackets support the installation. The protection rating IP 54 according to EN 60 529 protects against dust and splashing water, making it suitable for use in industrial environments where some contamination or moisture exposure is expected.

Technology Explained Simply

The construction of the panel is based on an aluminium frame that secures the 3 mm thick plate from the inside. This design ensures high stability and allows for secure mounting of components. The IP protection rating 54 means the panel is protected against dust and splashing water, making it suitable for use in indoor environments with moderate environmental stress. The dimensions are designed to fit exactly into the designated mounting areas of AX enclosures, with the usable mounting area of 527 mm × 527 mm being large enough to integrate multiple control elements.

Compatibility and Accessories

The operator panel is compatible with AX enclosures with article numbers 1010.000, 1054000, 1060.000, 1304.000, and 1360.000. This closure ensures a secure and lockable mounting of the panel to the enclosure.

Mounting and Installation

Installation is carried out at the designated mounting points of the AX enclosure. The supplied hinges and retaining brackets facilitate the attachment. The aluminium plate is mounted from the inside, ensuring a stable and secure installation of control elements.

Operational Advantages

The operator panel provides a robust and accessible surface for mounting control elements. The IP 54 protection rating protects against dust and splashing water, increasing reliability in industrial environments. The precise fit with AX enclosures and the stable aluminium construction ensure secure and durable installation. The usable mounting area of 527 mm × 527 mm offers sufficient space for various components, enabling flexible use.

General
MaterialAluminium, natural anodized
Scope of deliveryAluminium frame, panel board, hinges, mounting brackets
Degree of protection IP according to EN 60 529IP 54
Suitable for part no.1010.000, 1054000, 1060.000, 1304.000, 1360.000
NoteWhen installed instead of door, pre-drilled lock is required
Suitable forHousing type: AX, width: = 600 mm, height: = 600 mm
Width597 mm
Height597 mm
Depth36 mm
Aluminium plate dimensionsWidth: 543 mm, Height: 543 mm
Populatable areaWidth: 527 mm, height: 527 mm


Product data sheet
Datasheet for Rittal 2746010, EAN: 4028177938564

Questions & answers

What is the delivery time of Rittal 2746010 command panel, 597x597x36 mm, for mounting on AX instead?

The article Rittal 2746010 command panel, 597x597x36 mm, for mounting on AX instead is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2746010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2746010 command panel, 597x597x36 mm, for mounting on AX instead always at the best possible price. We can give you a discount of 2% on Rittal 2746010 command panel, 597x597x36 mm, for mounting on AX instead if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
