Rittal 2745010 command panel, 497x497x36 mm, for mounting on AX instead

Your rating:
Average rating
product review for Rittal 2745010 command panel, 497x497x36 mm, for mounting on AX instead
( 4.5 / 5 ) 8 ratings

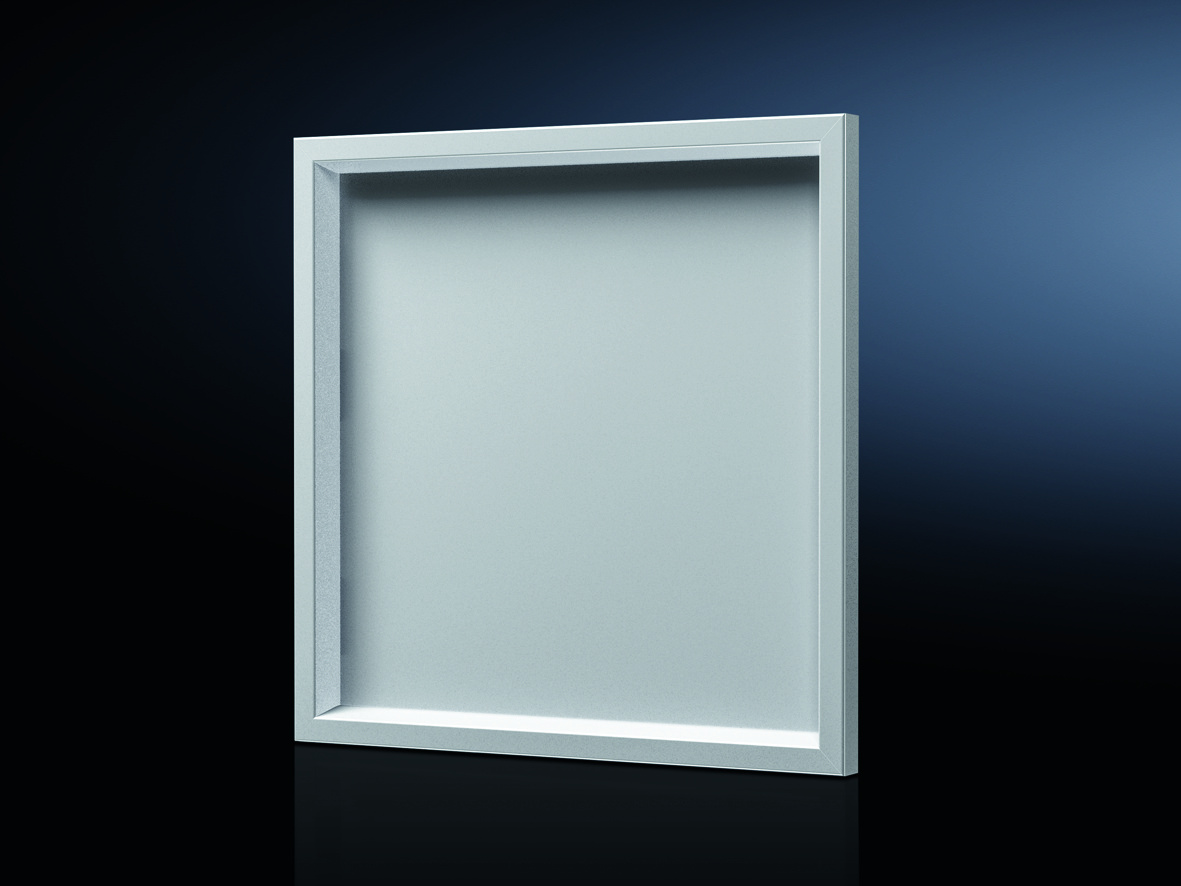

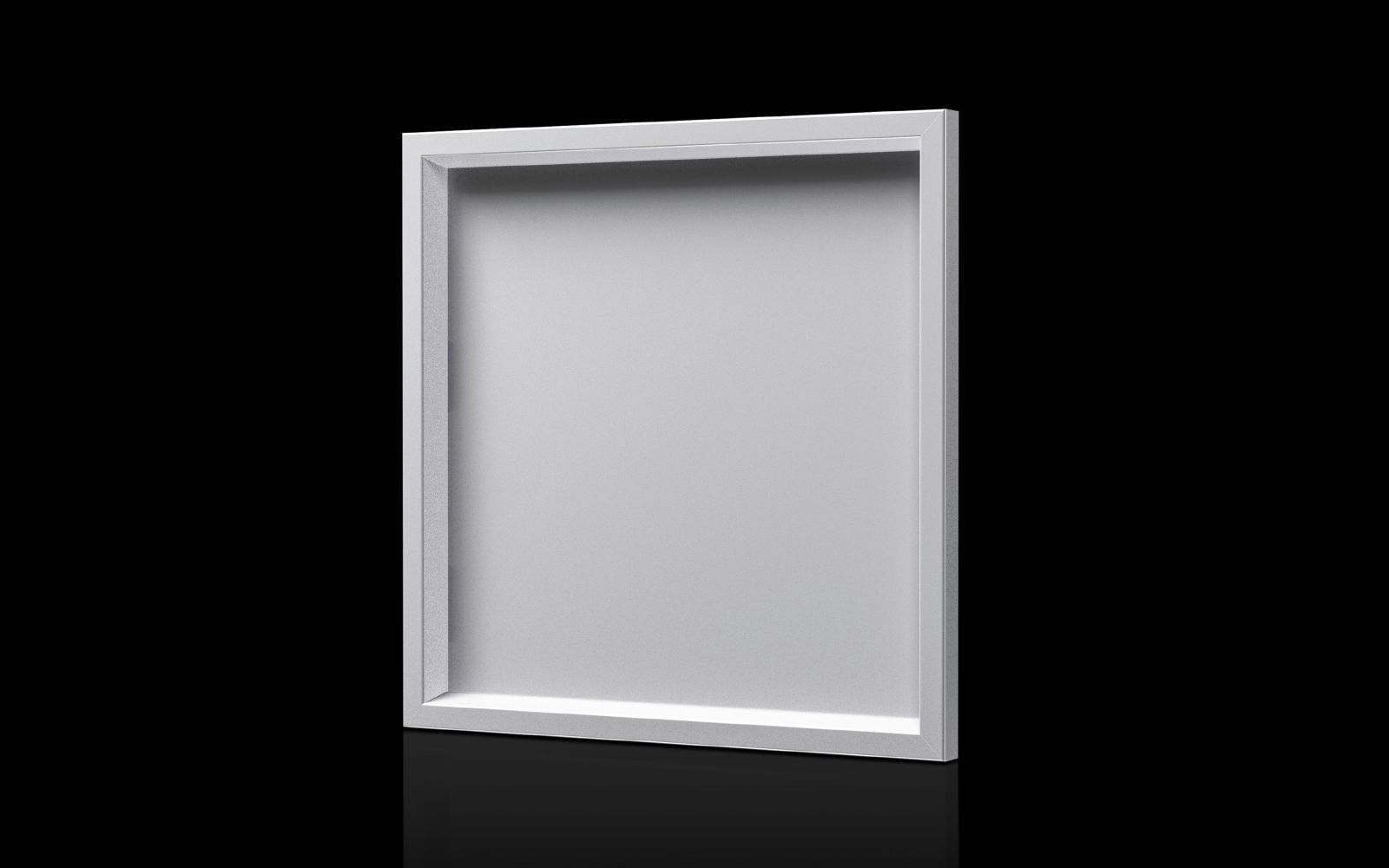

Rittal 2745010
This image may differ from the desired article.
Rittal 2745010Rittal 2745010Rittal 2745010
133,63 EUR
( 159,02 EUR incl. VAT )
≈ £111.85  |  ≈ $146.86
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 2745010 command panel, 497x497x36 mm, for mounting on AX instead
Datasheet:file_download Download
Lieske Part No.:1593453
Mfg Part No: 2745010
UPC/EAN: 4028177938557
Weight:3.543 kg
Type:AX 2745010

Product information for Rittal 2745010:

The Rittal AX 2745010 is an FT control panel made of aluminium, naturally anodized, specifically designed for use with AX enclosures. It serves as a replacement for a standard door or as a mounting surface on flat surfaces. The panel features a frame construction with an internally mounted 3 mm thick aluminium plate and is designed for enclosures with a width and height of at least 500 mm. The dimensions of the panel are 497 mm (width) × 497 mm (height) × 36 mm (depth), with a usable mounting area of 427 mm × 427 mm. The aluminium plate itself measures 443 mm × 443 mm. The product is suitable for mounting on AX enclosure types with article numbers 1007.000, 1013.000, 1050.000, and 1350.000.

Applications

The control panel is primarily used in industrial environments where a robust and accessible operating surface is required. It can be mounted in place of a door to allow direct access to operating elements such as switches, indicators, or control devices without having to open the entire enclosure door. Alternatively, it can be attached to flat walls or other surfaces to integrate additional operating or display units. Its use is particularly beneficial in production plants, automation systems, or machine control applications where clear and secure operation is essential.

Functions and Equipment in Detail

The panel consists of an aluminium frame, a panel plate, hinges, and mounting brackets, all included in the delivery. The aluminium plate is 3 mm thick and provides a stable base for mounting operating elements. The hinges allow for pivot mounting, enabling the panel to be opened and closed. The mounting brackets ensure secure attachment to the enclosure. The protection rating IP 54 according to EN 60 529 protects against dust and splashing water, making it suitable for industrial environments with moderate contamination and moisture risks.

Technology Explained Simply

The frame construction of the panel ensures stable and dimensionally stable mounting. The 3 mm thick aluminium plate is mounted internally, providing a secure and vibration-resistant anchoring for mounted components. The IP 54 protection rating means the panel is dust-tight and protected against splashing water, but not against continuous water jets or immersion. This makes it suitable for indoor use and outdoor applications with low stress. The dimensions are chosen to match the standard sizes of AX enclosures and allow for optimal space utilization.

Compatibility and Accessories

The panel is specifically designed for AX enclosures with a width and height of at least 500 mm. It is compatible with enclosure article numbers 1007.000, 1013.000, 1050.000, and 1350.000. This locking mechanism ensures a secure and lockable mounting of the panel on the enclosure front.

Mounting and Installation

Mounting is performed on the front side of the AX enclosure or on a flat wall. The hinges and mounting brackets enable secure fastening. The aluminium plate is mounted internally, allowing operating elements to be installed from the outside. Installation does not require special tools; however, the use of the pre-drilled lock is necessary when replacing a door to ensure secure locking.

Operational Advantages

The control panel provides a clear and accessible operating surface, simplifying maintenance and control of systems. The robust aluminium construction ensures long service life and resistance to mechanical stress. The IP 54 protection rating protects against dust and splashing water, increasing reliability in industrial environments. Compatibility with various AX enclosures and the option to mount it in place of a door increases flexibility in planning and installing enclosures.

General
MaterialAluminium, natural anodized
Scope of deliveryAluminium frame, panel board, hinges, mounting brackets
Degree of protection IP according to EN 60 529IP 54
Suitable for part no.1007.000, 1013.000, 1050.000, 1350.000
NoteWhen installed instead of door, pre-drilled lock is required
Suitable forHousing type: AX, width: = 500 mm, height: = 500 mm
Width497 mm
Height497 mm
Depth36 mm
Aluminium plate dimensionsWidth: 443 mm, Height: 443 mm
Populatable areaWidth: 427 mm, Height: 427 mm


Product data sheet
Datasheet for Rittal 2745010, EAN: 4028177938557

Questions & answers

What is the delivery time of Rittal 2745010 command panel, 497x497x36 mm, for mounting on AX instead?

The article Rittal 2745010 command panel, 497x497x36 mm, for mounting on AX instead is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2745010 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2745010 command panel, 497x497x36 mm, for mounting on AX instead always at the best possible price. We can give you a discount of 2% on Rittal 2745010 command panel, 497x497x36 mm, for mounting on AX instead if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
