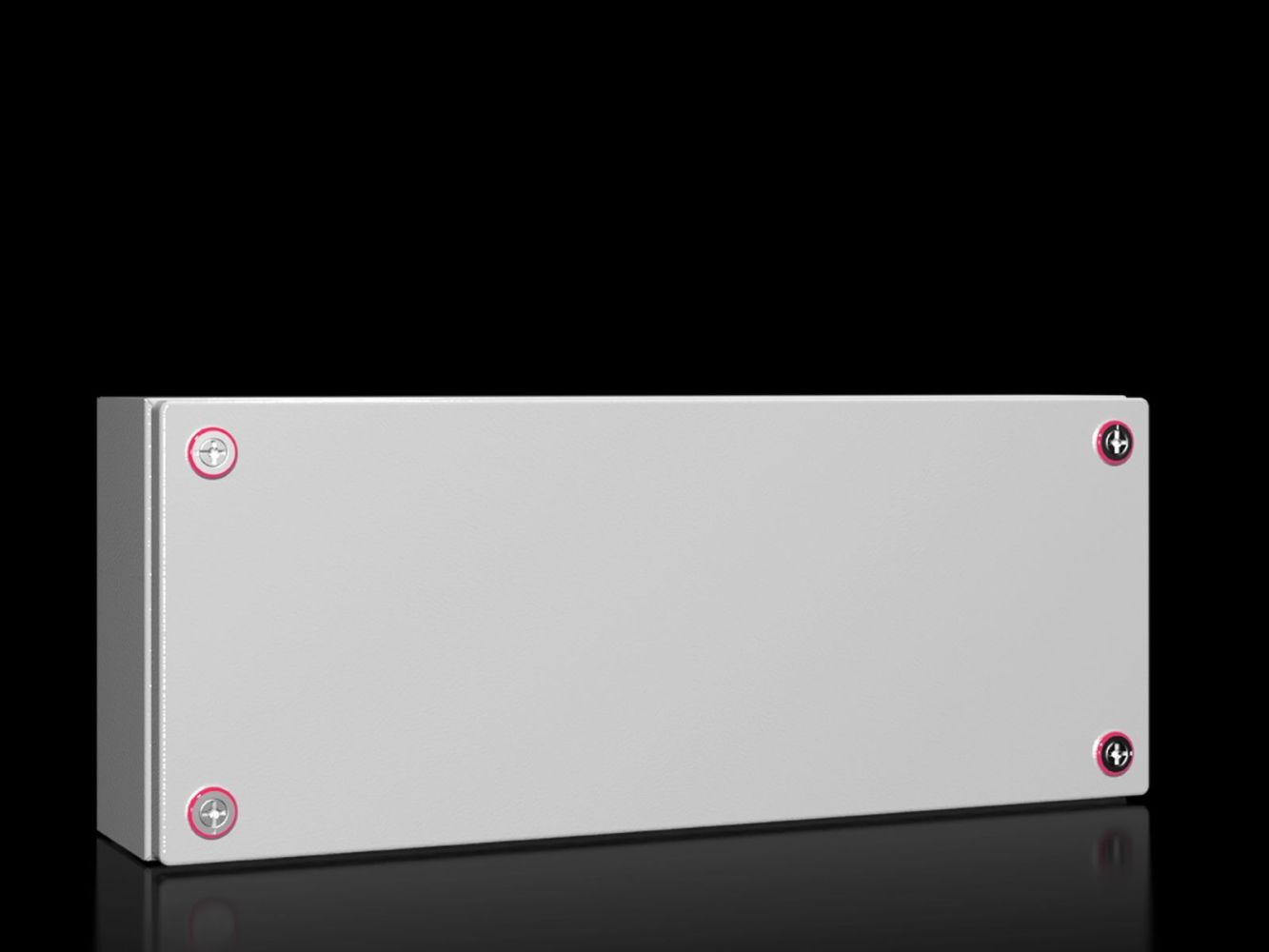

Rittal 1505000 terminal box KX, without gland plate 500x200x120 mm

Your rating:
Average rating
product review for Rittal 1505000 terminal box KX, without gland plate 500x200x120 mm
( 4.3 / 5 ) 8 ratings
Rittal 1505000
This image may differ from the desired article.
Rittal 1505000Rittal 1505000Rittal 1505000Rittal 1505000Rittal 1505000Rittal 1505000Rittal 1505000
46,35 EUR 47,61 EUR
( 55,16 EUR incl. VAT )
≈ £38.79  |  ≈ $50.94
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 1505000 terminal box KX, without gland plate 500x200x120 mm
Datasheet:file_download Download
Lieske Part No.:1598180
Mfg Part No: 1505000
UPC/EAN: 4028177816190
Weight:4.18 kg
Type:KX 1505000

Product information for Rittal 1505000:

The KX 1505000 is an industrial terminal box from the brand Rittal, designed as a small housing made of sheet steel. It serves as a protected enclosure and mounting container for electrical components such as terminals, switches, or small control units, particularly in environments with increased requirements for mechanical and weather protection. The housing has dimensions of width 500 mm, height 200 mm, and depth 120 mm, and is supplied without a mounting plate and without a gland plate, allowing for flexible integration into various installation scenarios.

Small housing with protection class IP 66 provides high protection against dust and water, including heavy splashing and jet water. This protection class corresponds to standards EN 60 529 as well as NEMA classifications NEMA 1, NEMA 3R, NEMA 4, and NEMA 12, and Type rating according to UL 50E in categories Type 1, Type 3R, Type 4, and Type 12. The IK08 rating ensures mechanical protection against impact forces typical of industrial operating conditions. The continuously foamed PU seal between housing and lid ensures a tight seal and prevents ingress of moisture or particles.

Material and surface consist of sheet steel with a material thickness of 1.25 mm for both the housing and the lid. The surface is dip-primed and externally powder-coated with a textured lacquer in the colour RAL 7035, ensuring high corrosion resistance and resistance against mineral oils, lubricants, machining emulsions, and solvents. The coating is part of a three-stage surface treatment designed for optimal long-term durability in industrial environments.

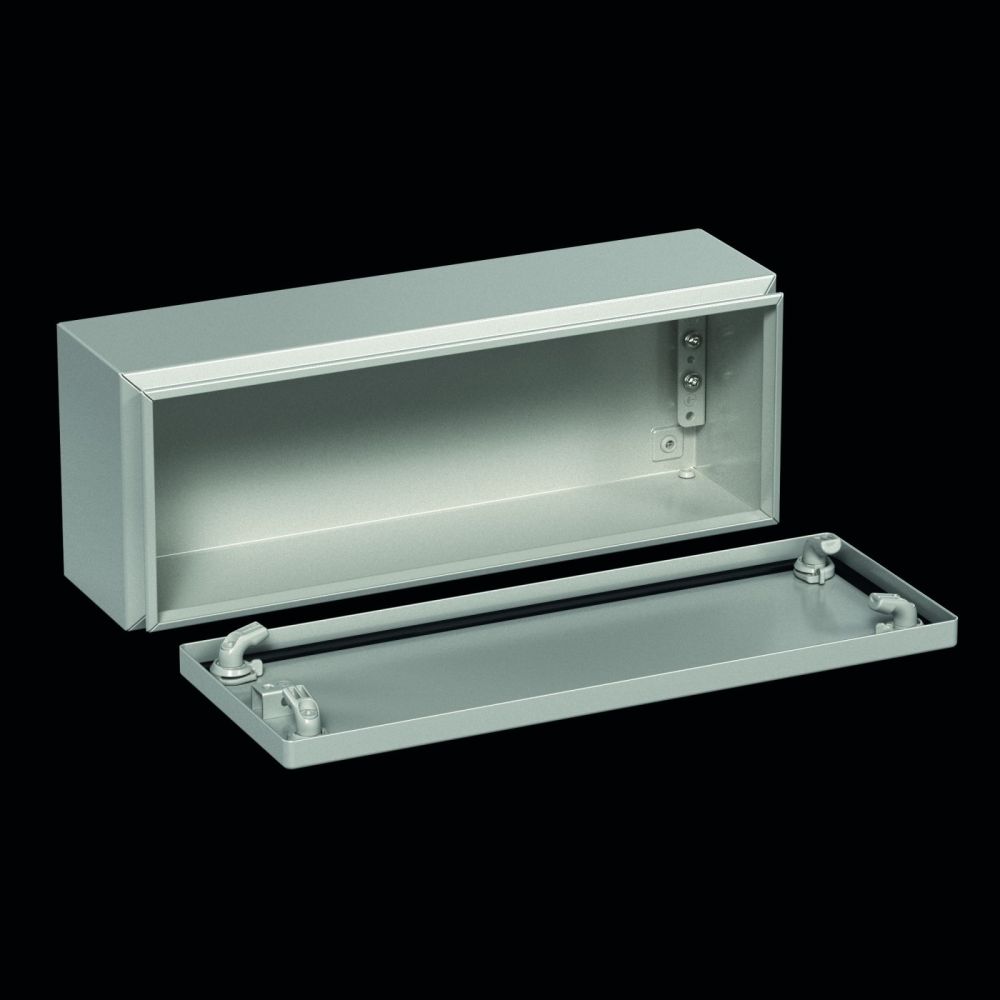

Functions and equipment in detail include a housing with integrated lid and a mini-latch lock, enabling secure and quick closure. The rear wall of the housing features eyelets intended for mounting on a wall mounting bracket. The inner side of the lid and housing are equipped with PE conductors, enabling quick and easy earthing. A QR code is printed on the housing, lid, and type plate to enable unique identification and access to relevant product information and documentation.

Compatibility and accessories allow combination with various Rittal accessories intended for flexible internal fitting. These include mounting clips for support rails, plug-throughs (e.g. SZ 2400500), pressure equalization plugs (e.g. SZ M12x1.5), support rails (TH 35/15), mounting angles, condensate drains, baying sets for AX, KX, AE, KL, drill screws (type ST 4,8 L9,5 mm), mounting brackets, spacing angles for shock protection covers, zinc die-cast lid hinges, mounting plates (e.g. for terminal box KX, bus housing KX, 1565800), mounting claw for second mounting level, and wall mounting brackets for AX sheet steel KX models.

Mounting and installation is carried out via the provided eyelets on the rear wall, suitable for fastening to wall mounting elements. The use of support rails or mounting plates enables structured and secure placement of components inside the housing. The material thickness and construction from a single sheet, folded and welded, ensure high stability and dimensional stability.

Operational advantages lie in the combination of high protection class, mechanical strength, and flexible internal equipment. The IP 66 protection class makes the housing suitable for outdoor use or in damp, dusty industrial environments. The IK08 rating protects against mechanical impacts, such as those occurring during mounting or maintenance work. The powder-coated surface in RAL 7035 provides a visually uniform and durable design that integrates well into industrial facilities. The integrated earthing and designated mounting points reduce installation time and increase safety during commissioning.

The product is delivered as a single unit, consisting of the housing with lid and the mini-latch lock.

General
MaterialHousing: steel sheet, cover: steel sheet, continuously foamed PU seal
Surface protectionHousing and cover: dip primed, externally powder coated, textured lacquer
ColourRAL 7035
Scope of deliveryhousing with cover, mini-quick-release latch
Width500 mm
Height200 mm
Depth120 mm
Degree of protection IP according to EN 60 529IP 66
NEMA degree of protectionNEMA 1, NEMA 3R, NEMA 4, NEMA 12
Type rating according to UL 50EType 1, Type 3R, Type 4, Type 12
IK codeIK08
Material thickness cover1,25 mm
Plate thickness cabinet1,25 mm
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)33.37 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 1505000, EAN: 4028177816190
