Hager rail 10 mm ² KDN463B phase, 4-pole for 14 MCBs
|
131,96 EUR 137,51 EUR |
|||||||||||
|
( 157,03 EUR incl. VAT ) ≈ £111.64 | ≈ $147.53 plus delivery charges: 53,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 569594 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | KDN463B | ||||||||||
| UPC/EAN: | 3250613740979 | ||||||||||
| Weight: | 0.638 kg | ||||||||||
| Type: | KDN463B | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Circuit breaker from HagerFurther products in category Circuit breaker
All products of Hager
Product information for Hager KDN463B:

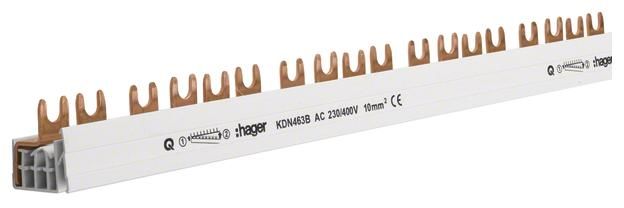

Phase rail 4-pole with fork connection 10mm² 63A 57 modules. Phase rail for suitable modular devices.
| General | |
| Number of phases | 3 |
| Number of poles | 4 |
| Suitable for number of devices | 14 |
| Pitch dimensions | 17.8 mm |
| Cross section | 10 mm² |
| Length | 1000 mm |
| Rated permanent current Iu | 63 A |
| Type of electric connection | Fork |
| Rated surge voltage | 4.5 kV |
| Max. rated operation voltage Ue | 400 V |
| Colour | Grey |
| Width in number of modular spacings | 57 |
| Insulated | |
| Suitable for devices with N-busbar | |
| Suitable for devices with auxiliary switch | |
Questions & answers
What is the delivery time of Hager rail 10 mm ² KDN463B phase, 4-pole for 14 MCBs?
The article Hager rail 10 mm ² KDN463B phase, 4-pole for 14 MCBs is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager KDN463B to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager rail 10 mm ² KDN463B phase, 4-pole for 14 MCBs always at the best possible price. We can give you a discount of 2% on Hager rail 10 mm ² KDN463B phase, 4-pole for 14 MCBs if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Hager rail 10 mm ² KDN463B phase, 4-pole for 14 MCBs we can offer you a price of 124,04 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
