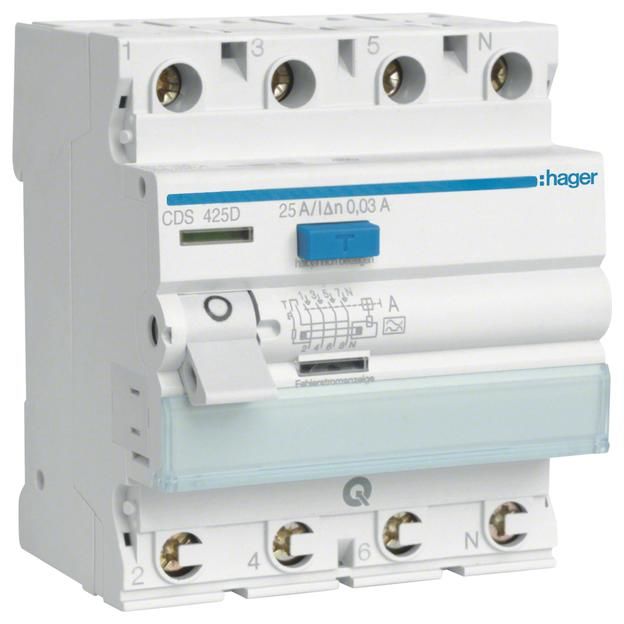

Hager GFCI CDS425D, 4-pole 25/0, 03 A plug-161085
|
129,58 EUR 135,04 EUR |
|||||||||||
|
( 154,20 EUR incl. VAT ) ≈ £109.62 | ≈ $144.87 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 501055 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | CDS425D | ||||||||||
| UPC/EAN: | 3250611610854 | ||||||||||
| Weight: | 0.321 kg | ||||||||||
| Type: | CDS425D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager CDS425D:
Residual current circuit breaker with quick-connect terminal - Standards: EN 6
8 -
, EN 6
8-2 -
VDE 664 part
+
- Rated voltage 23/4 V ~ 5/6 Hz - sensitive to pulsating currents and surge-proof up to 25 A - Short circuit protection 6 kA at fuse 63 A / gL - suitable for retro-fitting of additional equipment - individual withdrawal from the phase rail network possible - with installer-friendly quick-connect terminal on access - shock protection to DIN VDE
Part 6
GFCI 4-pin quick connect from October 2 4 IU Rated current: 25 A Type: CDS425D item:
ST.
8 -
, EN 6
8-2 -
VDE 664 part
+
- Rated voltage 23/4 V ~ 5/6 Hz - sensitive to pulsating currents and surge-proof up to 25 A - Short circuit protection 6 kA at fuse 63 A / gL - suitable for retro-fitting of additional equipment - individual withdrawal from the phase rail network possible - with installer-friendly quick-connect terminal on access - shock protection to DIN VDE
Part 6
GFCI 4-pin quick connect from October 2 4 IU Rated current: 25 A Type: CDS425D item:
ST.
| General | |
| Number of poles | 4 |
| Rated voltage | 400 V |
| Rated current | 25 A |
| Rated fault current | 0.03 A |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Mounting method | DIN rail |
| Leakage current type | A |
| Short-circuit breaking capacity (Icw) | 6 kA |
| Surge current capacity | 0.25 kA |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Ambient temperature during operating | 40 °C |
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired | 16 mm² |
| Connectable conductor cross section solid-core | 25 mm² |
| Power loss | 4.50 W |
| RAL-number (akin) | 7005 |
| Voltage type | AC |
| Selective protection | |
| Short-time delayed tripping | |
| Additional equipment possible | |
| With interlocking device | |
| Explosion-proof | |
Questions & answers
What is the delivery time of Hager GFCI CDS425D, 4-pole 25/0, 03 A plug-161085?
The article Hager GFCI CDS425D, 4-pole 25/0, 03 A plug-161085 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager CDS425D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager GFCI CDS425D, 4-pole 25/0, 03 A plug-161085 always at the best possible price. We can give you a discount of 2% on Hager GFCI CDS425D, 4-pole 25/0, 03 A plug-161085 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Hager GFCI CDS425D, 4-pole 25/0, 03 A plug-161085 we can offer you a price of 115,00 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
