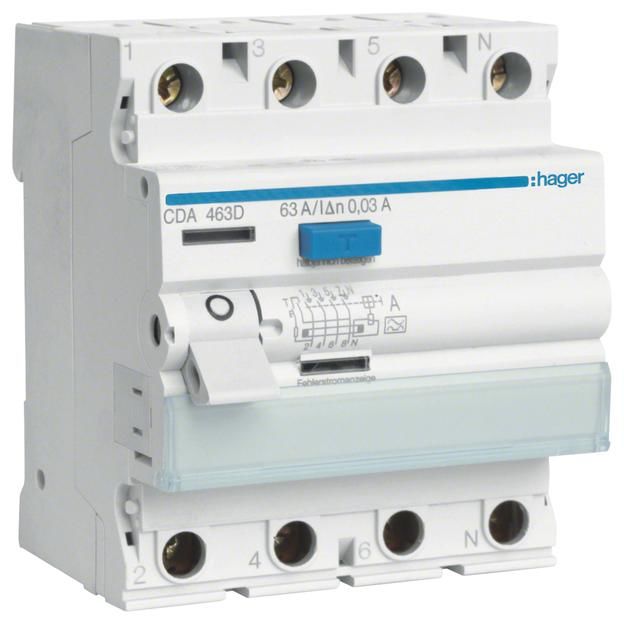

Hager CDA463D residual current circuit breaker 4-pole 6kA 63A 30mA Type A
|
390,35 EUR 406,79 EUR |
|||||||||||
|
( 464,52 EUR incl. VAT ) ≈ £331.02 | ≈ $437.58 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 796356 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | CDA463D | ||||||||||
| UPC/EAN: | 3250611610083 | ||||||||||
| Weight: | 0.387 kg | ||||||||||
| Type: | CDA463D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager CDA463D:
8 -
, EN 6
8-2 -
, VDE 664 part
+
- Rated voltage 23/4 V ~ 5/6 Hz - sensitive to pulsating currents and surge-proof up to 25 A - Short circuit protection 6 kA at fuse 63 A / gL - suitable for retro-fitting of additional equipment - individual withdrawal from the phase rail network possible - with installer-friendly bi-connect terminal - Electric shock protection to DIN VDE
Part 6
RCD 4 pole
6 ..
A Rated current IU: 63 A Type: CDA463D item:
ST.
| General | |
| Number of poles | 4 |
| Rated voltage | 400 V |
| Rated current | 63 A |
| Rated fault current | 0.03 A |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Mounting method | DIN rail |
| Leakage current type | A |
| Short-circuit breaking capacity (Icw) | 6 kA |
| Surge current capacity | 0.25 kA |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Ambient temperature during operating | 40 °C |
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired | 16 mm² |
| Connectable conductor cross section solid-core | 25 mm² |
| Power loss | 18.50 W |
| RAL-number (akin) | 7005 |
| Voltage type | AC |
| Selective protection | |
| Short-time delayed tripping | |
| Additional equipment possible | |
| With interlocking device | |
| Explosion-proof | |
Questions & answers
What is the delivery time of Hager CDA463D residual current circuit breaker 4-pole 6kA 63A 30mA Type A?
The article Hager CDA463D residual current circuit breaker 4-pole 6kA 63A 30mA Type A is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager CDA463D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager CDA463D residual current circuit breaker 4-pole 6kA 63A 30mA Type A always at the best possible price. We can give you a discount of 2% on Hager CDA463D residual current circuit breaker 4-pole 6kA 63A 30mA Type A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Hager CDA463D residual current circuit breaker 4-pole 6kA 63A 30mA Type A we can offer you a price of 334,73 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Hager CDA463D residual current circuit breaker 4-pole 6kA 63A 30mA Type A
 |
Hager LZ060 spacing piece for heat dissipation
Spacer Cross section: 9 mm ² Type: LZ060 Quantity: 1 unit. Lieske Part No.: 178169 Mfg Part No: LZ060 |
3,32 EUR 3,47 EUR
 ≈ £2.82 | ≈ $3.72
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager MZN175 locking device for LS, FI, FI-LS 1
Locking device for circuit breakers FI-switch FI-LS-switch Lieske Part No.: 565350 Mfg Part No: MZN175 |
8,26 EUR 8,61 EUR
≈ £7.00 | ≈ $9.26
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager KDN463B phase bar 4P fork 10 mm² 63 A 57M
Phase rail 4-pole with fork connection 10mm² 63A 57 modules. Phase rail for suitable modular devices. Lieske Part No.: 569594 Mfg Part No: KDN463B |
131,96 EUR 137,51 EUR
≈ £111.90 | ≈ $147.93
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
|
 |
Hager KDN463A phase bar 4P fork 10 mm² 63 A 12M
Phase rail 4-pole with fork connection 10mm² 63A 12 modules. Phase rail for suitable modular devices. Lieske Part No.: 793140 Mfg Part No: KDN463A |
28,97 EUR 30,20 EUR
≈ £24.57 | ≈ $32.48
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager CZ001 contact for RCD switch 2(2NO+2NC) 6A 240V
Accessories for RCD more auxiliary switches on request Design: 2 NO, 2 NC GA for 2 -, 4-pol. FI of 6-63 A Type: CZ ST. Lieske Part No.: 961035 Mfg Part No: CZ001 |
42,27 EUR 44,06 EUR
≈ £35.84 | ≈ $47.38
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
