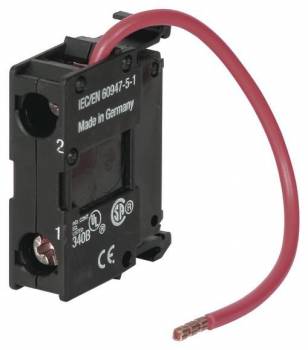

Eaton 231079 M22-XLED-T LED test element AC/DC

Your rating:
Average rating
product review for Eaton 231079 M22-XLED-T LED test element AC/DC
( 4.7 / 5 ) 9 ratings
Eaton 231079
This image may differ from the desired article.
Eaton 231079Eaton 231079Eaton 231079
12,19 EUR 12,70 EUR
( 14,51 EUR incl. VAT )
≈ £10.20  |  ≈ $13.40
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >25 pieces
1x Eaton 231079 M22-XLED-T LED test element AC/DC
Datasheet:file_download Download
Lieske Part No.:130084
Mfg Part No: 231079
UPC/EAN: 4015082310790
Weight:0.123 kg
Type:M22-XLED-T
Graduated prices net
From piecesPrice per pieces
1511,82 EUR
3011,46 EUR
7011,09 EUR
10010,73 EUR

Product information for Eaton 231079:

The Eaton M22-XLED-T is a pre-control element for LED lighting elements of the RMQ-Titan series, developed for central testing of LED lighting elements in industrial control panels. The device serves as a test module, enabling all connected LED elements to be illuminated simultaneously and briefly to check their functionality. It is specifically designed for installation in control and signaling devices and is used in combination with LED modules that feature a compatible test module. The device is black in color and complies with protection class IP20, meaning it is protected against solid foreign objects up to 2.5 mm in diameter and against dripping water – suitable for use in indoor environments under normal operating conditions.

Applications

The M22-XLED-T is used in industrial plants, machine controls, and control panels where visual inspection of LED indicators is required. It is particularly useful in systems where multiple LED elements are operated in parallel to ensure that all indicators function correctly. The test function simplifies commissioning, maintenance, and fault diagnosis, as all LEDs can be activated simultaneously without the need to manually check individual elements.

Functions and Equipment in Detail

The test element enables central control of all connected LED elements equipped with a compatible test module. A prerequisite for functionality is that all involved LED modules are fitted with a corresponding test module. The M22-XLED-T itself is not a lighting element, but a control module that transmits signals for the test function. It is designed for operating voltages of 12 to 240 V AC/DC, while the LED modules themselves require an operating voltage of 12 to 30 V AC/DC.

Technology Explained Simply

The device operates as an electronic control module integrated into the power supply of the LED elements. When the test button is activated, it sends a signal that briefly activates all connected LED modules. The IP20 protection class ensures the module is protected against mechanical impacts from small foreign objects and dripping water, making it suitable for use in enclosed, dry indoor environments. The black color ensures visual harmony with most industrial control panels.

Compatibility and Accessories

The M22-XLED-T is specifically designed for LED lighting elements of the RMQ-Titan series from Eaton. It requires the use of LED modules equipped with a compatible test module. The function is only available if a test button is integrated into the control panel. It is not a standalone lighting element, but an add-on module integrated into existing LED systems. The module’s operating voltage (12–240 V AC/DC) covers a wide range of industrial applications, while the LED modules themselves require a voltage of 12–30 V AC/DC.

Mounting and Installation

The module is integrated into the control panel, with electrical connections made according to the wiring diagrams specified for the LED modules. Mounting is carried out in the usual manner for built-in control and signaling devices, with the IP20 protection class ensuring the module can be operated in enclosed, dry environments. Installation requires integration into the power supply of the LED elements and connection to the test button.

Advantages in Operation

The central test function reduces commissioning and maintenance time, as all LED indicators can be checked simultaneously. This reduces the effort required for diagnosing malfunctions and increases the reliability of the display. Compatibility with the RMQ-Titan series enables uniform design of control panels, with the module integrating optically and functionally into existing systems. The operating voltage of 12–240 V AC/DC makes it flexible for use in various industrial environments.

Features
Product colourBlack
International Protection (IP) codeIP20


Product data sheet
Datasheet for Eaton 231079, EAN: 4015082310790
