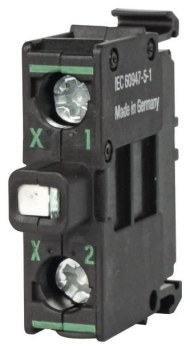

Eaton 218058 M22-LEDC-B LED element blue base
|
12,19 EUR 12,70 EUR |
|||||||||||
|
( 14,51 EUR incl. VAT ) ≈ £10.20 | ≈ $13.40 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 386344 | ||||||||||
| Mfg Part No: | 218058 | ||||||||||
| UPC/EAN: | 4015082180584 | ||||||||||
| Weight: | 0.0119 kg | ||||||||||
| Type: | M22-LEDC-B | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 218058:
Applications
The LED element M22-LEDC-B is suitable for use in industrial controls, machine controls, plant monitoring systems, and other applications requiring clear visual signalling. It is often used in combination with other command and signal devices to indicate the operating status of machines or systems. The base mounting allows for easy integration into existing switchboards and socket outlets. Due to the protection class IP20, the device is intended for indoor use, where no direct exposure to water, dust, or other external influences is expected.
Functions and Equipment in Detail
The device features an LED indicator that lights up when powered, visually signalling the operating status. The terminal screws enable quick and secure installation without additional tools. The operating voltage of 12 to 30 V AC/DC makes the device compatible with a wide range of industrial power supplies. The low power consumption of 0.26 W at 24 V ensures energy-efficient operation. The black colour provides unobtrusive integration into industrial environments. Mounting is via base mounting, enabling standardised installation in switchboards.
Technology Explained Simply
LED technology provides a clear, energy-efficient light indication. The screw terminals offer a mechanically stable and electrically reliable connection. The operating voltage of 12 to 30 V AC/DC allows use in various industrial environments where these voltage ranges are common. The protection class IP20 protects the device against finger contact and ingress of solid foreign objects, but not against water or dust. Compliance with the standard IEC 60947-5-1 ensures safety and reliability in industrial use.
Compatibility and Accessories
The LED element M22-LEDC-B can be combined with various pre-switching elements and test elements to extend functionality. These include the M22-XLED60 (42–60 V AC/DC), the M22-XLED230-T (AC), the M22-XLED220 (220 VDC), and the M22-XLED-T (AC/DC). These accessories allow adaptation to different voltage conditions and test functions. Combining these elements expands the application possibilities of the LED element in complex switching installations.
Mounting and Installation
Mounting is done via base mounting, integrated into standard socket outlets or switchboards. The screw terminals allow for simple and secure connection of wires. No additional tools are required, as the terminals can be operated manually. Installation is carried out indoors, as the protection class IP20 does not provide protection against water or dust.
Advantages in Operation
The LED element M22-LEDC-B provides clear visual signalling with low power consumption. The screw terminals ensure a reliable connection, and the base mounting enables standardised installation. Compatibility with various pre-switching and test elements expands application possibilities. Compliance with the standard IEC 60947-5-1 ensures safety and reliability in industrial operation. The black colour ensures unobtrusive integration into industrial environments.
| Features | |
| Product type | LED element |
| Product colour | Black |
| International Protection (IP) code | IP20 |
Questions & answers
What is the delivery time of Eaton 218058 M22-LEDC-B LED element blue base ?
The article Eaton 218058 M22-LEDC-B LED element blue base is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 218058 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 218058 M22-LEDC-B LED element blue base always at the best possible price. We can give you a discount of 2% on Eaton 218058 M22-LEDC-B LED element blue base if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Eaton 218058 M22-LEDC-B LED element blue base we can offer you a price of 11,82 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
