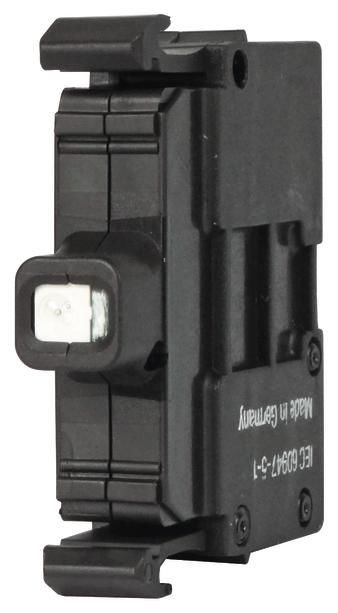

Eaton 106521 M22-LED230H-* LED front enhanced sensitivity
|
-95% 18,14 EUR 362,71 EUR |
|||||||||||
|
( 21,59 EUR incl. VAT ) ≈ £15.18 | ≈ $19.94 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 501505 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 106521 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | M22-LED230H-* | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 106521:
Applications
The LED element is designed for use in industrial control and switching installations where clear and reliable visual signaling is required. It serves, for example, to indicate operating states, error messages, or alarms. Due to front mounting, it is easy to integrate into existing control panels or operator interfaces, making it suitable for applications in the manufacturing industry, energy supply, or process automation. The protection rating IP20 ensures protection against contact with fingers and larger solid objects, but not against dust or splashing water, making it suitable for indoor use, but not for outdoor applications or humid environments.
Functions and Equipment in Detail
The device features an LED display, the color of which is selectable, with the exact color selection specified in the note section. The display is connected via screw terminals, enabling simple and robust installation. The rated operating voltage of 207 to 264 V AC covers typical voltage fluctuations in public power grids, ensuring reliable operation even with slight voltage variations. The low current consumption of 12 to 15 mA ensures efficient energy use without compromising signal quality.
Technology Explained Simply
LED technology enables bright, clear, and energy-efficient light indication. The screw terminals ensure a mechanically stable and electrically secure connection, which remains reliable even under vibration or mechanical stress. The protection rating IP20 means the device is protected against contact with fingers and larger solid objects, but not against dust or water. This makes it suitable for use in dry indoor environments, but not in damp or dusty conditions. The standard IEC 60947-5-1 sets requirements for command and signaling devices, ensuring the safety and reliability of the device.
Compatibility and Accessories
The LED element can be combined with various accessories that extend its functionality. These include, for example, the M22-XLED230-T LED test element AC, the M22-XLED220 LED ballast element 220 VDC, the M22-XLED-T LED test element AC/DC, and the M22-XLED60 LED ballast element for 42–60 V AC/DC. These elements can be used to test LED functionality or to adapt to different voltage conditions. Combining them with these accessories allows flexible adaptation to specific requirements in industrial applications.
Mounting and Installation
Mounting is done via front mounting, where the device is inserted into a corresponding cutout in the control panel or operator interface. The connection terminals allow for easy and secure connection to the wiring. No special tools are required to install the device. Installation is carried out in accordance with the requirements of standard IEC 60947-5-1, ensuring that mounting and operation are safe and reliable.
Advantages in Operation
The LED element is characterized by high reliability and long service life. The low power consumption of 0.33 W at 230 V reduces energy consumption and lowers operating costs. Front mounting enables quick and easy integration into existing installations. The protection rating IP20 provides sufficient protection for use in dry indoor environments, while the display remains clear and easily visible. Compatibility with various accessories expands application possibilities and allows flexible adaptation to specific requirements.
Standards and Regulations
The device complies with standard IEC 60947-5-1, which sets requirements for command and signaling devices. This standard ensures that the device can be operated safely, reliably, and under standardized conditions. Compliance with this standard is essential for use in industrial installations, where safety and reliability are of utmost importance.
Connection to SmartWire-DT
The LED element is not designed for connection to the SmartWire-DT system. It is a classic, non-networked signaling element connected directly to the control system via an electrical connection. It requires no additional network infrastructure and is therefore easy to integrate into existing, non-networked installations.
| General | |
| Mounting | Front fastening |
| Connection system | Screw terminals |
| Rated operating voltage | 207 - 264 V AC |
| Frequency | 50/60 Hz |
| Rated operation current | 12 - 15 mA |
| Power consumption | 0,33 W |
| Colour | Selectable |
| Degree of protection | IP20 |
| Standards and regulations | IEC 60947-5-1 |
| Connection to SmartWire-DT | |
