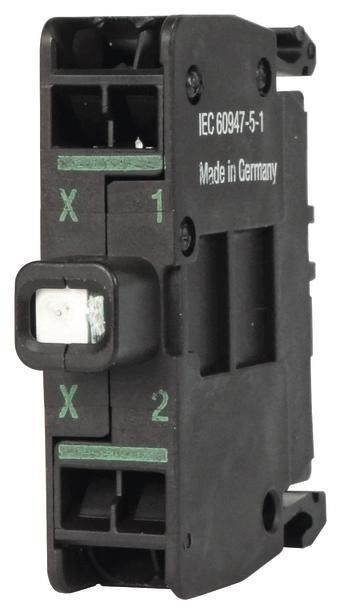

Eaton 216579 M22-CLEDC230-R LED element red base
|
400,33 EUR 417,19 EUR |
|||||||||||
|
( 476,39 EUR incl. VAT ) ≈ £335.08 | ≈ $439.96 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 20 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 185302 | ||||||||||
| Mfg Part No: | 216579 | ||||||||||
| UPC/EAN: | 4015082165796 | ||||||||||
| Weight: | 0.218 kg | ||||||||||
| Type: | M22-CLEDC230-R | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 216579:
Applications
This LED element is designed for use in industrial control and switching installations, particularly in systems requiring visual status indication, such as operational readiness, fault condition, or operating signal. Due to its base mounting and Cage-Clamp technology, it is ideal for installations in enclosures, control cabinets, or distributors where quick mounting and maintenance are required. The operating voltage of 85 to 264 V AC makes it compatible with most industrial power supplies in Europe and other regions with similar mains voltages.
Functions and Equipment in Detail
The device operates with LED technology, offering high light output at low energy consumption. The LED color is red, which is commonly used in industrial signaling for warning or fault conditions. The connection terminal with Cage-Clamp technology enables a secure and reliable electrical connection without requiring additional tools. The maximum power consumption of 0.33 W at 230 V demonstrates the energy efficiency of the element. The protection rating IP20 protects against contact with fingers and solid foreign objects, but not against water or dust, which requires its use in dry indoor environments.
Technology Explained Simply
The LED technology in the M22-CLEDC230-R provides a clear, energy-efficient light indication. The Cage-Clamp technology, a registered trademark of Wago Kontakttechnik GmbH, allows for a quick and secure connection of the cable without tools. The operating voltage of 85 to 264 V AC is suitable for most industrial applications in Europe. The protection rating IP20 means the device is protected against contact with fingers and against solid foreign objects, but not against water or dust. This makes it suitable for use in dry indoor environments, but not for outdoor use or humid environments.
Compatibility and Accessories
The LED element is compatible with various accessories suitable for extending functionality or integrating into existing systems. These include the M22-XLED230-T LED test element AC, the M22-XLED220 LED ballast element 220 VDC, the M22-XLED-T LED test element AC/DC, and the M22-XLED60 LED ballast element 42–60 V AC/DC. These components can be used for signal testing, power supply, or adapting to different voltage conditions. Combining these accessories allows for flexible adaptation to specific requirements in industrial automation.
Mounting and Installation
Mounting is done via a base mounting, which securely locks the element into standard socket outlets or switchboards. The Cage-Clamp technology enables a quick and secure cable connection without requiring additional tools. Installation is carried out in dry indoor environments, as the IP20 protection rating does not provide water or dust tightness. The electrical connection is made via the designated terminals, designed for the specified voltage range of 85 to 264 V AC.
Advantages in Operation
The LED element provides a reliable and energy-efficient signal indication with low current consumption. The Cage-Clamp technology enables quick and secure mounting, reducing maintenance and installation times. Compatibility with various accessories expands application possibilities and allows flexible adaptation to specific requirements. The IP20 protection rating ensures sufficient protection for use in dry indoor environments, which is sufficient for many industrial applications. Compliance with the standard IEC 60947-5-1 ensures conformity with international standards for command and signal devices.
The item price shown refers to 20 pieces Eaton 216579
| Features | |
| Product type | LED element |
| Product colour | Black |
| International Protection (IP) code | IP20 |
Questions & answers
What is the delivery time of Eaton 216579 M22-CLEDC230-R LED element red base ?
The article Eaton 216579 M22-CLEDC230-R LED element red base is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 216579 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 216579 M22-CLEDC230-R LED element red base always at the best possible price. We can give you a discount of 2% on Eaton 216579 M22-CLEDC230-R LED element red base if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Eaton 216579 M22-CLEDC230-R LED element red base we can offer you a price of 388,32 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 216579 M22-CLEDC230-R LED element red base is offered by us in a sales unit of 20 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
