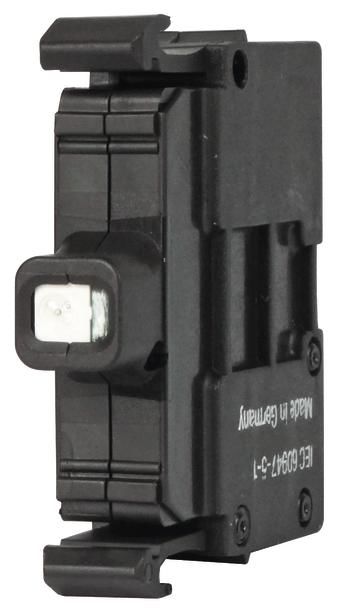

Eaton 218059 M22-LED230-B LED element blue front
|
18,14 EUR 18,90 EUR |
|||||||||||
|
( 21,59 EUR incl. VAT ) ≈ £15.18 | ≈ $19.94 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 730941 | ||||||||||
| Mfg Part No: | 218059 | ||||||||||
| UPC/EAN: | 4015082180591 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | M22-LED230-B | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 218059:
Applications
The LED element is designed for use in industrial control and switching systems where clear visual signaling of operating states, fault messages or readiness for operation is required. It is particularly suitable for installations in indoor environments, as the IP20 protection rating does not provide protection against moisture or dust. Front mounting allows for easy integration into standard socket or control panel enclosures, with the indicator directly integrated into the operating surface. The black color ensures a discreet yet clearly visible signal, especially when combined with other colored elements in an operating panel.
Functions and Equipment in Detail
The device operates as a purely visual signaling device without additional functions such as push-button functionality or integrated logic. The LED lights up when the operating voltage is applied and indicates the state of the connected circuit. The screw terminals enable a simple and secure connection with cables, with the maximum current consumption of 15 mA and power consumption of 0.33 W at 230 V indicating low thermal load. The rated operating voltage of 85 to 264 V AC makes the device universally usable in various mains voltage environments without requiring additional voltage converters or series components. The standard IEC 60947-5-1 ensures compliance with international standards for safety and reliability in electrical installations.
Technology Explained Simply
LED technology enables energy-efficient and long-lasting signal indication. Compared to conventional incandescent lamps, the LED element consumes significantly less energy and generates less heat. The IP20 protection rating protects the device against direct contact with fingers and larger foreign objects, but is not suitable for outdoor use or in damp environments. Front mounting is achieved through precise fitting into pre-cut openings in control panels or enclosures, with the screw terminals ensuring a secure electrical connection. The operating voltage of 85 to 264 V AC covers most industrial and commercial applications, with the power consumption of 0.33 W at 230 V representing a low load on the supply lines.
Compatibility and Accessories
The LED element M22-LED230-B is compatible with various accessories that extend its functionality. These include LED test elements such as the M22-XLED-T or M22-XLED230-T, which can be used to test the function of the LED indicator. Additionally, series components such as the M22-XLED220 (for 220 VDC) or the M22-XLED60 (for 42–60 V AC/DC) are available, which can be used with non-compatible voltages to operate the LED indicator. These accessories allow flexible adaptation to different electrical systems and operating conditions.
Mounting and Installation
Mounting is performed via front mounting into a suitable enclosure or control panel with a matching cutout. The screw terminals allow for a simple and secure connection with the supply cables. It is essential to ensure that the operating voltage remains within the permissible range of 85 to 264 V AC to guarantee proper function and safety. Installation typically requires no additional tools, with the electrical connection to be carried out in accordance with applicable regulations and standards. The IP20 protection rating requires the device to be installed in dry indoor environments to avoid damage from moisture or dust.
Advantages in Operation
The LED element provides a reliable and energy-efficient signal indication with low heat generation. The universal operating voltage of 85 to 264 V AC enables flexible integration into various electrical systems. The screw terminals ensure a secure and durable connection, while the IEC 60947-5-1 standard guarantees compliance with international safety standards. The front mounting and compact design facilitate integration into existing control systems and operating panels. The combination with suitable accessories extends the functionality and adaptability of the device to specific requirements.
| Features | |
| Product type | LED element |
| Product colour | Black |
| International Protection (IP) code | IP20 |
Questions & answers
What is the delivery time of Eaton 218059 M22-LED230-B LED element blue front ?
The article Eaton 218059 M22-LED230-B LED element blue front is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 218059 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 218059 M22-LED230-B LED element blue front always at the best possible price. We can give you a discount of 2% on Eaton 218059 M22-LED230-B LED element blue front if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Eaton 218059 M22-LED230-B LED element blue front we can offer you a price of 17,60 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
