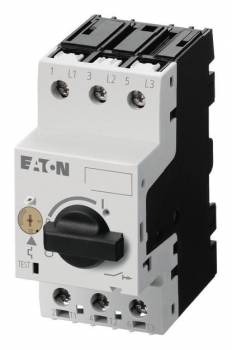

Eaton 088917 PKZM0-16-T transformer protection switch 16 A 3-pole
|
124,93 EUR |
|||||||||||
|
incl. 0,97 EUR copper surcharge ( 148,67 EUR incl. VAT ) ≈ £104.57 | ≈ $137.30 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 292735 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 088917 | ||||||||||
| UPC/EAN: | 4015080889175 | ||||||||||
| Weight: | 0.309 kg | ||||||||||
| Type: | PKZM0-16-T | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 088917:
Applications
The protection switch is primarily intended for use in industrial installations, such as in manufacturing technology, power supply systems, or building automation. It protects transformers, motors, or other electrical consumers against thermal overloads and sudden short circuits. The phase-loss sensitive design makes it particularly suitable for installations requiring continuous three-phase power supply, such as pumps, fans, or conveyor systems. The mounting dimensions of 45 mm allow for flexible integration into existing enclosures or new installations.
Functions and Equipment in Detail
The PKZM0-16-T features adjustable overload and instantaneous short-circuit tripping units, which can be adapted according to the load profile and network conditions. The overload tripping is thermal, with adjustability allowing adaptation to the rated current of the protected device. The instantaneous short-circuit tripping unit reacts immediately to a sudden current surge to prevent damage to the installation. The screw terminals ensure a secure and durable connection of the conductors, with mounting possible via either screw or snap-in methods. The mounting dimensions of 45 mm in cap height conform to the standard for size PKZM0, ensuring compatibility with other components and accessories.
Technology Explained Simply
The function of the protection switch is based on continuous monitoring of the current flow in the protected circuit. In case of an overload, i.e., when the current exceeds the permissible rated current for an extended period, the thermal tripping unit is activated and disconnects the circuit. In the event of a short circuit, i.e., a sudden, strong current surge, the magnetic tripping unit reacts immediately to prevent damage to the installation. The phase-loss sensitive design detects when one of the three phases in the three-phase system fails and disconnects accordingly to avoid unbalanced loading. The protection class IP20 means the switch is protected against contact with fingers and against ingress of solid foreign objects, but not against water or dust. The rated operational voltage of 690 V makes it suitable for applications in low-voltage networks, particularly in industrial environments.
Compatibility and Accessories
The protection switch can be extended with various accessories to integrate additional functions. These include auxiliary switches, which can be used for signaling or control, as well as voltage release units that react to under-voltage or over-voltage conditions. Accessories include, for example, normal auxiliary switches (e.g. NHI-E-11-PKZ0), under-voltage release units (e.g. U-PKZ0(208V60Hz)), insulating housing (e.g. E-PKZ0), and busbar adapters (e.g. BBA0R-25). These components can be added according to the requirements of the installation to extend the functionality of the protection switch. Mounting is on standard rails or in enclosures, with the cap height of 45 mm enabling standardization.
Mounting and Installation
Mounting of the PKZM0-16-T is done either by screw or snap-in method, with screw terminals used for connecting the conductors. The cap height of 45 mm allows for easy integration into existing enclosures or new installations. The mounting dimensions conform to the standard for size PKZM0, ensuring compatibility with other components and accessories. Installation is carried out in a closed enclosure, with the protection class IP20 ensuring safety against contact. Wiring is done via the screw terminals, with polarity and current rating adjusted according to the requirements of the installation.
Advantages in Operation
The use of the PKZM0-16-T provides reliable protection for transformers and other electrical loads. The adjustable overload and short-circuit tripping units allow individual adaptation to the specific conditions of the installation. The phase-loss sensitive design protects against unbalanced loading, which can cause damage. Mounting is simple and can be done via either screw or snap-in methods, speeding up installation. Compatibility with various accessories extends functionality and allows flexible adaptation to different requirements. The protection class IP20 ensures safe and reliable operation in closed enclosures.
| General | |
| Degree of protection | IP20 |
| Rated operating voltage | 690 V |
| Number of poles | 3 way |
| Construction size | PKZM0 |
| Trigger | adjustable overload and instantaneous short-circuit tripping units |
| Mounting method | screw and snap mounting |
| Terminal type | Screw terminals |
| Cap height | 45 mm |
| Norm | IEC/EN60947 |
| Accessories | auxiliary switch, voltage release |
| Phase failure sensitive | |
| Finger-safe | |
Questions & answers
What is the delivery time of Eaton 088917 PKZM0-16-T transformer protection switch 16 A 3-pole ?
The article Eaton 088917 PKZM0-16-T transformer protection switch 16 A 3-pole is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 088917 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 088917 PKZM0-16-T transformer protection switch 16 A 3-pole always at the best possible price. We can give you a discount of 2% on Eaton 088917 PKZM0-16-T transformer protection switch 16 A 3-pole if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 088917 PKZM0-16-T transformer protection switch 16 A 3-pole we can offer you a price of 121,21 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
