Eaton 288791 Z-SS-60-ADD/6-54 double adapter

Your rating:
Average rating
product review for Eaton 288791 Z-SS-60-ADD/6-54 double adapter
( 4.4 / 5 ) 7 ratings

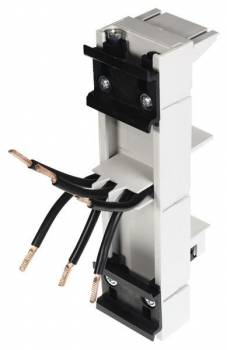

Eaton 288791
This image may differ from the desired article.
Eaton 288791Eaton 288791
64,01 EUR 66,71 EUR
( 76,17 EUR incl. VAT )
≈ £53.58  |  ≈ $70.35
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Eaton 288791 Z-SS-60-ADD/6-54 double adapter
Lieske Part No.:313893
Mfg Part No: 288791
UPC/EAN: 4015082887919
Weight:0.386 kg
Type:Z-SS-60-ADD/6-54
Graduated prices net
From piecesPrice per pieces
662,09 EUR
1260,17 EUR
2458,25 EUR
3656,33 EUR

Product information for Eaton 288791:

The double adapter Z-SS-60-ADD/6-54 from Eaton is a component for mounting in enclosures in the 60-mm system. It is used for securing fuse devices or other DIN-mountable components to busbars and enables flexible, adjustable mounting. The adapter is specifically designed for central feeding, supporting a cable cross-section of 6 mm² per phase. The rated current is 32 A, making it suitable for typical distribution tasks in industrial and commercial electrical installations. The width of the adapter is 54 mm, corresponding to a mounting width of 3 TE (separation units). It is designed for busbars with cross-sections from 12 x 5/10 to 30 x 5/10 mm, providing broad compatibility with various busbar profiles.

Applications

The double adapter is used in enclosures where secure and stable mounting of fuse devices or other DIN-compatible components is required. It is particularly suitable for installations where central feeding of phases is planned, for example in distributors for lighting, machine controls, or small consumers. The adjustable mounting allows precise alignment of devices, which is advantageous when installing multiple components in close proximity. Its use in 60-mm systems makes it a standard component in modern enclosure constructions.

Functions and Equipment in Detail

The adapter features two support rails arranged in parallel, ensuring secure mounting of installed devices. The adjustable mounting allows positioning adjustment to achieve optimal alignment and mechanical stability. Central feeding per phase with a cable cross-section of 6 mm² ensures sufficient current transfer and minimizes thermal stress. The rated current of 32 A is sufficient for most applications in the field of power distribution. The width of 54 mm corresponds to 3 TE, enabling standardization within the 60-mm system.

Technology Explained Simply

The construction of the double adapter takes into account requirements for mechanical stability and electrical conductivity. The support rails are designed to withstand the mechanical load of mounted devices while ensuring a secure electrical connection. The adjustable mounting allows fine-tuning of position, which is helpful when installing multiple components to achieve even distribution and avoid stress. Central feeding per phase ensures that current is supplied at the center of the rail, supporting even current distribution along the rail. Compatibility with busbars from 12 x 5/10 to 30 x 5/10 mm enables use in various enclosure configurations.

Compatibility and Accessories

The double adapter is designed for use in 60-mm systems and is compatible with busbars in the cross-section range of 12 x 5/10 to 30 x 5/10 mm. It is suitable, for example, for DIN fuse devices mounted in enclosures. Use with other DIN-compatible components is also possible, provided mechanical and electrical requirements are met. The width of 54 mm (3 TE) enables standard mounting in enclosures constructed according to DIN standards.

Mounting and Installation

Mounting is done by securing to the busbar, with the adjustable support rails enabling precise positioning. Central feeding requires corresponding connection routing, using cables with a cross-section of 6 mm². Installation is carried out in enclosures designed for the 60-mm system. Mechanical stability is ensured by the parallel arrangement of the support rails. Mounting is possible without additional tools, provided the enclosure construction offers the necessary mounting options.

Advantages in Operation

The double adapter provides reliable and stable mounting for DIN-compatible components. The adjustable mounting enables precise alignment, increasing mounting efficiency. Central feeding per phase ensures even current distribution, reducing thermal stress. Compatibility with various busbar profiles increases flexibility in planning and installing enclosures. The rated current of 32 A is sufficient for most applications in power distribution, making the adapter suitable for use in many industrial and commercial installations.

General
Product typedouble adapter for busbars
System width60 mm
TE width3
Number of busbars2
Power supply systemcentral feed per phase
Cable cross-section6 mm²
Rated current32 A
Compatibility with busbars12 x 5/10 to 30 x 5/10 mm
Application exampleDIN fuse devices
AdjustableYes


Questions & answers

What is the delivery time of Eaton 288791 Z-SS-60-ADD/6-54 double adapter ?

The article Eaton 288791 Z-SS-60-ADD/6-54 double adapter is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 288791 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Eaton 288791 Z-SS-60-ADD/6-54 double adapter always at the best possible price. We can give you a discount of 2% on Eaton 288791 Z-SS-60-ADD/6-54 double adapter if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 288791 Z-SS-60-ADD/6-54 double adapter we can offer you a price of 62,09 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
