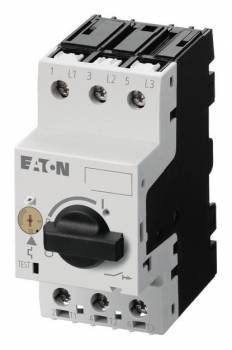

Eaton 046988 PKZM0-20 16...20A 3-pole motor protection switch
|
126,18 EUR |
|||||||||||
|
incl. 0,97 EUR copper surcharge ( 150,15 EUR incl. VAT ) ≈ £105.61 | ≈ $138.67 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 441464 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 046988 | ||||||||||
| UPC/EAN: | 4015080469889 | ||||||||||
| Weight: | 0.5 kg | ||||||||||
| Type: | PKZM0-20 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 046988:
Applications
The PKZM0-20 is used in industrial electrical installations where electric motors must be protected against overload and short circuit. It is particularly suitable for applications in manufacturing, processing industries, and other areas where three-phase motors are in operation. The phase-loss sensitive design also makes it appropriate for applications where uneven voltage supply or phase failure could lead to serious consequences. The screw and snap mounting options allow for flexible installation, with screw terminals ensuring a secure and durable connection.
Functions and Equipment in Detail
The switch features adjustable overload and instantaneous short-circuit tripping units, allowing it to be adapted to the specific requirements of the motor being protected. The adjustable overload tripping enables precise adjustment to the motor’s rated current, with a setting range of 16 to 20 A. The instantaneous short-circuit tripping unit responds immediately to a short circuit to prevent damage to the installation. The mounting dimensions of 45 mm in cap height correspond to the standard for size PKZM0, enabling compatible installation in existing control systems. Compliance with VDE 0106 T. 100 ensures finger-safe construction, enhancing safety during maintenance and servicing.
Technology Explained Simply
The motor protection switch operates as a mechanical switch that interrupts the circuit when an overload or short circuit is detected. The overload tripping is triggered by a thermal or electromechanical sensor that measures current and activates the switch when the set threshold is exceeded. The instantaneous short-circuit tripping responds to sudden, high current surges typical of short circuits. The phase-loss sensitive design monitors voltage in all three phases and trips if any phase fails. The IP20 protection rating means the switch is protected against contact with fingers and against entry of solid foreign objects, but not against water or dust.
Compatibility and Accessories
Various accessories are available for the PKZM0-20 motor protection switch to extend its functionality. These include auxiliary switches such as the NHI12-PKZ0 (1S2Ö) or NHI21-PKZ0 (2S1Ö), which can be used for additional control and signaling tasks. Undervoltage release units like the U-PKZ0(24VDC) or U-PKZ0(230V50Hz) enable automatic disconnection during voltage drop. Insulating housing units such as CI-K2-PKZ0-GRV or CI-PKZ0-GRM offer additional protection and are suitable for assembly. Other components such as the B3.0/2-PKZ0 three-phase busbar block or the PKZM0-XC45L DIN rail adapter plate support mounting and integration into existing control systems. The use of these accessories expands the switch’s application possibilities and allows for individual adaptation to specific installations.
Mounting and Installation
Mounting is performed via screw or snap mounting, with screw terminals ensuring a secure connection. The cap height of 45 mm allows installation in standard control panels. Compliance with VDE 0106 T. 100 ensures finger-safe construction, making mounting and maintenance safer. The use of accessories such as DIN rail adapters or busbar adapters facilitates integration into existing control systems. Installation is typically carried out by qualified personnel who comply with electrical regulations and safety requirements.
Advantages in Operation
The PKZM0-20 provides reliable protection for electric motors through the combination of adjustable overload and instantaneous short-circuit tripping. The phase-loss sensitive design increases safety in three-phase installations. The IP20 protection rating and finger-safe construction in accordance with VDE 0106 T. 100 ensure safe operation and maintenance. Compatibility with various accessories allows flexible adaptation to different requirements. Mounting is simple and performed via screw or snap mounting, facilitating installation in existing systems.
Motor protection switch, IEC/EN60947, IP20, phase-loss sensitive, screw terminals, size PKZM0
| General | |
| Degree of protection | IP20 |
| Rated operating voltage | 690 V |
| Number of poles | 3 |
| Construction size | PKZM0 |
| Overload release | Adjustable |
| Short-circuit tripping | Undelayed |
| Installation dimension cap height | 45 mm |
| Mounting method | screw and snap mounting |
| Terminal type | Screw terminals |
| Norm | IEC/EN60947 |
| Finger-safe | according to VDE 0106 T. 100 |
| Adjustable range of overload release | 16-20 A |
| Phase failure sensitive | |
Questions & answers
What is the delivery time of Eaton 046988 PKZM0-20 16...20A 3-pole motor protection switch ?
The article Eaton 046988 PKZM0-20 16...20A 3-pole motor protection switch is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 046988 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 046988 PKZM0-20 16...20A 3-pole motor protection switch always at the best possible price. We can give you a discount of 2% on Eaton 046988 PKZM0-20 16...20A 3-pole motor protection switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 046988 PKZM0-20 16...20A 3-pole motor protection switch we can offer you a price of 121,48 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
