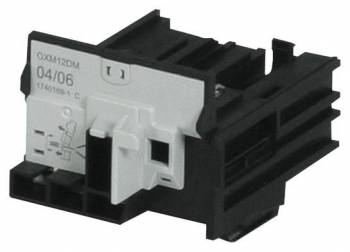

Eaton 112118 PKZM0-XM12DM mechanical connection assembly DS for DILM7..M15
|
518,30 EUR 540,12 EUR |
|||||||||||
|
( 616,78 EUR incl. VAT ) ≈ £433.82 | ≈ $569.61 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 126 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 244551 | ||||||||||
| Mfg Part No: | 112118 | ||||||||||
| UPC/EAN: | 4015081116782 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | PKZM0-XM12DM | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 112118:
Applications
The PKZM0-XM12DM is used in industrial installations where motor protection switches and contactors must be mechanically coupled to safely control the operation of electric motors. This includes applications in the manufacturing industry, packaging industry, or in plants with automated processes, where the mechanical feedback from the motor protection switch must be transmitted to the contactor. The connection is achieved via a straight design, enabling a direct, positive mechanical connection.
Functions and Equipment in Detail
The connection component is designed for use with the contactor type DILM7-M15. It transmits the mechanical actuation of the motor protection switch to the contactor, so that in the event of a protective trip (e.g. overload or short circuit), the contactor automatically switches off. This ensures safe disconnection of the motor and prevents damage to the installation. The color scheme in black and grey corresponds to standard industrial component color codes and allows for visual integration into existing control panels.
Technology Explained Simply
The component operates purely mechanically, without any electrical or electronic components. It is mounted between the PKZM0 motor protection switch and the DILM7-M15 contactor, directly transferring the switch’s movement to the contactor. The rated current of 15.5 A refers to the maximum permissible current for which the connection component is designed, ensuring stable operation under specified operating conditions. The straight shape of the component allows for simple and precise installation without additional angular or rotational components.
Compatibility and Accessories
The PKZM0-XM12DM is specifically intended for use with the contactor DILM7-M15. It is not a universal connection element, but a component specifically matched to this series. Compatibility is confirmed by the manufacturer, and no additional accessories or adapters are required. The connection is made directly through the mechanical connection points of the involved components.
t
Installation and Mounting
Mounting is achieved by mechanically connecting the PKZM0 motor protection switch and the DILM7-M15 contactor. The component is inserted into the designated connection points and locks into place by its shape. No additional tools or mounting aids are required. Installation typically takes place during the assembly of the entire control panel and is part of the mechanical coordination between protection and control components.
Advantages in Operation
Using the PKZM0-XM12DM ensures a reliable mechanical coupling, directly transferring the function of the motor protection switch to the contactor. This reduces failure risks associated with electrical signals and ensures fast, mechanically secured disconnection in the event of a protective trip. Compliance with standards IEC60947-4-1, UL 508, and CSA-C22.2 No. 14 confirms adherence to international safety and quality standards. The CE certification and conformity certificate E36332 further confirm suitability for use in industrial installations. Sustainability compliance is also confirmed, highlighting the environmental compatibility of the product.
The item price shown refers to 126 pieces Eaton 112118
| Certificates | |
| Certification | UL 508; CSA-C22.2 No. 14; IEC60947-4-1 E36332 UL, CSA |
| Features | |
| Connector type | Straight |
| Rated current | 15.5 A |
| Product colour | Black, Grey |
| Compatible products | DILM7-M15 |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Compliance certificates | CE |
| Sustainability compliance | |
Questions & answers
What is the delivery time of Eaton 112118 PKZM0-XM12DM mechanical connection assembly DS for DILM7..M15 ?
The article Eaton 112118 PKZM0-XM12DM mechanical connection assembly DS for DILM7..M15 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 112118 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 112118 PKZM0-XM12DM mechanical connection assembly DS for DILM7..M15 always at the best possible price. We can give you a discount of 2% on Eaton 112118 PKZM0-XM12DM mechanical connection assembly DS for DILM7..M15 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Eaton 112118 PKZM0-XM12DM mechanical connection assembly DS for DILM7..M15 we can offer you a price of 502,75 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 112118 PKZM0-XM12DM mechanical connection assembly DS for DILM7..M15 is offered by us in a sales unit of 126 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
