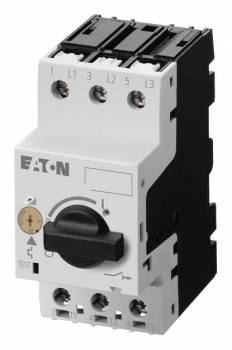

Eaton 088916 PKZM0-10-T transformer protection switch 10 A 3-pole
|
121,94 EUR |
|||||||||||
|
incl. 0,96 EUR copper surcharge ( 145,11 EUR incl. VAT ) ≈ £102.06 | ≈ $134.01 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 302704 | ||||||||||
| Mfg Part No: | 088916 | ||||||||||
| UPC/EAN: | 4015080889168 | ||||||||||
| Weight: | 0.306 kg | ||||||||||
| Type: | PKZM0-10-T | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 088916:
Applications
This protection switch is intended for use in industrial and commercial electrical installations, particularly in systems with three-phase motors or transformers. It is mounted in enclosures and distribution boards where reliable protection against overload and short circuit is required. The phase-loss-sensitive design makes it especially suitable for applications where a phase failure could cause damage or downtime. The screw and snap-in mounting options allow for flexible installation in various control panel configurations.
Functions and Equipment in Detail
The switch features adjustable overload tripping units that can be adapted according to the load profile of the connected motor. The instantaneous short-circuit tripping unit responds immediately to sudden current surges to prevent damage to the system. The phase-loss-sensitive function detects when one of the three phases fails and trips the switch to protect the motor or load from damage. The screw terminals ensure a mechanically stable and electrically reliable connection. Mounting is possible either by screws or by snap-in fastening, which simplifies installation in existing control panels. The cap mounting dimension of 4л mm corresponds to the standard for this size and enables compatibility with other components.
Technology Explained Simply
The motor protection switch operates on the principle of thermal and magnetic tripping. The thermal tripping is achieved via a bimetal strip that heats up under sustained overload and triggers the switch to trip. The magnetic tripping responds to sudden current surges, such as those occurring during short circuits, and trips immediately. The phase-loss-sensitive design detects when one of the three phases in the three-phase system fails, which can lead to uneven loading and overheating. The protection class IP20 means the switch is protected against finger contact and solid foreign objects, but not against water or dust. The rated operating voltage of 690 V makes it suitable for applications in medium voltage ranges. The operating temperature range of -25 °C to 55 °C allows use in a wide variety of environments, including climatically demanding industrial facilities.
Compatibility and Accessories
Various accessories are available for this protection switch to extend its functionality. These include undervoltage release units such as U-PKZ0(24V50Hz) or U-PKZ0(230V50HZ)-PI, which trip the switch during voltage dips. Load current release units such as A-PKZ0(24VDC) or A-PKZ0(400V50Hz) enable control via external signals. Auxiliary switches such as NHI11-PKZ0-PI or NHI12-PKZ0 are used for signal transmission and status indication. Insulating housing units such as CI-PKZ0-GVM or CI-K2-PKZ0 offer additional protection and better insulation. Rotary handles such as AK-PKZ0 or door coupling handles such as PKZ0-XRH allow for safe and controlled operation. DIN rail adapter plates such as PKZM0-XC45L/2 or three-phase rail blocks such as B3.0/2-PKZ0 facilitate mounting in standard control panels. The support rail PKZM0-XMR supports mounting in enclosures.
Mounting and Installation
Mounting is performed either by screw or snap-in installation, with screw terminals ensuring a secure electrical connection. The cap mounting dimension of 45 mm corresponds to the standard for size PKZM0 and enables integration into existing control panels. Screw mounting provides a firm fixation, while snap-in mounting allows for faster installation. The use of accessories such as DIN rail adapters or three-phase rail blocks can facilitate mounting in specific control panel configurations. Compliance with VDE 0106 T. 100 ensures finger safety, which is important during installation and maintenance.
Operational Advantages
The protection switch provides reliable protection against overload and short circuit, thereby extending the service life of connected motors and transformers. The phase-loss-sensitive design protects against damage caused by uneven loading. The adjustable tripping units allow adaptation to specific load profiles, increasing the efficiency of the system. The screw terminals ensure a stable connection, and the mounting options offer flexibility during installation. Compatibility with various accessories extends functionality and allows individual adaptation to the requirements of specific installations. The operating temperature range of -25 °C to 55 °C makes the switch suitable for a wide range of operating conditions.
| Features | |
| Circuit breaker type | Motor protective circuit breaker |
| Number of poles | 3 |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | -25 - 55 °C |
| Power | |
| Rated current | 10 A |
Questions & answers
What is the delivery time of Eaton 088916 PKZM0-10-T transformer protection switch 10 A 3-pole ?
The article Eaton 088916 PKZM0-10-T transformer protection switch 10 A 3-pole is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 088916 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 088916 PKZM0-10-T transformer protection switch 10 A 3-pole always at the best possible price. We can give you a discount of 2% on Eaton 088916 PKZM0-10-T transformer protection switch 10 A 3-pole if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Eaton 088916 PKZM0-10-T transformer protection switch 10 A 3-pole we can offer you a price of 118,31 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
