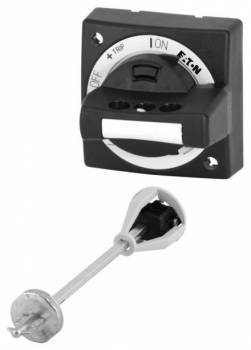

Eaton 106136 PKZ0-XH-MCC door coupling handle for MCC-V. 90° rotated
|
70,05 EUR 73,00 EUR |
|||||||||||
|
( 83,36 EUR incl. VAT ) ≈ £58.63 | ≈ $76.98 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 202087 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 106136 | ||||||||||
| UPC/EAN: | 4015081059065 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
| Type: | PKZ0-XH-MCC | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 106136:
Applications
The door interlock handle is primarily intended for use in industrial electrical installations, particularly in motor control centres (MCC). It is used where mechanical interlocking of the door with the switch position is required to ensure safety during maintenance work or commissioning. The EN 60204 standard specifies requirements for electrical equipment of machines, making the handle suitable for installations complying with these guidelines. It is specifically designed for use in combination with the PKZM0 switch, which is installed in a 90° rotated position.
Functions and Equipment in Detail
The handle performs the function of a mechanical door lock linked to the switch position. This ensures that the door can only be opened when the switch is in the off position, providing a safe working environment. The use of the handle is limited to switch types PKZM0 and PKZM4, with compatibility with the PKZM0 being the primary focus. The black colour is standard and matches the typical colour scheme of industrial control systems.
Technology Explained Simply
The door interlock handle operates mechanically and is not electrically powered. It is mounted on the PKZM0 switch, which is installed rotated by 90° in the MCC distributor. The rotation of the switch allows for optimal positioning and operation within the distributor. The handle mechanically locks the door, allowing it to be opened only when the switch is in the off position. This complies with the requirements of the EN 60204 standard, which regulates safety-related functions in machine control systems.
Compatibility and Accessories
The handle is specifically designed for use with the PKZM0 switch type, installed rotated by 90°. Additionally, it is also compatible with the PKZM4 switch type. It is a pure accessory and does not function as an independent switch, but instead provides the safety function of the door lock. Use is restricted to MCC distributors constructed in accordance with EN 60204.
Mounting and Installation
Installation is carried out directly on the PKZM0 switch, which is already installed rotated by 90° in the distributor chamber. The handle is mounted onto the switch, with the mechanical interlock connected to the distributor door. Installation requires no additional tools or components beyond those already present in the distributor.
Advantages in Operation
The use of the door interlock handle ensures safe operation of the control system, as the door can only be opened when the switch is turned off. This reduces the risk of accidents during maintenance work. The mechanical interlock is robust and does not require electrical power, increasing reliability. Compatibility with switch types PKZM0 and PKZM4 enables flexible use in various system configurations.
| General | |
| Product type | door coupling handle |
| Manufacturer | Eaton |
| Insert | as main switch according to EN 60204 in MCC distribution boards |
| Compatibility | For PKZM0, PKZM4 |
| Mounting position | mounted at 90° with PKZM0 |
| Colour | Black |
| Norm | EN 60204 |
