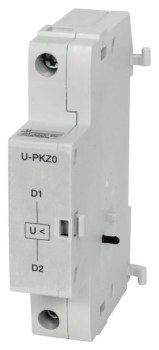

Eaton 073132 U-PKZ0(110V50Hz) undervoltage release instantaneous
|
94,56 EUR 98,09 EUR |
|||||||||||
|
incl. 0,43 EUR copper surcharge ( 112,53 EUR incl. VAT ) ≈ £79.15 | ≈ $103.92 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 2 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 226781 | ||||||||||
| Mfg Part No: | 073132 | ||||||||||
| UPC/EAN: | 4015080731320 | ||||||||||
| Weight: | 0.292 kg | ||||||||||
| Type: | U-PKZ0(110V50HZ) | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Eaton 073132:
Undervoltage release is the central product type described here. This component is used in electrical switchgear to enhance operational safety, particularly in systems that require a constant voltage supply. The release operates without delay, meaning that as soon as the voltage drops below the defined minimum level, the circuit breaker opens immediately. This is especially important in installations where uncontrolled operation under voltage deficiency could lead to mechanical or electrical damage.
Compatible products are the Eaton PKZ(M)0 circuit breakers, for which this release was specifically developed. The mechanical and electrical fit is designed so that the undervoltage release can be directly integrated into the circuit breaker without requiring additional adapters or modifications. Usage is therefore limited to this size, enabling safe and standardized installation.
Technology explained simply refers to the device’s operation: The release is powered by a supply voltage of 110 V, commonly found in industrial 50 Hz networks. The voltage is supplied via the network or a separate power line. When the voltage drops below the threshold, the integrated mechanism activates, opening the circuit breaker. Cable cross-sections of 0.75 to 2.5 mm² allow flexible wiring with common conductors used in industrial electrical installations. The white color is typical for industrial components and supports visual identification in the enclosure.
Certification includes standards UL 508, CSA-C22.2 No. 14, IEC60947-4-1, and CE marking. These certifications confirm that the device meets international requirements for safety, reliability, and functionality in electrical switchgear. The IEC60947-4-1 standard pertains to requirements for circuit breakers and their auxiliary components, ensuring suitability for industrial applications.
Operational advantages include high reliability and precise response to voltage dips. The immediate release minimizes the risk of motor damage or malfunction in the system. Integration into existing PKZ(M)0 circuit breakers requires no additional effort, simplifying maintenance and replacement. The use of standardized cable cross-sections and compliance with international standards ensures broad compatibility in various application environments.
Mounting and installation is performed directly into the motor protection circuit breaker of size PKZ(M)0. No additional tools or special mounting aids are required. Installation is typically carried out by qualified personnel in the field of electrical installation.
Applications include industrial systems such as machine controls, pumps, fans, or conveyor systems, where constant voltage supply is essential for safe operation. The device is particularly suitable for environments where voltage dips may occur due to network disturbances, load fluctuations, or other factors. Certification to IEC60947-4-1 and CE makes the release suitable for use in the EU and other regions with corresponding standards.
Compatibility and accessories refers exclusively to use with Eaton PKZ(M)0 circuit breakers. Usage is limited to this size, and no further combination options or additional components are described.
Functions and equipment in detail include immediate release upon undervoltage, operating voltage of 110 V, compatibility with PKZ(M)0 circuit breakers, certification to UL 508, CSA-C22.2 No. 14, IEC60947-4-1, and CE, as well as cable cross-sections of 0.75 to 2.5 mm². The white color supports optical recognition in the enclosure.
The item price shown refers to 2 pieces Eaton 073132
| Features | |
| Product type | Undervoltage release |
| Compatible products | Eaton PKZ(M)0 |
| Certification | UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE |
| Supply voltage | 110 V |
| Product colour | White |
| Cable section | 0.75 - 2.5 mm² |
Questions & answers
What is the delivery time of Eaton 073132 U-PKZ0(110V50Hz) undervoltage release instantaneous ?
The article Eaton 073132 U-PKZ0(110V50Hz) undervoltage release instantaneous is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Eaton 073132 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Eaton 073132 U-PKZ0(110V50Hz) undervoltage release instantaneous always at the best possible price. We can give you a discount of 2% on Eaton 073132 U-PKZ0(110V50Hz) undervoltage release instantaneous if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Eaton 073132 U-PKZ0(110V50Hz) undervoltage release instantaneous we can offer you a price of 91,74 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Eaton 073132 U-PKZ0(110V50Hz) undervoltage release instantaneous is offered by us in a sales unit of 2 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
