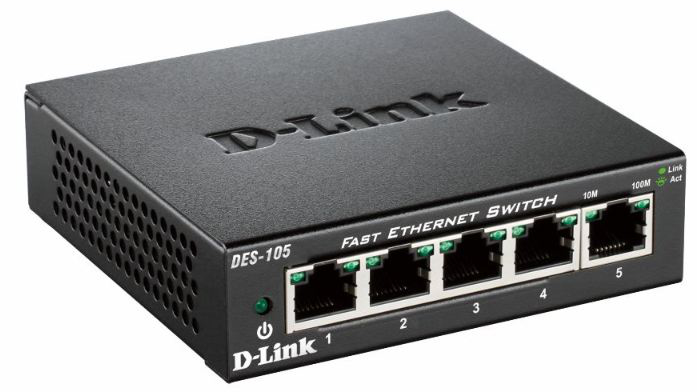

D-Link DES-105 5 Ports Ethernet Switch - 5 x Network (RJ-45) Ports - 10/100Base-TX - 5 x Network
|
20,43 EUR |
|||||||||||
|
( 24,31 EUR incl. VAT ) ≈ £17.37 | ≈ $22.94 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| End-Of-Life: | 16. Sep 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 545279 | ||||||||||
| Mfg Part No: | DES-105/E | ||||||||||
| UPC/EAN: | 0790069368189 | ||||||||||
| Weight: | 0.48 kg | ||||||||||
| Type: | DES-105/E | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for D-Link DES-105/E:
Highlights
- Plug and play functionality
- 5 Fast Ethernet ports
- Non-blocking architecture: Full speed on all ports - Fanless
- Depth: 98 mm
- Weight: 265 g
- Quality of Service (QoS)
- Sturdy metal housing
- D-Link Green ™ technology
Switch
- 5 copper ports 10/100Basic Properties
- Color: Black- Width: 100 mm
- Height: 28 mm
Technical Description
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- ANSI / IEEE 802.3 Nway auto-negotiation
- IEEE 802.3x flow control
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- MAC address table: 1K
- Auto MDI / MDIX crossover for all ports
- store-and-forward switching scheme
- Full / half-duplex for Ethernet / Fast Ethernet speeds
- Jumbo frames: 1536 bytes
- 1.0 Gbps
In the Box
- Switch- Power supply
- Documentation
| Certificates | |
| Certification | RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB |
| Data transmission | |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 1 Gbit/s |
| MAC address table | 2000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.384 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link, Power |
| Rack mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Other features | |
| Data transfer rate | 200 Mbit/s |
| Dimensions (WxDxH) | 100 x 98 x 28 mm |
| Connectivity technology | Wired |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 220 mm |
| Package height | 62 mm |
| Package weight | 450 g |
| Performance | |
| Mean time between failures (MTBF) | 495709 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Power connector | DC-in jack |
| Power | |
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 1.9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| MAC address filtering | |
| Technical details | |
| Shipping (inner) case height | 36.6 cm |
| Shipping (inner) case width | 23 cm |
| Shipping (inner) case length | 33.5 cm |
| Shipping (inner) case net weight | 4.5 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 434 kg |
| Master (outer) cases per pallet (air) | 75 pc(s) |
| Products per pallet (air) | 750 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 2.04 m |
| Pallet gross weight (sea) | 434 kg |
| Master (outer) cases per pallet (sea) | 75 pc(s) |
| Products per pallet (sea) | 750 pc(s) |
| Pallet height (sea) | 2.04 m |
| Shipping (inner) case gross weight | 5.5 kg |
| Weight & dimensions | |
| Weight | 265 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of D-Link DES-105 5 Ports Ethernet Switch - 5 x Network (RJ-45) Ports - 10/100Base-TX - 5 x Network?
The article D-Link DES-105 5 Ports Ethernet Switch - 5 x Network (RJ-45) Ports - 10/100Base-TX - 5 x Network is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of D-Link DES-105/E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you D-Link DES-105 5 Ports Ethernet Switch - 5 x Network (RJ-45) Ports - 10/100Base-TX - 5 x Network always at the best possible price. We can give you a discount of 2% on D-Link DES-105 5 Ports Ethernet Switch - 5 x Network (RJ-45) Ports - 10/100Base-TX - 5 x Network if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of D-Link DES-105 5 Ports Ethernet Switch - 5 x Network (RJ-45) Ports - 10/100Base-TX - 5 x Network we can offer you a price of 20,12 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
