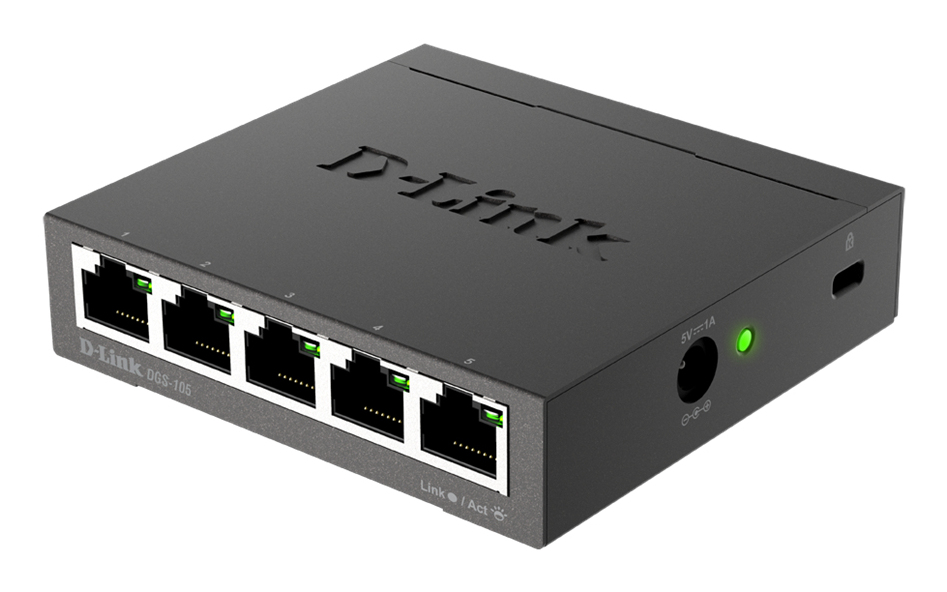

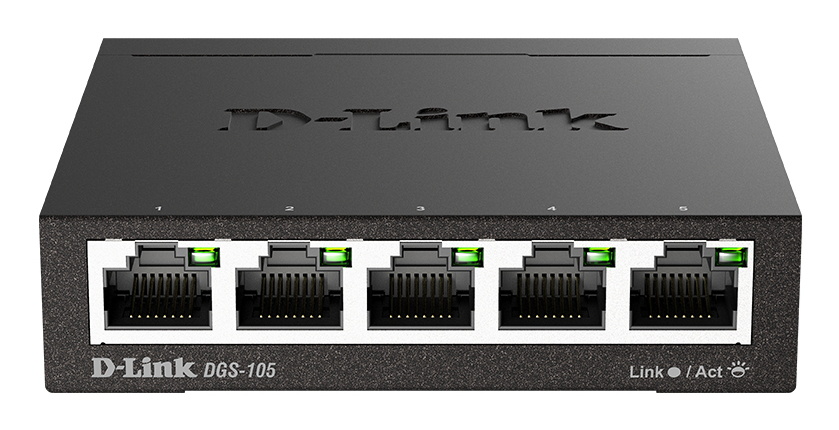

D-Link Switch DGS-105 5xGBit Unmanaged
|
23,95 EUR 25,03 EUR |
|
|
( 28,50 EUR incl. VAT ) ≈ £20.36 | ≈ $26.90 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 25. Sep 2026 |
|---|---|
| Lieske Part No.: | 506943 |
| Mfg Part No: | DGS-105/E |
| UPC/EAN: | 0790069368226 |
| Weight: | 0.585 kg |
| Type: | DGS-105/E |
Product information for D-Link DGS-105/E:
This compact switch offers eight plug <Play connections to small offices, workgroups and departmental networks with 10/100/1000 Mbit / s The Gigabit Switch comes without a fan, making it ideal for use at the workplace appropriate.
- Width: 100 mm
- Height: 28 mm
Highlights
- Simple plug-Quality of Service for traffic prioritization
- In full duplex mode up to 2000Mbit / s per port
- Works silently through a fanless design
- energy-saving features with D-Link Green
- Compatible with IEEE 802.3az EEE (Energy Efficient Ethernet)
- Robust metal housing protects against damage
- Supplied with wall mounting kit and Kensington Security Slot
Switch
- 4-port 10/100/1000 copperBasic Properties
- Color: Black- Width: 100 mm
- Height: 28 mm
- Depth: 98 mm
- Weight: 286 kg
| Certificates | |
| Certification | FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS |
| Data transmission | |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.128 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Other features | |
| Data transfer rate | 2000 Mbit/s |
| Dimensions (WxDxH) | 100 x 98 x 28 mm |
| Connectivity technology | Wired |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 220 mm |
| Package height | 62 mm |
| Package weight | 450 g |
| Performance | |
| Mean time between failures (MTBF) | 1688338 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Power | |
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 2.1 W |
| Security | |
| MAC address filtering | |
| Technical details | |
| Shipping (inner) case height | 36.6 cm |
| Shipping (inner) case width | 23 cm |
| Shipping (inner) case length | 33.5 cm |
| Shipping (inner) case net weight | 5 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 439.8 kg |
| Master (outer) cases per pallet (air) | 75 pc(s) |
| Products per pallet (air) | 750 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 2.04 m |
| Pallet gross weight (sea) | 439.8 kg |
| Master (outer) cases per pallet (sea) | 75 pc(s) |
| Products per pallet (sea) | 750 pc(s) |
| Pallet height (sea) | 2.04 m |
| Shipping (inner) case gross weight | 5.53 kg |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 28 mm |
| Weight | 267 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of D-Link Switch DGS-105 5xGBit Unmanaged?
The article D-Link Switch DGS-105 5xGBit Unmanaged is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of D-Link DGS-105/E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you D-Link Switch DGS-105 5xGBit Unmanaged always at the best possible price. We can give you a discount of 2% on D-Link Switch DGS-105 5xGBit Unmanaged if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
