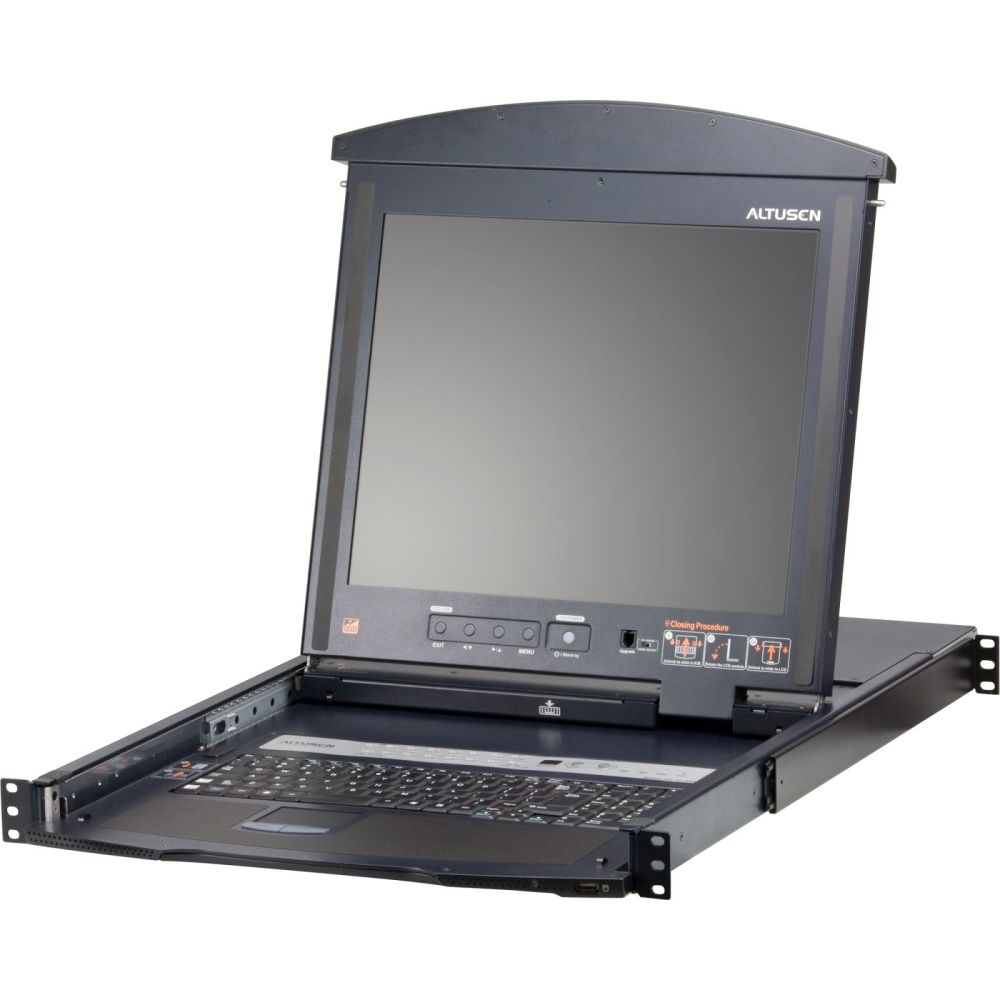

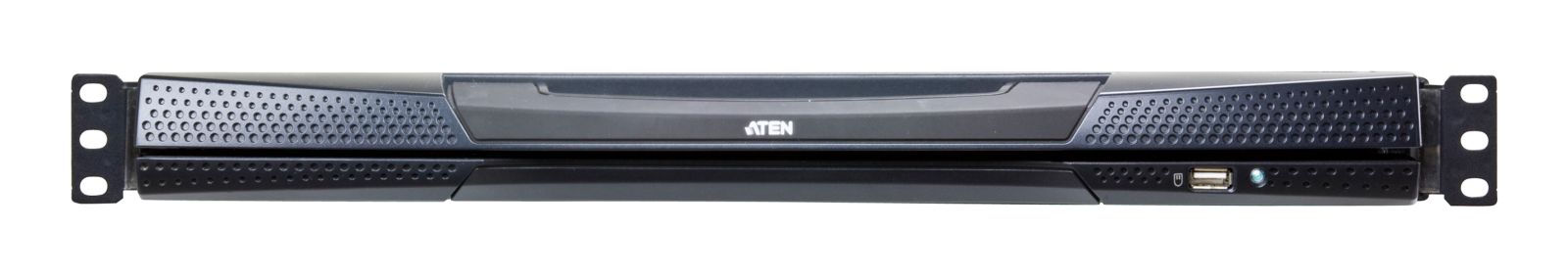

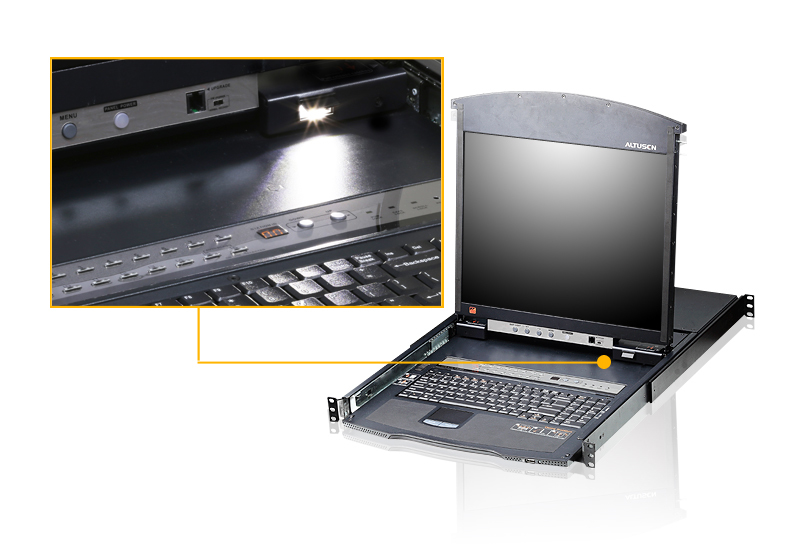

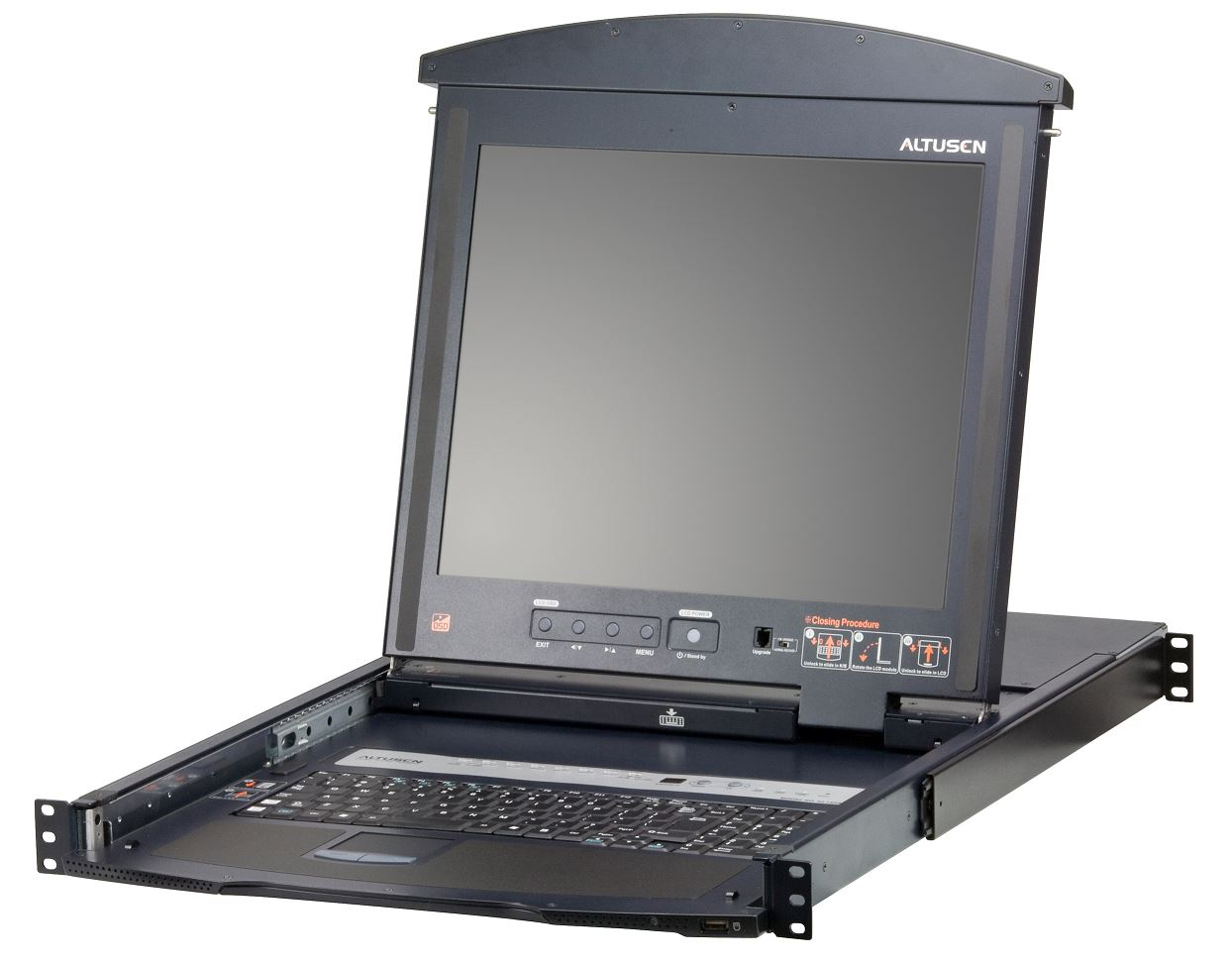

Aten KL1516AM
KVM / TFT 16x, 19 1U, incl.KVM / TFT 17, German
|
-9% 1.343,14 EUR 1.473,01 EUR |
|
|
( 1.598,34 EUR incl. VAT ) ≈ £1,130.92 | ≈ $1,508.35 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 424377 |
| Mfg Part No: | KL1516AM |
| UPC/EAN: | 4710469344107 |
| Weight: | 19.123 kg |
Further Racksystems 31+HE from AtenFurther products in category Racksystems 31+HE
All products of Aten
Product information for Aten KL1516AM:
Aten KVM / TFT 16x, 19 1U, incl.KVM / TFT 17, German,
- on order *, Black, 43,2 cm ( 17 inch )LCD: 1280 x 1024 @ 75Hz, daisy chain port (up to 512 PC)
incl. Power supply 220V AC,

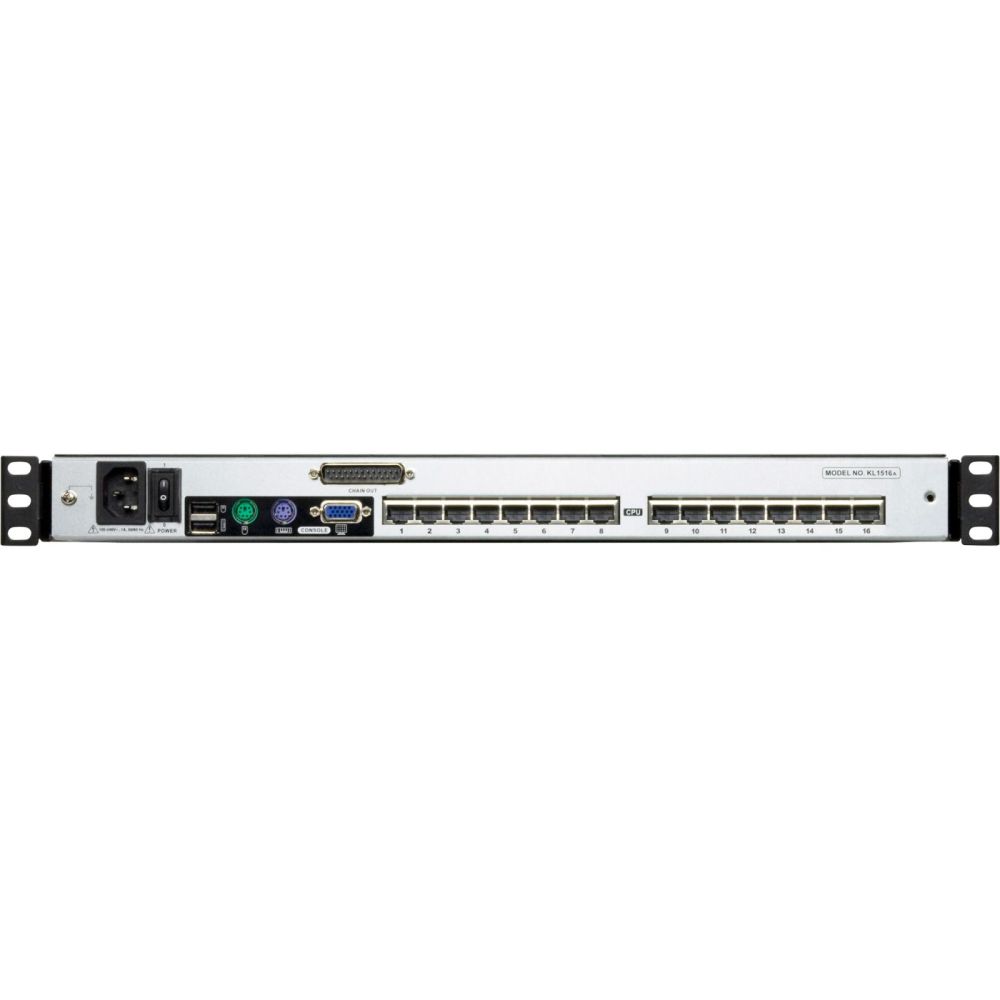

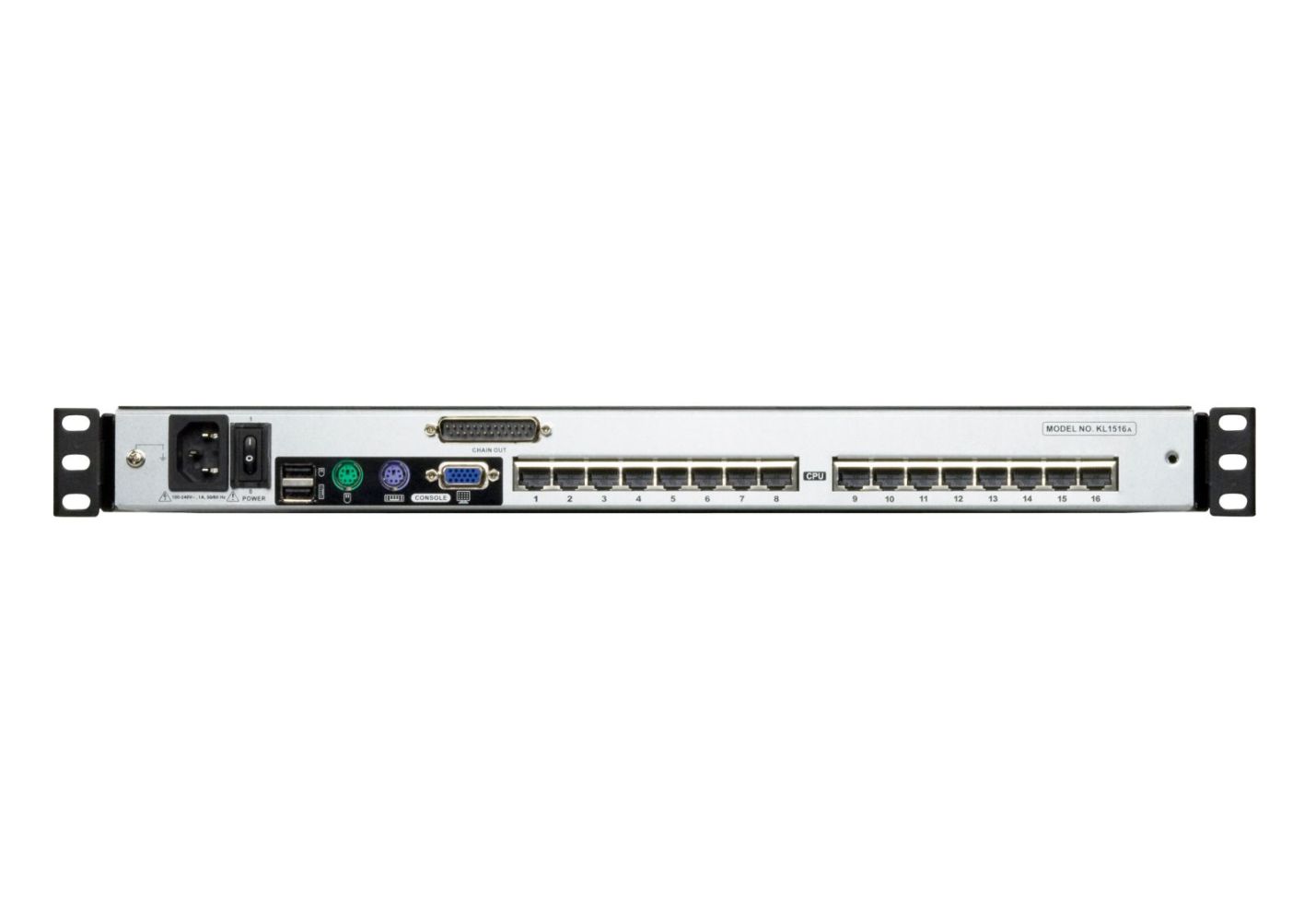

PC 1-16: depending (1xTP RJ-45 socket)
Stack Port (Daisy Chain): 1xDB-25 connector
second Console: 1xVGA HDB-15 connector, 2xPS / 2 sockets
Depth adjustable: 42-77cm
| Display | |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display | LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Display type | TFT |
| Response time | 5 ms |
| Display number of colours | 16.7 million colours |
| Supported resolutions | 1600 x 1200 @ 60Hz (non-FHD version) 1920 x 1200 @ 60Hz (FHD version) |
| On Screen Display (OSD) | |
| Keyboard | |
| Keyboard language | German |
| Keyboard layout | QWERTZ |
| Built-in touchpad | |
| Hot keys | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging content | |
| Cables included | AC, KVM |
| Quick installation guide | |
| Manual | |
| Rack mount kit | |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| I/O ports | 1x DB-25 1x RJ-11 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| RJ-45 ports quantity | 18 |
| USB 2.0 Type-A ports quantity | 3 |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| AC (power) in | |
| System requirements | |
| Windows operating systems supported | |
| Mac operating systems supported | |
| Linux operating systems supported | |
| Technical data | |
| Display diagonal | 17" |
| Audio outputs per console | Without |
| Periphery inputs per CPU | With adapter cable |
| Number of consoles | 1x external + 1x (integrated) |
| Number of CPU | 16 |
| Max. resolution | 1600x1200 / 60Hz |
| Screen connectors per console | 1 |
| Type 1 | KVM Display Console |
| Keyboard layout | DE (German) |
| Weight | 19.123kg |
| Audio per CPU | Without |
| Video inputs per CPU | RJ45 x1 (VGA via adapter cable) |
| Fiber optic network | Without |
| Peripheral outputs per console | USB mouse for integrated console x1, USB-A female x2, PS/2 for external console x2 |
| TP Network | Without |
| Resolution integrated display | 1280x1024 |
| Packaging volume | 0.0846m³ |
| Type 2 | 16-port multi-interface dual rail |
| Height packaging | 0.150m |
| Video outputs per console | VGA x1 |
| Length packaging | 0.835m |
| Width packaging | 0.675m |
| Extension (daisy chain or cascading) | |
| Audio loudspeakers | |
| Audio microphone | |
| USB peripherals | |
| Technical details | |
| Material | Metal |
| Product colour | Black |
| Operating relative humidity (H-H) | 0 - 80% |
| KVM switch ports quantity | 8 |
| Maximum resolution | 1920 x 1200 pixels |
| Console port | VGA/USB/PS2 |
| Number of computers controlled | 256 |
| Auto scan delay (min) | 1 s |
| Auto scan delay (max) | 255 s |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Built-in KVM switch | |
| Rack mounting | |
| Daisy chain | |
| On/off switch | |
| LED indicators | |
| Push button | |
| Weight & dimensions | |
| Width | 701.2 mm |
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 15.2 kg |
