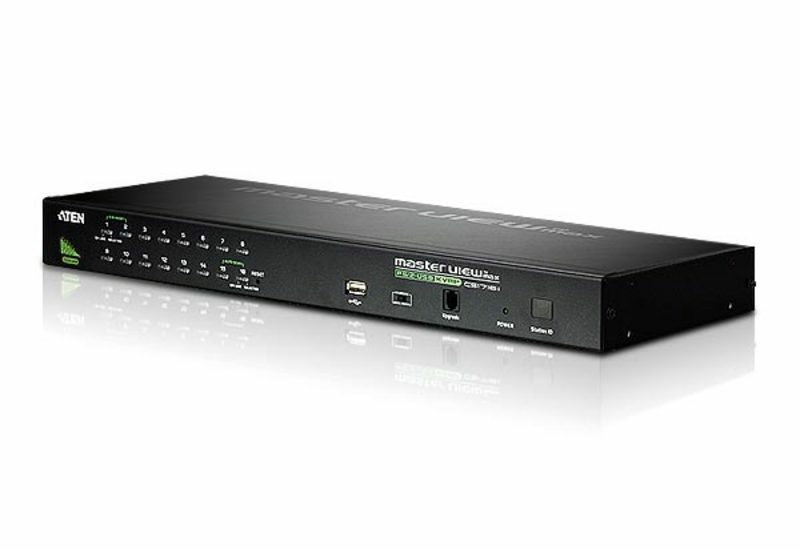

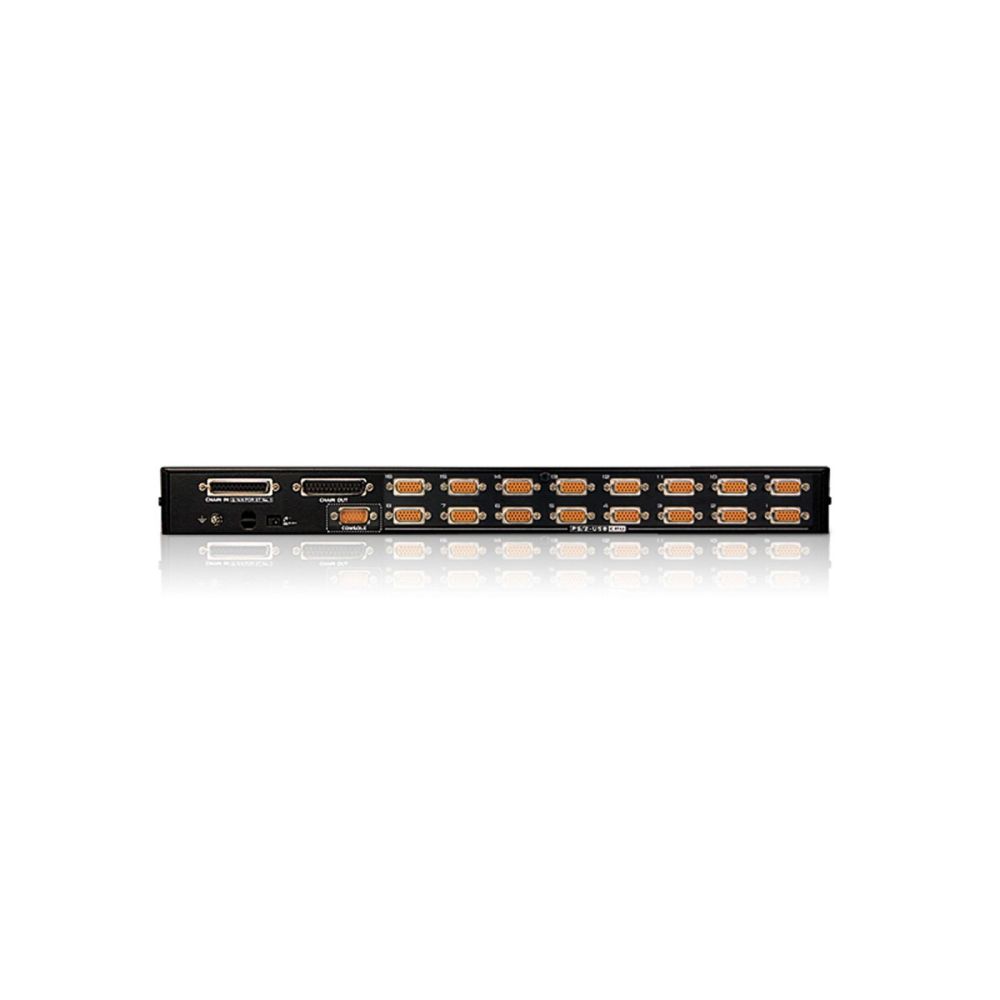

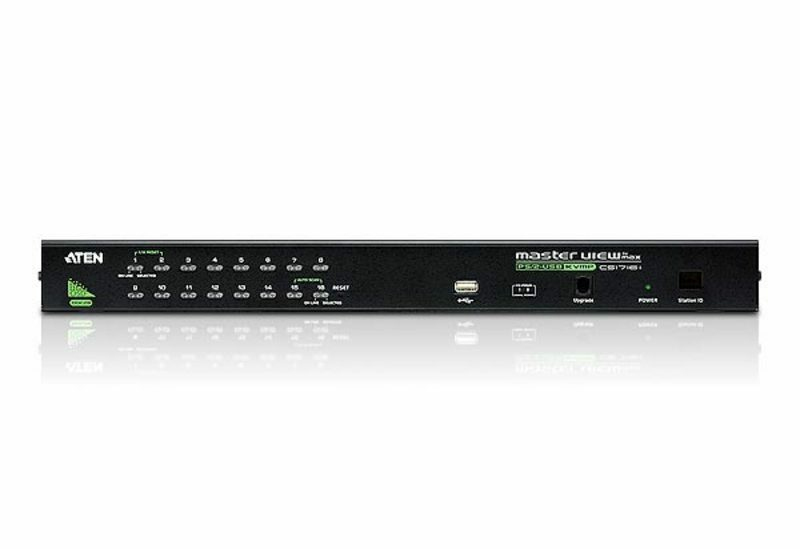

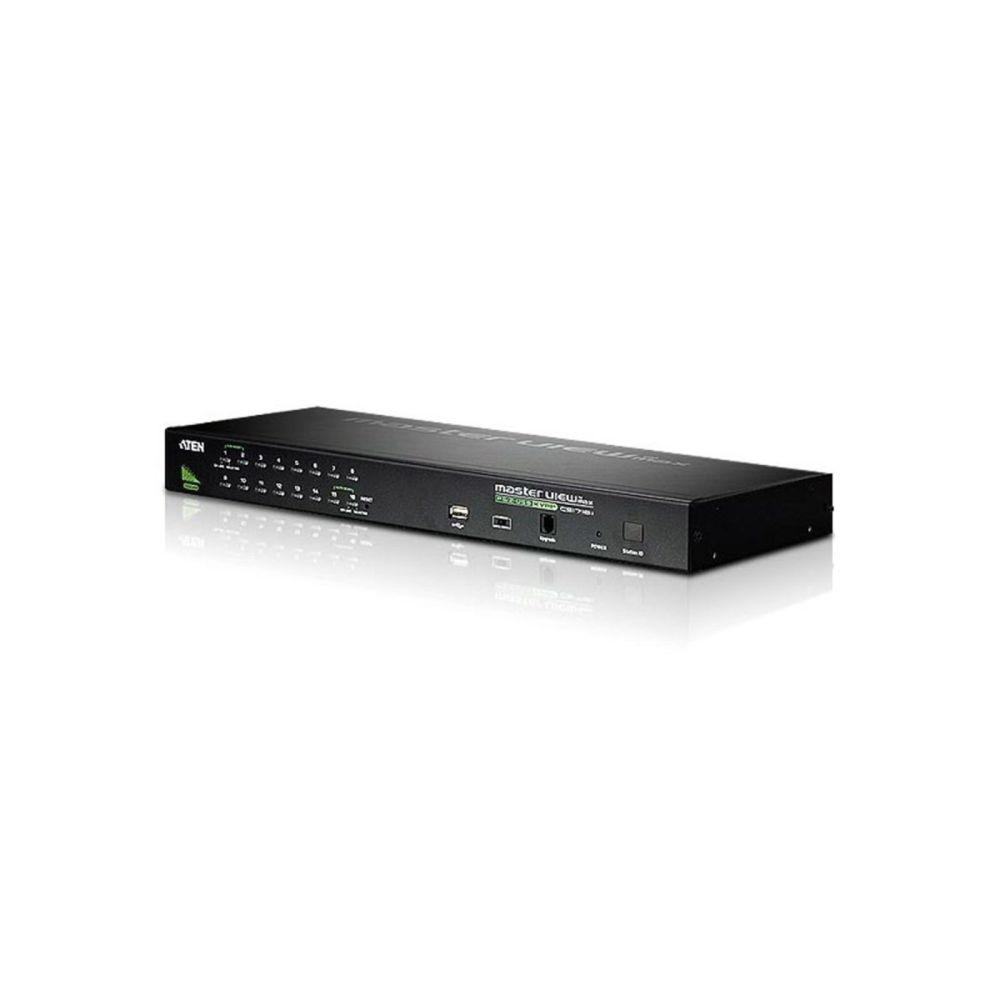

ATEN Master View max CS-1716A - KVM switch - 16 ports - desktop
|
-17% 341,89 EUR 410,25 EUR |
|
|
( 406,85 EUR incl. VAT ) ≈ £287.87 | ≈ $383.94 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 302545 |
| Mfg Part No: | CS1716A |
| UPC/EAN: | 4710423775329 |
| Weight: | 4.05 kg |
Product information for Aten CS1716A:
The CS1716A KVM allows access to 16 directly connected computers, and through Daisy chain architecture as many as 512 total servers may be controlled from a single keyboard, mouse and monitor. To simplify installation and to keep track of so many servers a custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each KVM station in the chain. A front panel USB port provides server access to USB devices such as Hard Drives, or CDROM s, eliminating the need to physically connect a storage device to a server to install patches or updates. The CS1716A will accommodate either PS/2 or USB keyboards and mice, and will connect to a mixture of PS/2 and USB servers.
| Design | |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | |
| LED indicators | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| On Screen Display (OSD) | |
| Logistics data | |
| Master (outer) case net weight | 10.8 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 12.6 kg |
| Products per master (outer) case | 3 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide | |
| AC adapter included | |
| Rack mount kit | |
| Packaging data | |
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4 kg |
| Performance | |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Scan interval | 1,255 s |
| DDC2B support | |
| Hot-Plug support | |
| Daisy chain | |
| Firmware upgradeable | |
| Ports & interfaces | |
| Number of computers controlled | 512 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 17 |
| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 1 |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 6.6 W |
| Sustainability | |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | |
| Linux operating systems supported | |
| Mac operating systems supported | |
| Technical data | |
| Weight | 4.050kg |
| USB specification | USB 2.0 |
| Type 1 | KVM switch |
| Width packaging | 0.116m |
| Number of CPU | 16 |
| Video inputs per CPU | VGA x1 |
| Max. resolution | 2048x1536 |
| Packaging volume | 0.0146m³ |
| Height packaging | 0.233m |
| Length packaging | 0.540m |
| Type 2 | 16-fold VGA KVM |
| Weight & dimensions | |
| Width | 437.2 mm |
| Depth | 159.9 mm |
| Height | 44 mm |
| Weight | 3.61 kg |
Questions & answers
What is the delivery time of ATEN Master View max CS-1716A - KVM switch - 16 ports - desktop?
The article ATEN Master View max CS-1716A - KVM switch - 16 ports - desktop is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS1716A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN Master View max CS-1716A - KVM switch - 16 ports - desktop always at the best possible price. We can give you a discount of 2% on ATEN Master View max CS-1716A - KVM switch - 16 ports - desktop if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
