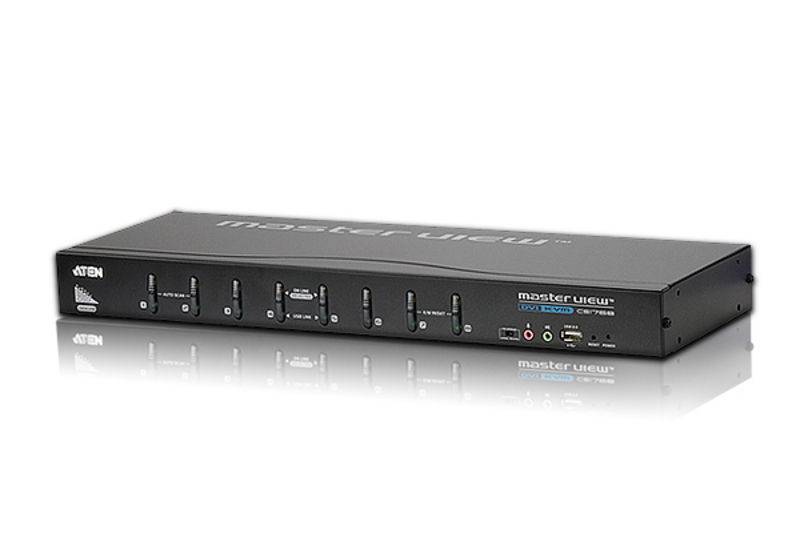

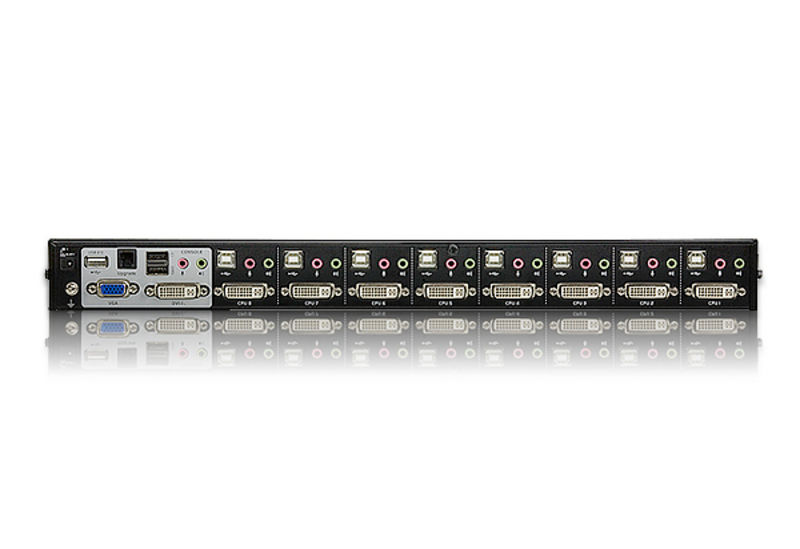

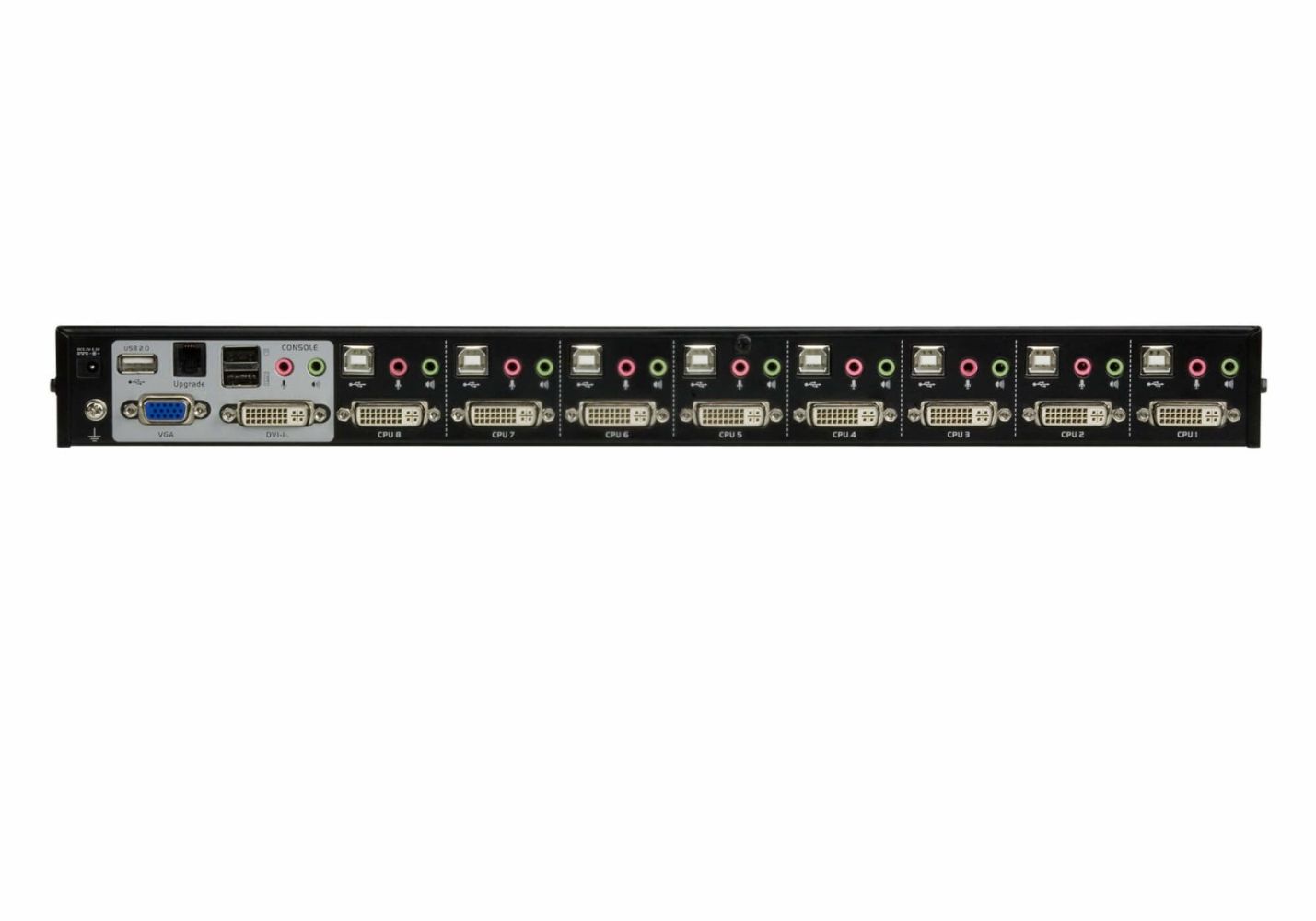

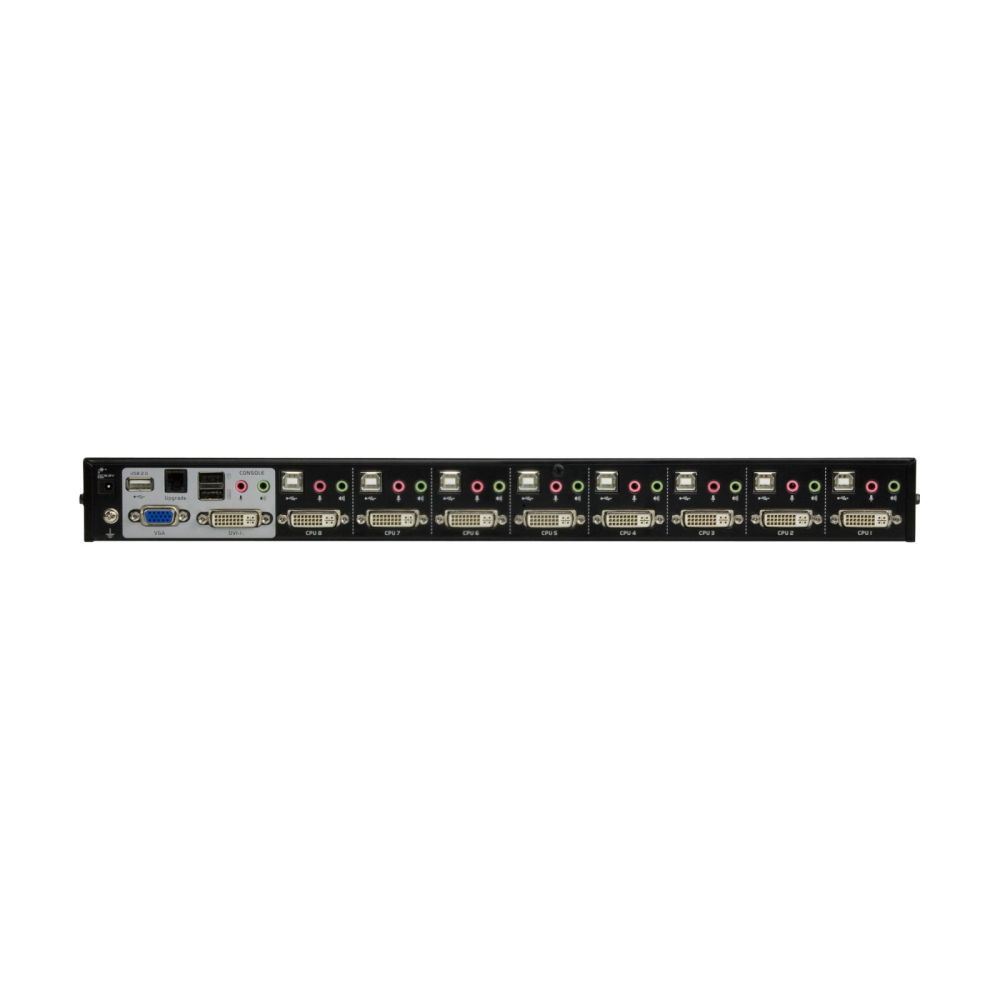

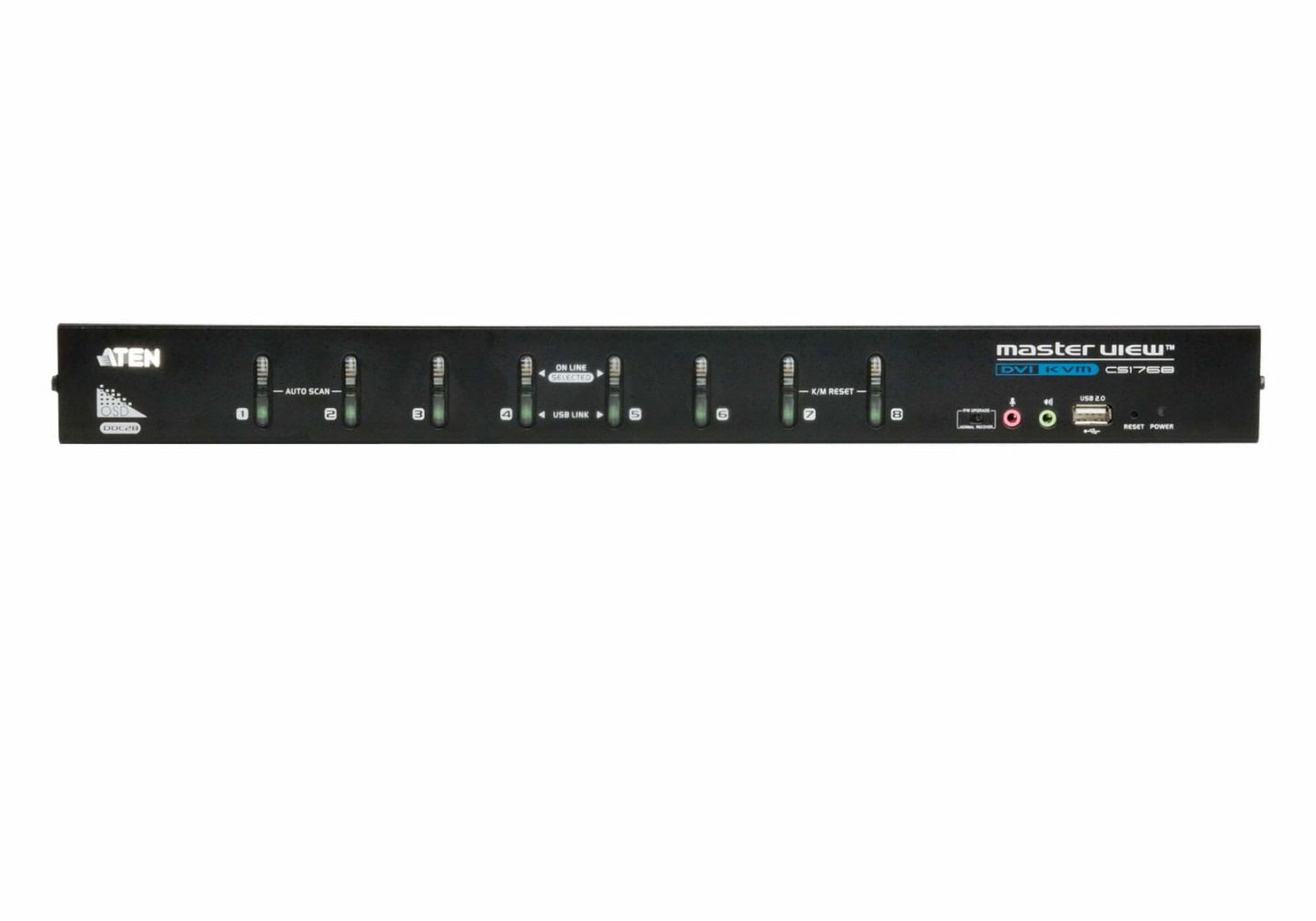

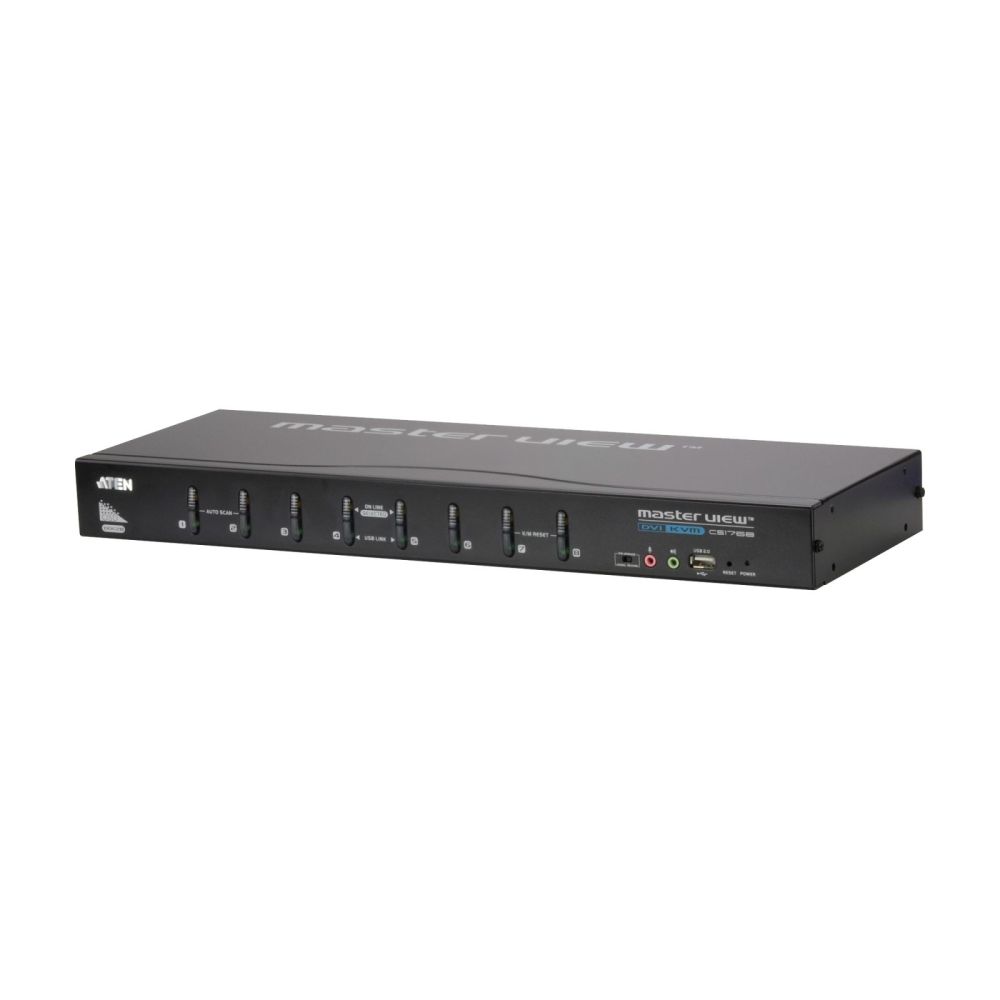

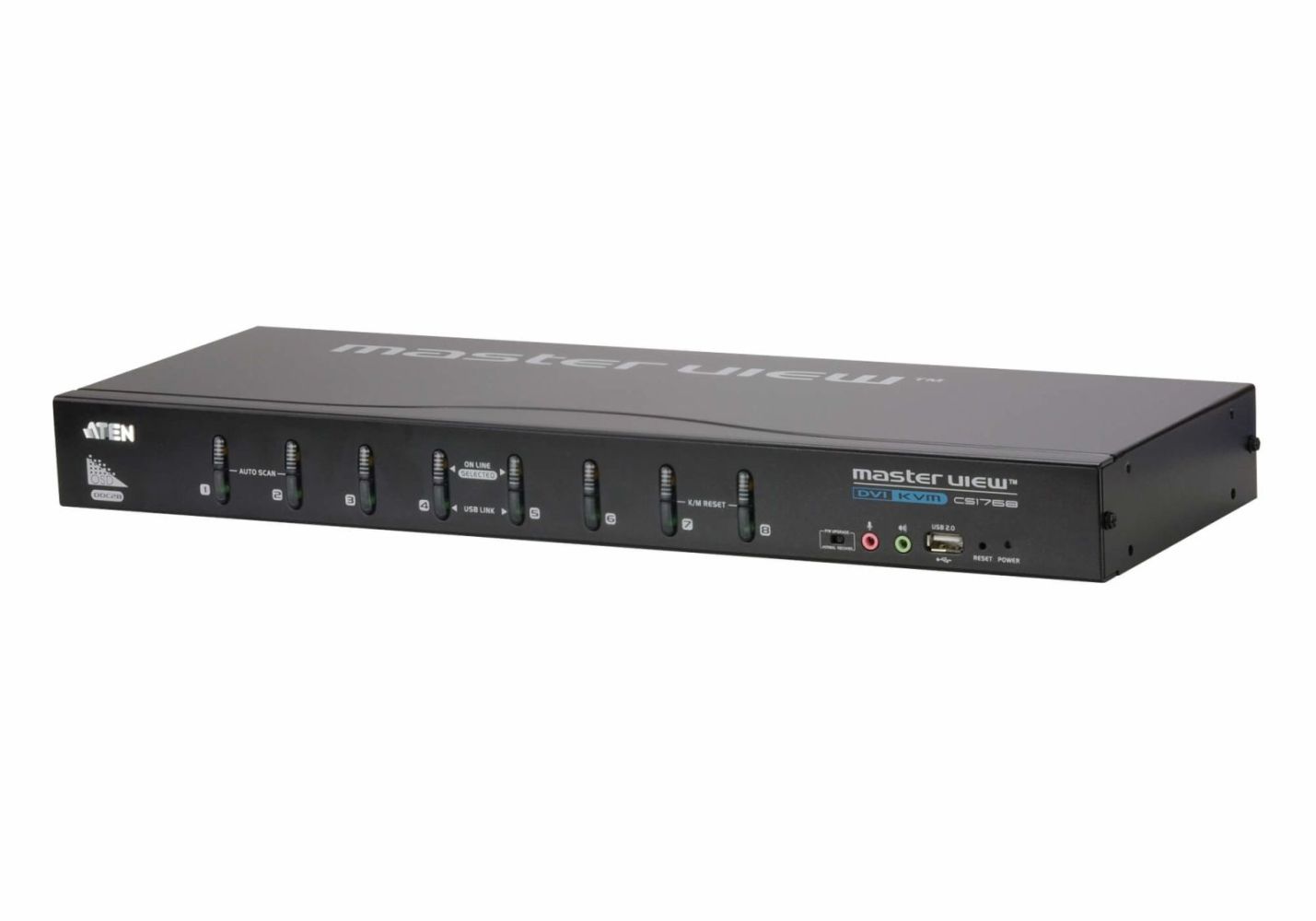

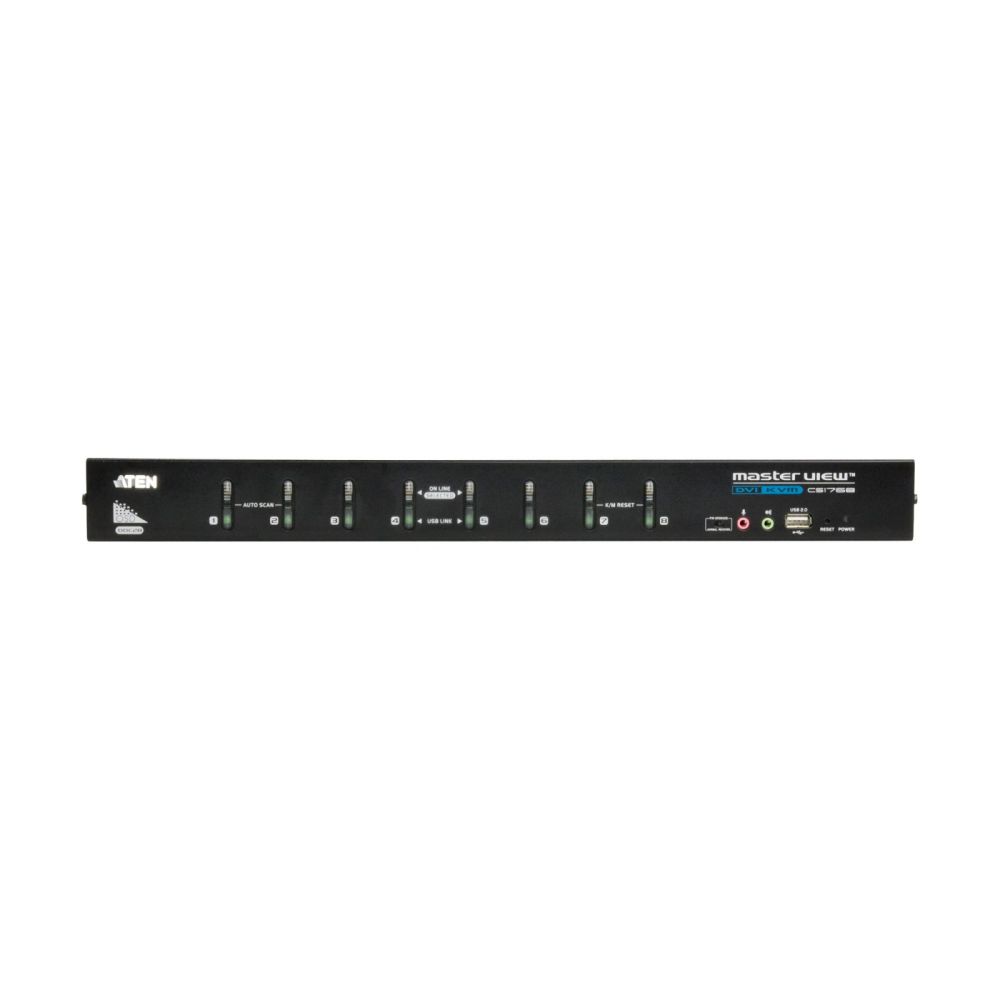

ATEN CS1768 - KVM / audio / USB switch - 8 ports - rack-mountable
|
-10% 507,30 EUR 561,19 EUR |
|
|
( 603,69 EUR incl. VAT ) ≈ £423.09 | ≈ $566.65 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 142035 |
| Mfg Part No: | CS1768 |
| UPC/EAN: | 4710423774438 |
| Weight: | 4.105 kg |
Product information for Aten CS1768:
The CS1768 8-port USB DVI KVM switch is a control unit that allows access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor console. It can be cascaded to three levels - allowing up to 73 CS1768s to control up to 512 computers - all from the original single console. In addition, the CS1768 comes with ATEN's Video DynaSync technology, which optimizes display resolution.
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 10.8 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 13.6 kg |
| Products per master (outer) case | 3 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4.07 kg |
| Performance | |
| HD type | QXGA |
| Maximum resolution | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
| DDC2B support | |
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 10 |
| Number of microphone inputs | 10 |
| USB hub | |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 4.53 W |
| Technical data | |
| Video inputs per CPU | DVI-I (Dual Link) x1 |
| USB specification | USB 2.0 |
| Type 2 | 8-fold DVI KVM |
| Height packaging | 0.233m |
| Weight | 4.094kg |
| Type 1 | KVM switch |
| Width packaging | 0.116m |
| Packaging volume | 0.0146m³ |
| Number of CPU | 8 |
| Max. resolution | 2048x1536 |
| Length packaging | 0.540m |
| USB peripherals | |
| Weight & dimensions | |
| Width | 437.2 mm |
| Depth | 161.2 mm |
| Height | 44 mm |
| Weight | 3.61 kg |
