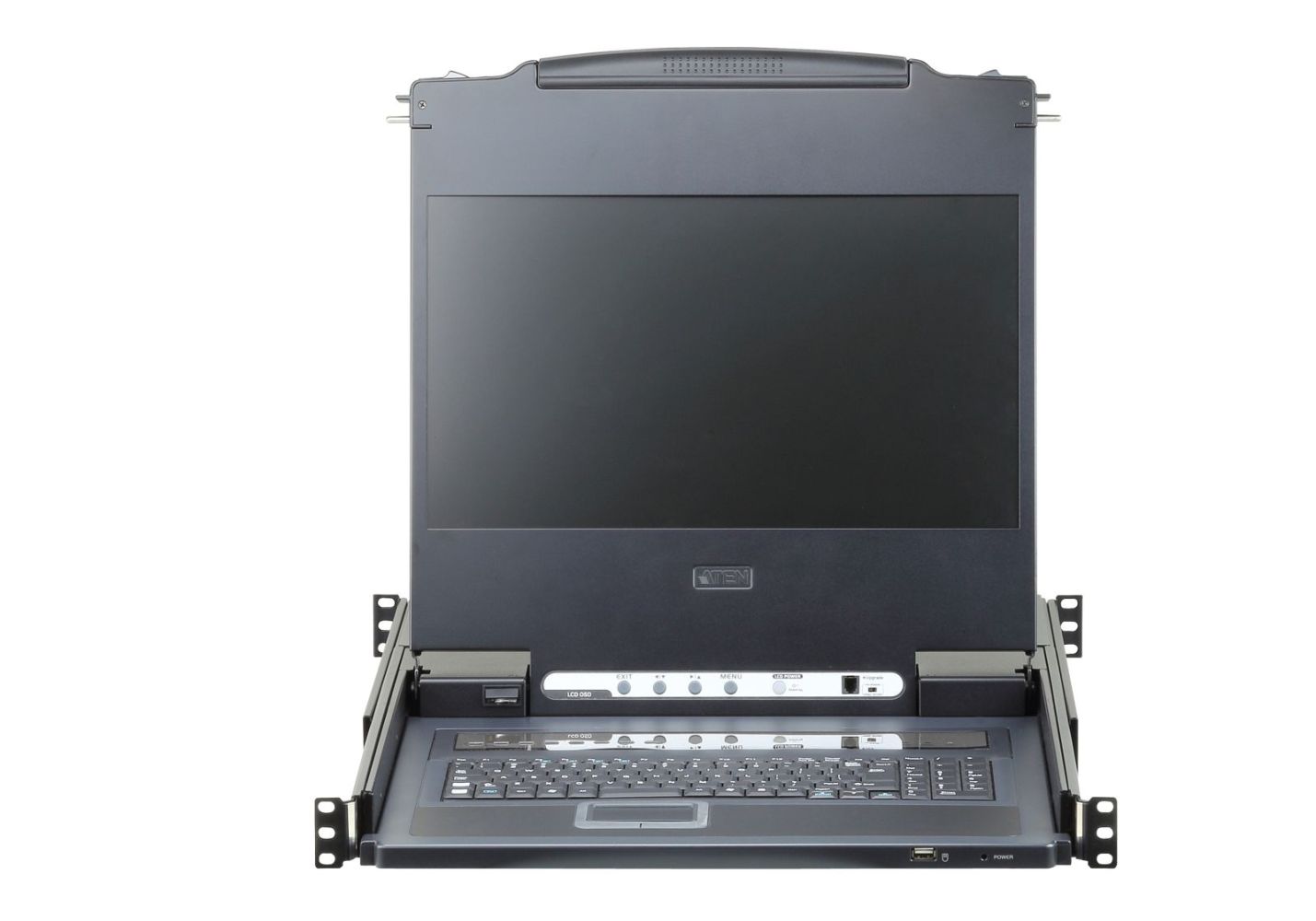

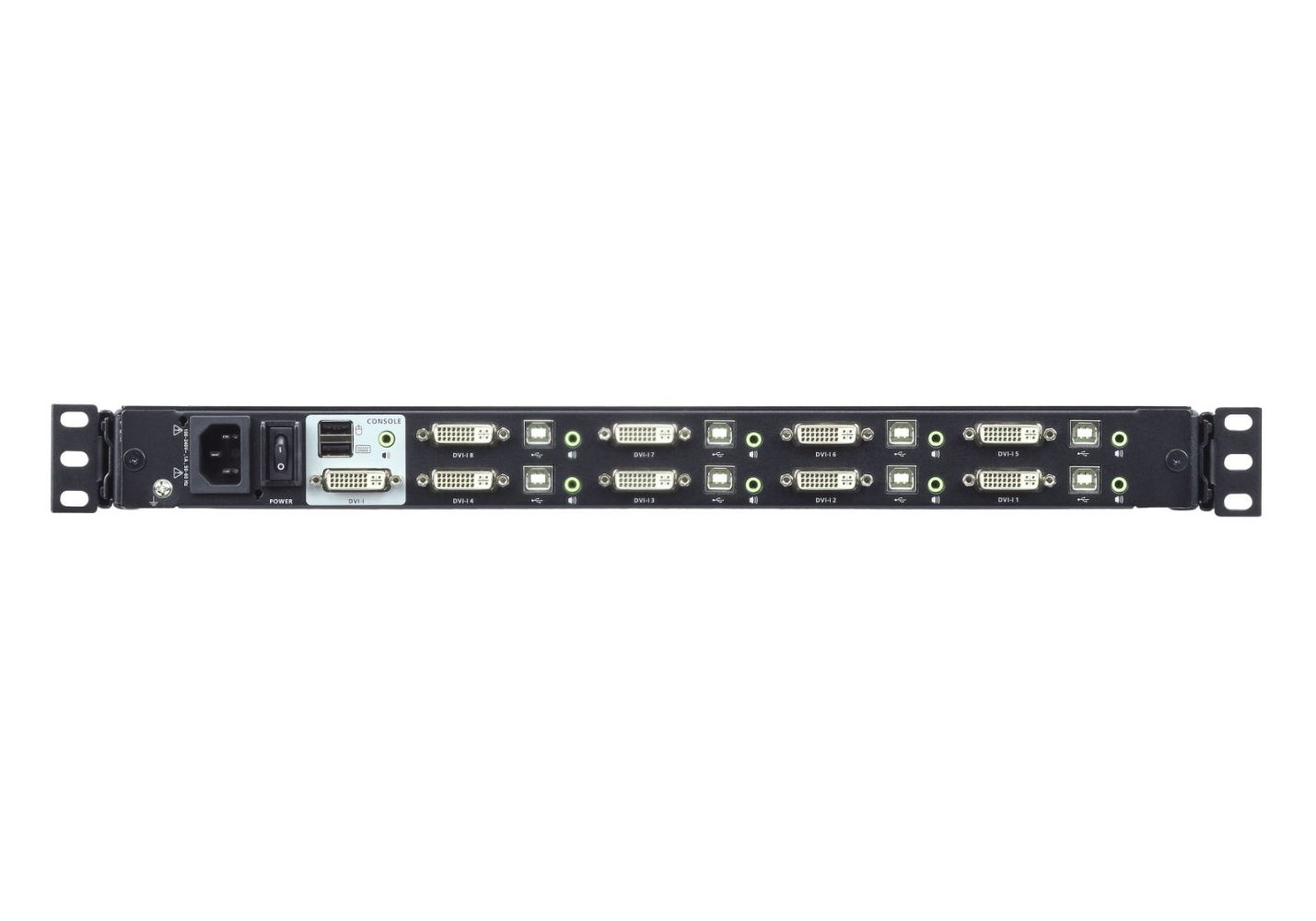

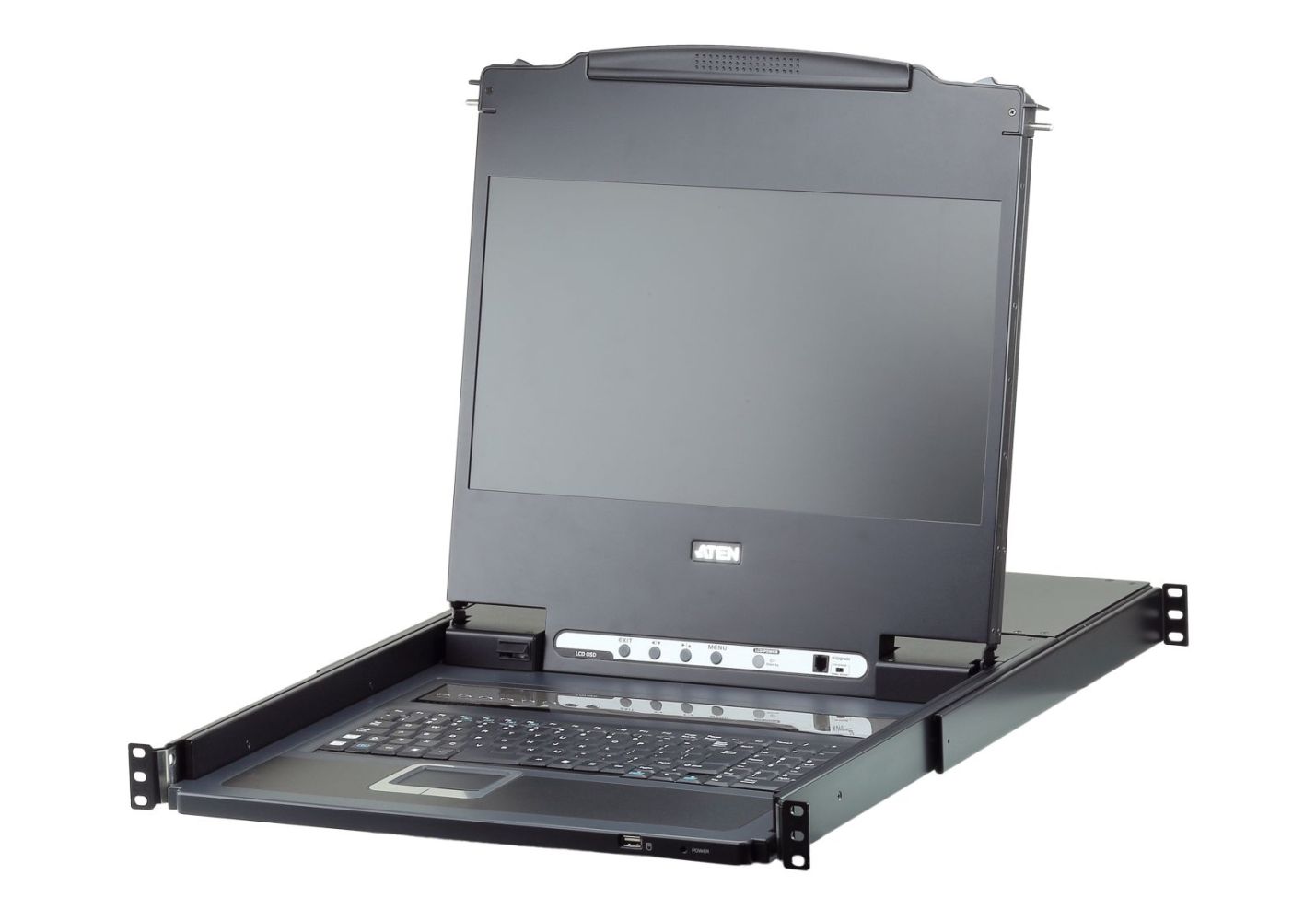

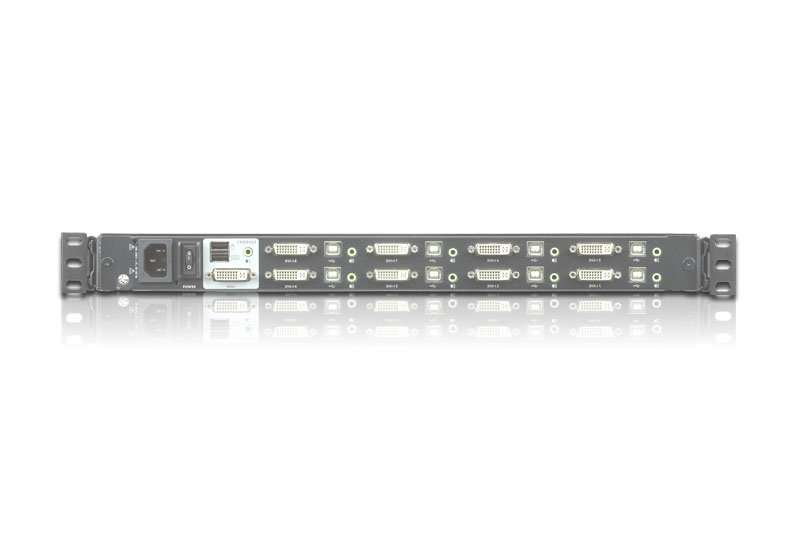

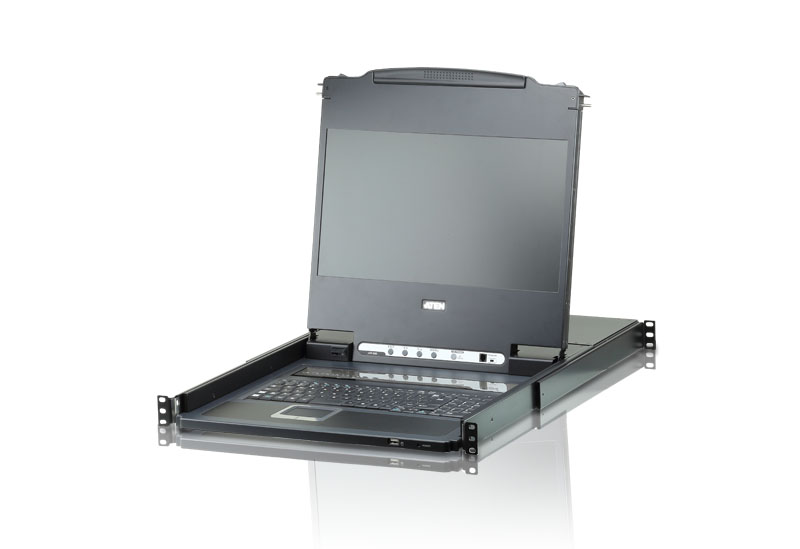

Aten KVM/TFT 8-fold, 48,3 cm ( 19 inch ) 1U, incl. KVM/TFT 43,9 cm ( 17,3 inch ), DVI, German
|
-13% 1.697,19 EUR 1.942,10 EUR |
|
|
( 2.019,66 EUR incl. VAT ) ≈ £1,417.15 | ≈ $1,902.55 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1053943 |
| Mfg Part No: | CL6708MW-ATA-GG |
| UPC/EAN: | 4719264643804 |
| Weight: | 16.345 kg |
Product information for Aten CL6708MW-ATA-GG:
| Display | |
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 1920 x 1080 pixels |
| Display | LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Pixel pitch | 0.1989 x 0.1989 mm |
| Aspect ratio | 16:9 |
| Display type | TFT |
| Response time | 16 ms |
| Supported resolutions | up to 1920 x 1200 @ 60 Hz (all resolution @ 60 Hz only); 1920 x 1080 @ 60 Hz, DDC2B |
| On Screen Display (OSD) | |
| Keyboard | |
| Keyboard language | US English |
| Keyboard layout | QWERTY |
| Built-in touchpad | |
| Hot keys | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging content | |
| Cables included | AC, KVM |
| Quick installation guide | |
| Manual | |
| AC adapter included | |
| Rack mount kit | |
| Ports & interfaces | |
| DVI connector type | DVI-I |
| DVI input ports | 1 |
| DVI output ports | 8 |
| I/O ports | 1x RJ-11 |
| Keyboard port type | USB |
| Mouse port type | USB |
| USB 2.0 Type-A ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 8 |
| 3.5 mm (1/8-inch) out | |
| 3.5 mm (1/8-inch) in | |
| Power | |
| Power consumption (typical) | 29.26 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| AC (power) in | |
| System requirements | |
| Windows operating systems supported | |
| Mac operating systems supported | |
| Linux operating systems supported | |
| Other operating systems supported | |
| Technical data | |
| TP Network | Without |
| Resolution integrated display | 1920x1080 |
| Weight | 16.345kg |
| Video outputs per console | DVI-I (Dual Link) x1 |
| Display diagonal | 17.3" |
| Fiber optic network | Without |
| Number of consoles | 1x external + 1x (integrated) |
| Width packaging | 0.675m |
| Max. resolution | 1920x1080 / 60Hz |
| Length packaging | 0.830m |
| Height packaging | 0.140m |
| Design | Rack-Mount |
| Keyboard layout | US (English) |
| Screen connectors per console | 1 |
| Peripheral outputs per console | USB mouse for integrated console x1, USB-A female for external console x2 |
| Audio per CPU | 3.5mm jack x1 |
| Video inputs per CPU | DVI-I (Dual Link) female x1 |
| Audio outputs per console | 3.5mm jack x1 |
| Type 1 | KVM Display Console |
| Number of CPU | 8 |
| Periphery inputs per CPU | USB-B female x1 |
| Type 2 | 8-port DVI Single Rail |
| USB peripherals | |
| Audio microphone | |
| Audio loudspeakers | |
| Technical details | |
| Material | Metal, Plastic |
| Product colour | Black |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 64 |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Hot-Plug support | |
| Built-in KVM switch | |
| Rack mounting | |
| On/off switch | |
| LED indicators | |
| Push button | |
| Weight & dimensions | |
| Width | 689.2 mm |
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 12.7 kg |
Questions & answers
What is the delivery time of Aten KVM/TFT 8-fold, 48,3 cm ( 19 inch ) 1U, incl. KVM/TFT 43,9 cm ( 17,3 inch ), DVI, German?
The article Aten KVM/TFT 8-fold, 48,3 cm ( 19 inch ) 1U, incl. KVM/TFT 43,9 cm ( 17,3 inch ), DVI, German is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CL6708MW-ATA-GG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Aten KVM/TFT 8-fold, 48,3 cm ( 19 inch ) 1U, incl. KVM/TFT 43,9 cm ( 17,3 inch ), DVI, German always at the best possible price. We can give you a discount of 2% on Aten KVM/TFT 8-fold, 48,3 cm ( 19 inch ) 1U, incl. KVM/TFT 43,9 cm ( 17,3 inch ), DVI, German if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
