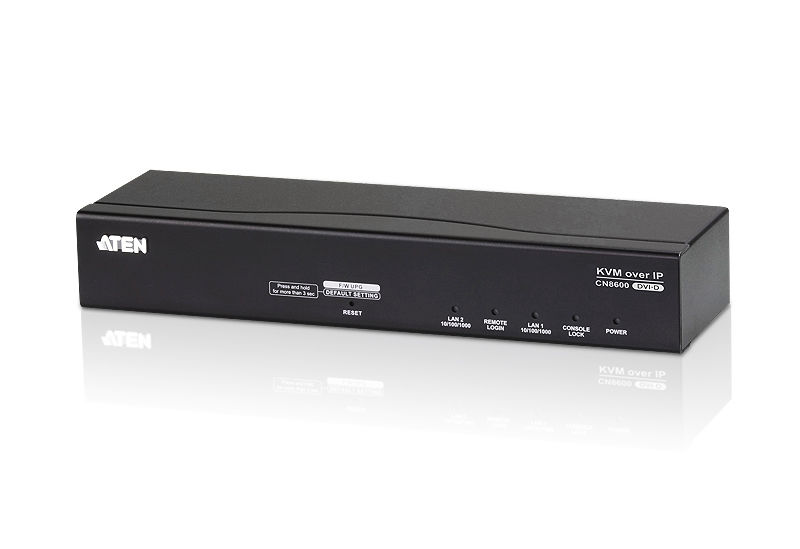

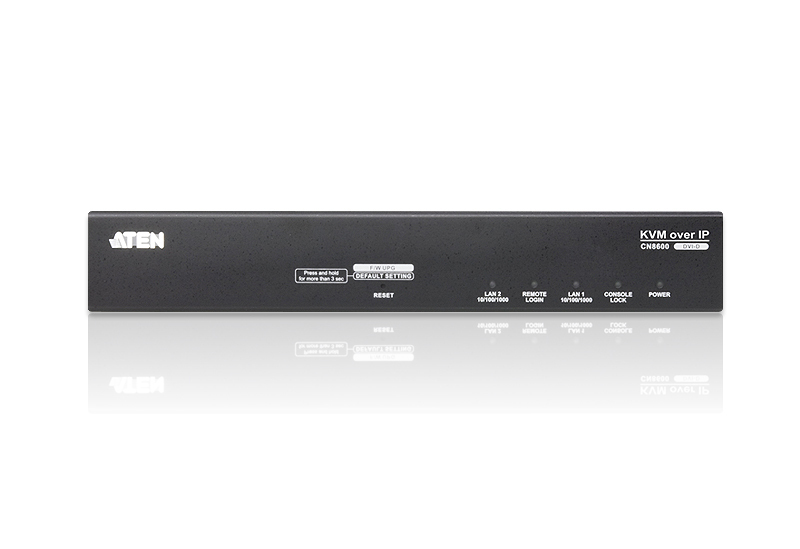

Aten KVM switch 1-way, LAN (IP), DVI
|
562,89 EUR |
|
|
( 669,84 EUR incl. VAT ) ≈ £473.95 | ≈ $632.13 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 981988 |
| Mfg Part No: | CN8600-AT-G |
| UPC/EAN: | 4710423779358 |
| Weight: | 2 kg |
Product information for Aten CN8600-AT-G:
*Order-related order *

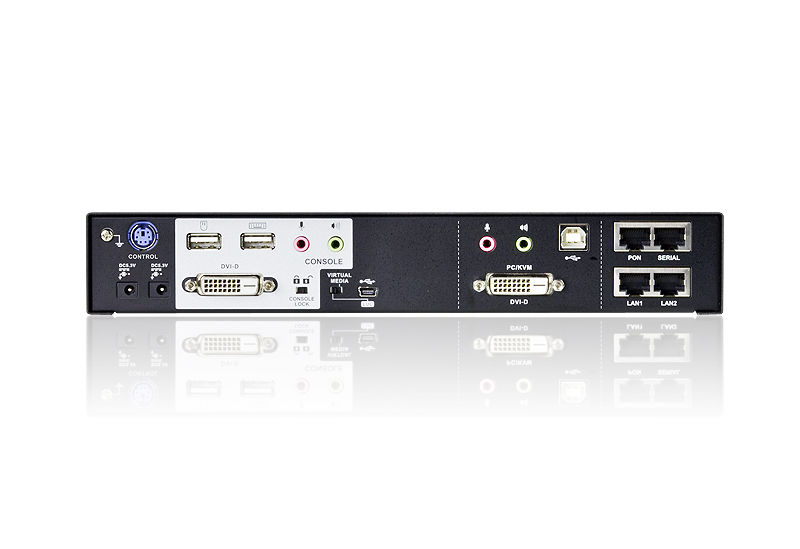

console: 1x DVI, 2xUSB, 1Audio in/out,
input: 1x DVI, 1xUSB, 1Audio in/out, 2x LAN, 1x PON, 1x Serial
1x 2L-7D02U individual KVM cable set (1.8m)
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Push button | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 7.3 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 8.6 kg |
| Master (outer) case volume | 29166.35 cm³ |
| Network | |
| Ethernet LAN (RJ-45) ports | 2 |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | KVM, USB |
| Manual | |
| AC adapter included | |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.63 kg |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-D, USB A |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| PS/2 ports quantity | 1 |
| Serial port type | RJ-45 |
| Serial ports quantity | 1 |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | AC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 5.56 W |
| Weight & dimensions | |
| Width | 260 mm |
| Depth | 76.4 mm |
| Height | 42 mm |
| Weight | 880 g |
Questions & answers
What is the delivery time of Aten KVM switch 1-way, LAN (IP), DVI?
The article Aten KVM switch 1-way, LAN (IP), DVI is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CN8600-AT-G to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Aten KVM switch 1-way, LAN (IP), DVI always at the best possible price. We can give you a discount of 2% on Aten KVM switch 1-way, LAN (IP), DVI if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
