ATEN CL3700NW USB HDMI console FR layout content_copy

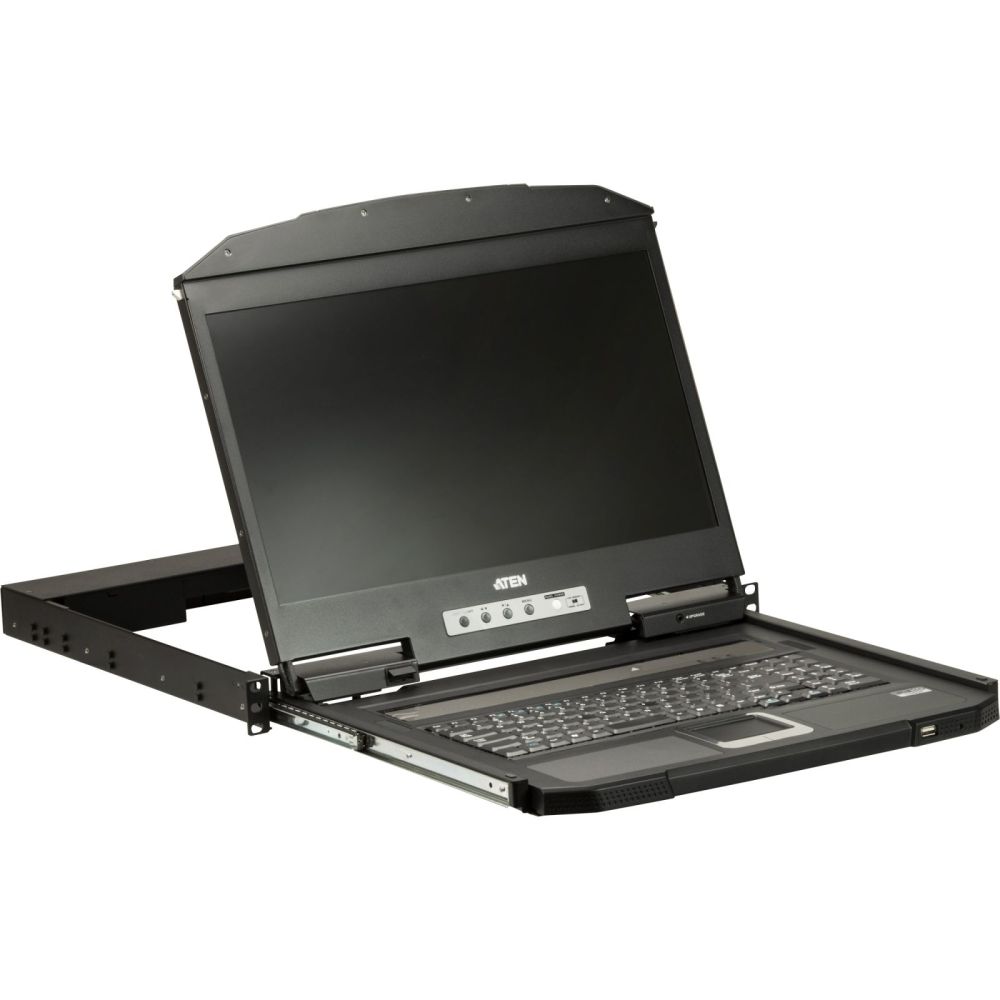

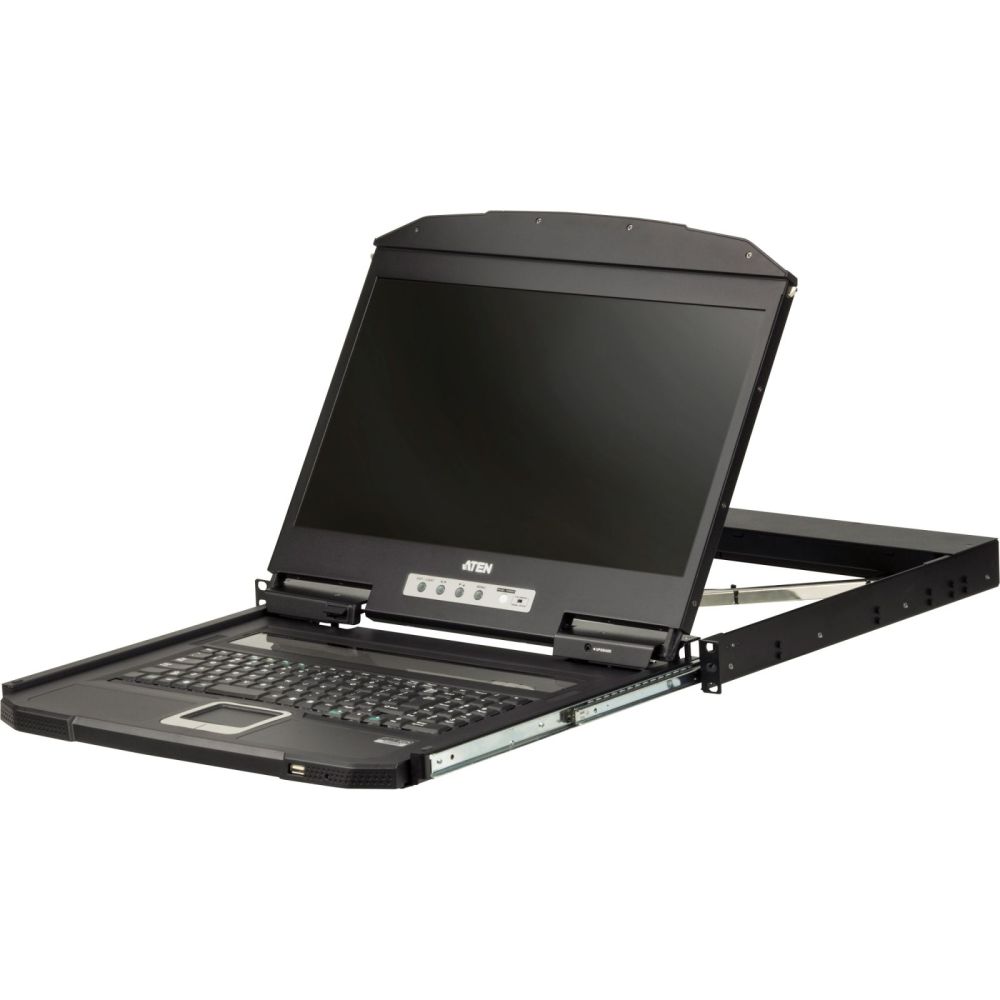

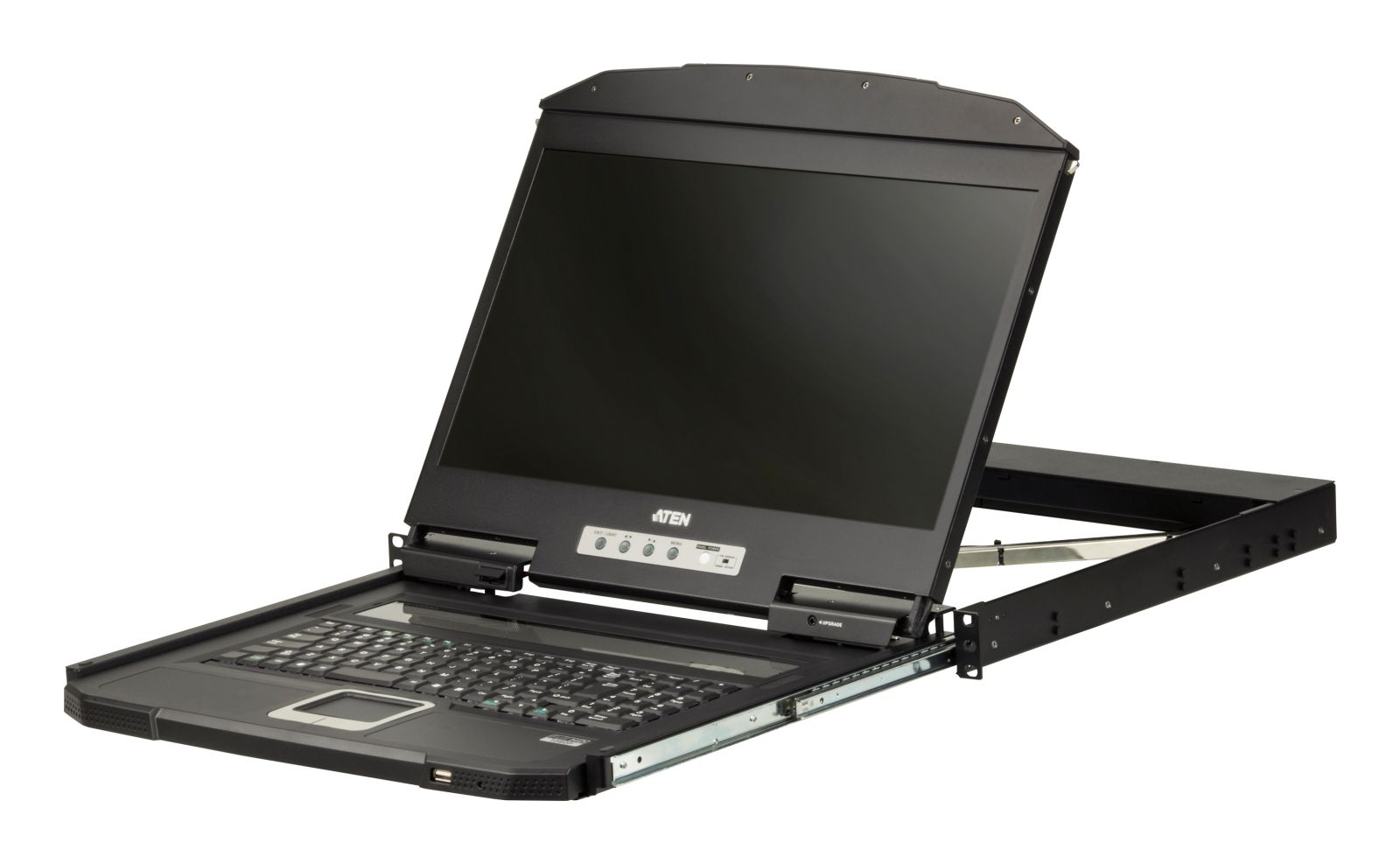

The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 48,3 cm ( 19 inch ) equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

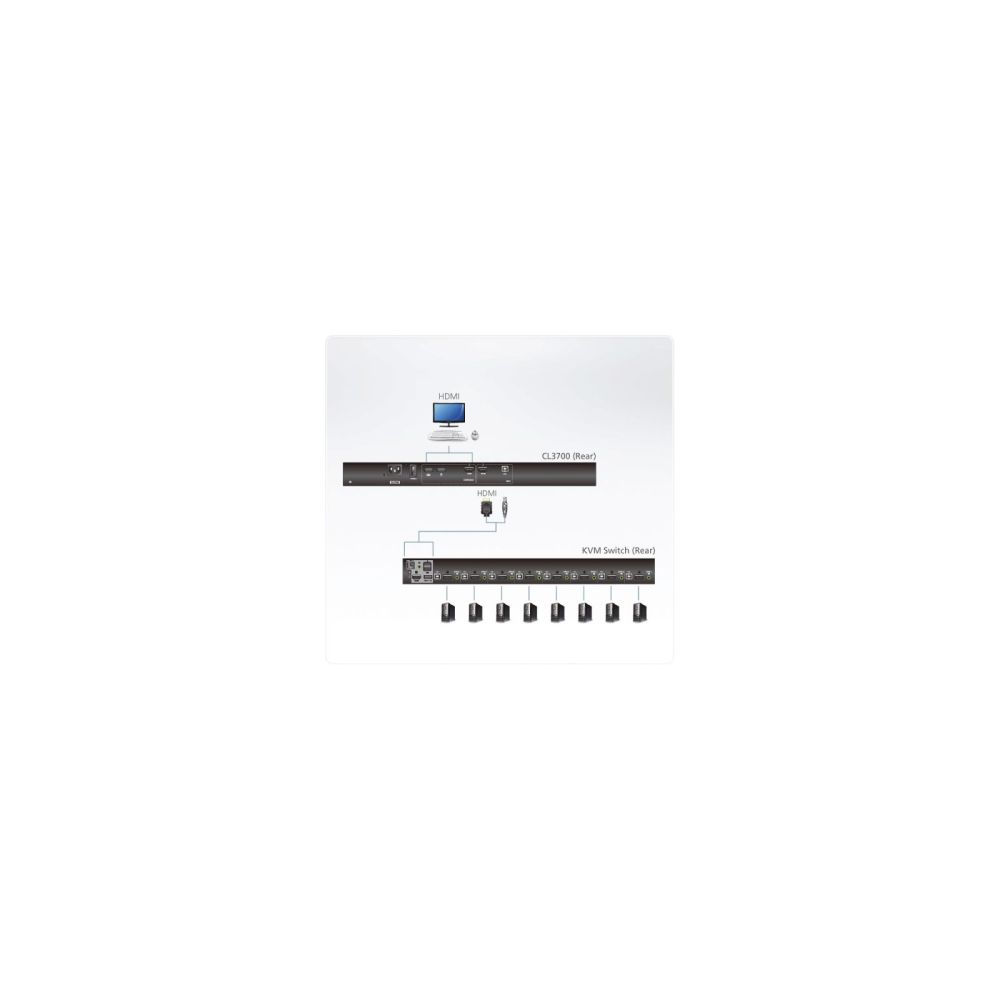

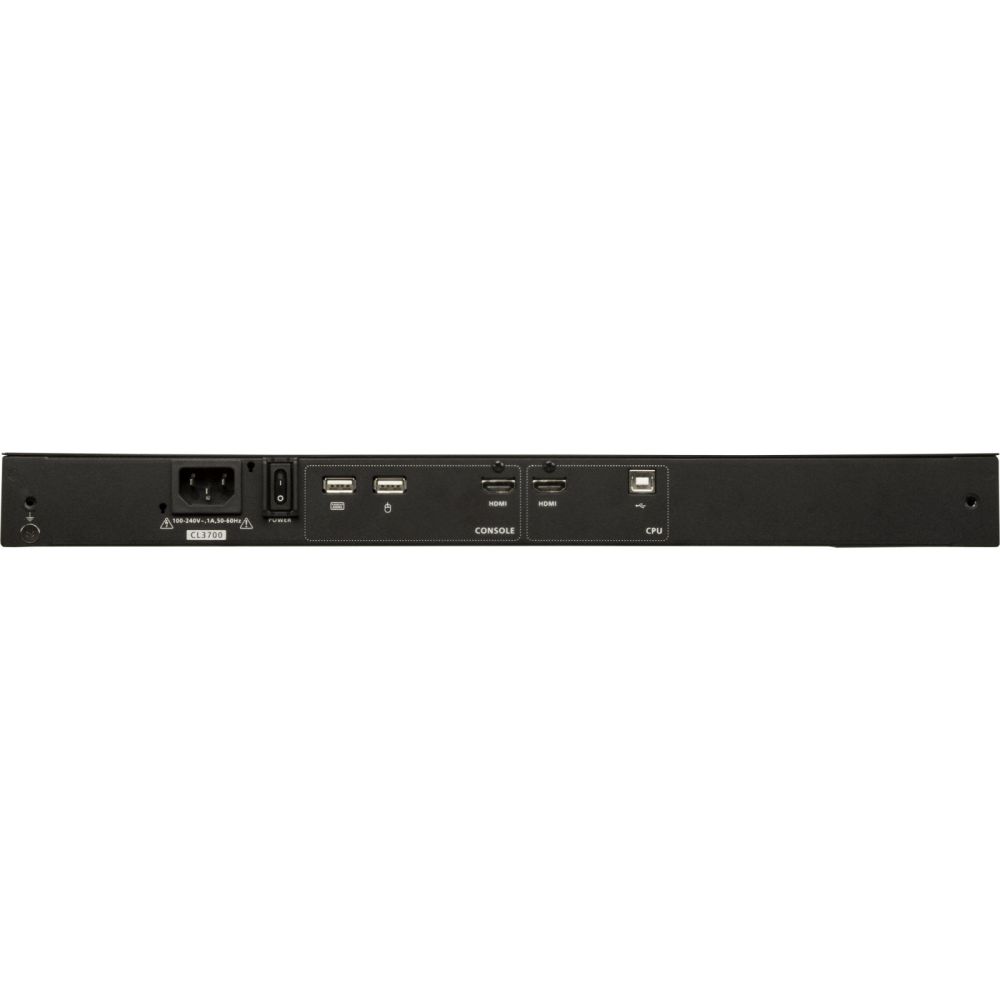

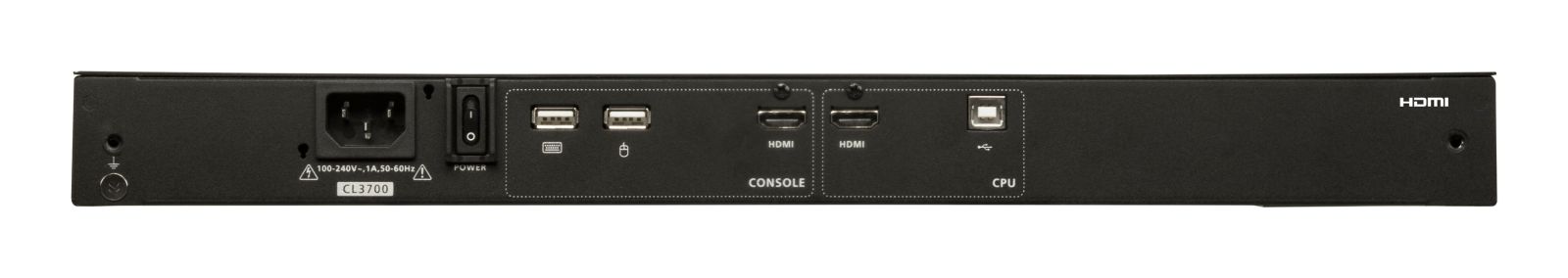

The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.
With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.
Models:
CL3700NW: 47 cm ( 18,5 inch ) LCD screen with Full HD resolution of 1920 x 1080
CL3700NX: 47 cm ( 18,5 inch ) LCD screen with resolution of 1366 x 768
Space Utility Optimization:Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated LCD KVM console with an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
Console lock – enables the console drawer to remain securely locked away in position when not in use
Remarkable Video Experience:Supports HDMI video input
47 cm ( 18,5 inch ) LCD screen supports Full HD resolution of 1920 x 1080 @ 60Hz (CL3700NW); 47 cm ( 18,5 inch ) LCD screen supports resolution of 1366 x 768 @ 60Hz (CL3700NX)
External console supports input video resolutions up to 1920 x 1200 @ 60Hz
Installation Flexibility:Standard rack mount kit included
Optional Easy Installation Rack Mounting Kit available
No software required
Firmware upgradable
Supports hot-plugging
Reliability and Operational Versatility:Supports an external console with USB / HDMI connectors
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
Console selection via hotkey
Standard 105-key keyboard
Keyboard Language support: English(US), English(UK), French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Turkish
The design complies to the UL 60950-1 and CAN/CSA standards
Package Contents:1x CL3700 LCD KVM Console with Standard Rack Mount Kit
1x USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)
1x Firmware Upgrade Cable
1x Power Cord
1x User Instructions
Device:CL3700NWCL3700NX
Computer Connections
Direct11
Console SelectionHotkeyHotkey
Connectors
External Console Ports1 x HDMI Female
2 x USB Type A Female1 x HDMI Female
2 x USB Type A Female
KVM Ports1 x HDMI Female
1 x USB Type B Female1 x HDMI Female
1 x USB Type B Female
USB Port1 x USB Type A Female1 x USB Type A Female
Firmware Upgrade1 x 3.5mm Audio Jack Female (Black)1 x 3.5mm Audio Jack Female (Black)
Power1 x 3-prong AC Socket1 x 3-prong AC Socket
Switches
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch1 x Slide Switch
Power1 x Rocker Switch1 x Rocker Switch
LCD Power1 x Pushbutton1 x Pushbutton
LCD Adjustment4 x Pushbutton4 x Pushbutton
LEDs
Power1 x KVM Console (Dark Green)
1 x LCD (Orange)1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock1 x NumLock (Green)
1 x CapsLock (Green)
1 x ScrollLock (Green)1 x NumLock (Green)
1 x CapsLock (Green)
1 x ScrollLock (Green)
Emulation
Keyboard / MouseUSBUSB
Video
Input Video Resolution1920 x 1200 @ 60 Hz1920 x 1200 @ 60 Hz
Panel Spec
LCD Module47 cm ( 18,5 inch ) TFT-LCD47 cm ( 18,5 inch ) TFT-LCD
Resolution1920 x 1080 @ 60Hz1366 x 768 @ 60Hz
Pixel Pitch0.213 mm x 0.213 mm0.3 mm x 0.3 mm
Response time20 ms5 ms
Viewing Angle178° (H), 178° (V)170° (H), 160° (V)
Contrast Ratio1000 : 11000 : 1
Support Color16.7M colors16.7M colors
Luminance350 cd/m²250 cd/m²
Maximum Input Power Rating100–240 V AC, 50/60 Hz, 1 A100–240 V AC, 50/60 Hz, 1 A
Power ConsumptionAC110:23.3W:124BTU
AC220:23.9W:127BTUAC110:13.6W:79BTU
AC220:13.5W:78BTU
Environmental
Operating Temperature0–40°C0–40°C
Storage Temperature-20–60°C-20–60°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingMetal + PlasticMetal + Plastic
Weight9.01 kg ( 19.85 lb )9.03 kg ( 19.89 lb )
Dimensions (L x W x H)48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.)48.06 x 47.70 x 4.28 cm
(18.92 x 18.78 x 1.69 in.)
Body Dimensions(L x W x H)44.92 x 43.00 x 4.28 cm44.92 x 43.00 x 4.28 cm
NoteBody Dimensions exclude I/O ports, handles, and mounting brackets.Body Dimensions exclude I/O ports, handles, and mounting brackets.
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Display
Display diagonal	47 cm (18.5")
Display	LCD
Keyboard
Keyboard language	French
Keyboard layout	AZERTY
Hot keys
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging content
Cables included	AC, KVM
Package type	Box
Quick installation guide
Manual
AC adapter included
Ports & interfaces
I/O ports	1x USB Type-A
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
USB 2.0 Type-B ports quantity	1
Power
Input current	1 A
Technical data
Video inputs per CPU	HDMI female x1
Type 1	KVM Display Console
Weight	11.890kg
TP Network	Without
Type 2	HDMI Single Rail
Packaging volume	0.0200m³
Height packaging	0.140m
Periphery inputs per CPU	USB-B female x1
Length packaging	0.660m
Video outputs per console	HDMI x1
Resolution integrated display	1920x1080
Max. resolution	1920x1080 / 60Hz
Keyboard layout	FR (French)
Screen connectors per console	1
Number of consoles	1 + 1x (integrated)
Display diagonal	18.5"
Peripheral outputs per console	USB mouse for integrated console x1, USB female for external console x2
Audio per CPU	Without
Width packaging	0.610m
Fiber optic network	Without
Audio outputs per console	Without
Audio microphone
Audio loudspeakers
USB peripherals
Technical details
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
Maximum resolution	1920 x 1080 pixels
Number of computers controlled	1
Compliance certificates	RoHS
Rack capacity	1U
Hot-Plug support
Rack mounting
LED indicators
Push button
Weight & dimensions
Width	477 mm
Height	42.8 mm
Depth	480.6 mm
Weight	9.01 kg

---
