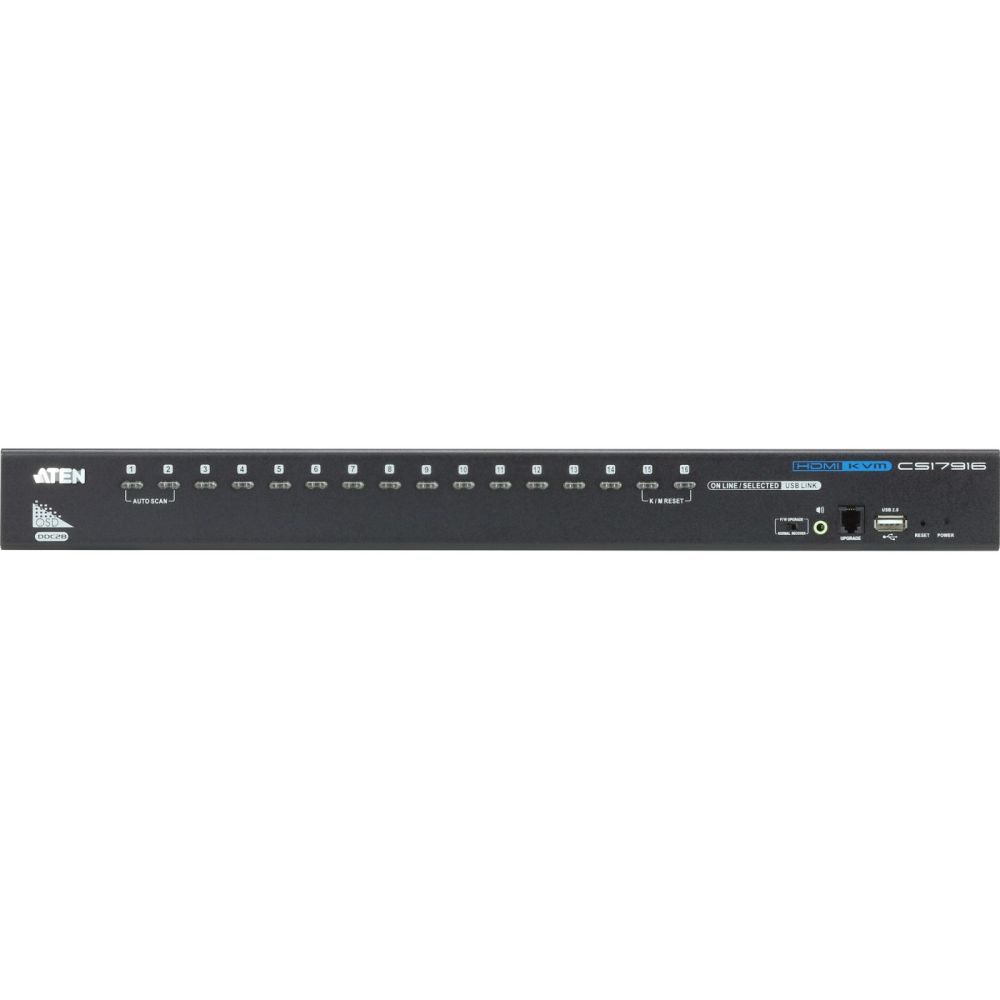

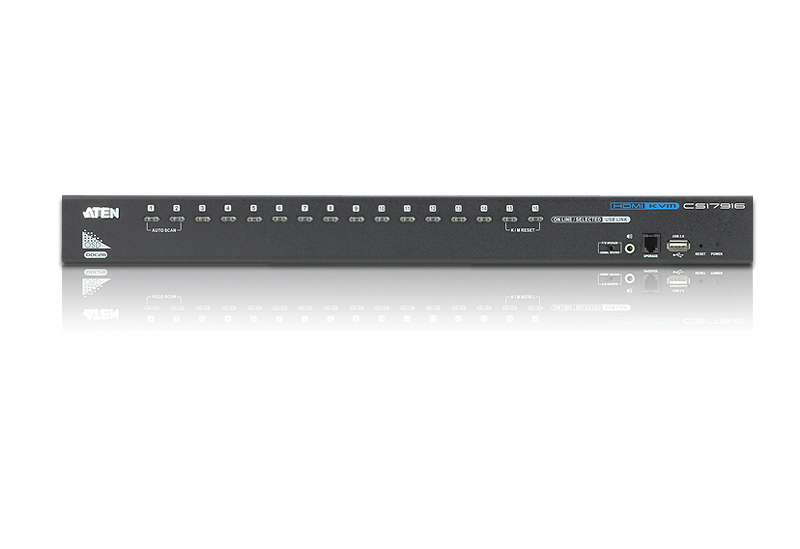

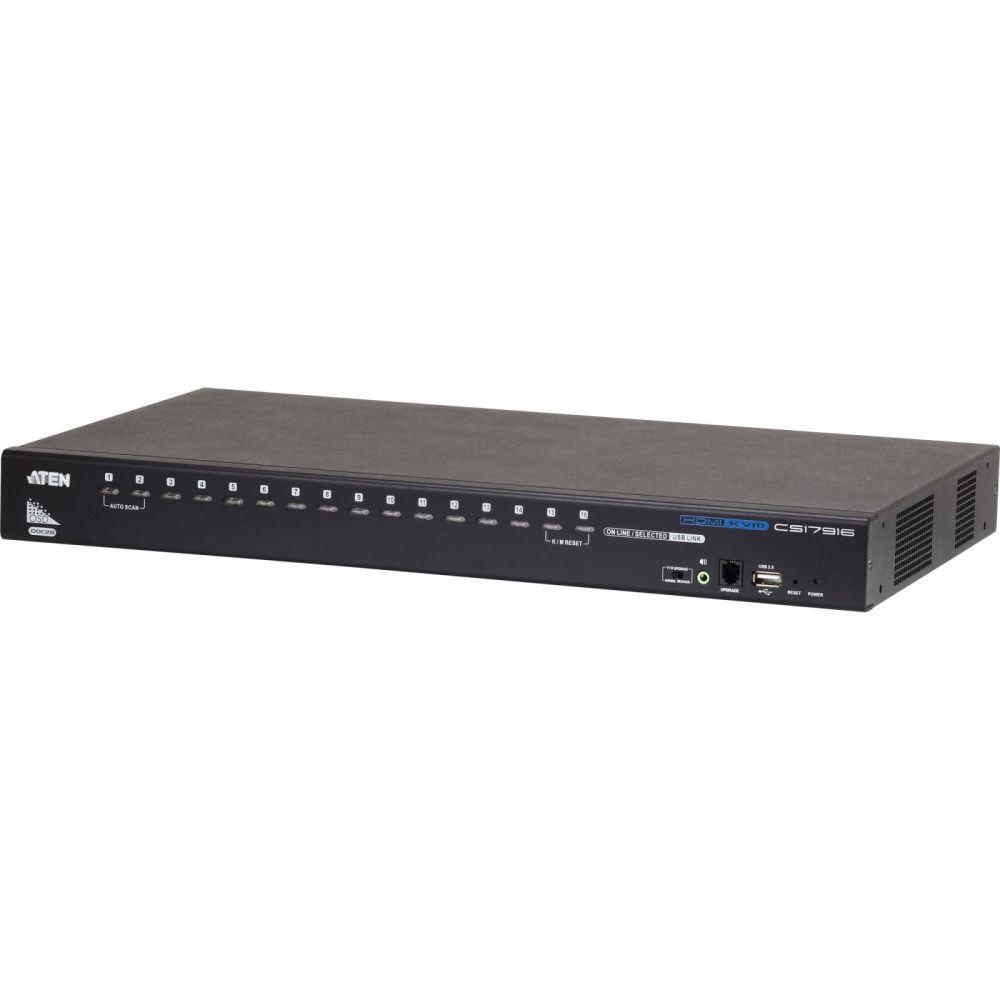

ATEN 16-Port USB - HDMI KVM Switch w/USB Peripheral port
|
-33% 591,66 EUR 886,75 EUR |
|
|
( 704,08 EUR incl. VAT ) ≈ £498.18 | ≈ $664.43 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 877207 |
| Mfg Part No: | CS17916 |
| UPC/EAN: | 4719264641602 |
| Weight: | 5.603 kg |
Product information for Aten CS17916:
Resolution up to 1080p / 1920 x 1200 @ 60Hz,

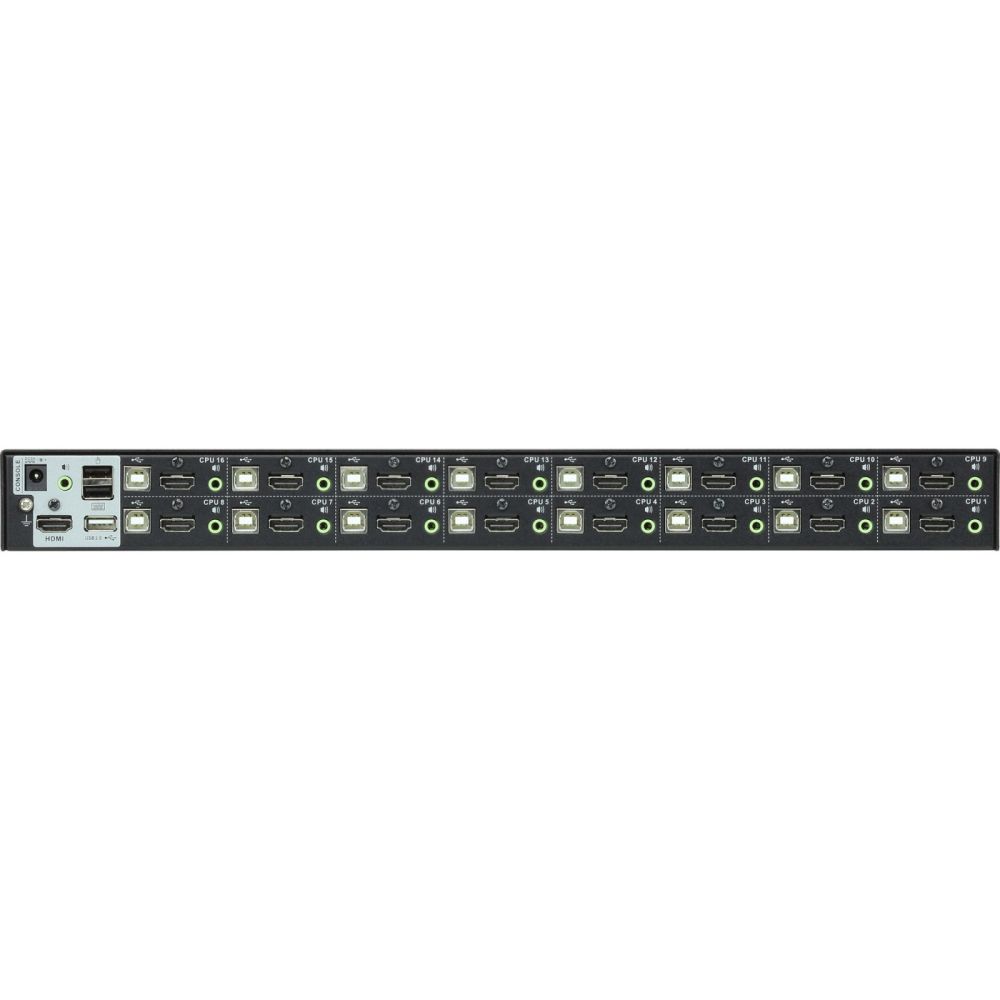

Console: 1xHDMI jack, 1xAudio jack, 2x USB jack,
PC 1-16: depending (1xHDMI jack, 1xUSB, 1xAudio)
Package Contents: 2x 2L 7D02UH
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 15.3 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 427 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 18.1 kg |
| Products per master (outer) case | 3 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 133 mm |
| Package depth | 499 mm |
| Package height | 324 mm |
| Package weight | 5.68 kg |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
| Ports & interfaces | |
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 16 |
| USB 2.0 Type-B ports quantity | 16 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| USB 2.0 Type-A hub ports quantity | 2 |
| Headphone outputs | 17 |
| Number of microphone inputs | 1 |
| USB hub | |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 8.66 W |
| Weight & dimensions | |
| Width | 432.4 mm |
| Depth | 257.2 mm |
| Height | 44 mm |
| Weight | 5.1 kg |
