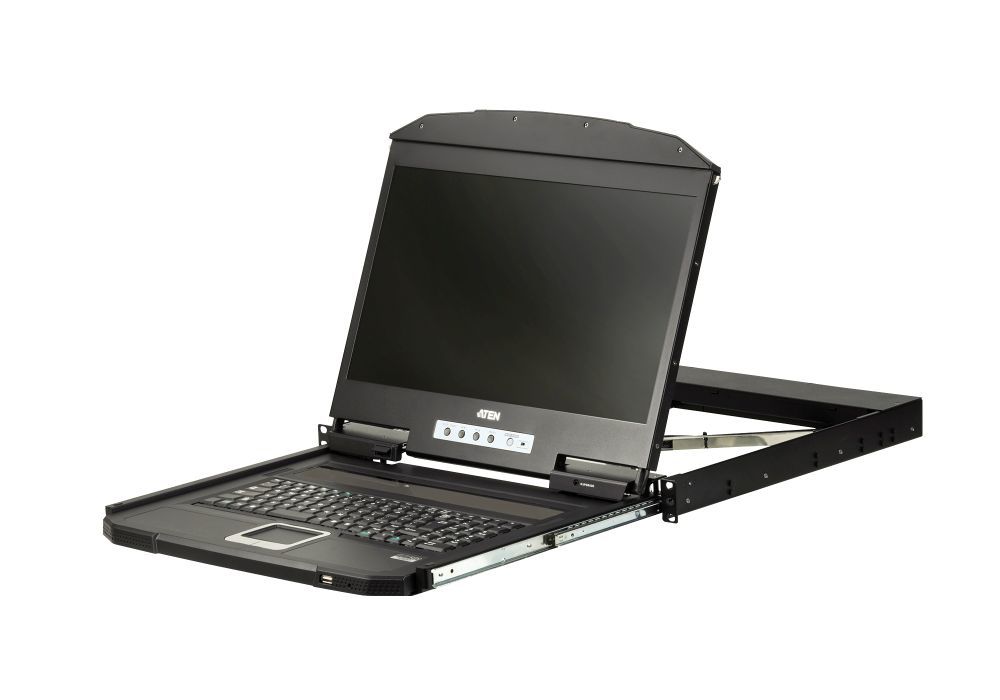

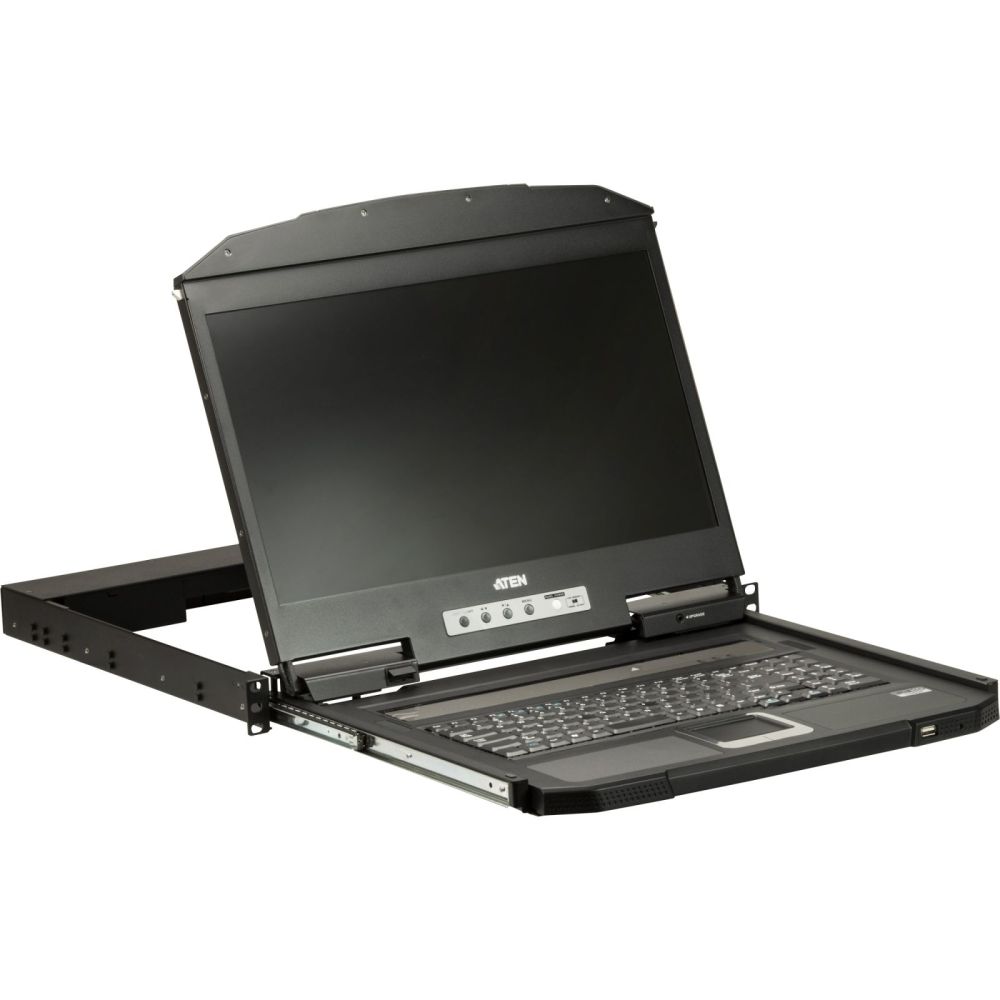

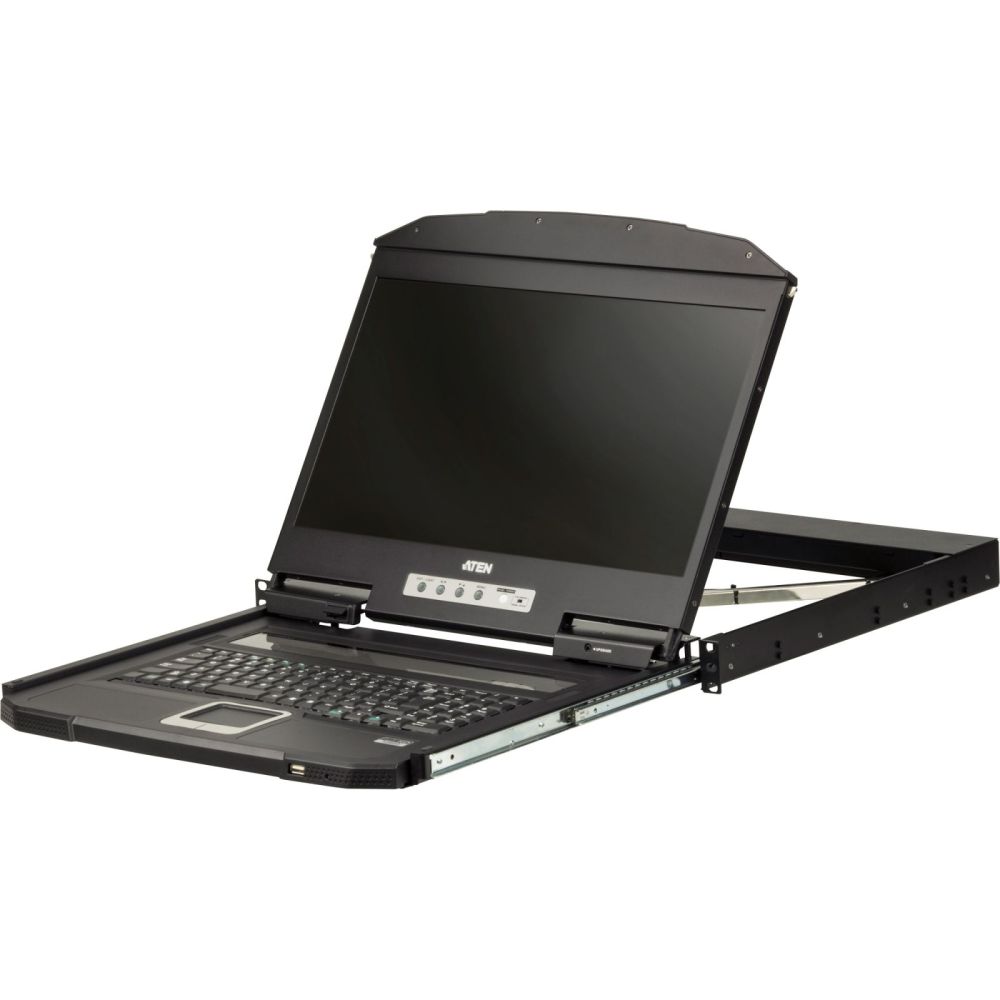

Aten TFT drawer, 48,3 cm ( 19 inch ) 1U, incl. TFT 47 cm ( 18,5 inch ), Black, German, HDMI/USB, with ultra short depth, 1920 x 1080 @ 60Hz
|
-14% 1.319,79 EUR 1.533,11 EUR |
|
|
( 1.570,55 EUR incl. VAT ) ≈ £1,102.02 | ≈ $1,479.48 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 237115 |
| Mfg Part No: | CL3700NW-ATA-GG |
| UPC/EAN: | 4719264647284 |
| Weight: | 12 kg |
Product information for Aten CL3700NW-ATA-GG:
| Display | |
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1920 x 1080 pixels |
| Display | TFT-LCD |
| Display brightness | 350 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.213 x 0.213 mm |
| Aspect ratio | 16:9 |
| Display type | TFT |
| Response time | 20 ms |
| Display number of colours | 16.78 million colours |
| Keyboard | |
| Keyboard language | US English |
| Keyboard layout | QWERTY |
| Logistics data | |
| Master (outer) case net weight | 10.1 kg |
| Master (outer) case width | 612 mm |
| Master (outer) case length | 658 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 12.6 kg |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Package weight | 11.9 kg |
| Package width | 612 mm |
| Package depth | 658 mm |
| Package height | 135 mm |

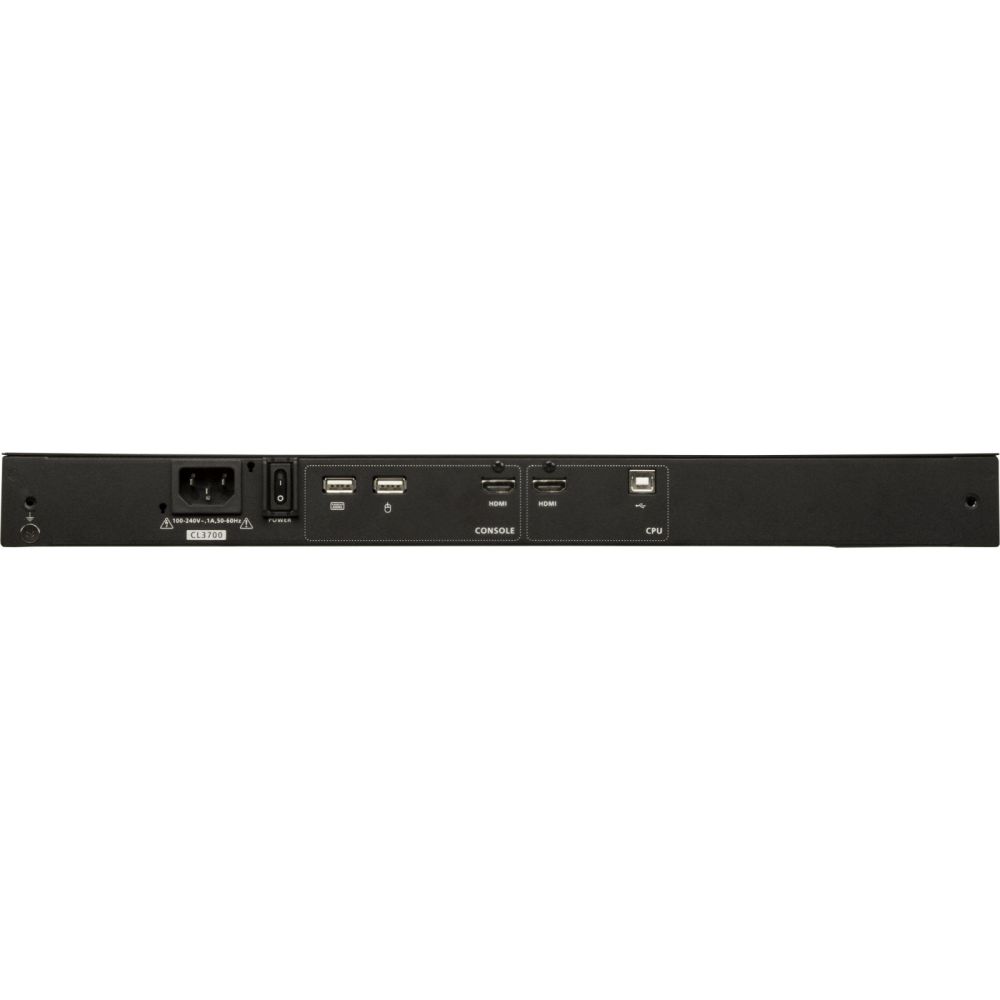

| Ports & interfaces | |
| Interface | HDMI |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| USB 2.0 Type-A ports quantity | 3 |
| USB 2.0 Type-B ports quantity | 1 |
| 3.5 mm (1/8-inch) in | |
| Power | |
| Power consumption (typical) | 23.9 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| Technical data | |
| Number of CPU | 1 |
| Periphery inputs per CPU | USB-B female x1 |
| Length packaging | 0.660m |
| Audio outputs per console | Without |
| Packaging volume | 0.0543m³ |
| Audio per CPU | Without |
| Keyboard layout | US (English) |
| Weight | 11.810kg |
| Type 1 | KVM Display Console |
| Height packaging | 0.140m |
| Design | Rack-Mount |
| Peripheral outputs per console | USB mouse for integrated console x1, USB female for external console x2 |
| Fiber optic network | Without |
| Width packaging | 0.620m |
| Video inputs per CPU | HDMI female x1 |
| Max. resolution | 1920x1080 / 60Hz |
| Display diagonal | 18.5" |
| Screen connectors per console | 1 |
| Number of consoles | 1 + 1x (integrated) |
| Video outputs per console | HDMI x1 |
| Resolution integrated display | 1920x1080 |
| TP Network | Without |
| Type 2 | HDMI Single Rail |
| Audio loudspeakers | |
| Audio microphone | |
| USB peripherals | |
| Technical details | |
| Material | Metal, Plastic |
| Product colour | Black |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 1 |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Rack mounting | |
| Push button | |
| Weight & dimensions | |
| Width | 480.6 mm |
| Height | 477 mm |
| Depth | 42.8 mm |
| Weight | 10.1 kg |
