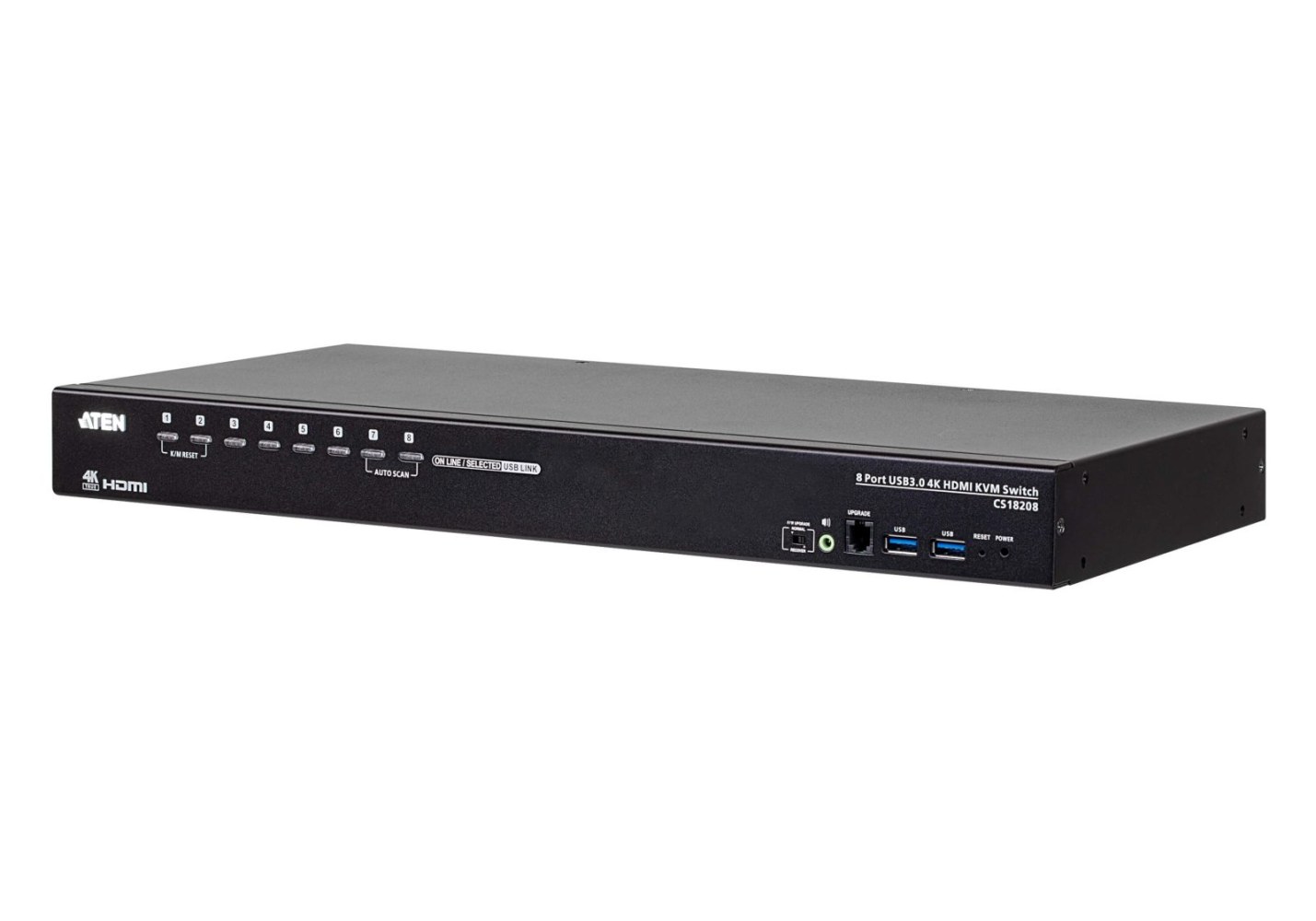

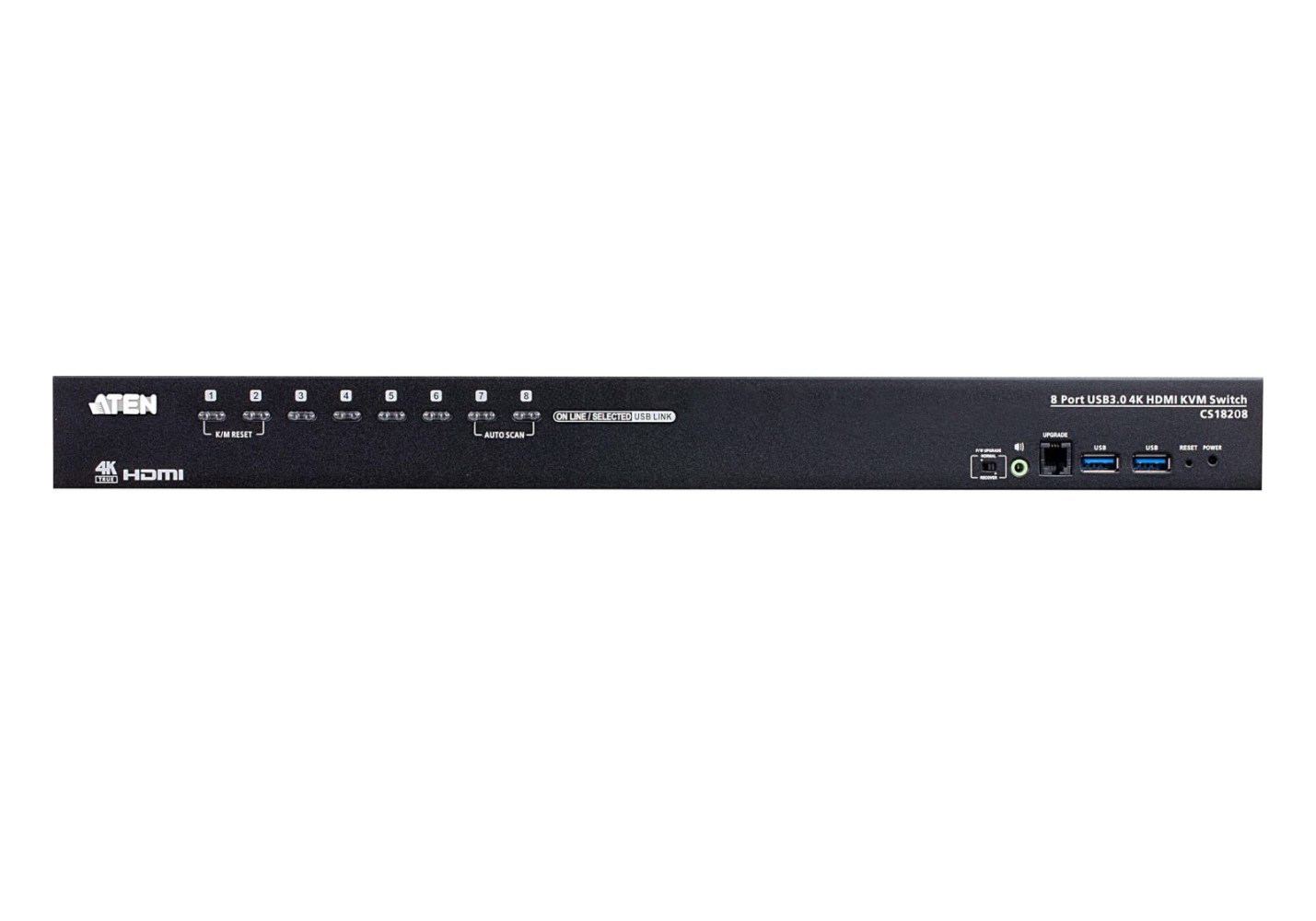

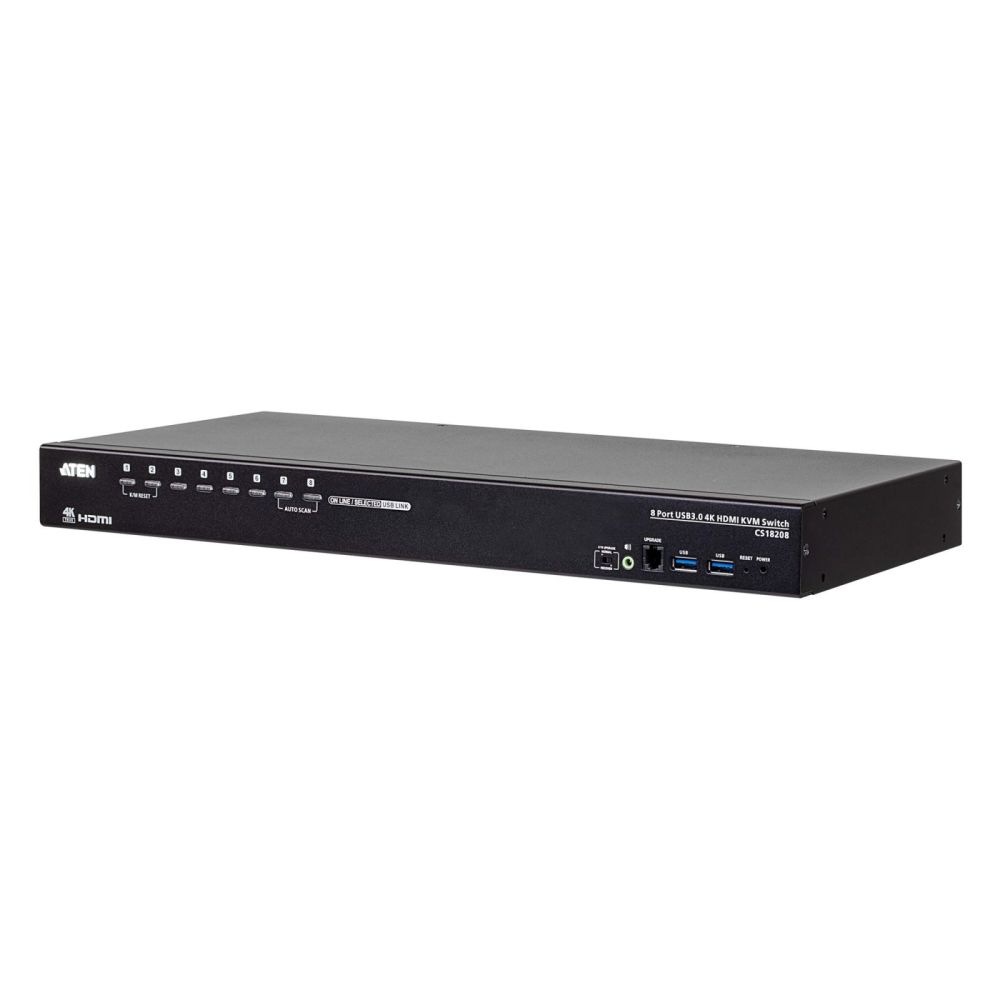

ATEN CS18208 8-Port USB3.0 HDMI KVM Switch
|
-36% 786,39 EUR 1.224,57 EUR |
|
|
( 935,80 EUR incl. VAT ) ≈ £662.14 | ≈ $883.12 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 108819 |
| Mfg Part No: | CS18208 |
| UPC/EAN: | 4710469340697 |
| Weight: | 4.85 kg |
Product information for Aten CS18208:
The ATEN CS18208 8-Port USB 3.0 4K HDMI KVM Switch can effectively access and control up to 8 HDMI computers via a single USB keyboard, USB mouse and HDMI monitor console. The CS18208 supports high video quality up to 4K DCI (4096 x 2160 @ 60Hz) and presents crystal clear images.
To meet the requirements for easy expansion and flexibility, the CS18208 can handle up to 512 computers Control cascading on three levels for a single console. In addition, the CS18208 supports the multi-display function by stacking up to eight CS18208 units in order to compare and analyze information on a maximum of 8 monitors, which significantly streamlines the work environment.
With two patented ATENs Technologies - Video DynaSync ™ and EDID Expert ™, the CS18208 can optimize screen resolution, speed up port switching and boot up smoothly while eliminating monitor boot up issues.
The CS18208 also features a built-in USB 3.1 Gen 1 hub that delivers data transfer rates of up to 5 Gbps, so users can run things faster and share USB peripherals instantly. For user-friendly port selection, the CS18208 offers pushbuttons, hotkeys, RS-232 commands and an OSD with a redesigned user interface that enable effortless and intuitive operation.
To eliminate security concerns, two-stage password authorization is available to increase the protection of computer access and control. By consolidating these beneficial functions, the CS18208 is ideal for managing server or computer rooms in industries with high quality image and multitasking requirements, such as: B. companies, authorities, production, telecommunications, finance, media, content providers, video surveillance etc. One USB console controls up to 8 computers with HDMI interfaces and two additional USB 3.1 Gen 1 peripheral devices Cascadable on three levels - controls up to 512 computers (CS18208 cascaded only to CS18208)
Multi-display function - stacks up to eight CS18208 units and displays images from up to 8 screens (Dual Display / Triple Display / Quad Display / Multi-Display)
Video DynaSync ™ - an exclusive ATEN technology that eliminates display problems during startup and optimizes the resolution when switching between different sources
EDID Expert ™ - selects the optimal EDID mode for smooth switch-on and the highest display quality
Outstanding video quality - up to 4K DCI (4096 x 2160 @ 60Hz)
Integrated 2-port -USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
audio-capable - full bass reproduction offers a rich experience for 2.1-channel stereo sound
Supports HD audio (HD audio via HDMI channel cannot be switched independently)
Computer selection via pushbuttons, hotkeys, OSD and RS-232 commands
Independent switching of KVM and USB peripheral focus (independent switching is only supported in mouse emulation mode.)
Two-stage (administrator / user) password authorization for increased security protection
Broadcast mode - operations can be performed simultaneously on all selected computers, e.g. B. software installation and upgrade, system-wide shutdown etc.
Auto-scan mode for monitoring all computers
Console mouse port emulation / bypass function supports most mouse drivers and Multifunctional mice
Multilingual keyboard layout - supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, traditional Chinese and Simplified Chinese
Mac / Sun keyboard support and emulation (PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards only work with their own computers.)
Supports hot plugging
HDMI compatible; HDCP 2.2 compatible
Multi-platform support - Windows, Linux, Mac and Sun
Firmware upgradeable
Supports multimedia, wireless keyboards and mice
Scope of delivery: 1x CS18208 8-port USB 3.0 4K HDMI KVM switch with rack mounting kit
2x HDMI cables
2x USB 3.0 cables 2x audio cables
1x firmware upgrade cable
1x foot pad set (4 parts)
1x power adapter
1x instructions for use

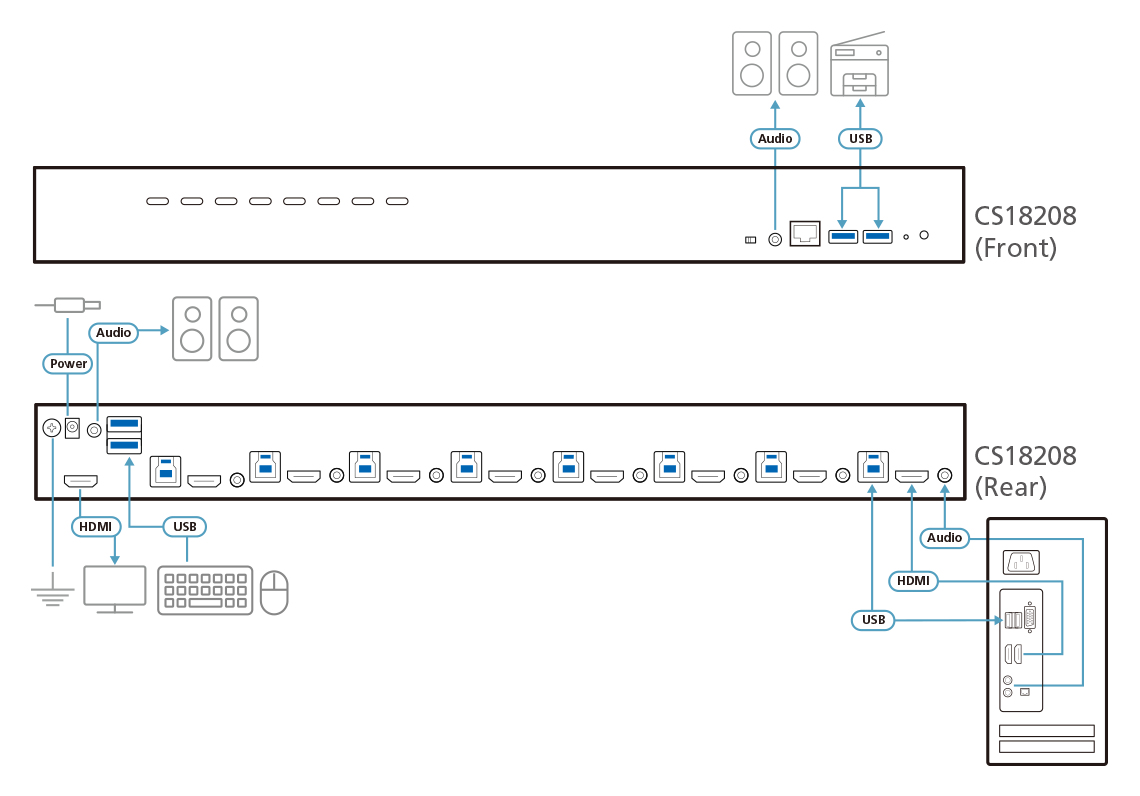

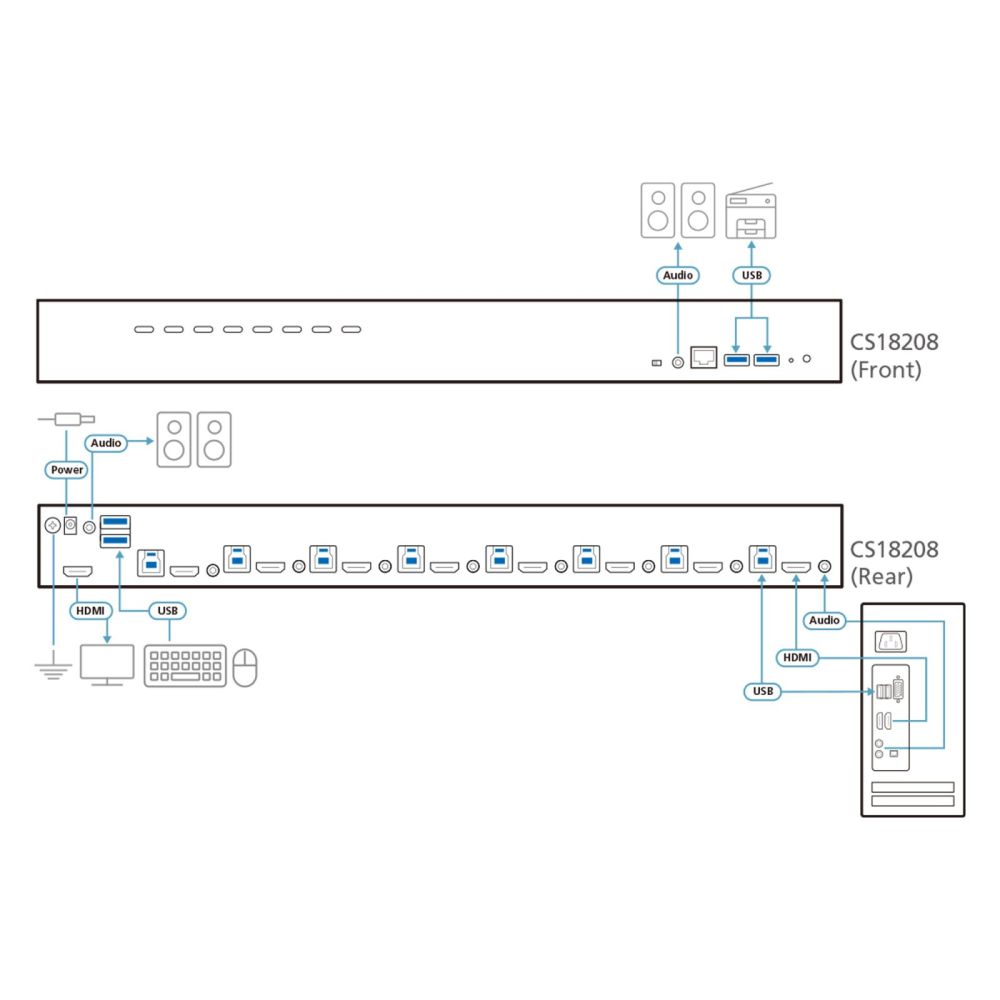

Computer connections
Direct 8
Maximum 512 (cascading)
Port selection OSD, push button, hotkey,, RS-232 commands
Ports
Console ports 1 x HDMI Female (black)
2 x USB Type A Female
2 x 3.5 & nbsp; mm Audio Jack Female (green; 1 x front, 1 x rear)

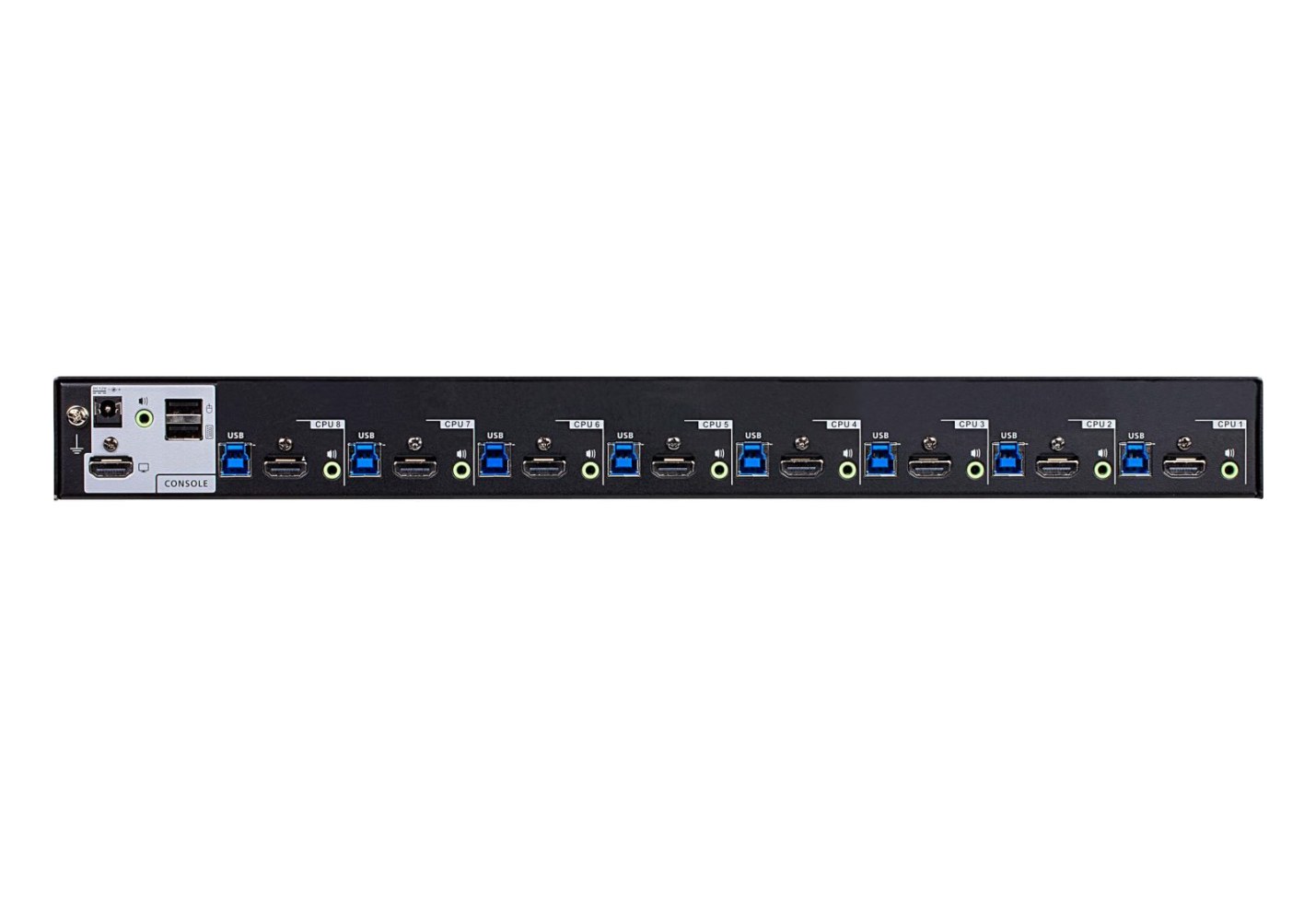

KVM ports 8 x HDMI Female
8 x USB3.1 Gen1 Type B Female (blue )
8 x 3.5 mm audio jack female (green)
Firmware update 1 x RJ11 female (black)
Power supply 1 x DC socket
USB hub 2 x USB3.1 Gen1 Type B female (blue; 2 x front)
Switch
Port selection 8 x push button
Reset 1 x half-built push button
firmware Update recovery 1 x slide switch
LEDs
Online / selected 8 (Orange)
Power supply 1 (green)
USB-Link 8 (green)
Emulation
Keyboard / mouse USB
Video HDMI: 4096 x 2160 @ 60Hz
Search interval 0 & nbsp; - & nbsp; 255 seconds (preset 5 sec.)
Power consumption DC12V: 9.77W: 88BTU
Environment
Operating temperature 0 & nbsp; - & nbsp; 40 ° C
Storage temperature - 20 & nbsp; - & nbsp; 60 ° C
humidity 0 & nbsp; - & nbsp; 80% RH, non-condensing
Physical properties
Housing Metal
Weight 3 , 11 & nbsp; kg (6.85 & nbsp; lb)
Dimensions (L x W x H) 43.24 x 21.43 x 4.40 & nbsp; cm
(17.02 x 8.44 x 1.73 & nbsp; in.)
Note For some rack-mount products it should be noted that the usual dimensions of WxDxH are given in an LxWxH format.
To meet the requirements for easy expansion and flexibility, the CS18208 can handle up to 512 computers Control cascading on three levels for a single console. In addition, the CS18208 supports the multi-display function by stacking up to eight CS18208 units in order to compare and analyze information on a maximum of 8 monitors, which significantly streamlines the work environment.
With two patented ATENs Technologies - Video DynaSync ™ and EDID Expert ™, the CS18208 can optimize screen resolution, speed up port switching and boot up smoothly while eliminating monitor boot up issues.
The CS18208 also features a built-in USB 3.1 Gen 1 hub that delivers data transfer rates of up to 5 Gbps, so users can run things faster and share USB peripherals instantly. For user-friendly port selection, the CS18208 offers pushbuttons, hotkeys, RS-232 commands and an OSD with a redesigned user interface that enable effortless and intuitive operation.
To eliminate security concerns, two-stage password authorization is available to increase the protection of computer access and control. By consolidating these beneficial functions, the CS18208 is ideal for managing server or computer rooms in industries with high quality image and multitasking requirements, such as: B. companies, authorities, production, telecommunications, finance, media, content providers, video surveillance etc. One USB console controls up to 8 computers with HDMI interfaces and two additional USB 3.1 Gen 1 peripheral devices Cascadable on three levels - controls up to 512 computers (CS18208 cascaded only to CS18208)
Multi-display function - stacks up to eight CS18208 units and displays images from up to 8 screens (Dual Display / Triple Display / Quad Display / Multi-Display)
Video DynaSync ™ - an exclusive ATEN technology that eliminates display problems during startup and optimizes the resolution when switching between different sources
EDID Expert ™ - selects the optimal EDID mode for smooth switch-on and the highest display quality
Outstanding video quality - up to 4K DCI (4096 x 2160 @ 60Hz)
Integrated 2-port -USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
audio-capable - full bass reproduction offers a rich experience for 2.1-channel stereo sound
Supports HD audio (HD audio via HDMI channel cannot be switched independently)
Computer selection via pushbuttons, hotkeys, OSD and RS-232 commands
Independent switching of KVM and USB peripheral focus (independent switching is only supported in mouse emulation mode.)
Two-stage (administrator / user) password authorization for increased security protection
Broadcast mode - operations can be performed simultaneously on all selected computers, e.g. B. software installation and upgrade, system-wide shutdown etc.
Auto-scan mode for monitoring all computers
Console mouse port emulation / bypass function supports most mouse drivers and Multifunctional mice
Multilingual keyboard layout - supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, traditional Chinese and Simplified Chinese
Mac / Sun keyboard support and emulation (PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards only work with their own computers.)
Supports hot plugging
HDMI compatible; HDCP 2.2 compatible
Multi-platform support - Windows, Linux, Mac and Sun
Firmware upgradeable
Supports multimedia, wireless keyboards and mice
Scope of delivery: 1x CS18208 8-port USB 3.0 4K HDMI KVM switch with rack mounting kit
2x HDMI cables
2x USB 3.0 cables 2x audio cables
1x firmware upgrade cable
1x foot pad set (4 parts)
1x power adapter
1x instructions for use
Computer connections
Direct 8
Maximum 512 (cascading)
Port selection OSD, push button, hotkey,, RS-232 commands
Ports
Console ports 1 x HDMI Female (black)
2 x USB Type A Female
2 x 3.5 & nbsp; mm Audio Jack Female (green; 1 x front, 1 x rear)
KVM ports 8 x HDMI Female
8 x USB3.1 Gen1 Type B Female (blue )
8 x 3.5 mm audio jack female (green)
Firmware update 1 x RJ11 female (black)
Power supply 1 x DC socket
USB hub 2 x USB3.1 Gen1 Type B female (blue; 2 x front)
Switch
Port selection 8 x push button
Reset 1 x half-built push button
firmware Update recovery 1 x slide switch
LEDs
Online / selected 8 (Orange)
Power supply 1 (green)
USB-Link 8 (green)
Emulation
Keyboard / mouse USB
Video HDMI: 4096 x 2160 @ 60Hz
Search interval 0 & nbsp; - & nbsp; 255 seconds (preset 5 sec.)
Power consumption DC12V: 9.77W: 88BTU
Environment
Operating temperature 0 & nbsp; - & nbsp; 40 ° C
Storage temperature - 20 & nbsp; - & nbsp; 60 ° C
humidity 0 & nbsp; - & nbsp; 80% RH, non-condensing
Physical properties
Housing Metal
Weight 3 , 11 & nbsp; kg (6.85 & nbsp; lb)
Dimensions (L x W x H) 43.24 x 21.43 x 4.40 & nbsp; cm
(17.02 x 8.44 x 1.73 & nbsp; in.)
Note For some rack-mount products it should be noted that the usual dimensions of WxDxH are given in an LxWxH format.
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 11.8 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 427 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 15.7 kg |
| Products per master (outer) case | 3 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 133 mm |
| Package depth | 499 mm |
| Package height | 324 mm |
| Package weight | 4.84 kg |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 9 |
| Number of microphone inputs | 1 |
| USB hub | |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 12 V |
| Power consumption (typical) | 9.77 W |
| System requirements | |
| Windows operating systems supported | |
| Linux operating systems supported | |
| Mac operating systems supported | |
| Technical data | |
| Type 1 | KVM switch |
| Length packaging | 0.499m |
| Max. resolution | 4096x2160 / 60Hz |
| Type 2 | 8-fold HDMI KVM |
| USB specification | USB 3.2 Gen.1 |
| Video inputs per CPU | HDMI x1 |
| Packaging volume | 0.0215m³ |
| Weight | 4.846kg |
| Number of CPU | 8 |
| Width packaging | 0.133m |
| Height packaging | 0.324m |
| USB peripherals | |
| Weight & dimensions | |
| Width | 432.4 mm |
| Depth | 214.3 mm |
| Height | 44 mm |
| Weight | 3.94 kg |
Questions & answers
What is the delivery time of ATEN CS18208 8-Port USB3.0 HDMI KVM Switch?
The article ATEN CS18208 8-Port USB3.0 HDMI KVM Switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS18208 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CS18208 8-Port USB3.0 HDMI KVM Switch always at the best possible price. We can give you a discount of 2% on ATEN CS18208 8-Port USB3.0 HDMI KVM Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
This product is recommended as accessory for
 |
Aten 2L-7D02UH USB/Mini-phone/HDMI KVM Cable for KVM Switch - 1.80 m
Aten connection cable HDMI, 1.8m, USB, Audio 3in1(HDMI,USB,Audio,) KVM: 1xHDMI(plug), 1xUSB B(plug), 2xAudio(plug), PC: 1xHDMI(plug), 1xUSB B(plug) , 2xAudio(plug), Lieske Part No.: 877242 Mfg Part No: 2L-7D02UH |
-5% 22,45 EUR 23,53 EUR
 ≈ £18.90 | ≈ $25.21
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
ATEN 2L-7D03H High Speed True 4K HDMI Cable with Ethernet black 3m
ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for ... Lieske Part No.: 1567714 Mfg Part No: 2L-7D03H |
-37% 6,76 EUR 10,72 EUR
≈ £5.69 | ≈ $7.59
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
Fitting accessory for ATEN CS18208 8-Port USB3.0 HDMI KVM Switch
 |
ATEN CL3700NW USB HDMI console IT layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 214642 Mfg Part No: CL3700NW IT |
-8% 1.253,19 EUR 1.361,61 EUR
≈ £1,055.19 | ≈ $1,407.33
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
ATEN CL3700NW USB HDMI Console UK layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 214721 Mfg Part No: CL3700NW GB |
-8% 1.253,19 EUR 1.361,61 EUR
≈ £1,055.19 | ≈ $1,407.33
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
ATEN CL3700NW USB HDMI console FR layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 214848 Mfg Part No: CL3700NW F |
-8% 1.253,19 EUR 1.361,61 EUR
≈ £1,055.19 | ≈ $1,407.33
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
ATEN CL3700NW USB HDMI console CH layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 214858 Mfg Part No: CL3700NW CH |
-8% 1.253,19 EUR 1.361,61 EUR
≈ £1,055.19 | ≈ $1,407.33
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Aten TFT drawer, 48,3 cm ( 19 inch ) 1U, incl. TFT 47 cm ( 18,5 inch ), Black, German, HDMI/USB, with ultra short depth, 1920 x 1080 @ 60Hz
Order based on order * 1U Ultra Short Depth Single Rail WideScreen LCD Console, ATEN Supports HDMI video input 47 cm ( 18,5 inch ) LCD screen supports Full HD resolution of 1920 x 1080 @ 60Hz External ... Lieske Part No.: 237115 Mfg Part No: CL3700NW-ATA-GG |
-14% 1.319,79 EUR 1.533,11 EUR
≈ £1,111.26 | ≈ $1,482.12
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
ATEN CL3700NW Console USB HDMI Keyboard Layout (DE)
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 1614696 Mfg Part No: CL3700NW D |
1.319,79 EUR 1.361,61 EUR
≈ £1,111.26 | ≈ $1,482.12
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
ATEN CL3700NW SL Short depth single rail 47 cm ( 18,5 inch ) LCD console (USB HDMI), SL layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 22195754 Mfg Part No: CL3700NW-ATA-DNG |
1.253,19 EUR
≈ £1,055.19 | ≈ $1,407.33
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
|
|
ATEN CL3700NW ES Short depth single rail 47 cm ( 18,5 inch ) LCD console (USB HDMI), ES layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 22195850 Mfg Part No: CL3700NW-ATA-SG |
1.253,19 EUR
≈ £1,055.19 | ≈ $1,407.33
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
