ATEN CS18216 16-Port USB 3.0 HDMI KVM Switch
|
-21% 1.156,41 EUR 1.471,27 EUR |
|
|
( 1.376,13 EUR incl. VAT ) ≈ £965.60 | ≈ $1,296.34 plus delivery charges: 100,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 108831 |
| Mfg Part No: | CS18216 |
| UPC/EAN: | 4710469340703 |
| Weight: | 5.25 kg |
Product information for Aten CS18216:
The ATEN CS18216 16-Port USB 3.0 4K HDMI KVM Switch can effectively access and control up to 16 HDMI computers via a single USB keyboard, USB mouse and HDMI monitor console. The CS18216 supports high video quality up to 4K DCI (4096 x 2160 @ 60Hz) and presents crystal clear images.
To meet the requirements for easy expansion and flexibility, the CS18216 can handle up to 256 computers Control two-level cascading for a single console. In addition, the CS18216 supports the multi-display function by stacking up to eight CS18216 units in order to compare and analyze information on a maximum of 8 monitors, which significantly streamlines the work environment.
With two patented ATENs Technologies - Video DynaSync ™ and EDID Expert ™, the CS18216 can optimize screen resolution, speed up port switching and boot up smoothly while eliminating monitor boot up issues.
The CS18216 also has a built-in USB 3.1 Gen 1 hub that delivers data transfer rates of up to 5 Gbps, so users can speed up operations and share USB peripherals instantly. For user-friendly port selection, the CS18216 offers push buttons, hotkeys, RS-232 commands and an OSD with a redesigned user interface that enable effortless and intuitive operation.
To eliminate security concerns, two-stage password authorization is available to increase the protection of computer access and control. By consolidating these beneficial functions, the CS18216 is ideal for managing server or computer rooms in industries with high quality image and multitasking requirements, such as: B. companies, authorities, production, telecommunications, finance, media, content providers, video surveillance etc. One USB console controls up to 16 computers with HDMI interfaces and two additional USB 3.1 Gen 1 peripheral devices Cascadable on two levels - controls up to 256 computers (CS18216 cascaded only to CS18216)
Multi-display function - stacks up to eight CS18216 units and displays images from up to 8 screens (Dual Display / Triple Display / Quad Display / Multi-Display)
Video DynaSync ™ - an exclusive ATEN technology that eliminates display problems during startup and optimizes the resolution when switching between different sources
EDID Expert ™ - selects the optimal EDID mode for smooth switch-on and the highest display quality
Outstanding video quality - up to 4K DCI (4096 x 2160 @ 60Hz)
Integrated 2-port -USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
audio-capable - full bass reproduction offers a rich experience for 2.1-channel stereo sound
Supports HD audio (HD audio via HDMI channel cannot be switched independently.)
Computer selection via pushbuttons, hotkeys , OSD and RS-232 commands
Independent switching of KVM and USB peripheral focus (independent switching is only supported in mouse emulation mode)
Two-stage (administrator / user) password authorization for increased security protection
Broadcast mode - operations can be performed simultaneously on all selected computers, e.g. B. software installation and upgrade, system-wide shutdown etc.
Auto-scan mode for monitoring all computers
Console mouse port emulation / bypass function supports most mouse drivers and Multifunctional mice
Multilingual keyboard layout - supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, traditional Chinese and Simplified Chinese
Mac / Sun keyboard support and emulation (PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards only work with their own computers.)
Supports hot plugging
HDMI compatible; HDCP 2.2 compatible
Multi-platform support - Windows, Linux, Mac and Sun
Firmware upgradeable
Supports multimedia, wireless keyboards and mice
Scope of delivery 1x CS18216 16-port USB 3.0 4K HDMI KVM switch with rack mounting kit
2x HDMI cables
2x USB 3.0 cables
2x audio cables
1x firmware upgrade cable
1x foot pad set (4 parts)
1x power adapter
1x instructions for use
Computer connections
Direct 16
Maximum 256 (cascading)
Port selection OSD, hotkey, pushbutton, RS-232 Commands

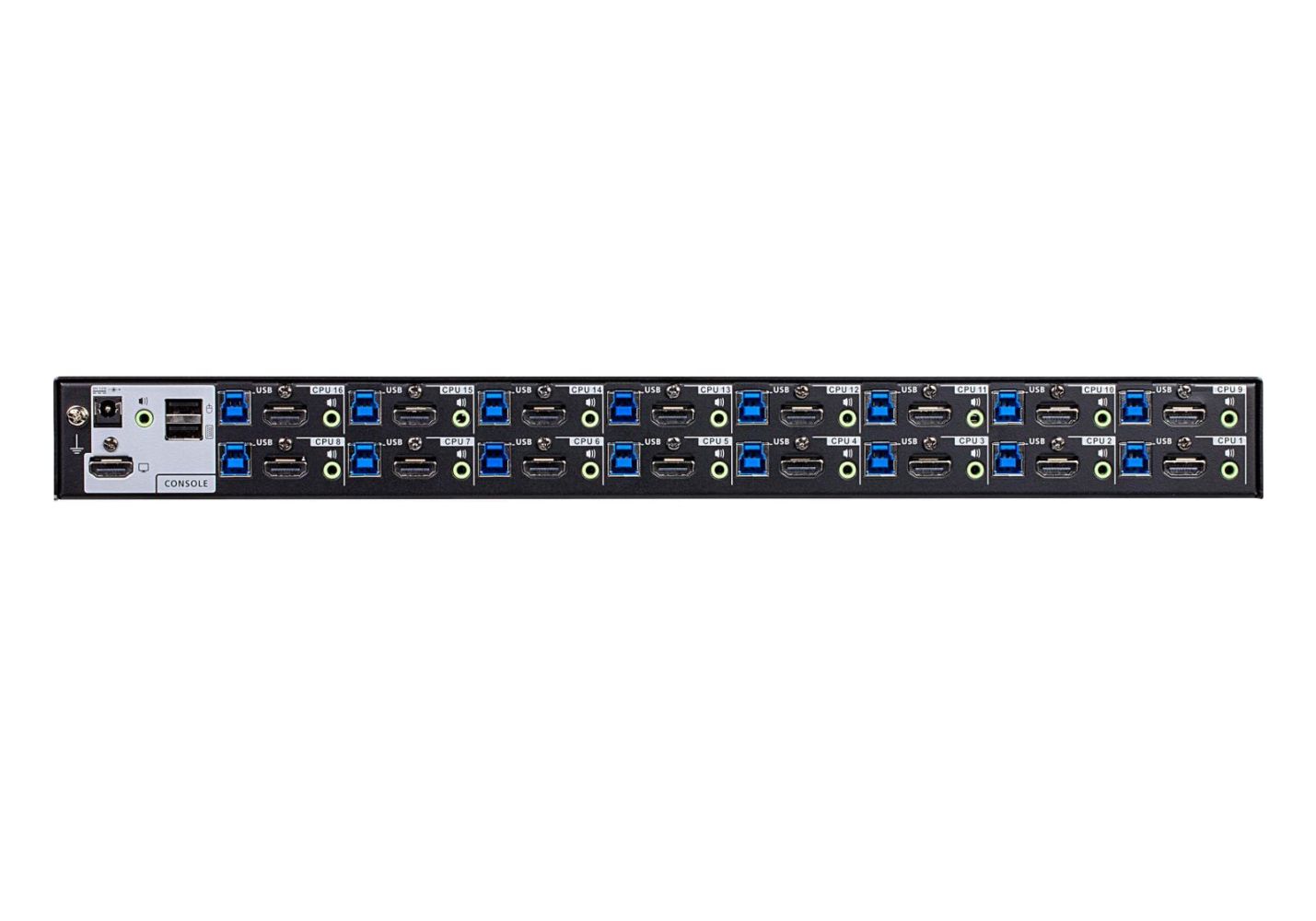

Ports
Console ports 1 x HDMI female (black)
2 x USB Type A female
2 x 3.5mm audio jack female (green; 1 x front, 1 x rear)
KVM ports 16 x HDMI female
16 x USB3.1 Gen1 Type B female (blue) 16 x 3.5 & nbsp; mm Audio Jack Female (green)
Firmware update 1 x RJ11 Female (black)
Power supply 1 x DC socket
USB-Hub 2 x USB3.1 Gen1 Type B Female (blue; 2 x front)
Switch
Port selection 16 x pushbutton
Reset 1 x half-built push button
firmware Update recovery 1 x slide switch
LEDs
Online / selected 16 (Orange)
Power supply 1 (green)
USB-Link 16 (green)
Emulation
Keyboard / mouse USB
Video HDMI: 4096 x 2160 @ 60Hz
Search interval 0 & nbsp; - & nbsp; 255 seconds (preset 5 sec.)
Power consumption DC12V: 13.12W: 104BTU
Environment
Operating temperature 0 & nbsp; - & nbsp; 40 ° C
Storage temperature - 20 & nbsp; - & nbsp; 60 ° C
humidity 0 & nbsp; - & nbsp; 80% RH, non-condensing
Physical properties
housing metal
weight 3.54 & nbsp; kg (7.8 & nbsp; lb)
Dimensions (L x W x H) 43.24 x 21.43 x 4.40 & nbsp; cm
(17.02 x 8.44 x 1.73 & nbsp; in.)
Note For some rack-mount products it should be noted that the usual dimensions of WxDxH are given in an LxWxH format.
To meet the requirements for easy expansion and flexibility, the CS18216 can handle up to 256 computers Control two-level cascading for a single console. In addition, the CS18216 supports the multi-display function by stacking up to eight CS18216 units in order to compare and analyze information on a maximum of 8 monitors, which significantly streamlines the work environment.
With two patented ATENs Technologies - Video DynaSync ™ and EDID Expert ™, the CS18216 can optimize screen resolution, speed up port switching and boot up smoothly while eliminating monitor boot up issues.
The CS18216 also has a built-in USB 3.1 Gen 1 hub that delivers data transfer rates of up to 5 Gbps, so users can speed up operations and share USB peripherals instantly. For user-friendly port selection, the CS18216 offers push buttons, hotkeys, RS-232 commands and an OSD with a redesigned user interface that enable effortless and intuitive operation.
To eliminate security concerns, two-stage password authorization is available to increase the protection of computer access and control. By consolidating these beneficial functions, the CS18216 is ideal for managing server or computer rooms in industries with high quality image and multitasking requirements, such as: B. companies, authorities, production, telecommunications, finance, media, content providers, video surveillance etc. One USB console controls up to 16 computers with HDMI interfaces and two additional USB 3.1 Gen 1 peripheral devices Cascadable on two levels - controls up to 256 computers (CS18216 cascaded only to CS18216)
Multi-display function - stacks up to eight CS18216 units and displays images from up to 8 screens (Dual Display / Triple Display / Quad Display / Multi-Display)
Video DynaSync ™ - an exclusive ATEN technology that eliminates display problems during startup and optimizes the resolution when switching between different sources
EDID Expert ™ - selects the optimal EDID mode for smooth switch-on and the highest display quality
Outstanding video quality - up to 4K DCI (4096 x 2160 @ 60Hz)
Integrated 2-port -USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
audio-capable - full bass reproduction offers a rich experience for 2.1-channel stereo sound
Supports HD audio (HD audio via HDMI channel cannot be switched independently.)
Computer selection via pushbuttons, hotkeys , OSD and RS-232 commands
Independent switching of KVM and USB peripheral focus (independent switching is only supported in mouse emulation mode)
Two-stage (administrator / user) password authorization for increased security protection
Broadcast mode - operations can be performed simultaneously on all selected computers, e.g. B. software installation and upgrade, system-wide shutdown etc.
Auto-scan mode for monitoring all computers
Console mouse port emulation / bypass function supports most mouse drivers and Multifunctional mice
Multilingual keyboard layout - supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, traditional Chinese and Simplified Chinese
Mac / Sun keyboard support and emulation (PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards only work with their own computers.)
Supports hot plugging
HDMI compatible; HDCP 2.2 compatible
Multi-platform support - Windows, Linux, Mac and Sun
Firmware upgradeable
Supports multimedia, wireless keyboards and mice
Scope of delivery 1x CS18216 16-port USB 3.0 4K HDMI KVM switch with rack mounting kit
2x HDMI cables
2x USB 3.0 cables
2x audio cables
1x firmware upgrade cable
1x foot pad set (4 parts)
1x power adapter
1x instructions for use
Computer connections
Direct 16
Maximum 256 (cascading)
Port selection OSD, hotkey, pushbutton, RS-232 Commands
Ports
Console ports 1 x HDMI female (black)
2 x USB Type A female
2 x 3.5mm audio jack female (green; 1 x front, 1 x rear)
KVM ports 16 x HDMI female
16 x USB3.1 Gen1 Type B female (blue) 16 x 3.5 & nbsp; mm Audio Jack Female (green)
Firmware update 1 x RJ11 Female (black)
Power supply 1 x DC socket
USB-Hub 2 x USB3.1 Gen1 Type B Female (blue; 2 x front)
Switch
Port selection 16 x pushbutton
Reset 1 x half-built push button
firmware Update recovery 1 x slide switch
LEDs
Online / selected 16 (Orange)
Power supply 1 (green)
USB-Link 16 (green)
Emulation
Keyboard / mouse USB
Video HDMI: 4096 x 2160 @ 60Hz
Search interval 0 & nbsp; - & nbsp; 255 seconds (preset 5 sec.)
Power consumption DC12V: 13.12W: 104BTU
Environment
Operating temperature 0 & nbsp; - & nbsp; 40 ° C
Storage temperature - 20 & nbsp; - & nbsp; 60 ° C
humidity 0 & nbsp; - & nbsp; 80% RH, non-condensing
Physical properties
housing metal
weight 3.54 & nbsp; kg (7.8 & nbsp; lb)
Dimensions (L x W x H) 43.24 x 21.43 x 4.40 & nbsp; cm
(17.02 x 8.44 x 1.73 & nbsp; in.)
Note For some rack-mount products it should be noted that the usual dimensions of WxDxH are given in an LxWxH format.
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 13.1 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 427 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 16.9 kg |
| Products per master (outer) case | 3 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 133 mm |
| Package depth | 499 mm |
| Package height | 324 mm |
| Package weight | 5.25 kg |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
| Ports & interfaces | |
| Number of computers controlled | 16 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 16 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 16 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 17 |
| Number of microphone inputs | 1 |
| USB hub | |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 12 V |
| Power consumption (typical) | 13.12 W |
| System requirements | |
| Windows operating systems supported | |
| Linux operating systems supported | |
| Mac operating systems supported | |
| Technical data | |
| Height packaging | 0.324m |
| Packaging volume | 0.0215m³ |
| Number of CPU | 16 |
| Width packaging | 0.133m |
| Complies with HDMI standard | 2.0 |
| USB specification | USB 3.2 Gen.1 |
| Max. resolution | 4096x2160 / 60Hz |
| Weight | 5.250kg |
| Video inputs per CPU | HDMI x1 |
| Type 1 | KVM switch |
| Length packaging | 0.499m |
| Type 2 | 16-fold HDMI KVM |
| USB peripherals | |
| Weight & dimensions | |
| Width | 432.4 mm |
| Depth | 214.3 mm |
| Height | 44 mm |
| Weight | 4.37 kg |
Questions & answers
What is the delivery time of ATEN CS18216 16-Port USB 3.0 HDMI KVM Switch?
The article ATEN CS18216 16-Port USB 3.0 HDMI KVM Switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS18216 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CS18216 16-Port USB 3.0 HDMI KVM Switch always at the best possible price. We can give you a discount of 2% on ATEN CS18216 16-Port USB 3.0 HDMI KVM Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
This product is recommended as accessory for
 |
Aten 2L-7D02UH USB/Mini-phone/HDMI KVM Cable for KVM Switch - 1.80 m
Aten connection cable HDMI, 1.8m, USB, Audio 3in1(HDMI,USB,Audio,) KVM: 1xHDMI(plug), 1xUSB B(plug), 2xAudio(plug), PC: 1xHDMI(plug), 1xUSB B(plug) , 2xAudio(plug), Lieske Part No.: 877242 Mfg Part No: 2L-7D02UH |
-5% 22,45 EUR 23,53 EUR
 ≈ £18.75 | ≈ $25.17
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
ATEN 2L-7D03H High Speed True 4K HDMI Cable with Ethernet black 3m
ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for ... Lieske Part No.: 1567714 Mfg Part No: 2L-7D03H |
-37% 6,76 EUR 10,72 EUR
≈ £5.64 | ≈ $7.58
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
Fitting accessory for ATEN CS18216 16-Port USB 3.0 HDMI KVM Switch
 |
ATEN CL3700NW USB HDMI console IT layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 214642 Mfg Part No: CL3700NW IT |
-8% 1.253,19 EUR 1.361,61 EUR
≈ £1,046.41 | ≈ $1,404.83
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
ATEN CL3700NW USB HDMI Console UK layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 214721 Mfg Part No: CL3700NW GB |
-8% 1.253,19 EUR 1.361,61 EUR
≈ £1,046.41 | ≈ $1,404.83
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
ATEN CL3700NW USB HDMI console FR layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 214848 Mfg Part No: CL3700NW F |
-8% 1.253,19 EUR 1.361,61 EUR
≈ £1,046.41 | ≈ $1,404.83
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
ATEN CL3700NW USB HDMI console CH layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 214858 Mfg Part No: CL3700NW CH |
-8% 1.253,19 EUR 1.361,61 EUR
≈ £1,046.41 | ≈ $1,404.83
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Aten TFT drawer, 48,3 cm ( 19 inch ) 1U, incl. TFT 47 cm ( 18,5 inch ), Black, German, HDMI/USB, with ultra short depth, 1920 x 1080 @ 60Hz
Order based on order * 1U Ultra Short Depth Single Rail WideScreen LCD Console, ATEN Supports HDMI video input 47 cm ( 18,5 inch ) LCD screen supports Full HD resolution of 1920 x 1080 @ 60Hz External ... Lieske Part No.: 237115 Mfg Part No: CL3700NW-ATA-GG |
-14% 1.319,79 EUR 1.533,11 EUR
≈ £1,102.02 | ≈ $1,479.48
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
ATEN CL3700NW Console USB HDMI Keyboard Layout (DE)
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 1614696 Mfg Part No: CL3700NW D |
1.319,79 EUR 1.361,61 EUR
≈ £1,102.02 | ≈ $1,479.48
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
ATEN CL3700NW SL Short depth single rail 47 cm ( 18,5 inch ) LCD console (USB HDMI), SL layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 2444480 Mfg Part No: CL3700NW-ATA-DNG |
1.253,19 EUR
≈ £1,046.41 | ≈ $1,404.83
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
ATEN CL3700NW ES Short depth single rail 47 cm ( 18,5 inch ) LCD console (USB HDMI), ES layout
The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 47 cm ( 18,5 inch ) LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The ... Lieske Part No.: 2444576 Mfg Part No: CL3700NW-ATA-SG |
1.253,19 EUR
≈ £1,046.41 | ≈ $1,404.83
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
