ATEN CL3116NX KVM switch 18.5inch TFT VGA PS/2 USB 16 port keyboard layout German content_copy

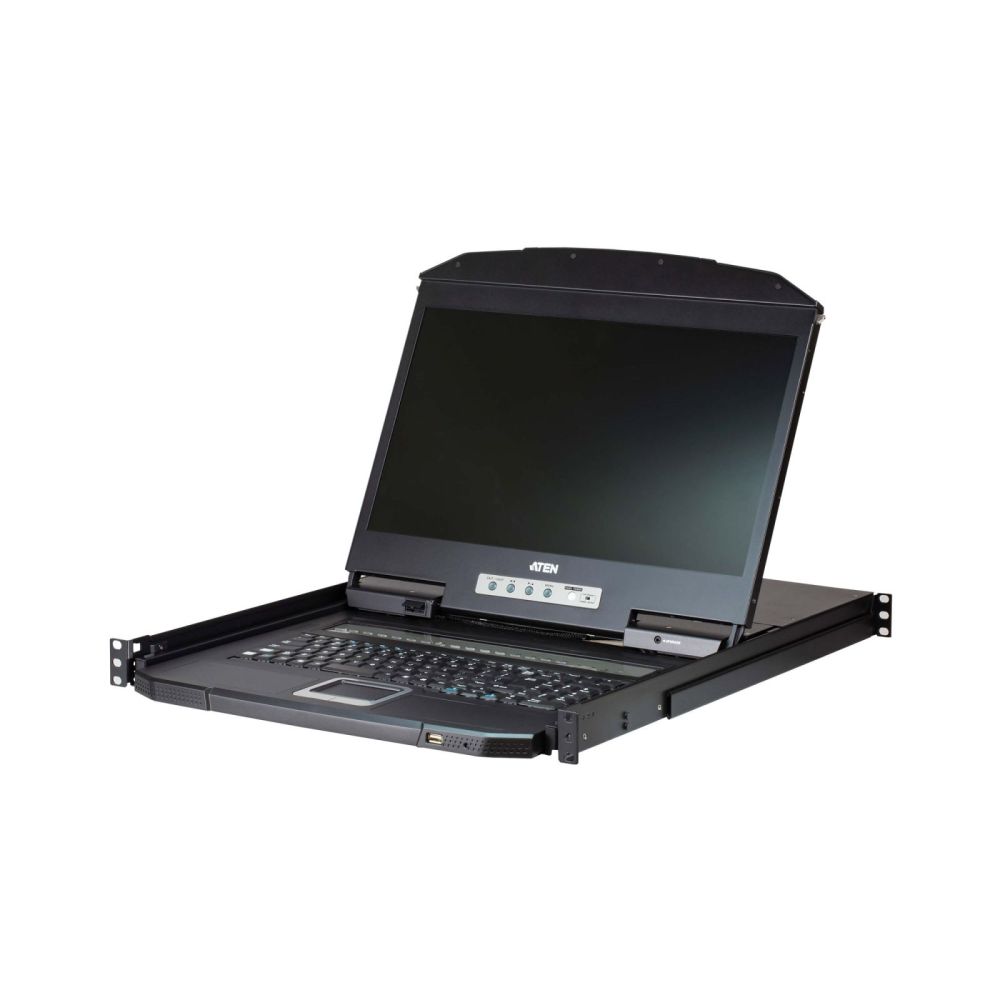

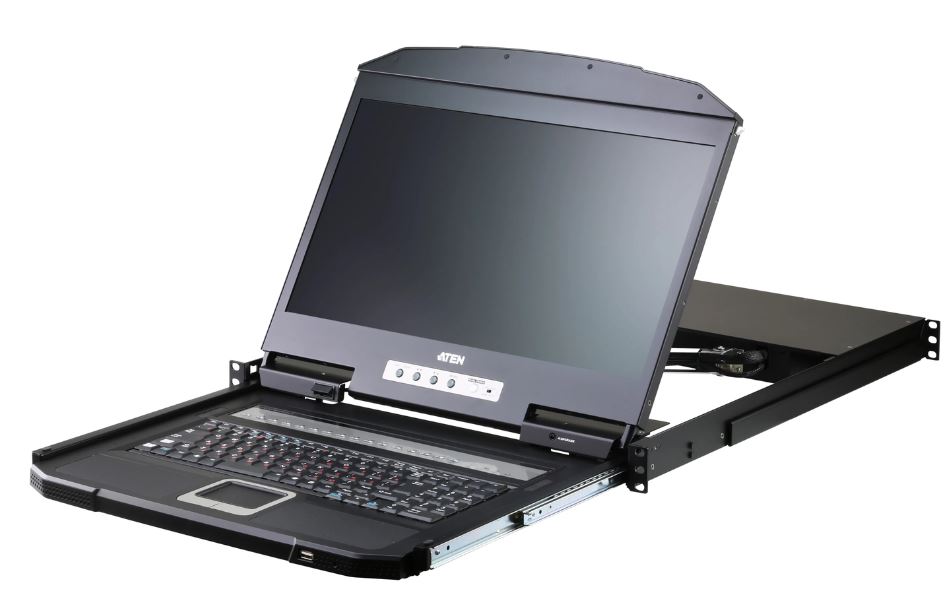

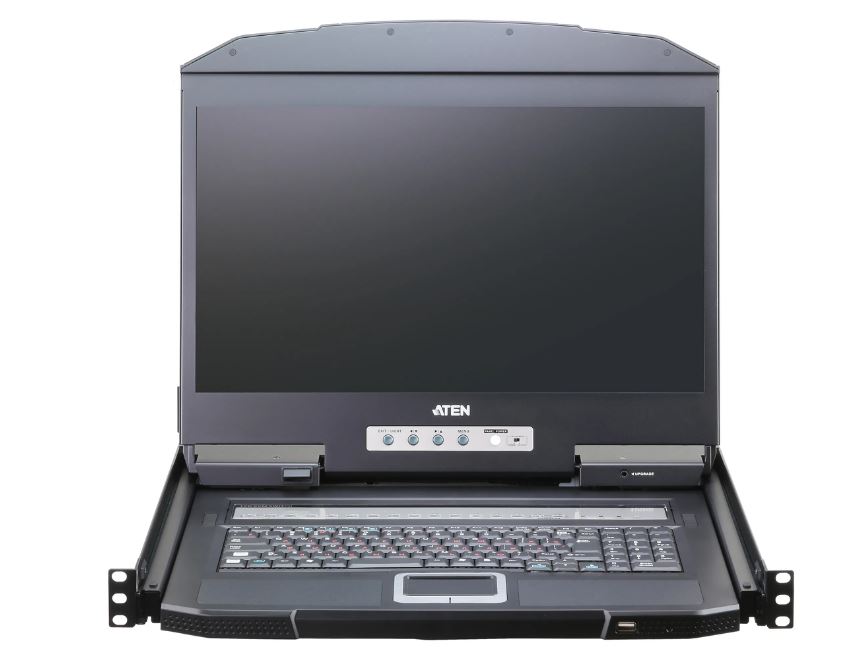

*Made to order*, The ATEN CL3116 LCD KVM Switch offers a space-saving, optimized approach to KVM Switch technology by integrating a keyboard, an 47 cm ( 18,5 inch ) LED backlit LCD monitor and a touchpad in a 1U rack-mountable sliding enclosure. The design with short depth maximizes the space required for equipping rack-mounted devices in tight spaces. In addition, the exclusive LED lighting offers the user a good view when working in poor lighting conditions.

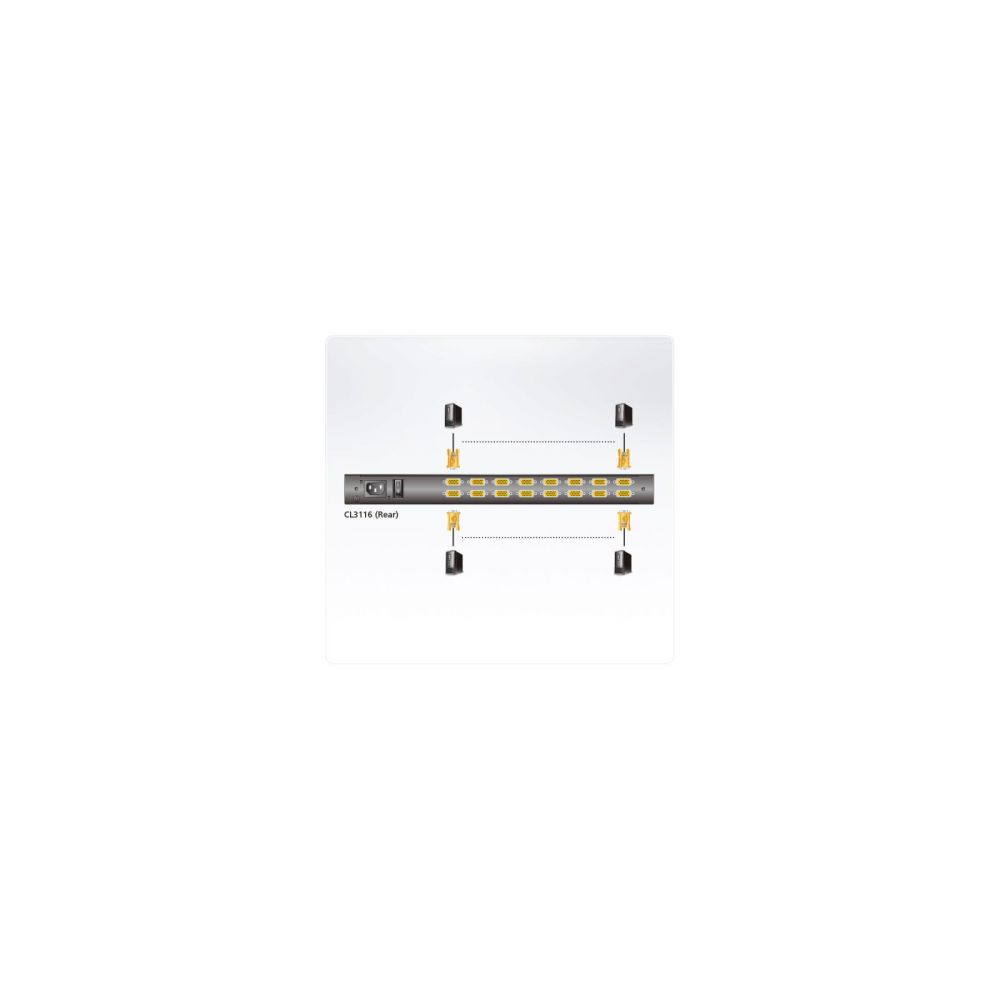

The CL3116 can control up to 16 computers if 16 additional KVM switches can be cascaded A single CL3116 LCD KVM Switch can control up to 256 computers. In order to achieve higher operational efficiency, the CL3116 provides the broadcast mode in which the console distributes the commands to all computers to perform operations simultaneously Requirements for continuous monitoring of a specific group of computers and establishing a reliable working environment for users.
To increase information security, the CL3116 provides two-level password security that prevents unauthorized users from viewing and controlling the computers. For added convenience, the CL3116 features an additional hot-pluggable USB mouse port that only supports keyboard and mouse HID devices.
As a feature-rich LCD KVM Switch, the CL3116 is designed to not only meet but exceed the requirements for space utilization optimization, superior video quality, adaptive deployment and operational versatility, making it ideal for control rooms with limited space in each Industry.
Note: Optional rack mounting kits are available. Further information can be found under Compatible accessories below or at the link: LCD KVM Optional rack mounting kit Scope of delivery
1x CL3116 LCD KVM switch with standard rack mounting kit 2x LIN5-15X3-U12G Custom KVM cables (VGA, USB 1.8m/6ft) 1x LIN5 -004A2-J15G Firmware Upgrade Cable 1x LIN2-418K-E12G Power Cable 1x User Manual

Display
Display diagonal	47 cm (18.5")
Display resolution	1366 x 768 pixels
Display	TFT-LCD
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Pixel pitch	0.3 x 0.3 mm
Display type	LED
Display number of colours	16.78 million colours
On Screen Display (OSD)
Keyboard
Keyboard language	US English
Keyboard layout	QWERTY
Hot keys
Logistics data
Master (outer) case net weight	11.1 kg
Master (outer) case width	668 mm
Master (outer) case length	718 mm
Master (outer) case height	135 mm
Master (outer) case gross weight	13.9 kg
Products per master (outer) case	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging data
Package weight	13.9 kg
Package width	668 mm
Package depth	718 mm
Package height	135 mm

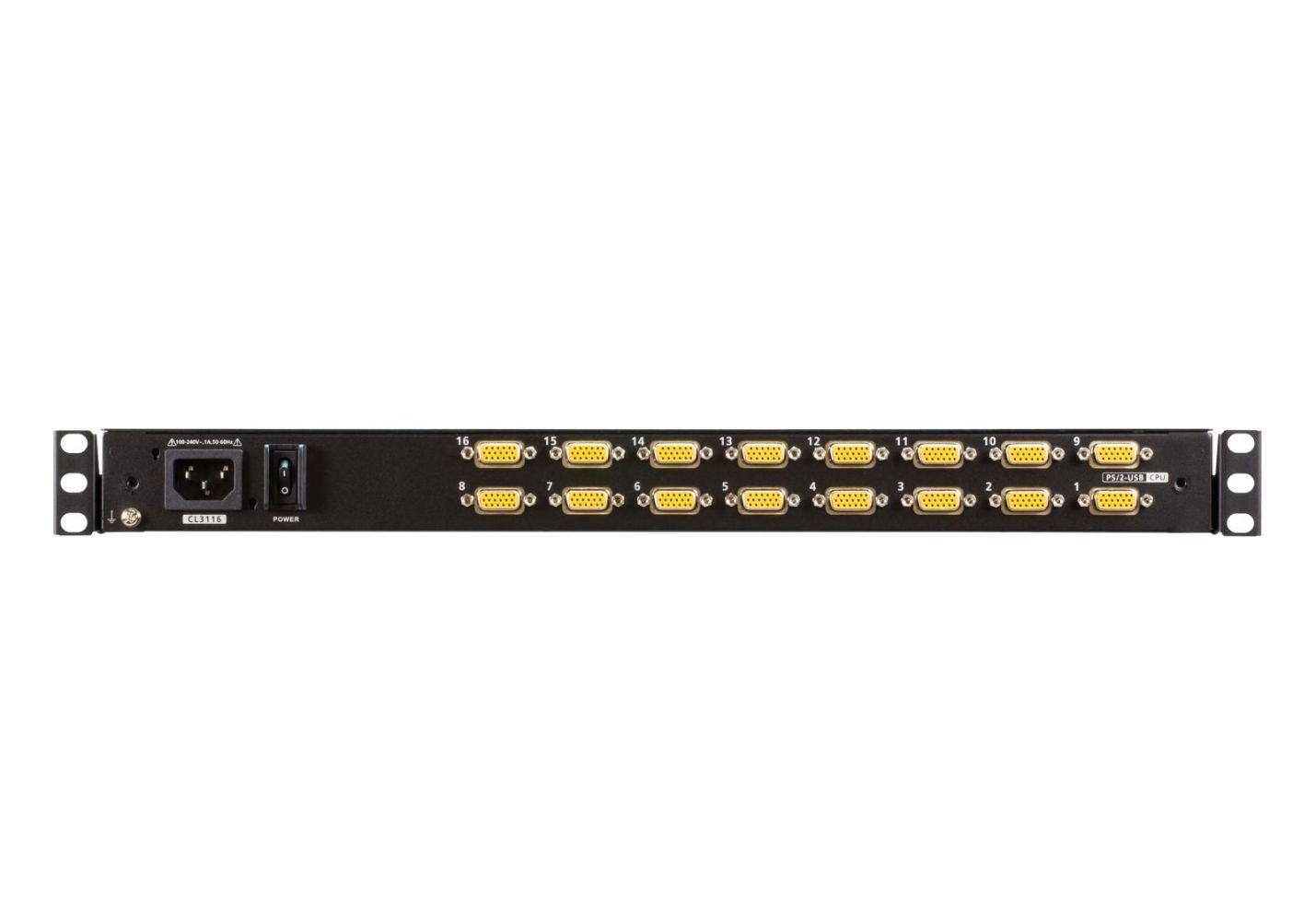

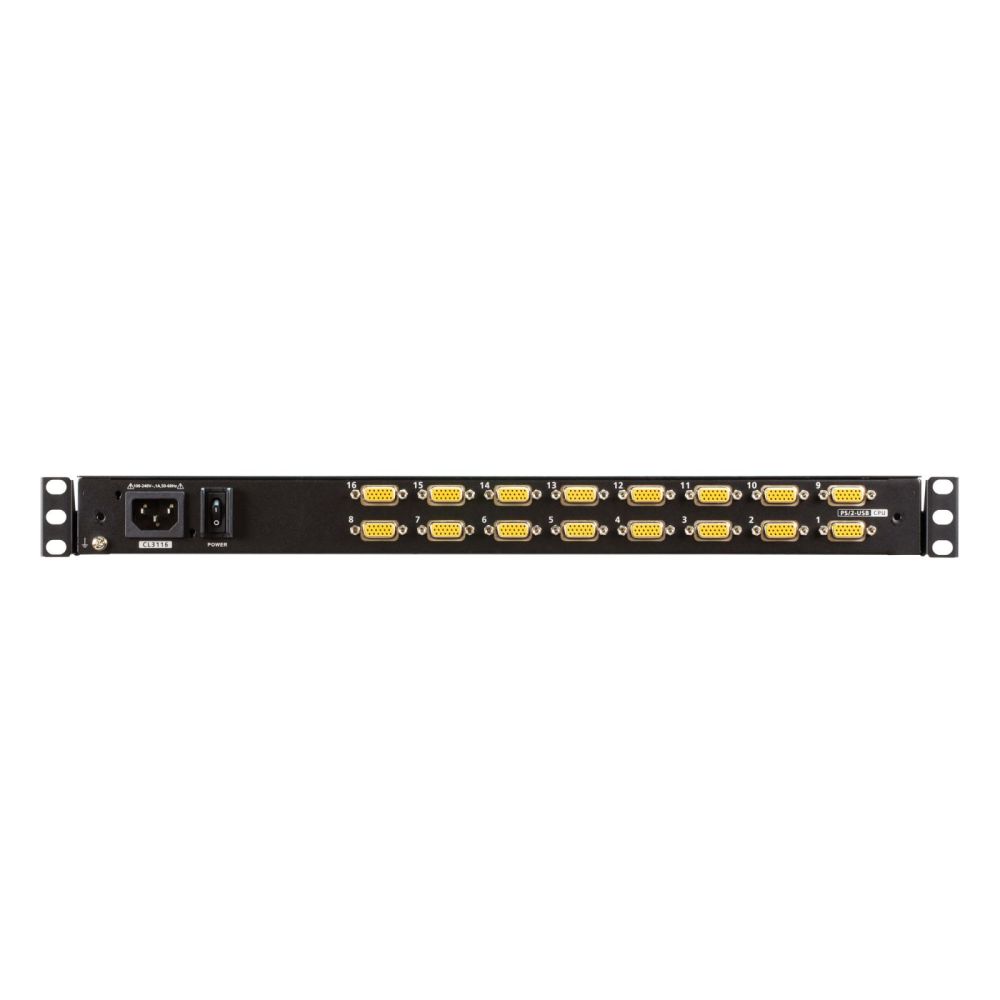

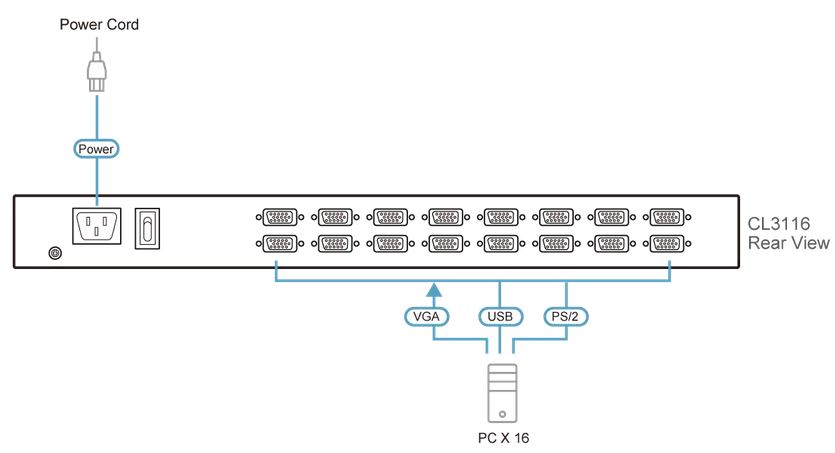

Ports & interfaces
Mouse port type	USB, PS/2
Video port type	VGA
3.5 mm (1/8-inch) in
Power
Power supply type	AC
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 / 60 Hz
Input current	1 A
Technical data
Design	Rack-Mount
Number of consoles	1 (integrated)
Type 1	KVM Display Console
Fiber optic network	Without
Periphery inputs per CPU	SPHD-15 female x1 (on USB, PS/2)
Max. resolution	1920x1200 / 60Hz
Display diagonal	18.5"
Audio per CPU	Without
Peripheral outputs per console	USB x1
Video inputs per CPU	SPHD female (to VGA) x1
Number of CPU	16
Video outputs per console	Without
Keyboard layout	US (English)
TP Network	Without
Screen connectors per console	Without
Type 2	16-fold VGA Single Rail
Audio outputs per console	Without
Resolution integrated display	1366x768
Audio loudspeakers
Extension (daisy chain or cascading)
Audio microphone
USB peripherals
Technical details
Material	Metal, Plastic
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
KVM switch ports quantity	16
Maximum resolution	1366 x 768 pixels
Number of computers controlled	16
Rack capacity	1U
Plug and Play
Hot-Plug support
Built-in KVM switch
Rack mounting
LED indicators
Push button
Weight & dimensions
Width	480.6 mm
Height	631.7 mm
Depth	42.8 mm
Weight	11.1 kg

---
