ATEN CL3108NX KVM-Switch 18.5 inch TFT VGA PS/2-USB 8 port keyboard layout German content_copy

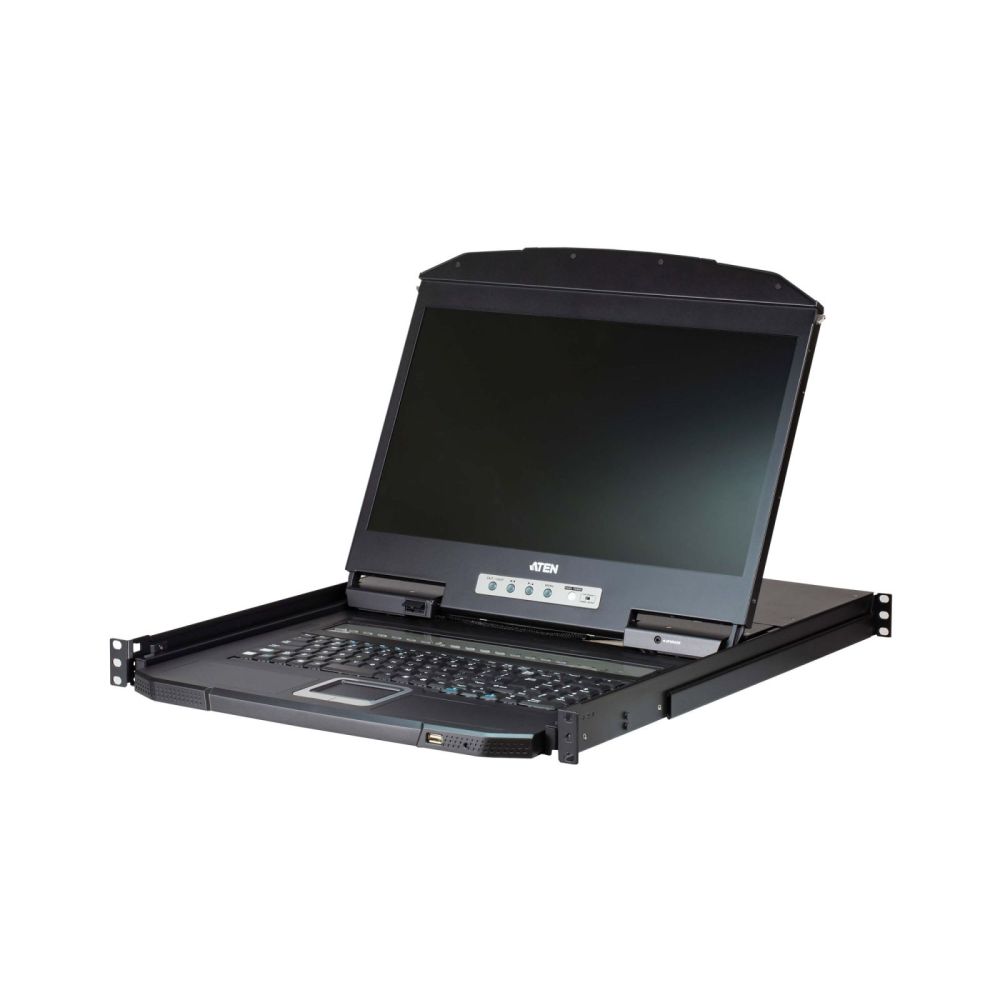

*Made to order*, The ATEN CL3108 LCD KVM Switch offers a space-saving, optimized approach to KVM Switch technology by integrating a keyboard, an 47 cm ( 18,5 inch ) LED backlit LCD monitor and a touchpad in a 1U rack-mountable sliding enclosure. The design with short depth maximizes the space required for equipping rack-mounted devices in tight spaces. In addition, the exclusive LED lighting offers the user a good view when working in poor lighting conditions.

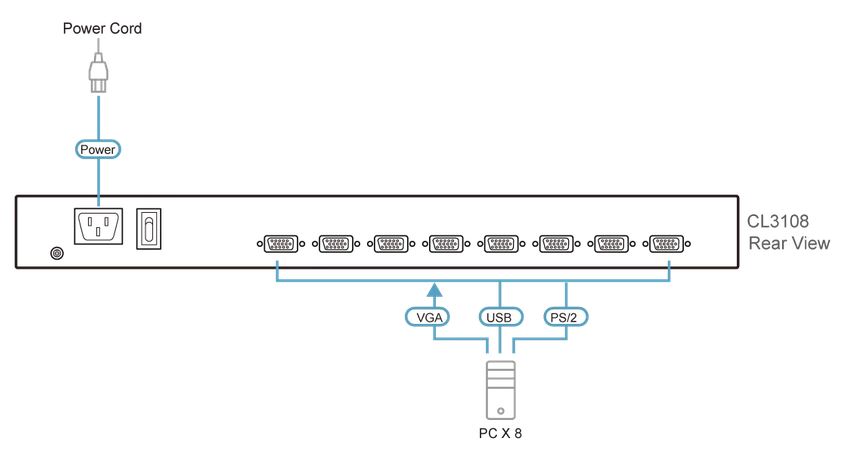

The CL3108 can control up to 8 computers if 8 additional KVM switches can be cascaded A single CL3108 LCD KVM Switch can control up to 128 computers. In order to achieve higher operational efficiency, the CL3108 provides the broadcast mode in which the console distributes the commands to all computers to perform operations simultaneously Requirements for continuous monitoring of a specific group of computers and establishing a reliable working environment for users.
To increase information security, the CL3108 provides two-level password security that prevents unauthorized users from viewing and controlling the computers. For added convenience, the CL3108 features an additional hot-pluggable USB mouse port that only supports keyboard and mouse HID devices.
As a feature-rich LCD KVM Switch, the CL3108 is designed to not only meet but exceed the requirements for space utilization optimization, superior video quality, adaptive deployment and operational versatility, making it ideal for control rooms with limited space in each Industry.
Note: Optional rack mounting kits are available. Further information can be found under Compatible accessories below or at the link: LCD KVM Optional rack mounting kit Scope of delivery
1x CL3108 LCD KVM switch with standard rack mounting kit 2x LIN5-15X3-U12G Custom KVM cables (VGA, USB 1.8m/6ft) 1x LIN5 -04A2-J15G Firmware Upgrade Cable 1x LIN2-418K-E12G Power Cable 1x User Manual

Display
Display diagonal	47 cm (18.5")
Display	LCD
On Screen Display (OSD)
Keyboard
Keyboard language	US English
Keyboard layout	QWERTY
Hot keys
Logistics data
Master (outer) case net weight	11 kg
Master (outer) case width	668 mm
Master (outer) case length	718 mm
Master (outer) case height	135 mm
Master (outer) case gross weight	13.8 kg
Products per master (outer) case	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging data
Package weight	13.8 kg
Package width	668 mm
Package depth	718 mm
Package height	135 mm
Ports & interfaces
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Power
Power supply type	AC
Input current	1 A
Technical data
Design	Rack-Mount
Number of consoles	1 (integrated)
Display diagonal	18.5"
Audio per CPU	Without
Peripheral outputs per console	USB x1
Number of CPU	8
Video outputs per console	Without
Keyboard layout	US (English)
Type 1	KVM Display Console
TP Network	Without
Video inputs per CPU	SPHD female (to VGA) x1
Audio outputs per console	Without
Resolution integrated display	1366x768
Fiber optic network	Without
Periphery inputs per CPU	SPHD-15 female x1 (on USB, PS/2)
Max. resolution	1920x1200 / 60Hz
Screen connectors per console	Without
Type 2	8-fold VGA Single Rail
Audio loudspeakers
USB peripherals
Audio microphone
Extension (daisy chain or cascading)
Technical details
Product colour	Black
Operating relative humidity (H-H)	0 - 80%
Maximum resolution	1366 x 768 pixels
Number of computers controlled	8
Rack capacity	1U
Hot-Plug support
Rack mounting
LED indicators
Weight & dimensions
Width	480.6 mm
Height	631.7 mm
Depth	42.8 mm
Weight	11 kg

---
