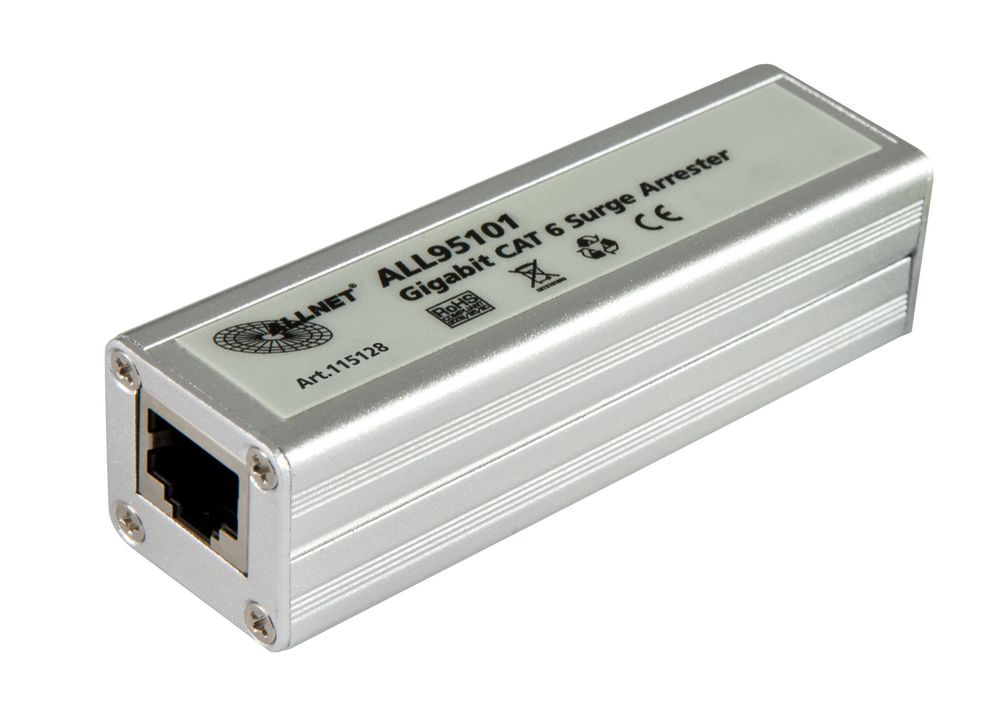

ALLNET / ALL95101 TP Cat 6 / ADSL / VDSL / ISDN Lightning / Dubbing

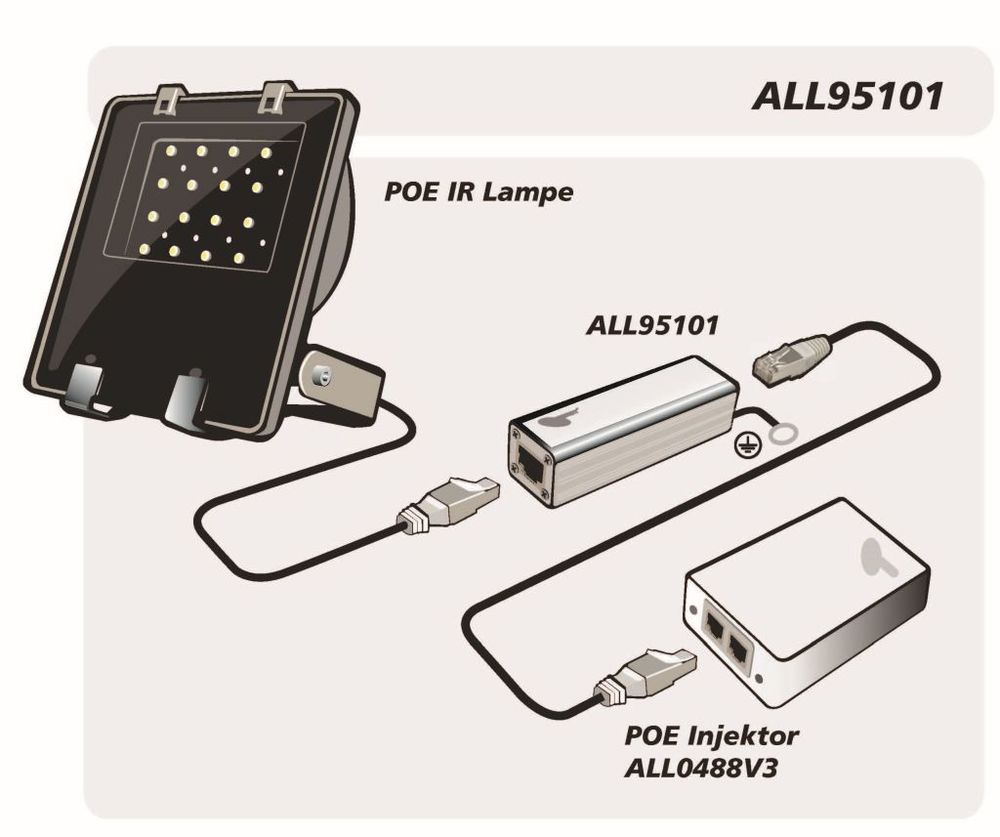

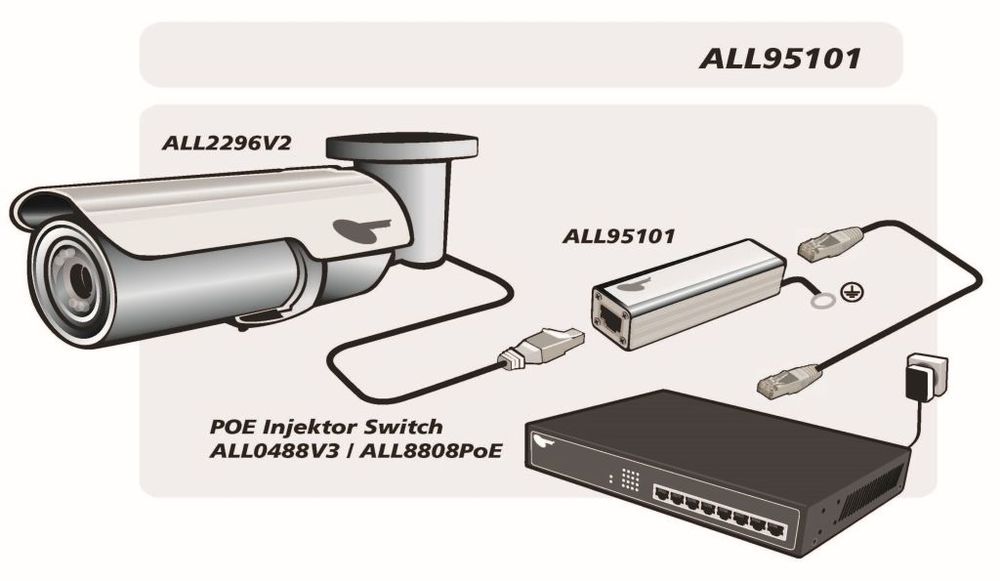

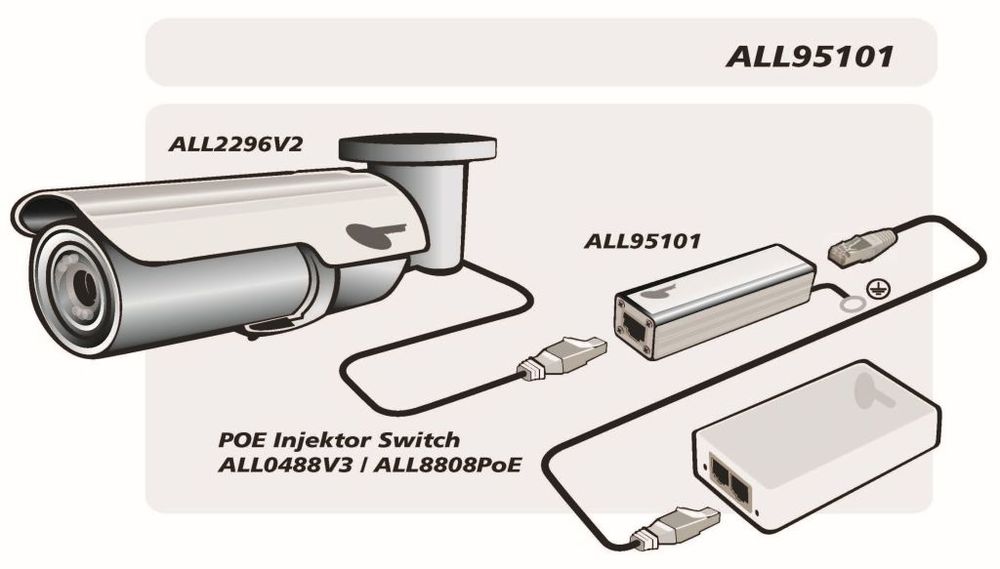

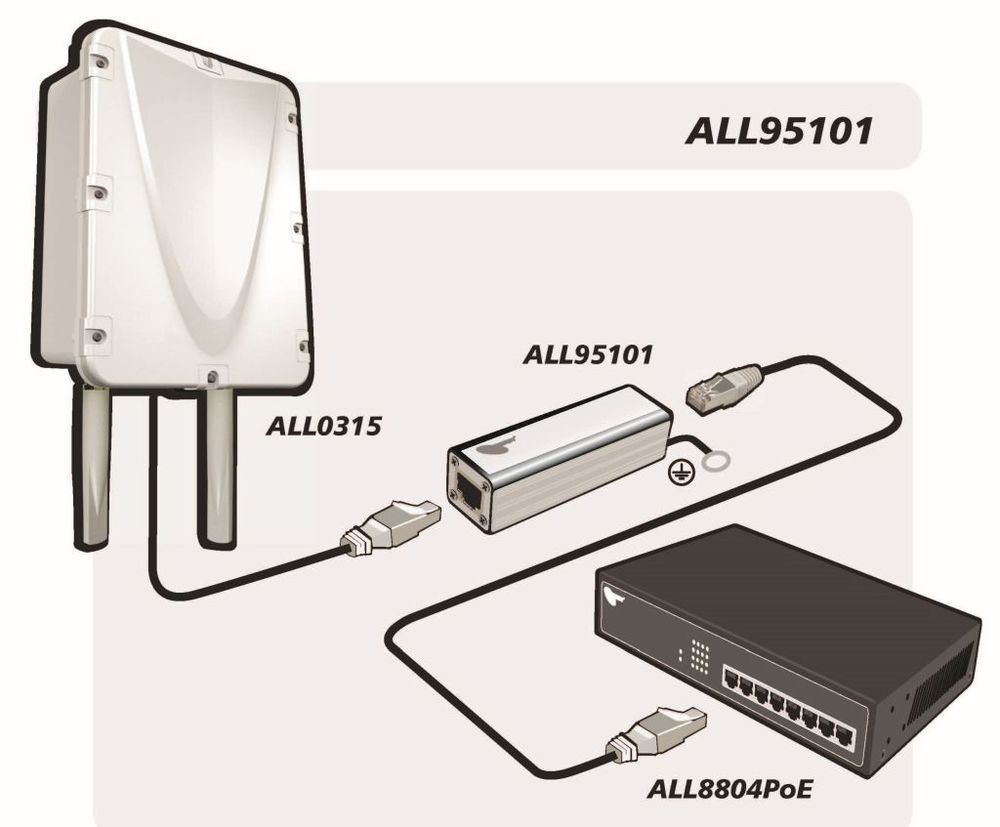

Highlights: & nbsp, Plug and Play installation Reliable protection against surge voltages of all devices with DSL or network port switches Router Firewall NoteBook PC / Server televisions multimedia devices Protect your network equipment from power surges caused by lightning strikes & nbsp, The Lieske Electronics ALL95101 provides a cost-effective and reliable protection against damage sensitive devices. The in a compact housing housed Lieske Electronics surge protector is simple and the network cable plugged in between the protected device. Moreover, the ALL95101 can also for overvoltage protection from ADSL / VDSL / ISDN & nbsp, and analog lines are used. & Nbsp & nbsp, takes on immediately and without configuration to protect the device against overvoltage. Along with a regular surge protection and potential equalization can be so, for example, the infrastructure in security-related areas permanently protect & nbsp, application examples:. Specifications: Item Specification Network Connector: 2x RJ45 10/100 / 1000Mbps PoE capability: IEEE802.3af, at, LTPoE ++ to 90W discharge capacity: 10kA (8 / 20us), 100A (10 / 1000µs) ignition voltage: 90Vdc ± 20% (Pair to Earth) & lt, 450V (at 100V / us) & lt, 600V (at 1kV / us) protected conductors: (pins ) Displaying 1 - 8 (8-pin modular plug on) Compliance: IEEE 802.3, CAT 5/6, ADSL / VDSL / ISDN ESD protection: IEC 61000-4-2 Class 4 (10kV CD) Housing: Metal housing Environment: Operating temperature: -15 ~ 40 ° C Ambient humidity Operating: 10% ~ 95% (non-condensing) Marking: CE, RoHS Dimensions: 82 x 25 x 25 mm (length x width x height) & nbsp, Weight: 200 grams Package Includes: -Lieske Electronics ALL95101 -Bedienungsanleitung
