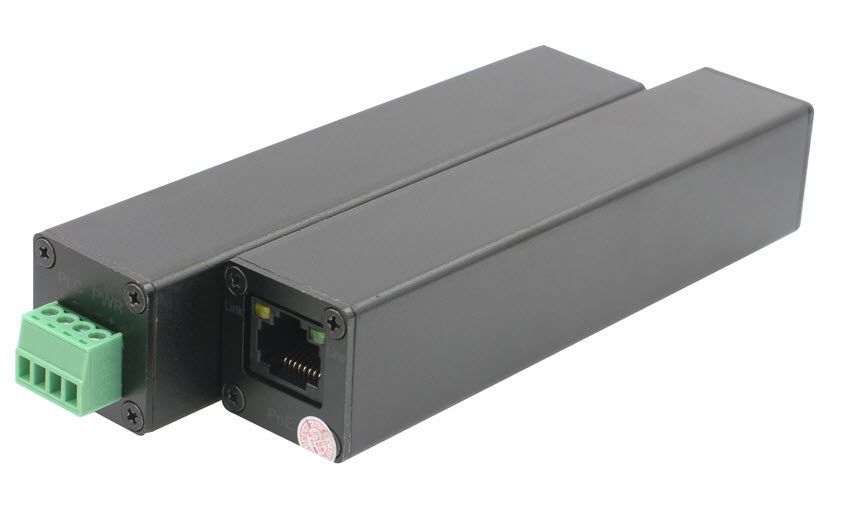

ALLNET media converter network & PoE over 2 Wire Set AF ALL-MC302P2WIRE-Set including external power supply

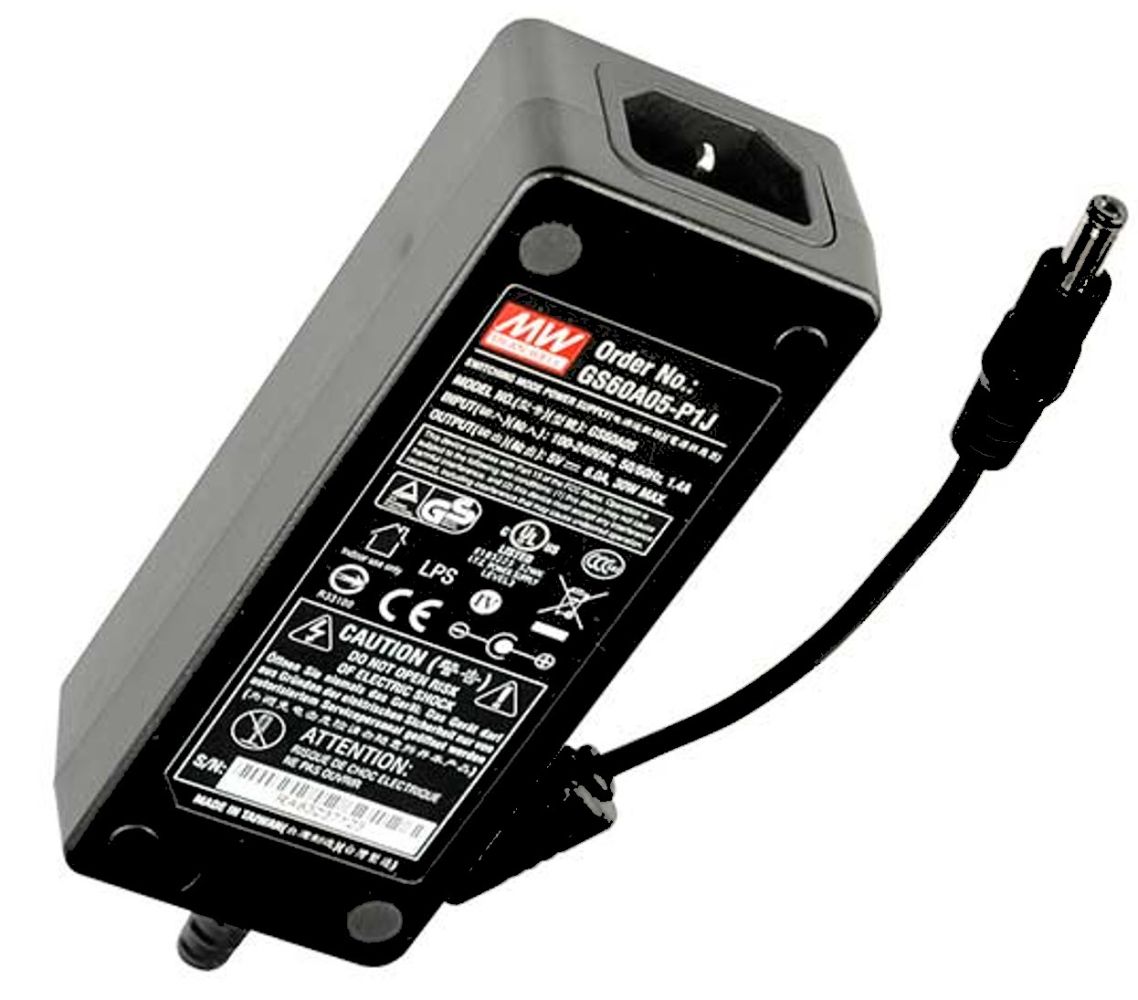

Highlights: PoE and power via two-wire IEEE802.3af Data rate max. 200Mbps Maximum distance: 500m via two-wire A 48VDC~57VDC power supply is required on the master, which is included, for optional power supplies see accessories. including power supply Overview

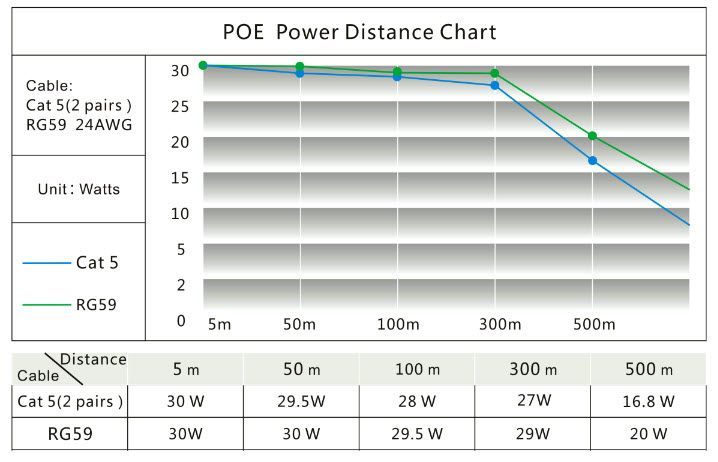

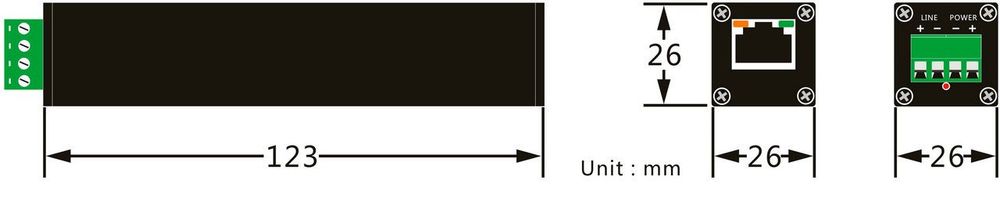

The ALL-MC302P2WIRE set offers you the option of setting up both data and PoE via a 2-wire connection. The maximum cable length can be a maximum of 500m. The master must be powered by a power supply and supplies both the slave adapter and the PoE end device on the slave with data and power. The set is suitable for upgrading analog systems through an existing cable infrastructure. The compact size of the media converter is perfect for replacing old door stations with a new IP door station. Dimensions: Connection diagram: PoE Performance diagram: Technical Details: Ethernet network standards IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3af Power over Ethernet PoE
IEEE 802.3at Power over Ethernet PoE
IEEE1901 PLC Up down Agreement CSMA/CA Transmission / Rate 500Mbps Physical Bandwidth
88Mbps Transmission Speed Cabling Cat5 or above Maximum Distance 100m Connector 1x RJ45 Twisted Pair Cabling Twisted pair Connector 2-pin terminal block Distance up to 500m@24AWG Datarate Downlink Up to 500Mbps Datarate Uplink Up to 500Mbps Technology Powerline Communication (PLC) Electric and Mechanical Input Power 48 -57VDC (Terminal Block) Power Consumption =3.5W / PC PoE Standard IEEE802.3af Output Power Standard 48VDC IEEE802.3af Port RJ45 Dimmension (W x D x H) 123mm x 26mm x 26mm Weight 0.25kg Casing Aluminum Case Environmental Operating Temperature -20°C to 60°C Relative Humidity < (Non-condensation)
