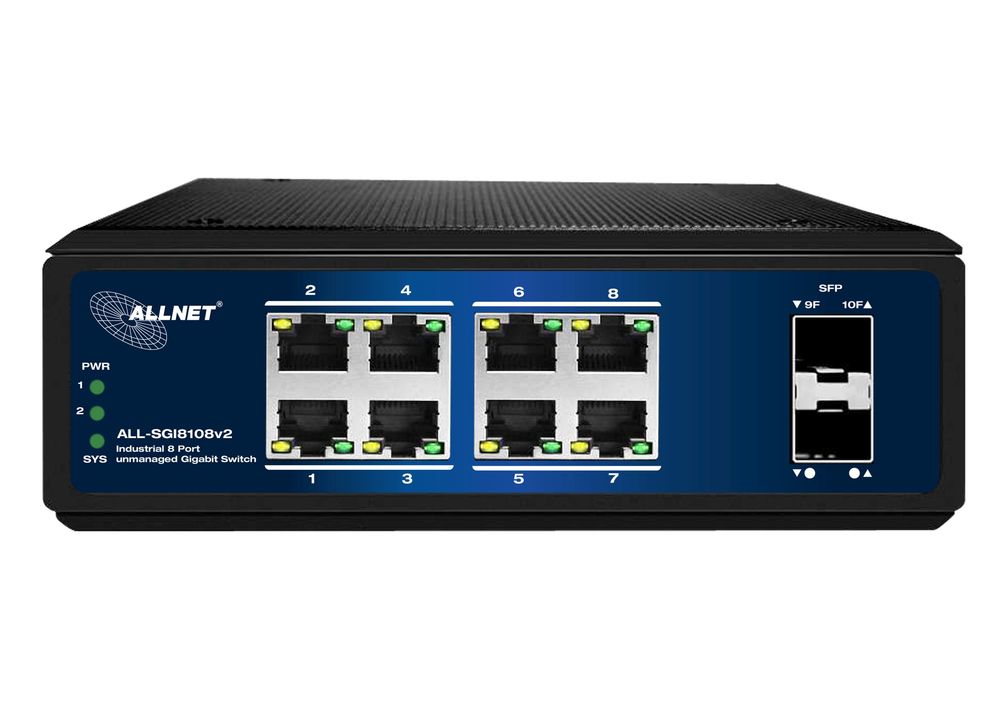

ALLNET Switch unmanaged industrial 8 Port Gigabit / 8x LAN / 2x SFP / fanless / DIN / IP40 / ALL-SGI8108v2 content_copy

Highlights: 8-Gigabit ports with 2SFP Gigabit Fanless metal housing with optimized heat dissipation Easy to use as a table device, wall mounting or DIN rail Extended temperature range of -40° ~ +80° with dialing functions of VLAN, 250m, PD AI IP40 The ALL-SGI8108v2 is an unmanaged 8 -Port Gigabit industrial switch with 2 Gigabit SFP ports.
To ensure safe and reliable use even in industrial environments, the hardware is protected by a sturdy metal housing and can be used in a temperature range of -40 to +80 degrees. When it comes to mounting, the ALL-SGI8108v2 also offers several options for secure mounting with table, wall or top-hat rail mounting. The delivery does not include a power supply, please order this separately.
The ALL-SGI8108v2 industrial Ethernet switch has excellent adaptability to industrial environments (including mechanical stability, climate adaptation, electromagnetic environment adaptation, etc.), protection rating up to IP40, support for double redundant power supply, low power consumption and fanless cooling technology, MTBF (average trouble-free operating time) of up to 35 years, plug and play, no configuration, easy to use. It is suitable for industrial scenes such as intelligent transportation, railway transportation, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network.Technical Details: Model ALL-SGI8108v2 Copper Ports 8-10/100/1000BASE- T RJ45 auto-sensing ports Fiber Ports 2-100/1000BASE-T uplink SFP fiber slot ports Ethernet Port Feature 10/100/1000Base-T automatic detection, full / half duplex MDI/MDI-X adaptive SFP Port Characteristic Gigabit SFP fiber interface , default matching optical modules, need to buy separately, (optional order single mode / multi-mode, single fiber / double fiber optical module. Forwarding Mode Store and Forward(Full Wire Speed) Switch Fabric 20Gbps/non-blocking Troughput 14.88Mpps @ 64 bytes Share Data Buffer 2 Mb
Flash Memory
8Mb
Jumbo Frames
9216 Bytes Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(=100 meters)
10BASE-T: Cat5 UTP (extend PoE 250m DIP switch for activate)
100BASE- TX: Cat5 or later UTP(=100 meters)
1000BASE-T: Cat5e or later UTP(=100 meters) Power Supply 12V~57V DC, 50/60Hz,Dual DC Reset Button >2 sec.: Factory default and reset LED Indicators Power: Green
Solid on- power work normal, off- power disconnected
System: Green
Blink-work normally, solid on- soft work abnormal, fast blink- soft upgrade
10/100/1000T RJ45 Interfaces (Port 1 to Port 8): 1000 LNK/ACT (Green),
10/100 LNK/ACT (yellow)
Blink-port connected with data transmission Solid on-port connected
without data transmission
100/1000Mbps SFP Interfaces (Port 9 to Port 10): Green
Blink-port connected with data transmission Solid on-port connected
without data transmission Power Supply Not included, you can purchase industrial power supply 12VDC - 48VDC, see the accessory information table for purchasing.
EMC
Surge Immunity:6KV Per: IEC61000-4-5
ESD Protection: ESD Level 4 Per: IEC61000-4-2EFT Level 4 Per: IEC61000-4-4 Working Temperature -40 ~ +75°C5%~90% RH Non condensing Storage Temperature -40 ~ +80°C5%~95% RH Non condensing Dimensions 165 x 123 x 54mm
MTBF
50,000hrs Dimmension:
