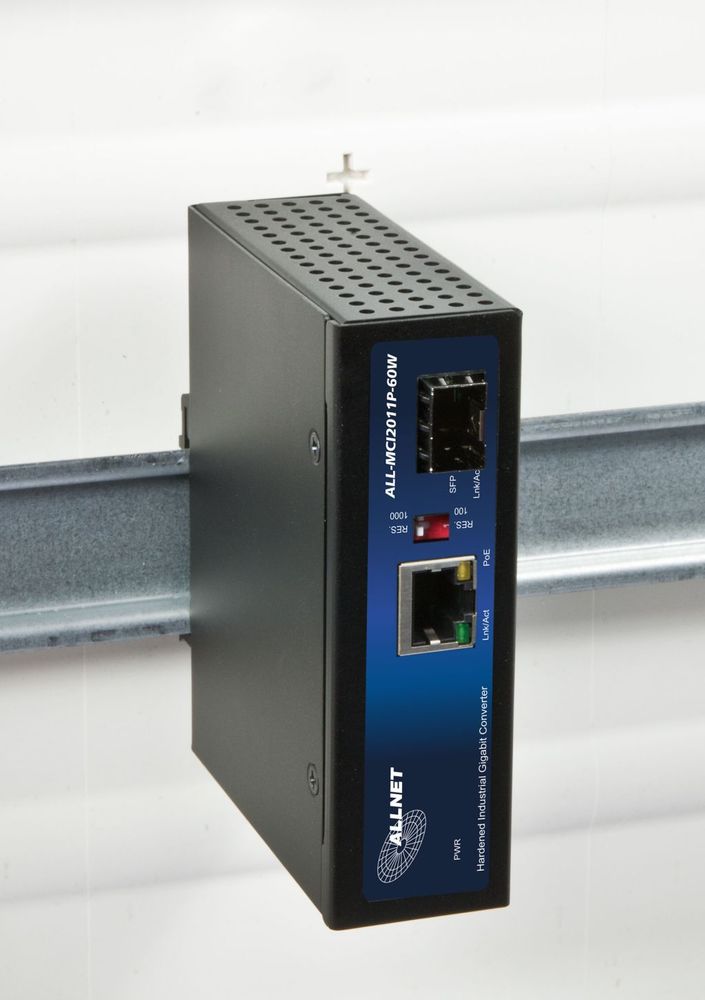

ALLNET ALL-MCI2011P-60W / media conv. 1G TX PoE AT -> 1G SFP Gigabit DIN

ALLNET ALL-MCI2011P-60W / media conv. 1G TX PoE AT -

1G SFP Gigabit DIN

Highlights:Robust 60W Gigabit PoE converter
Marvell IC hardware design
1x 10/100/1000M 60W PSE (equivalent to 802.3af/at) TX + 100/ 1000M SFP
48-56V DC redundant power supply
Extended operating temperature: -40°C to +75°C
The robust 60W industrial PoE converter with Marvell IC supplies your PD devices with up to 60W PoE power. Extreme temperatures and unfavorable environmental conditions are also no problem. Our ColdDesign technology supplies your PD devices with power and reduces excessive heat development to a minimum. To meet the voltage requirements of the IEEE802.3af/at PoE standard, an input voltage between 48V and 56V DC is required. Thorough testing ensures the functionality of your security, transport and telephony applications, providing you with a reliable partner.
Technical data:
Element
Specification
Standards:
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Flow Control Back Pressure
IEEE802.af for PoE
IEEE802.3at for PoE+
Network connections:
1x 10/100/1 000BaseT ( RJ-45)
1x 1000BaseSX/LX SFP module slot
Data transfer rate:
Half/Full-Duplex on TP
PoE:
IEEE802.3at/af compatible
Jumbo Frame9KB
Packet Buffer Size1M
MAC address Table Size2K
DIP Switch: Speed adjustable from SFP 100M or 1000M
Reverse polarity protection :present
Overload current protection:present
Transmission media:
TP:10/100/1000BaseT Cat. 5, 5E, 6 UTP/STP, up to 100 m
1000BaseSX:62.5/125µm Multi Mode LWL, up to 220 m
50/125µm Multi Mode LWL, up to 550 m
1000BaseLX:9/125µm Single Mode LWL
LED display:
PWR, SYS, Link/ACT, PoE
power supply:
4pin terminal block with 48V-56V VDC power input
SW (Relay): Relay switch for alarm
Power consumption 2W@48VDC without PoE
PoE PowerMaximum PoE Power 72W at 56VDC input
Alarm relay ContactRelay output with 1A @24VDC
relay Output is activated when power connection is interrupted.
Offerer status when power supply is connected.
Dimensions:
103.5 × 32 × 81 mm
Installation optionDIN HAT rail or wall mounting
HousingMetal, IP30 Protection class
MTBF (mean time between failure)510304 hours (MIL-HDBK-217F) at 25°C
Environment:
Temperature Operation: -40° ~ +75° °C
Humidity Operation: 5% ~ 95% (non-condensing)
Temperature Storage: -40 ~ 85 °C
Humidity Storage: 5% ~ 95% (non-condensing)
Markings:
CE, FCC, VCCI
EN55022 Class A
EN55022/24 ITE Equipment
EN55011 Industrial, Scientific and Medical ( ISM) equipment
IEC EN60950-1 Safety
Shock:
EN50155 / EN 60068-2-27
Free Fall:
EN5055 / EN 60068-2-32
Vibration:EN 50155 / IEC 60068-2-6
EMI:FCC Part 15 Supbart B Class A
CE EN 55022 Class A
