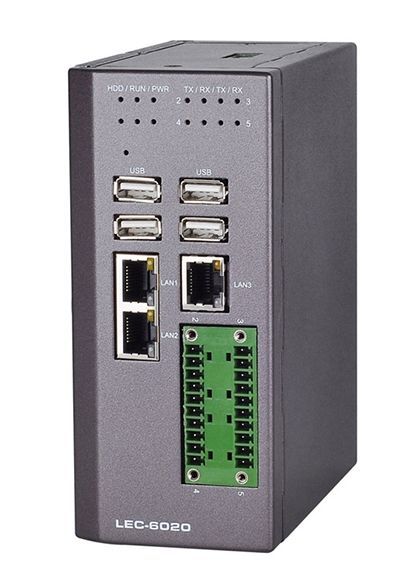

ALLNET DS DIN-RAIL / DIN rail PC LEC-6020A - Atom N2600

Fanless Industrial DIN Rail Security Platform with Intel® Atom™ N2600 CPU Key features Intel Atom-based Industrial Firewall Onboard Intel® Atom N2600 CPU with NM10 Chipset Fanless design with corrugated aluminum Wide temperature range (-40~70°C) Supports DDR3 Memory, maximum capacity is 2 GB OS support for both Linux and Windows 3 or 5 Intel GbE LAN ports (using Intel 82574L LAN controller) 1 or 2 pairs of LAN Bypass ESD and Surge Protection on Serial COM ports for harsh environments Support DIN-rail mount and wall mount Overview LEC-6020 is a Fanless DIN Rail Industrial Security Platform with an Intel® Atom™ N2600 CPU. It includes 3 or 5 GbE ports, 1 or 2 pairs of LAN Bypass function, 4 COM ports (LEC-6020A only) and 2 or 4 USB ports. This platform is ideal to provide network security protection for industrial automation or power communication applications.Specifications Platform CPU Intel® Atom N2600 Chipset Intel NM10 BIOS AMI 8 Mbit SPI Flash ROM Memory Technology DDR3 1066/1333MHz, unbuffered, Non-ECC Memory Capacity 2 GB Memory Socket 1 x 204-pin DDR3 SODIMM socket Storage IDE storage CompactFlash socket Type I/II x 1, SATA x 1 SATA storage SATA connector for SSD/HDD expansion I/O Ethernet controller LEC-6020A: Intel 82574L x 3 Graphic controller Intel ® GMA 3600 Default LAN LEC-6020A: 3 x GbE RJ45 Bypass LEC-6020A: 1 pair LEC-6020B: 2 pairs Magnetic Isolation Protection 1.5 KV built-in Display output Internal pinheader RS-232 signals RTS, Rx, Tx, CTS, GND RS-422 signals TxD+, TxD-, RxD-, RxD+, GND RS-485 signals Data+, Data-, GND Baud rate Supports 50 bps to 115.2 Kbps Serial ESD protection 15 KV for all signals USB 2.0 4 (LEC-6020A) Expansion Mini-PCIe (LEC-6020A only) OS and Certifications Operating System Linux 2.6, Windows XP Embedded, Window XP, Window 7 Embedded Certifications CE Emission, FCC Class A, RoHS Physical and Environmental Commercial temperature -40°C to 70°C Operating temperature -40°C to 85°C Operating humidity 5% to 95% (non-condensing) Storage humidity 5% to 95% (non-condensing) Dimensions (W x H x D) 65 mm x 146 mm x 127 mm ( 6,5 cm ( 2,6 inch ) x 14,6 cm ( 5,8 inch ) x 12,7 cm ( 5 inch )) Weight 1 kg (2.2 lbs) Watchdog 1~255 level time interval system reset, software programmable Internal RTC Yes, with battery lithium backup Warranty 2 years Casing material Aluminum and SECC
