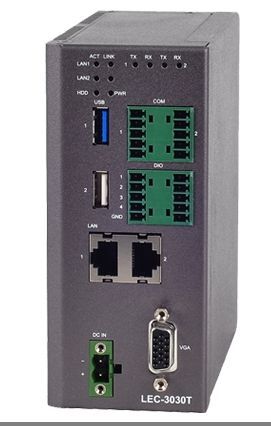

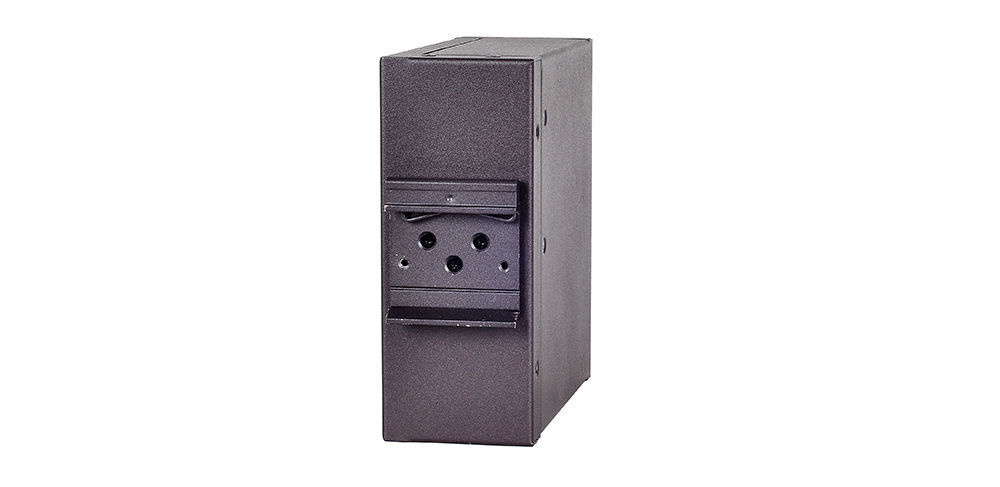

ALLNET DS DIN-RAIL / DIN rail PC LEC-3030T - Atom E3815

This image may differ from the desired article.

490,77 EUR
( 584,02 EUR incl. VAT ) plus delivery charges

2025-10-25Delivery time on request
1x ALLNET DS DIN-RAIL / DIN rail PC LEC-3030T - Atom E3815 584,02 €
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:	1455239
Mfg Part No:	LEC-3030T
UPC/EAN:	4038816076588
Weight:	1 kg

All products of ALLNET

Product information for ALLNET LEC-3030T:

Key features Compact-sized industrial grade box PC Single-core Atom E3815 ESD/surge protection on serial COM ports for harsh environments Wide operating temperature (LEC-3030T:-40~70°C) Fanless design with corrugated aluminum Support VGA display output DIN -Rail or wall mounting options Support 4x DI/O Dual GbE LAN ports, 1 x USB 2.0, 1 x USB 3.0 port 1 x SATA port Overview Lanner LEC-3030 Series is a compact industrial-grade fanless box PC featuring dual-core Atom E3815(codenamed BayTrail), DDR3L 1333MHz SO-DIMM memory up to 4GB, VGA display, wide operating temperature(LEC-3030T), DIN Rail/Wallmount options and a variety of Serial COM and LAN configurations for various industrial application needs. It is ideal for solar PV monitoring, wind turbine, smart meter, renewable energy or other modern IoT (Internet of Things) applications.Specifications Platform CPU Atom E3815 1.46GHz CPU Chipset SoC Memory Technology DDR3L SO-DIMM x1 Memory Capacity Up to 4 GB Storage SATA storage 1 x SATA port and HDD kit I/O Ethernet controller Intel i210-IT Default LAN 2 x RJ45 Magnetic Isolation Protection 1.5KV magnetic isolation protection Serial ports 2 x Isolated RS-232/422/485 + 1 x RS-232 pin header Digital I/O 1 x 2x5 pin terminal block for 4 x DI/DO USB 2.0 1 x Type A USB 3.0 1 x Type A Power and Mechanical Power input Phoenix contact 2-pin connector with lock, 12 ~ 36 Vdc power voltage OS and Certifications Operating System Microsoft Windows 7, Windows 7 Embedded Linux: Linux (Ubuntu), Linux: kernel 2.6 Certifications CE/FCC Class A, RoHS Physical and Environmental Storage temperature -40°C to 85°C Operating temperature -20°C to 55°C Operating humidity 5% to 95% (non-condensing) Dimensions (W x H x D) 52 mm x 130 mm x 127 mm (5,2 cm ( 2 inch ) x 13 cm ( 5,1 inch ) x 12,7 cm ( 5 inch )) Weight 1 kg (2.2 lbs) Watchdog Watchdog timer 256 level time interval system reset, software programmable

Questions & answers

What is the delivery time of ALLNET DS DIN-RAIL / DIN rail PC LEC-3030T - Atom E3815?

The article ALLNET DS DIN-RAIL / DIN rail PC LEC-3030T - Atom E3815 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 11 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of ALLNET LEC-3030T to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ALLNET DS DIN-RAIL / DIN rail PC LEC-3030T - Atom E3815 always at the best possible price. We can give you a discount of 2% on ALLNET DS DIN-RAIL / DIN rail PC LEC-3030T - Atom E3815 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
