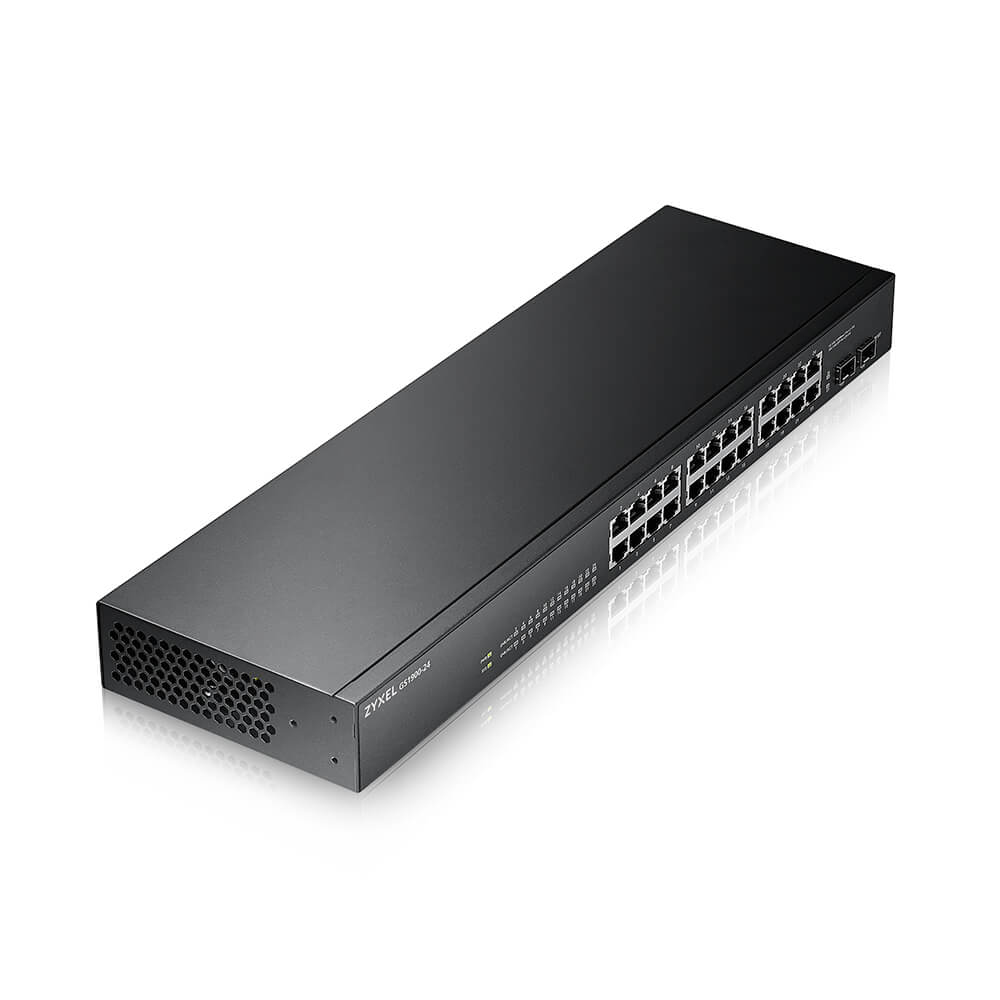

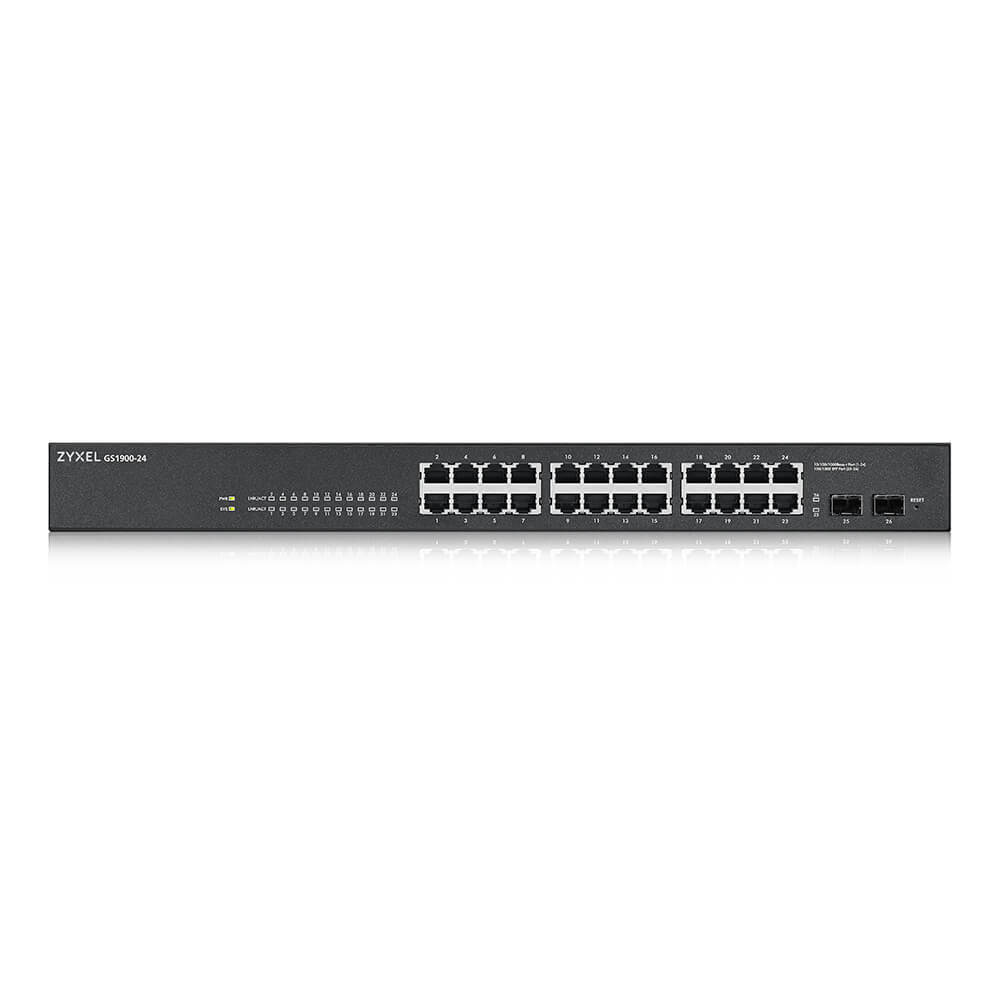

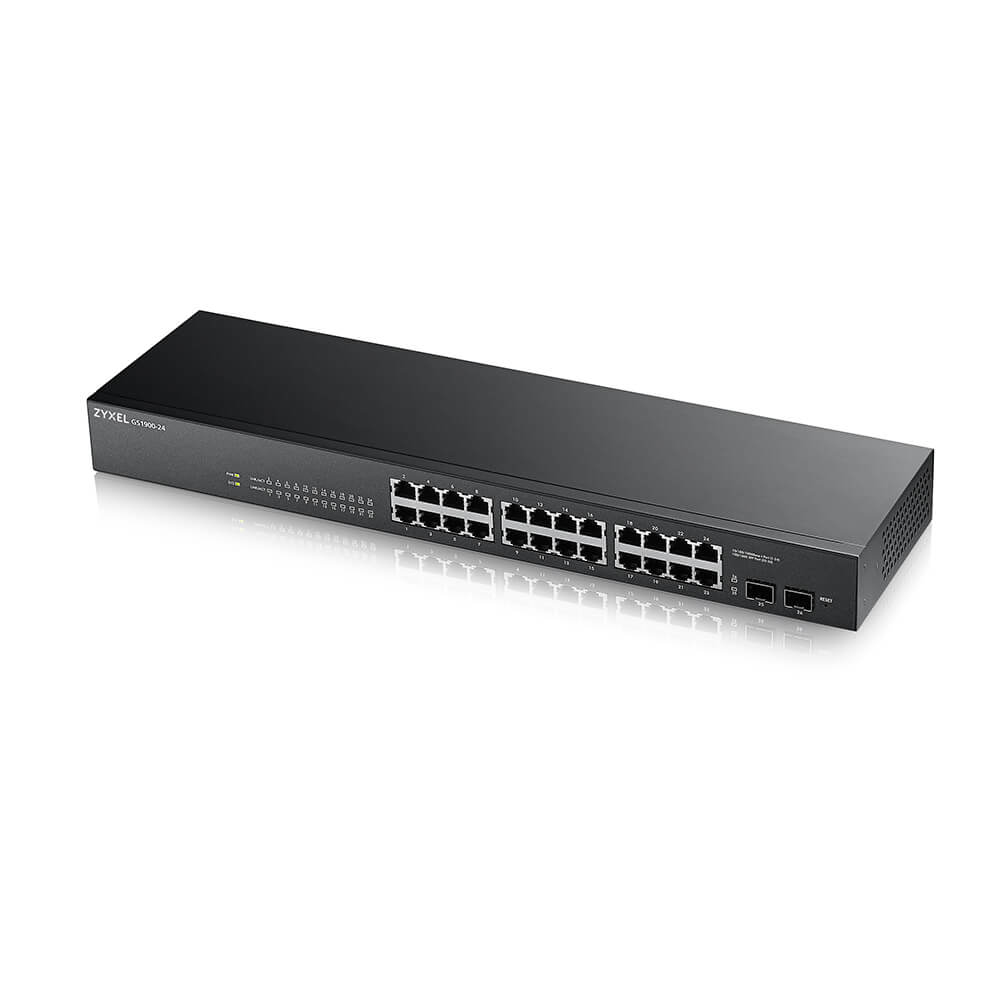

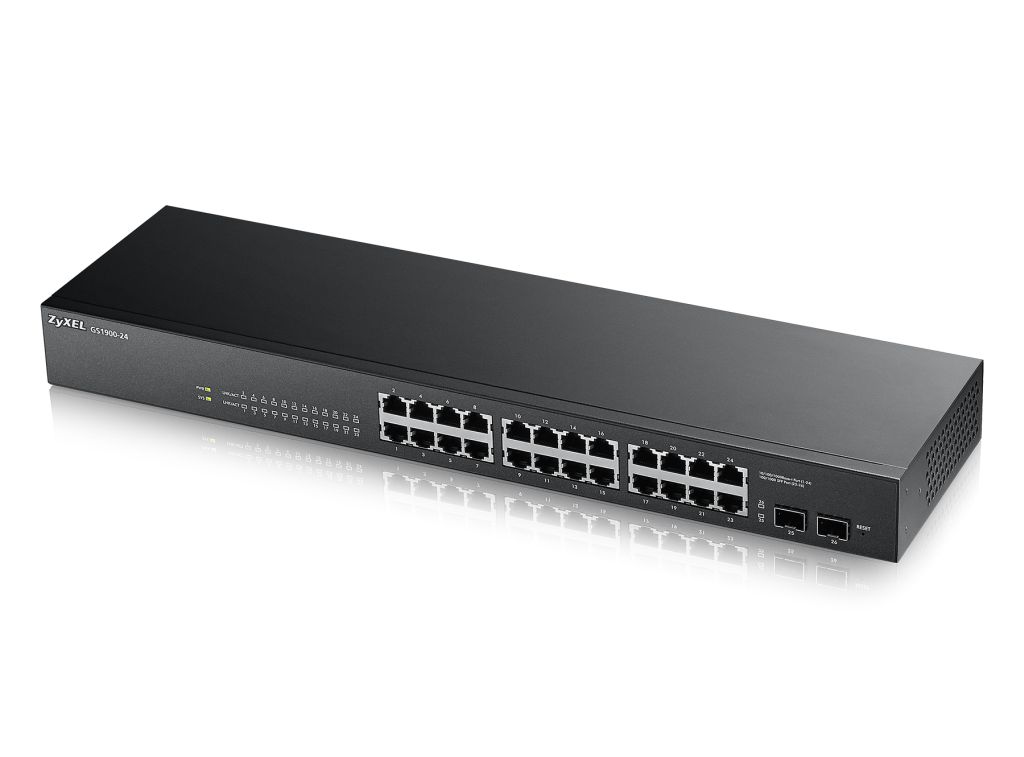

Zyxel Switch 24x GE GS1900-24 V2 content_copy

The Zyxel GS1900 Gigabit Switch Series is ideal for small businesses that want to separate traffic on their growing network but don't have a team of IT experts. These switches with their sophisticated functions offer more flexibility and control options. With built-in support for VLANs, enhanced quality of service (QoS), IGMP snooping, link aggregation (LAG), IPv6 and DoS defense, these switches conveniently separate and prioritize wired and wireless traffic while enabling guest network access and providing full control about the bandwidth between the ports. An easy-to-use setup wizard lets you complete these tasks, making setup and management a breeze.

Highlights

• Smart Managed Ethernet Switch with GbE Uplink
• 24x Gigabit Ethernet port
• 2x Gigabit SFP port
• Fanless design for silent operation
• Simple browser-based switch management, with quick and easy setup wizard
• Switch capacity: 52 Gbit/s
• Desktop and Rack mounting possible

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C

Specifications

• Switch type: Access
• Switching capacity: 52 GBit/s (Gbps)

Shipping

• WEEE: 40153029

Connections

• Total number of copper ports: 24
• Total number of fiber optic ports: 2
• Bandwidth: 10/100/1000 MBit/s
• Main port type: Copper
• Number of RJ45 ports (1G): 24
• Number of SFP ports (1G): 2

Functions

• Switch manageable: Yes
• Mounting type: desktop, 48,3 cm ( 19 inch ) rack mount
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/depth: 131 mm
• Width: 440 mm
• Weight: 2.09 kg

Scope of delivery

• Zyxel GS1900-24 V2 24 Port GbE L2 Smart Switch
• Power cable
• Rack mount kit

Certificates
Certification	EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant
Data transmission
Switching capacity	52 Gbit/s
Forwarding rate	39 Mpps
MAC address table	8000 entries
Jumbo frames	9000
Packet buffer memory	0.525 MB
Store-and-forward
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Rack mounting
Stackable
Reset button
LED indicators
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Switch layer	L2
MIB support	RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493
Quality of Service (QoS) support
Web-based management
System event log
Network
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10,100,1000 Mbit/s
Virtual LAN features	Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
10G support
Port mirroring
Full duplex
Flow control support
Link aggregation
Spanning tree protocol
MAC address auto-learning supported
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 95%
Storage relative humidity (H-H)	10 - 95%
Heat dissipation	55 BTU/h
Packaging content
Cables included	AC
Rack mount kit
Packaging data
Package type	Box
Package width	561 mm
Package depth	217 mm
Package height	82 mm
Package weight	2.85 kg
Performance
Mean time between failures (MTBF)	432.673 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	16 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Security
DHCP features	DHCP client
Security algorithms	802.1x RADIUS
Authentication type	RADIUS, TACACS+
IGMP snooping
MAC address filtering
Static port security
SSH/SSL support
Password protection
Weight & dimensions
Width	440 mm
Depth	131 mm
Height	44 mm
Weight	2.09 kg

---
