UBIQUITI NETWORKS UDW Ubiquiti Unifi Dream Wall / Controller / Dual WAN Router / Access Point / Switch / POE /
|
1.025,33 EUR |
|
|
( 1.220,14 EUR incl. VAT ) ≈ £871.53 | ≈ $1,151.45 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 2073192 |
|---|---|
| Mfg Part No: | UDW |
| UPC/EAN: | 8100100795720 |
| Weight: | 11.15 kg |
Further Access Points from UBIQUITI NETWORKSFurther products in category Access Points
All products of UBIQUITI NETWORKS
Product information for UBIQUITI NETWORKS UDW:

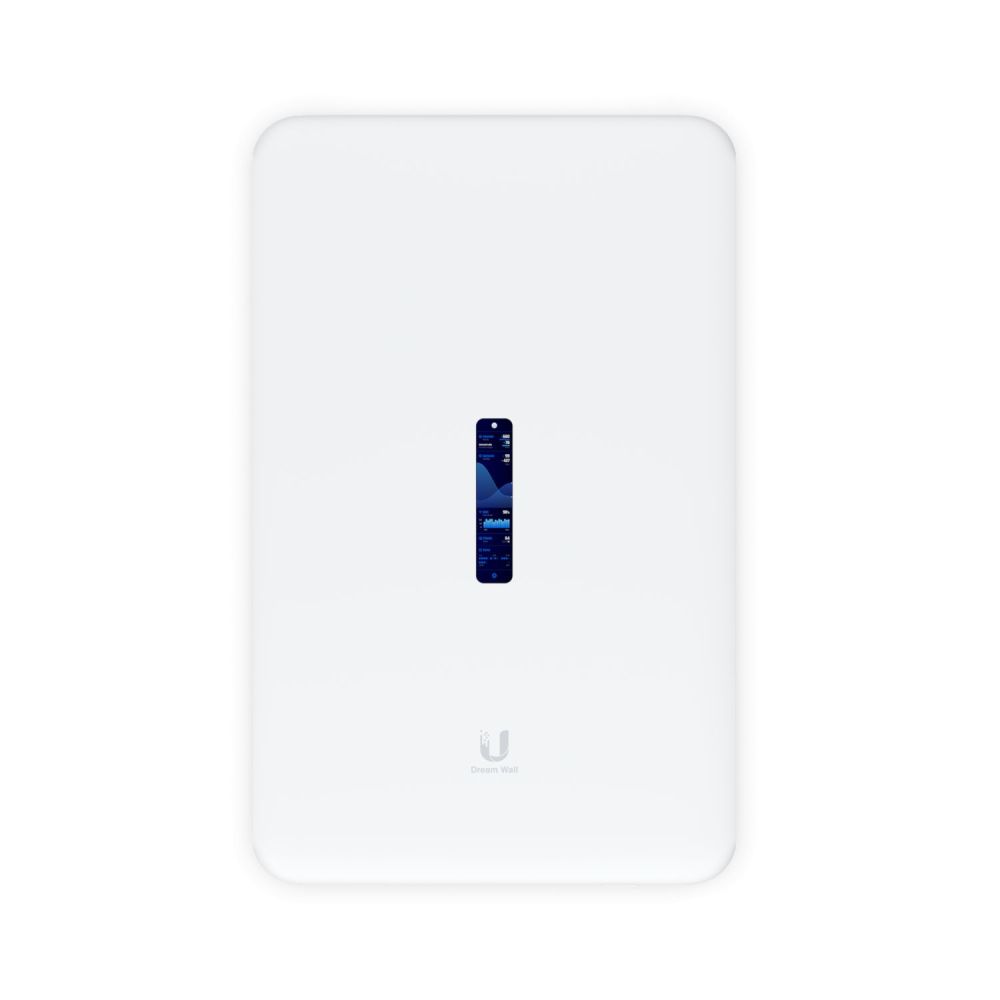

Wall-mountable UniFi gateway console with integrated high-speed access point, network video recorder and PoE switch. Integrated Enterprise WiFi6 (4x4 MIMO)
Full UniFi OS and UniFi application support
3.5+ Gbps routing
(1) 10G SFP+, (17) GbE RJ45 LAN ports, including (4) PoE++, (4) PoE+ and (4) PoE ports
(1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
11,9 cm ( 4,7 inch ) touchscreen for management
Built-in 128GB SSD and pre-installed 512GB microSD card
Technical specifications Mechanical Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 6,1 cm ( 2,4 inch )) Weight 8.6 kg (19 pounds) Body materials Polycarbonate, galvanized steel, aluminum alloy Mounting material Stainless steel Hardware Processor Quad-core ARM® Cortex®-A57 with 1.7 GHz system memory 4 GB DDR4 onboard storage 16 GB eMMC
Integrated 128 GB SSD
Pre-installed 512 GB microSD card Expansion slot Micro SD memory card*
Management interface Ethernet
Bluetooth
WLAN Network interface (17) LAN: GbE RJ45 ports
(1) WAN : 2.5GbE RJ45 port SFP+ interface (1) LAN: 10G SFP+ port
(1) WAN: 10G SFP+ port PoE interface (4) PoE (Pair A 1, 2+ 3, 6-)
(4 ) PoE+ (Pair A 1, 2+ 3, 6-)
(4) PoE++ (Pair A 1, 2+ 3, 6-) ) (Pair B 4, 5+ 7, 8-) Power method Universal AC input 100- 240 V AC, 7 A max, 50/60 Hz Power supply (2) Hot-swappable AC/DC 550 W power supply*
Max. power consumption 532 W Max. PoE wattage per port according to PSE PoE: 15.4 W
PoE+: 30W
PoE++: 60W Voltage range PoE mode PoE: 44-57V
PoE+/PoE++: 50-57V Max. transmit power
2.4GHz
5GHz
23dBm
26dBm MIMO
2.4GHz
5GHz
2 x 2
4 x 4 throughput rate
2.4 GHz
5 GHz
300 Mbit/s
2.4 Gbit/s Antenna gain
2.4 GHz
5 GHz
5.9 dBi
6 dBi ESD/EMP protection Air: ± 8 kV, Contact: ± 4 kV LCM -Display (1) 11,9 cm ( 4,7 inch ) touch screen Button Factory reset Mounting Wall bracket (included) Operating temperature -10 to 40°C (14 to 104°F) Operating humidity 5 to 95% non-condensing Certifications CE, FCC, IC Software WLAN standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6 Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) BSSID 8 per radio VLAN 802.1Q Advanced QoS rate limiting per user Guest traffic isolation Supports concurrent clients 300+ LEDs Ethernet White: Link/Activity SFP+ White: Link/Activity Power supply Blue: ready.
Yellow: Error Supported data rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s 802.11b 1, 2, 5.5, 11 Mbit/s 802.11g 6, 9, 12, 18, 24 , 36, 48, 54 Mbit/s 802.11n (WiFi 4) 6.5 Mbit/s to 300 Mbit/s (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbit/s to 1 .7 Gbit/s (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbit/s to 2.4 Gbit/s (MCS0 - MCS11 NSS1 /2/3/4, HE 20/40/80/160)
Full UniFi OS and UniFi application support
3.5+ Gbps routing
(1) 10G SFP+, (17) GbE RJ45 LAN ports, including (4) PoE++, (4) PoE+ and (4) PoE ports
(1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports
11,9 cm ( 4,7 inch ) touchscreen for management
Built-in 128GB SSD and pre-installed 512GB microSD card
Technical specifications Mechanical Dimensions 549 x 342 x 62 mm (21.6 x 13.5 x 6,1 cm ( 2,4 inch )) Weight 8.6 kg (19 pounds) Body materials Polycarbonate, galvanized steel, aluminum alloy Mounting material Stainless steel Hardware Processor Quad-core ARM® Cortex®-A57 with 1.7 GHz system memory 4 GB DDR4 onboard storage 16 GB eMMC
Integrated 128 GB SSD
Pre-installed 512 GB microSD card Expansion slot Micro SD memory card*
Management interface Ethernet
Bluetooth
WLAN Network interface (17) LAN: GbE RJ45 ports
(1) WAN : 2.5GbE RJ45 port SFP+ interface (1) LAN: 10G SFP+ port
(1) WAN: 10G SFP+ port PoE interface (4) PoE (Pair A 1, 2+ 3, 6-)
(4 ) PoE+ (Pair A 1, 2+ 3, 6-)
(4) PoE++ (Pair A 1, 2+ 3, 6-) ) (Pair B 4, 5+ 7, 8-) Power method Universal AC input 100- 240 V AC, 7 A max, 50/60 Hz Power supply (2) Hot-swappable AC/DC 550 W power supply*
Max. power consumption 532 W Max. PoE wattage per port according to PSE PoE: 15.4 W
PoE+: 30W
PoE++: 60W Voltage range PoE mode PoE: 44-57V
PoE+/PoE++: 50-57V Max. transmit power
2.4GHz
5GHz
23dBm
26dBm MIMO
2.4GHz
5GHz
2 x 2
4 x 4 throughput rate
2.4 GHz
5 GHz
300 Mbit/s
2.4 Gbit/s Antenna gain
2.4 GHz
5 GHz
5.9 dBi
6 dBi ESD/EMP protection Air: ± 8 kV, Contact: ± 4 kV LCM -Display (1) 11,9 cm ( 4,7 inch ) touch screen Button Factory reset Mounting Wall bracket (included) Operating temperature -10 to 40°C (14 to 104°F) Operating humidity 5 to 95% non-condensing Certifications CE, FCC, IC Software WLAN standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6 Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) BSSID 8 per radio VLAN 802.1Q Advanced QoS rate limiting per user Guest traffic isolation Supports concurrent clients 300+ LEDs Ethernet White: Link/Activity SFP+ White: Link/Activity Power supply Blue: ready.
Yellow: Error Supported data rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s 802.11b 1, 2, 5.5, 11 Mbit/s 802.11g 6, 9, 12, 18, 24 , 36, 48, 54 Mbit/s 802.11n (WiFi 4) 6.5 Mbit/s to 300 Mbit/s (MCS0 - MCS15, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbit/s to 1 .7 Gbit/s (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbit/s to 2.4 Gbit/s (MCS0 - MCS11 NSS1 /2/3/4, HE 20/40/80/160)
