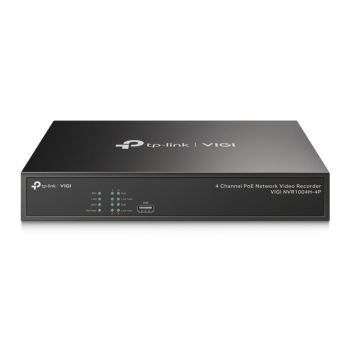

TP-Link - 4 Channel PoE Network Video Recorder - VIGI NVR1004H-4P content_copy

4K HDMI Video Output < 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle. Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed. 4-Channel Simultaneous Playback: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. ONVIF Ensures Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. Plug < Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before. 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access. Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience. Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management. 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.

Features
Product colour	Black
LED indicators
Hard drive
HDD capacity	0 GB
Maximum storage capacity	10 TB
HDD interface	SATA
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Performance
Video input channels	4 channels
Alarm input channels	4
Alarm output channels	1
Video recording modes	720p, 1080p, 2160p
Maximum resolution	3840 x 2160 pixels
Supported resolutions	3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Video formats supported	H.264, H.264+, H.265, H.265+
Input bandwidth	80 Mbit/s
Output bandwidth	60 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) output ports	1
USB 2.0 ports quantity	2
Audio RCA inputs	1
Audio RCA outputs	1
Supported network protocols	TCP/IP, DHCP, DNS, NTP, UPnP
HDMI output
Power
Power consumption (typical)	4.25 W
Output current	1.31 A
Output voltage	53.5 V
Total Power over Ethernet (PoE) budget	53 W
Weight & dimensions
Width	246.2 mm
Depth	148.2 mm
Height	45 mm
Wireless LAN features
Wi-Fi

---
