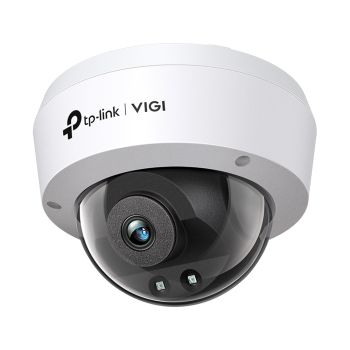

TP-Link IPCam VIGI C240I(4mm) 4MP Dome Network Camera content_copy

Discover the performance of the VIGI C240I IR Dome network camera! With crisp 4-megapixel resolution and state-of-the-art infrared LEDs, this camera provides clear surveillance even in low light. Robust IK10 vandal protection and IP67 water resistance make it suitable for any environment. The smart video enhancement technologies, including Smart IR, WDR, 3D DNR and night vision, guarantee first-class image quality. And with flexible management via the web interface, NVR, VIGI app and VIGI Security Manager, you have full control over your security at all times.

Highlights

• 4MP Super-High Definition
• People and Vehicle Detection
• Smart Detection: Receive alerts and check feeds when someone crosses a boundary, enters an area you specify, blocks the camera, or removes/leaves objects
• IK10 vandal-proof < IP67 waterproof
• H.265+: Without using additional bandwidth, your cameras transmit compressed, crystal-clear video to save storage space, reduce network load and reduce monitoring costs without compromising image quality
• Smart Video Enhancement: The professional ones VIGI technologies process videos to significantly improve their quality, which is essential for your surveillance. These include Smart IR, WDR (Wide Dynamic Range), 3D DNR (Digital Noise Reduction) and night vision capabilities
• PoE/12V DC: Two types of power supply not only provide more flexibility, but also make wiring exceptionally easy
• Flexible Management: Take over Full control over your security with four management methods: the web user interface, the NVR user interface, the VIGI app and the VIGI Security Manager

Product type

• IP camera
• ear category (ElektroG): relevant, category 5: small devices < 50 cm (all sides), small devices B2C

Specifications

• Protection class: IP67 - Dustproof, protection against temporary submersion, IK10 - 20 joules of impact energy
• Housing material: Plastic
• Mounting type: Drilling
• Area of application: Indoor, outdoor
• Mounting: ceiling, wall

Camera

• Frame rate: 30 fps
• Video resolution width: 2560 px
• Video resolution height: 1440 px
• Night vision
• Fixed focal length: 4 mm
• Camera resolution: 4 MP
• Chip type: CMOS
• Aperture max: f/2.2
• Sensor size: 1/3\dlash- Video encryption

Connections

• RJ45: 1
• PoE-capable Ethernet interfaces

Sensors

• Motion detectors > Functions
• Operating mode: App
• Video compression: H.264, H.265/HEVC

Power supply

• PoE, network

Data transmission

• Ethernet Standard: 10/100 MBit/s
• Streaming

Basic features

• Color: White
• Height: 86 mm
• Length/Depth: 115 mm
• Width: 115 mm

Scope of delivery

• VIGI C240I network camera
• Quick start guide
• Waterproof cable connections
• Mounting accessories
• Information text Scope of delivery: A power supply is optionally available and not included in delivery.

Camera
Minimum illumination	0 lx
Lens viewing angle, horizontal	75.1°
Lens viewing angle, vertical	41.5°
Lens viewing angle, diagonal	88.7°
Design
Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black, White
Housing material	Plastic
International Protection (IP) code	IP67
IK code	IK10
Features
Basic event	Motion Detection, Camera Tampering Detection, Exception
Image sensor
Optical sensor size	25.4 / 3 mm (1 / 3")
Sensor type	CMOS
Lens system
Number of lenses	1
Lens diameter	4 mm
Management features
Management software	VIGI App, VIGI Security Manager, VIGI NVR
Web-based management
Network
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels	3 channels
Ethernet LAN
Wi-Fi
Bluetooth
Night vision
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	1
Infra-red wavelength	850 nm
Night vision
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Packaging content
Number of cameras	1
Mounting kit
Packaging data
Package width	153 mm
Package depth	193 mm
Package height	120 mm
Package weight	450 g
Performance
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Certification	CE, BSMI, VCCI, ONVIF
Day/night mode
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power source type	PoE
Power consumption (max)	5 W
Security
Intelligent Video Surveillance (IVS) system features	Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection
Password protection
Video motion detection
Active tampering alarm
IP address filtering
HTTPS encryption
Mirror
Digest authentication
Storage
Built-in HDD
Sustainability
Compliance certificates	CE
Video
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate	30 fps
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Bit rate	64 Kbps - 4 Mbps
Video streaming
Privacy masking
Back Light Compensation (BLC)
Highlight Compensation (HLC)
Digital Wide Dynamic Range (DWDR)
Weight & dimensions
Width	115 mm
Depth	115 mm
Height	86 mm

---
