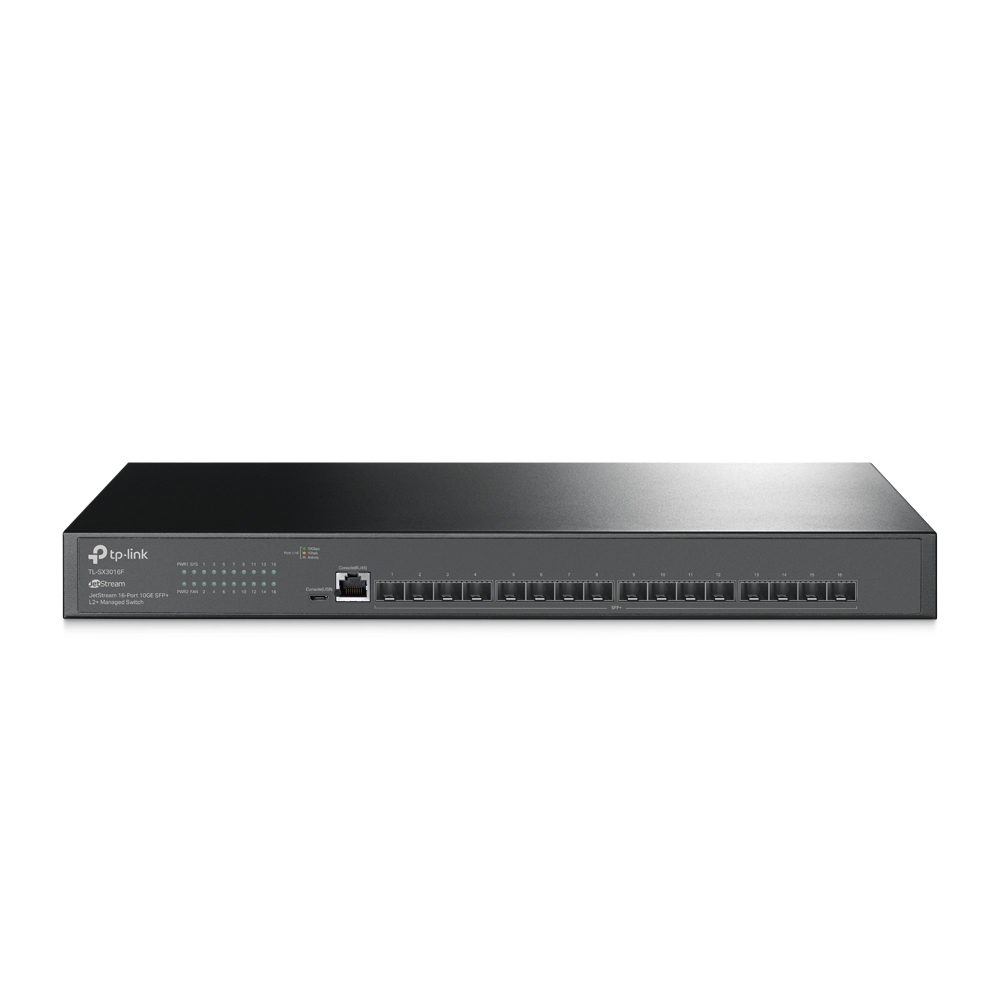

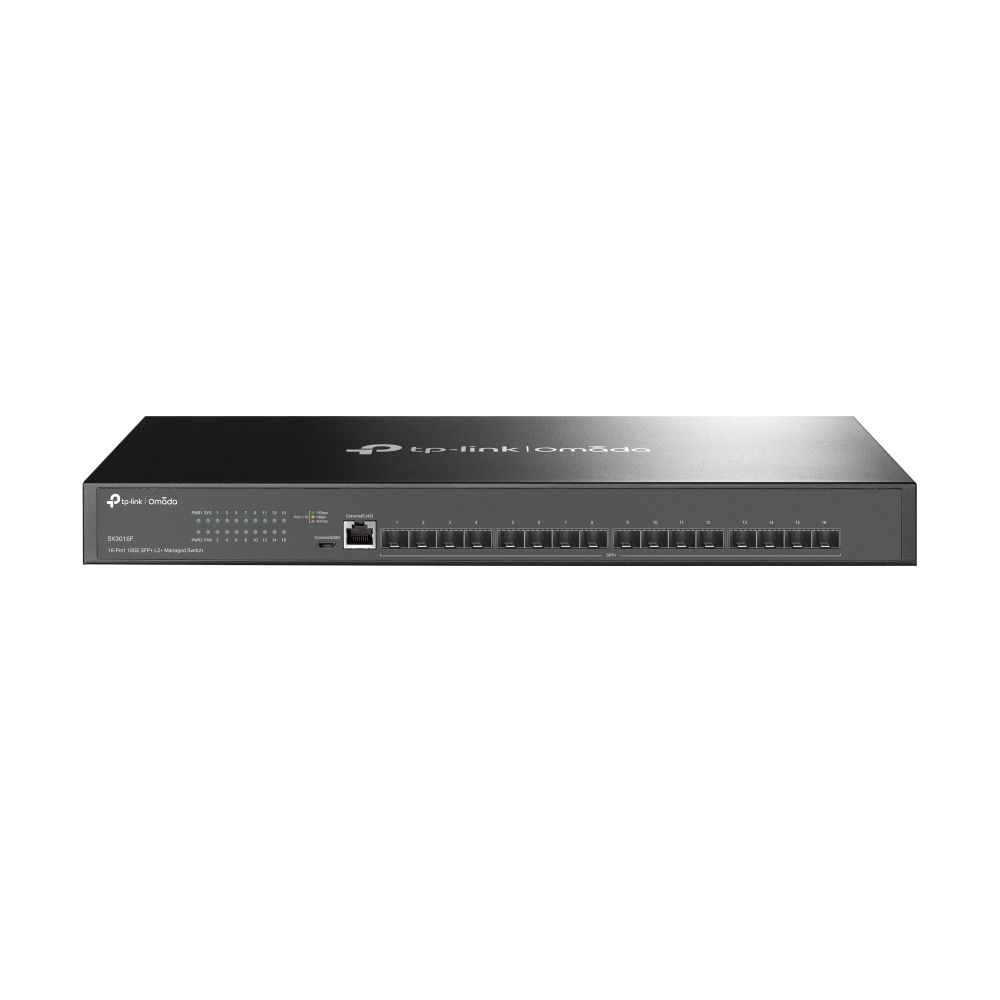

TP-LINK Switch SX3016F 16xSFP+ Managed content_copy

TP-Link's JetStream L2+ managed switches offer powerful L2 and L2+ features such as static routing, enterprise-grade QoS, advanced security strategies and a bundle of ISP features. The 10-Gigabit ports ensure high-speed data transfer and their backward compatibility with Gigabit products offers the possibility of network upgrades, thus guaranteeing stable and long-term usability.

Highlights

• 16x 10Gbps SFP+ ports, 1x RJ45 console port, 1x Micro-USB console port
• Switch capacity: 320Gbps
• Supports a full range of L2 and L2+ features, including static routing, enterprise-level QoS , IGMP snooping and more

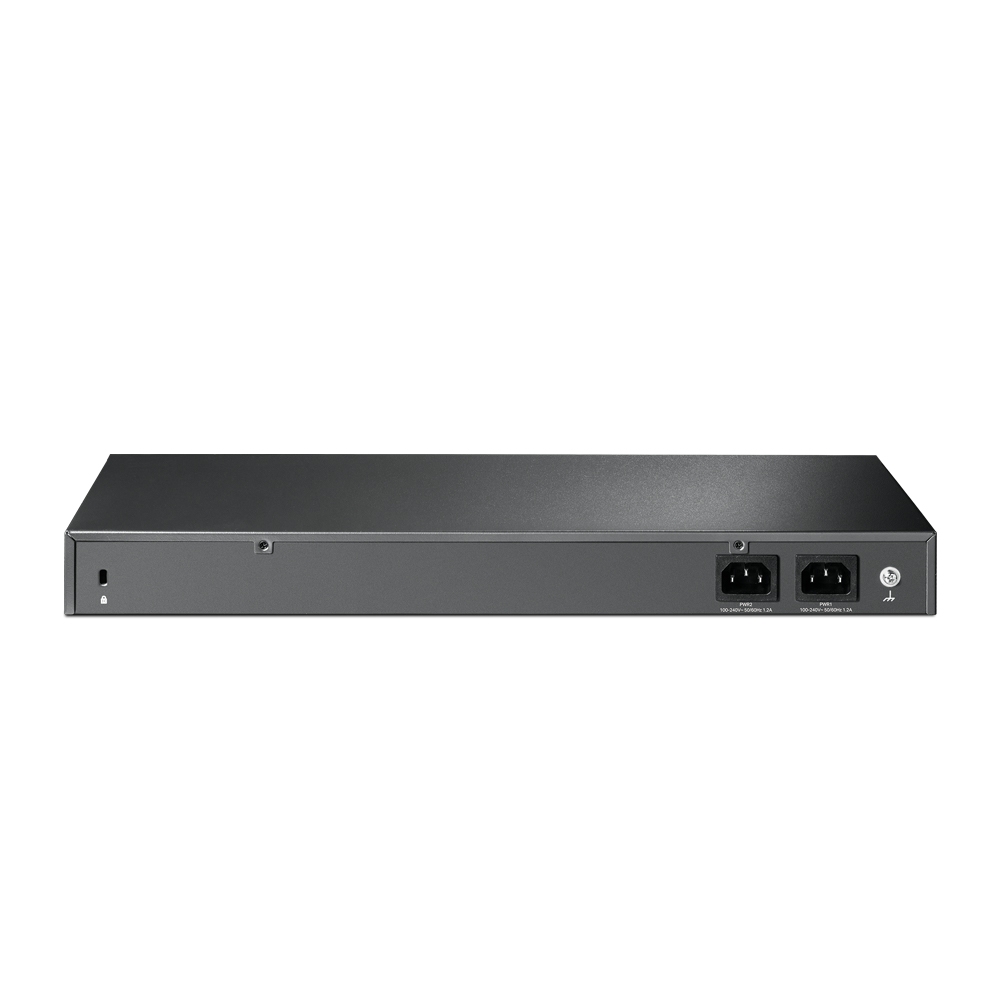

• Two power supplies that support each other make it an ideal choice for a reliable network architecture
• Integrated with Omada SDN for cloud access and remote management
• Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image offer powerful management functions

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices B2C

Specifications

• integrated fan
• Switch type: Access
• Switching capacity: 320 GBit/s (Gbps)

Ports

• Total number of copper ports: 1
• Total number of fiber optic ports: 16
• Bandwidth: 100/1000/10G-Base-T
• Console port

Functions

• Switch manageable: Yes
• Mounting type: 48,3 cm ( 19 inch ) rack mount
• IGMP

Power supply

• Power supply: integrated

Basic features

• Color: Black
• Height: 44 mm
• Length/depth: 220 mm
• Width: 440 mm

Scope of delivery

• TP-Link JetStream 8-Port 10GE SFP+ L2+ Managed switch
• 2x power cable
• quick guide
• rackmount kit
• rubber feet

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	320 Gbit/s
Forwarding rate	238.08 Mpps
MAC address table	32000 entries
Number of queues	8
Jumbo frames	9000
Packet buffer memory	24 MB
Static route
Jumbo frames support
Design
Product colour	Black
Rack mounting
LED indicators
Management features
Switch type	Managed
Switch layer	L2+/L3
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Quality of Service (QoS) support
Web-based management
Cloud-managed
Traffic classification
ARP inspection
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
IP routing
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	111.71 BTU/h
Packaging content
Cables included	AC
Quick start guide
Manual
Rack mount kit
Packaging data
Package type	Box
Ports & interfaces
SFP+ module slots quantity	16
Console port	RJ-45/Micro-USB
Power connector	DC-in jack
Basic switching RJ-45 Ethernet ports type
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	32.74 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features	IPv6 Telnet, IPv6 ping, IPv6 tracert
Security
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type	AAA, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Access Control List (ACL)
IGMP snooping
MAC address filtering
Static port security
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm

---
