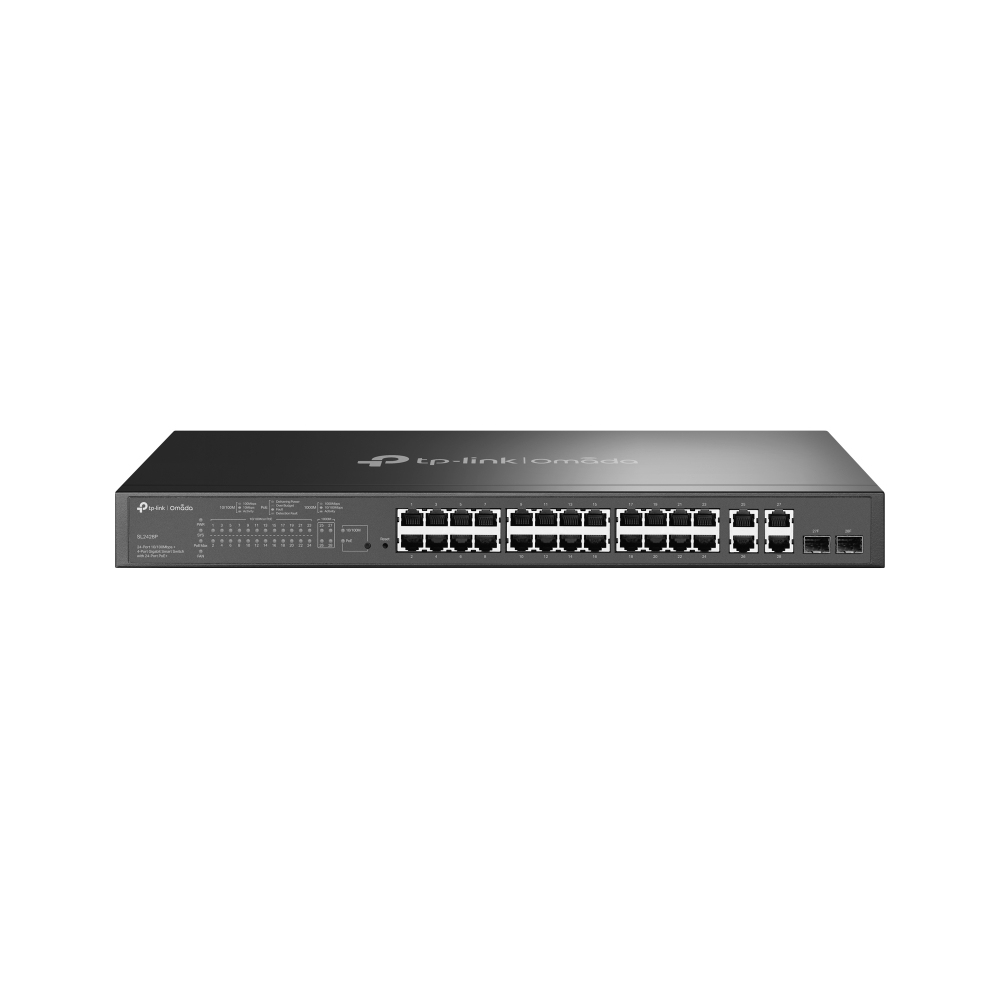

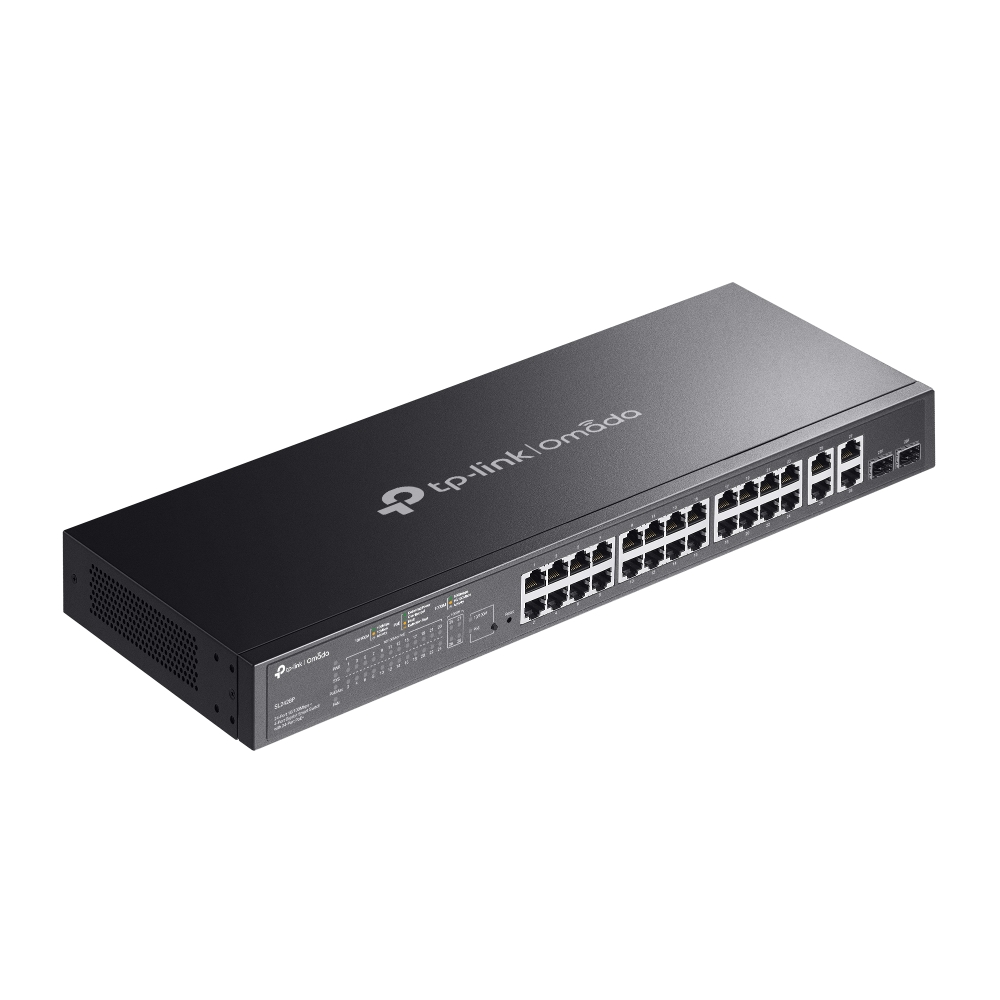

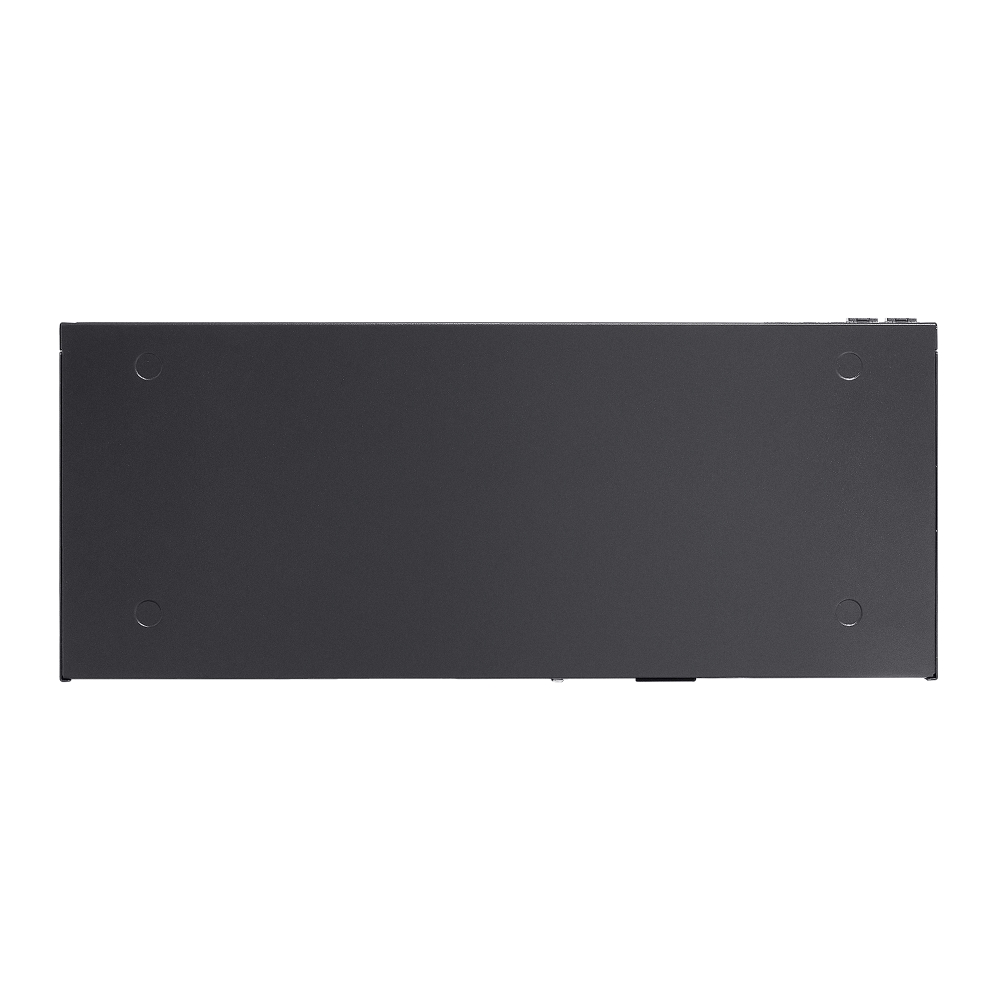

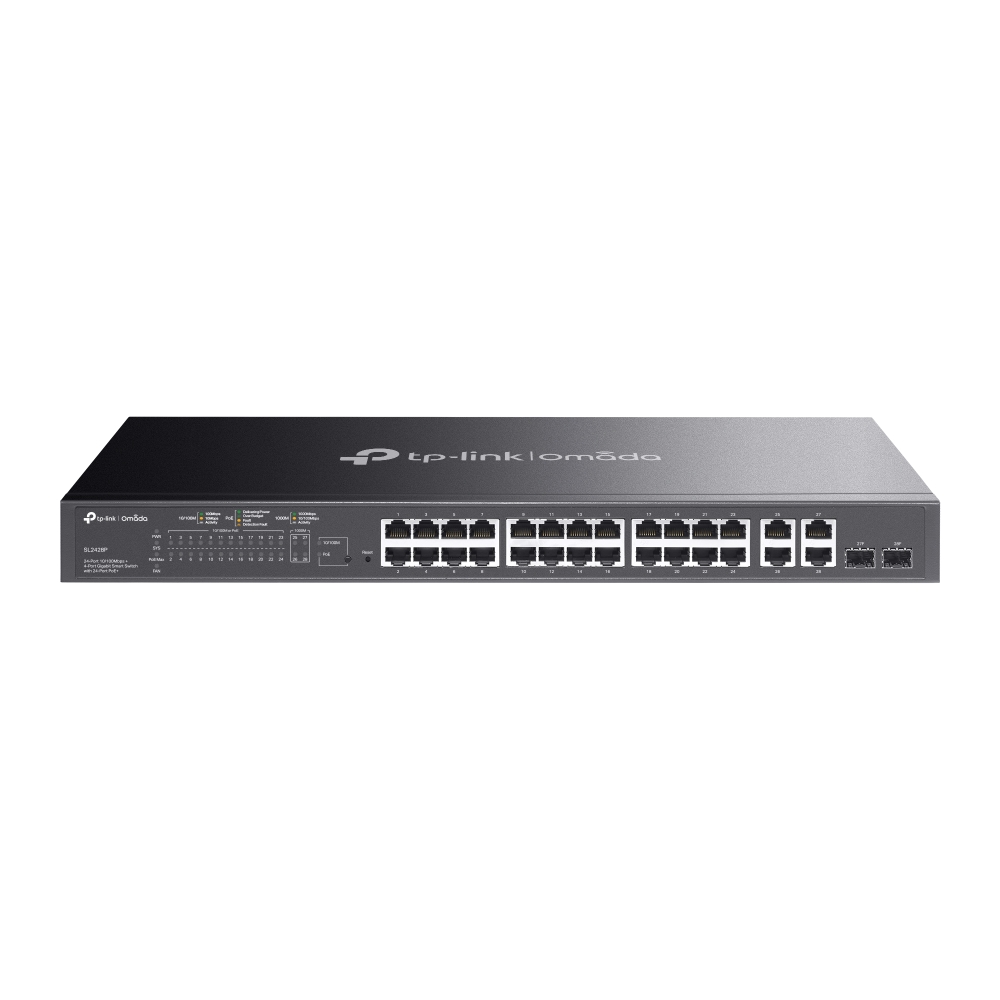

TP-Link TL-SL2428P 24-Port 10/100 + 4-Port Gigabit PoE+ Switch content_copy

The TL-SL2428P from TP-Link is a professional 24 port PoE+ switch with two additional Gigabit ports and two combo Gigabit RJ45/SFP ports. Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total power budget of 250W offers a wide range of applications. It is ideal for surveillance systems, offices and small businesses. Furthermore, it is fully compatible with IP cameras, access points, IP phones, computers and printers.

Highlights

• 24 PoE+ 10/100 Mbit/s RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit RJ45/SFP ports
• High PoE power budget with up to 250 W
• Centralized management thanks to cloud access and Omada app
• Zero -Touch provisioning (ZTP), centralized cloud management and intelligent monitoring
• Optimizing voice and video applications
• L2/L3/L4 QoS and IGMP snooping

Product type

• Switch
• ear category (ElektroG): relevant, category 6: Small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C

Connections

• Total number of copper ports: 26
• Total number of fiber optic ports: 2
• Total number of PoE ports: 24
• PoE standard: PoE - 802.3af , PoE+ - 802.3at
• PoE budget: 250 W

Basic features

• Color: Black
• Height: 44 mm
• Length/Depth: 180 mm
• Width: 440 mm

Scope of delivery

• TP-Link TL-SL2428P JetStream PoE+ Switch 24-Port 10/100 Mbps + 4-Port Gigabit
• Power cable
• Installation instructions
• 2 mounting brackets and accessories

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	12.8 Gbit/s
Throughput	9.5 Mpps
MAC address table	8000 entries
Number of queues	4
Jumbo frames	9000
Packet buffer memory	4.1 MB
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	2 fan(s)
Rack mounting
Management features
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support
Web-based management
ARP inspection
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat5, Cat5e
Number of VLANs	512
10G support
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Auto MDI/MDI-X
Spanning tree protocol
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	995.09 BTU/h
Packaging content
Cables included	AC
Quick start guide
Rack mount kit
Performance
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
Firmware upgradeable
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	24
Gigabit Ethernet (copper) ports quantity	4
Combo SFP ports quantity	2
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	291.6 W
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	250 W
Power over Ethernet (PoE)
Protocols
Management protocols	SNMP v1/v2c/v3, RMON, SNTP, TFTP
Security
Security algorithms	SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
Access Control List (ACL)
IGMP snooping
SSH/SSL support
Weight & dimensions
Width	440 mm
Depth	180 mm
Height	44 mm

---
