TP-LINK Switch SG3452X 48xGBit/4xSFP+ Managed content_copy

JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots Blazing-Fast 10G Uplink: 4 × 10Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity. Gigabit Speeds: 48× Gigabit RJ45 ports provide a high density of fast and reliable connections for other switches and devices. Integrated with Omada SDN: Zero-Touch Provisioning (ZTP), centralized cloud management and intelligent monitoring. Centralized management: Cloud access and Omada app for convenient and easy management. Layer 2+/3-lite functions: Static routing, interface routing, DHCP and much more enable high scalability, routing of internal data traffic and more efficient use of network resources. Robust security strategies: IP-MAC port binding, ACL, port security, DoS mitigation, storm control, DHCP snooping, 802.1X, Radius authentication, and more. Optimization for voice and video applications: L2/L3/L4 QoS and IGMP snooping. Extensive management capabilities: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image provide powerful management capabilities

Certificates
Certification	CE, FCC, RoHS
Data transmission
Switching capacity	176 Gbit/s
Forwarding rate	130.9 Mpps
MAC address table	16000 entries
Number of static routes	48
Jumbo frames	9000
Packet buffer memory	12 MB
Static route
Jumbo frames support
Design
Form factor	1U
Product colour	Black
Number of fans	0 fan(s)
Rack mounting
LED indicators
Management features
Switch type	Managed
Switch layer	L2+
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Public MIB	Y
Huawei-proprietary MIB	Y
Quality of Service (QoS) support
Web-based management
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
Multicast features
Multicast Listener Discovery (MLD) snooping	Y
Multicast support
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
IPv4 routes	48
IPv6 routes	48
Virtual LAN features	Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Number of VLANs	4000
10G support
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
Head-of-line (HOL) blocking
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	111.65 BTU/h
Packaging content
Cables included	AC
Quick start guide
Rack mount kit
Packaging data
Package type	Box
Rack rails
Ports & interfaces

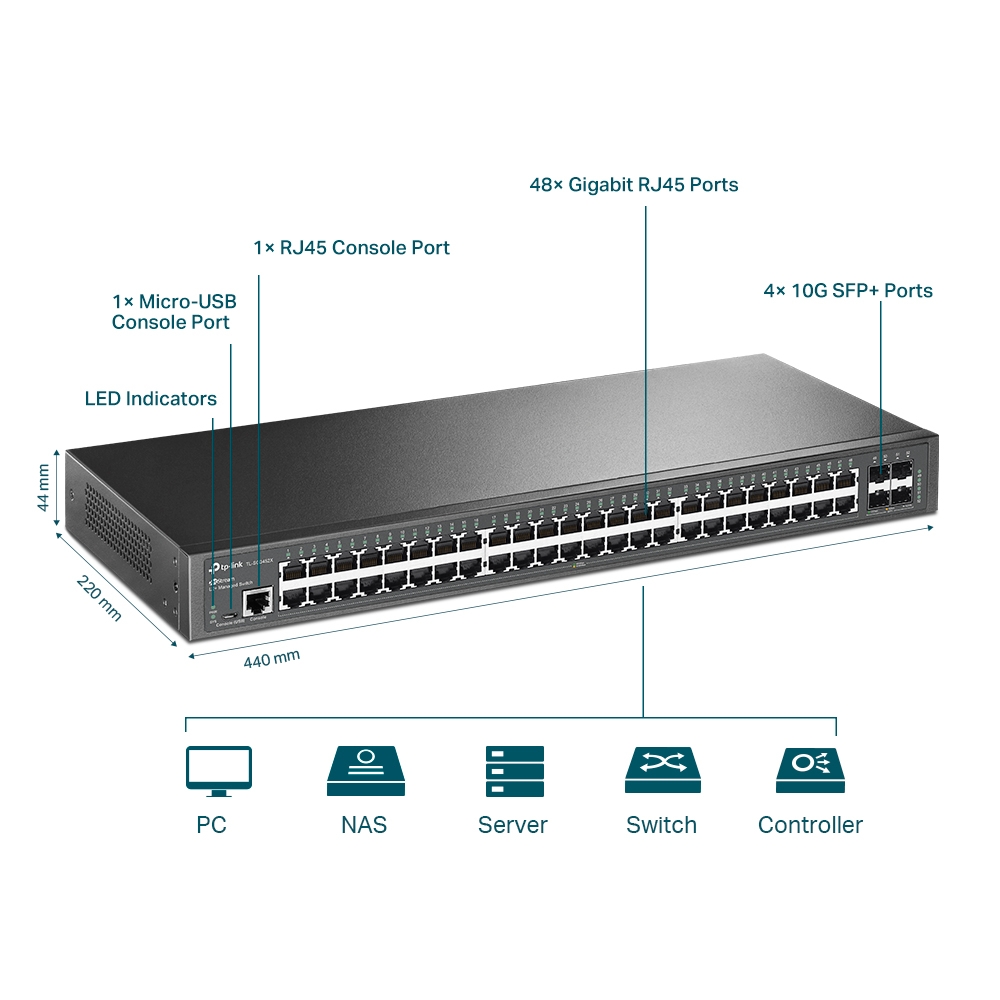

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45/Micro-USB
Power connector	AC-in jack
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	32.72 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
GARP VLAN Registration Protocol (GVRP)
Security
DHCP features	DHCP client, DHCP relay, DHCP server
Authentication	Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type	AAA, RADIUS, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Access Control List (ACL)
IGMP snooping
IGMP proxy
MAC address filtering
Static port security
SSH/SSL support
Loop protection
BPDU filtering/protection
IP-MAC-Port binding
Password protection
Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm

---
