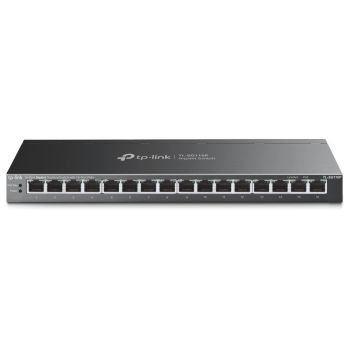

TP-Link Switch 16x GE TL-SG116P content_copy

TL-SG116P is a 16 Gigabit port unmanaged switch that requires no configuration and offers 16 PoE (Power over Ethernet) ports. It can automatically detect and power all IEEE 802.3af/at compatible PoE devices (Powered Devices, PDs). In this situation, electrical power along with data is transmitted over a single cable, allowing you to expand your network where there are no power lines or outlets. This allows you to install devices such as access points (APs), IP cameras or IP phones.

Highlights

• With 16 PoE+ ports, data and power are transmitted over a single cable
• Supports PoE up to 120W (30W for each PoE port)
• Works with IEEE 802.3af/at compliant PDs expands your network
• Up to 250 m data and power transmission in Extend mode designed specifically for surveillance systems
• Priority mode ensures high priority for port 1-4 to guarantee the quality of sensitive applications
• Isolation mode allows one-click separation of client traffic for increased security and Performance
• With PoE Auto Recovery, the switch automatically restarts when failed or unresponsive PoE devices connected to port 1-16 are detected
• Requires no configuration and installation
• Fanless design
• Supports desktop and wall installation

Product Type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, small IT and telecommunications technology devices B2C

Specifications

• Switch type: Access
• Switching capacity: 32 GBit/s (Gbps)

Connections

• Total number of copper ports: 16
• Total number of PoE ports: 16
• Bandwidth: 10/100/1000 MBit/s
• PoE standard: PoE - 802.3af, PoE+ - 802.3at
• PoE budget: 120 W
• Main port type: Copper
• Number of PoE+ (af/at) ports: 16
• Number of RJ45 ports (1G): 16

Functions

• Switch manageable: No
• Mounting type: Desktop, wall

Power supply

• Power supply: external

Basic properties

• Color: Black
• Height: 2.54 cm
• Length/Depth: 11.17 cm
• Width: 28.6 cm
• icecat Import: 2023/07/03

Scope of delivery

• TP-Link TL-SG116P
• Power adapter
• Installation instructions

Data transmission
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
MAC address table	8000 entries
Number of queues	4
Jumbo frames	9000
Packet buffer memory	4.1 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
Housing material	Metal
Stackable
LED indicators
Wall mountable
Management features
Switch type	Unmanaged
Quality of Service (QoS) support
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Virtual LAN features	Protocol-based VLAN, Tagged VLAN
Number of VLANs	32
Port mirroring
Full duplex
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Auto MDI/MDI-X
Auto-negotiation
Cable length detection
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	490.55 BTU/h
Packaging content
Quick start guide
Packaging data
Package width	227 mm
Package depth	434 mm
Package height	70 mm
Package weight	2 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Power
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	9 V
Input current	0.6 A
Power consumption (typical)	11.72 W
Power consumption (max)	144.28 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Security
IGMP snooping
Loop protection
Weight & dimensions
Width	286 mm
Depth	111.7 mm
Height	25.4 mm

---
