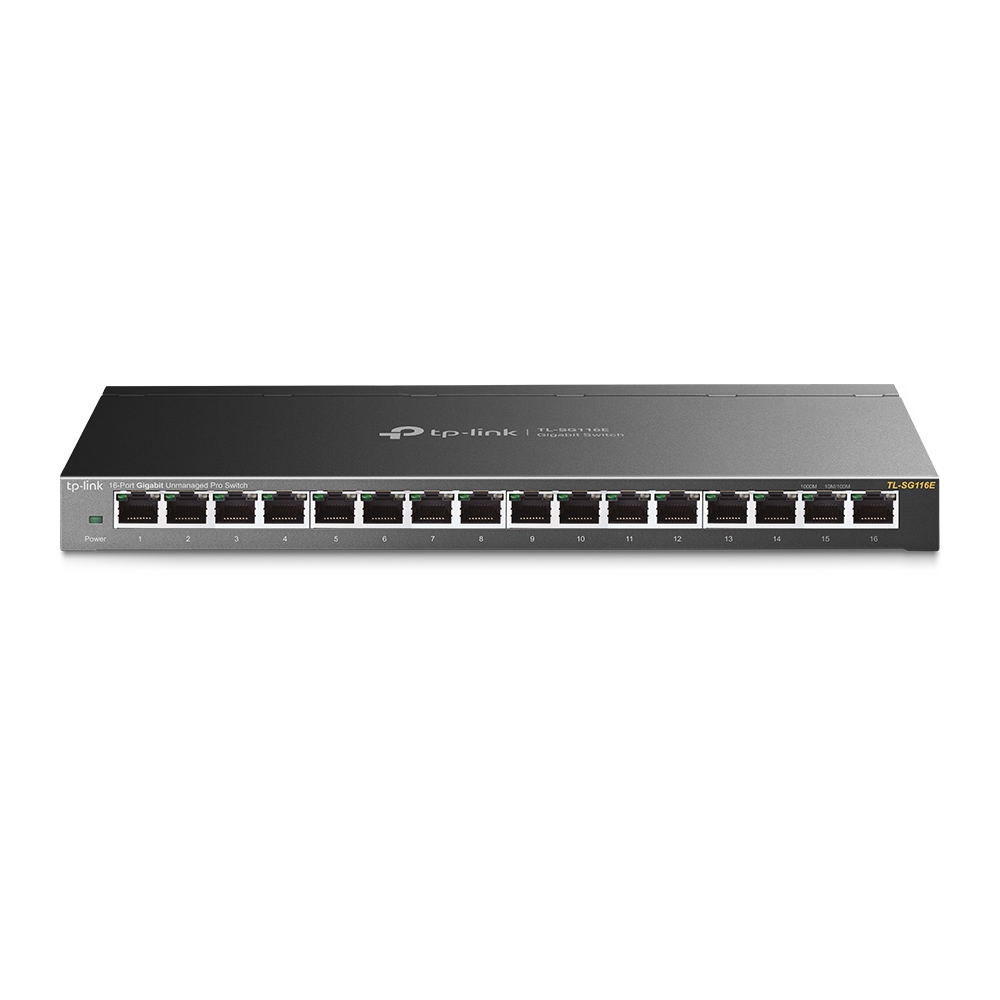

TP-Link Switch 16x GE TL-SG116E
|
85,41 EUR |
|||||||||||
|
( 101,64 EUR incl. VAT ) ≈ £72.43 | ≈ $95.74 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| End-Of-Life: | 15. Sep 2026 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Datasheet: | file_download Download | ||||||||||
| Lieske Part No.: | 1481200 | ||||||||||
| Mfg Part No: | TL-SG116E | ||||||||||
| UPC/EAN: | 6935364084301 | ||||||||||
| Weight: | 1.36 kg | ||||||||||
| Type: | CPNT | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Miscellaneous from TP-LinkFurther products in category Miscellaneous
All products of TP-Link
Product information for TP-Link TL-SG116E:
The TP-LINK 16-Port Gigabit Easy Smart Switch TL-SG116E is an ideal upgrade for unmanaged switches. It not only fits into the home network, but also into your small business network. Thanks to the plug and play design, installation is child's play. The high-quality metal housing protects the components inside the device. In addition, the TL-SG116E is also equipped with intelligent management functions such as QoS, VLAN and IGMP snooping.
Highlights
- 16x Gigabit RJ45 ports with auto-tuning and auto-MDI/MDIX
- Plug and play, no configuration required
- Rugged metal housing for reliable and professional performance
- Central management of all your Easy Smart switches via the user interface and that Easy-Smart Configuration Utility
- Energy-efficient Green IT to save energy
- Switch
- ear category (ElektroG): relevant, Category 6: small IT and telecommunications technology devices, Small IT and telecommunications technology devices B2C
- Switch type: Access
- Switching capacity: 32 GBit/s (Gbps)
- Total number of copper ports: 16
- Bandwidth: 10/100/1000 MBit/s
- Main port type: Copper
- Number of RJ45 ports (1G): 16
- Switch manageable: Yes
- Mounting type: desktop, wall
- IGMP
- Power supply: external
- Color: Anthracite
- Height: 25.4 mm
- Length/depth: 111.7 mm
- Width: 286 mm
- TP-Link TL -SG116E 16-Port Gigabit Easy Smart Switch
- Power adapter
- Installation instructions
- Rubber feet
Product type
Specifications
Ports
Functions
Power supply
Basic properties
Scope of delivery
| Certificates | |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| MAC address table | 8000 entries |
| Number of queues | 4 |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN |
| Number of VLANs | 32 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Cable length detection | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 31.68 BTU/h |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 412 mm |
| Package height | 70 mm |
| Package weight | 1.36 kg |
| AC adapter included | |
| Rubber feet | |
| Performance | |
| Plug and Play | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power | |
| Power source | DC |
| Input current | 1 A |
| Input voltage | 12 V |
| Power consumption (max) | 9.19 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| IGMP snooping | |
| Loop protection | |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 111.7 mm |
| Height | 25.4 mm |
