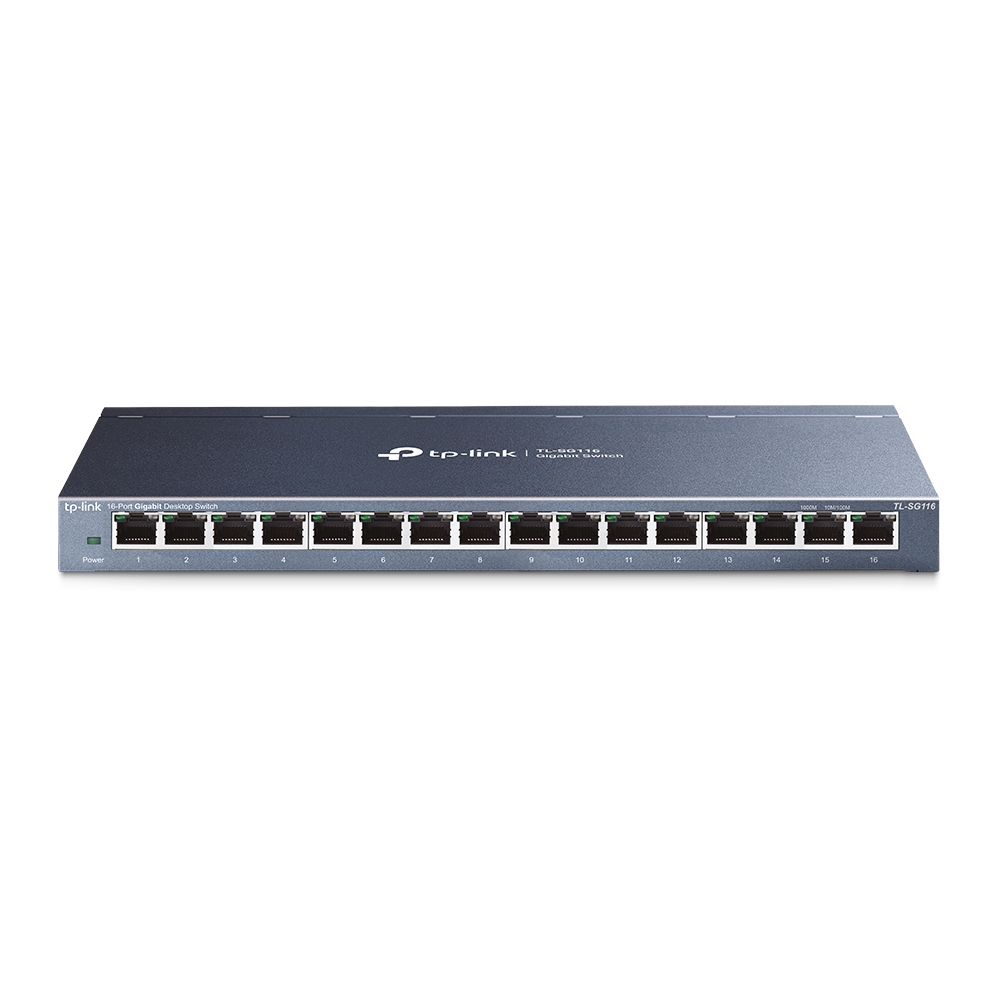

TP-Link Switch 16x GE TL-SG116 content_copy

TP-LINK's TL-SG116 16-Port Gigabit Desktop Switch offers an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network servers and backbone connections or make gigabit a reality in your workplace.
Thanks to the plug-and-play design, no configuration is necessary. Additionally, the TL-SG116 is designed for lower power consumption. With the innovative, energy-efficient technology of the TL-SG116 you can easily save energy, making this device an environmentally friendly solution for your home and office network.
Equipped with 16 x 10/100/1000 Mbit/s ports, the TL-SG116 significantly expands your network capacity, enabling the immediate transmission of large files. Power users in the home, office, workgroup, or creative production environment can now transfer large, bandwidth-intensive files faster.
The TL-SG116E is characterized by easy setup and handling. Auto-MDI/MDIX eliminates the need for crossover cables. Auto-tuning on each port detects a network device's connection speed and intelligently adjusts to ensure compatibility and optimal performance.
802.1p and DSCP-QoS enable clean and latency-sensitive data traffic for voice and video. IGMP snooping optimizes the multicast data stream.

Highlights

• 16x 10/100/1000 Mbit/s RJ45 ports with auto-tuning and auto-MDI/MDIX
• Green Ethernet for energy saving
• Flow control according to IEEE802.3x for reliable data transmission
• Metal housing for table or wall mounting
• Supports QoS according to IEEE802. 1p as well as IGMP snooping
• plug and play, no configuration necessary

Product type

• Switch
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, Small IT and telecommunications devices Technology B2C

Specifications

• Switch type: Access
• Switching capacity: 32 GBit/s (Gbps)

Connections

• Total number of copper ports: 16
• Bandwidth: 10/100/1000 MBit/s
• Main port type: Copper
• Number of RJ45 ports (1G) : 16

Functions

• Switch manageable: No
• Mounting type: desktop, wall
• IGMP

Power supply

• Power supply: external

Basic features

• Color: Anthracite
• Height: 25.4 mm
• Length/depth: 111.7 mm
• Width: 286 mm

Scope of delivery

• TP-Link TL-SG116 16-Port Gigabit Switch
• Power supply
• Installation instructions
• Rubber feet

Data transmission
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
MAC address table	8000 entries
Number of queues	4
Jumbo frames	9000
Packet buffer memory	4.1 MB
Store-and-forward
Jumbo frames support
Design
Product colour	Black
Housing material	Metal
Rack mounting
LED indicators
Wall mountable
Logistics data
Harmonized System (HS) code	85176990
Management features
Switch type	Unmanaged
Quality of Service (QoS) support
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Virtual LAN features	Protocol-based VLAN, Tagged VLAN
Number of VLANs	32
10G support
Port mirroring
Full duplex
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Auto MDI/MDI-X
Auto-negotiation
Cable length detection
VLAN support
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	31.68 BTU/h
Packaging content
Cables included	AC
Quick start guide
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Power
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	9 V
Input current	0.6 A
Power consumption (max)	9.3 W
Power supply included
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Security
IGMP snooping
Loop protection
Weight & dimensions
Width	286 mm
Depth	111.7 mm
Height	25.4 mm

---
