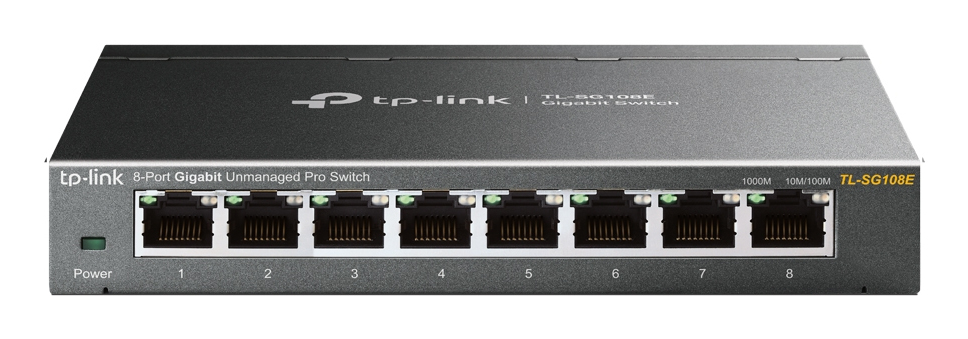

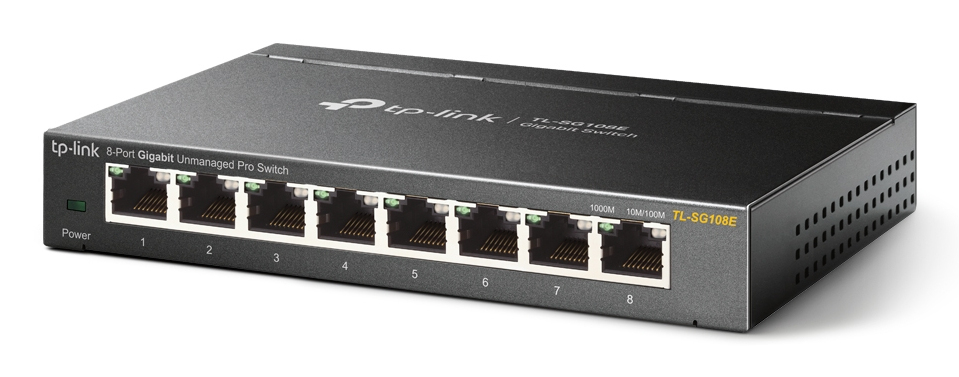

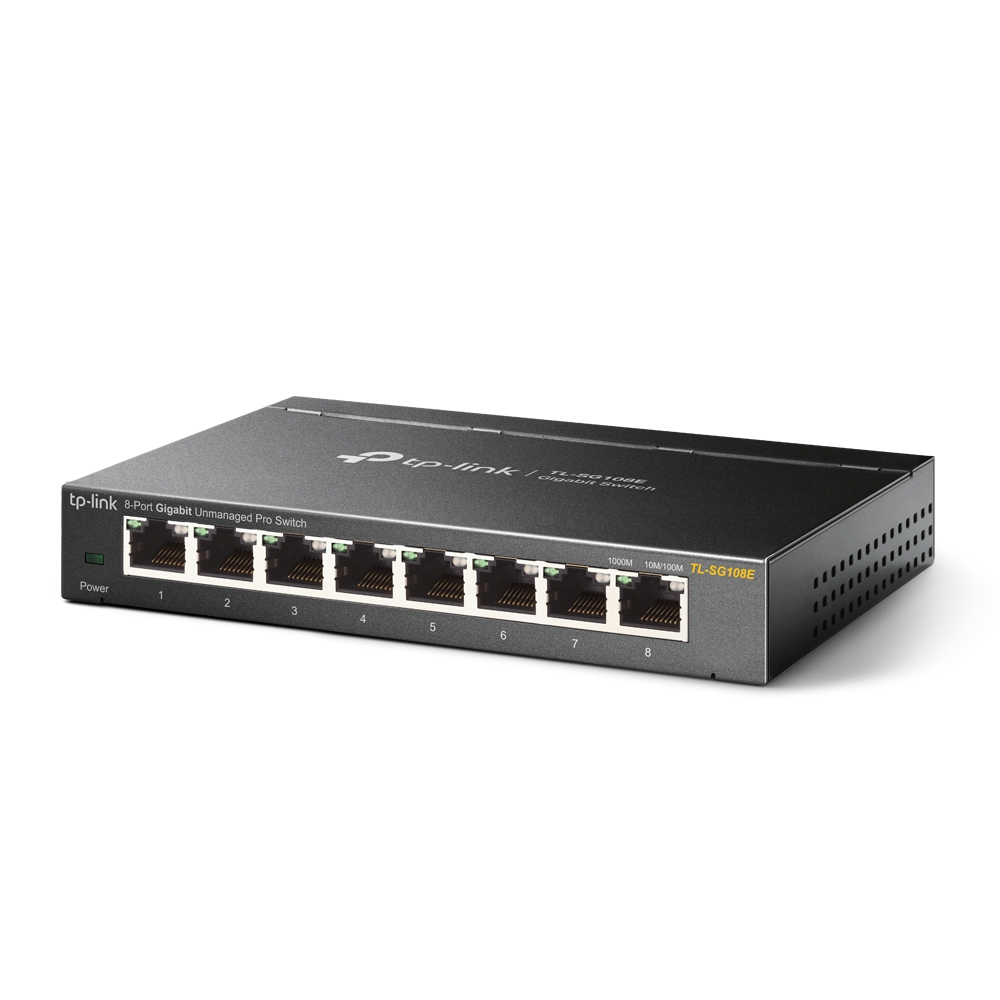

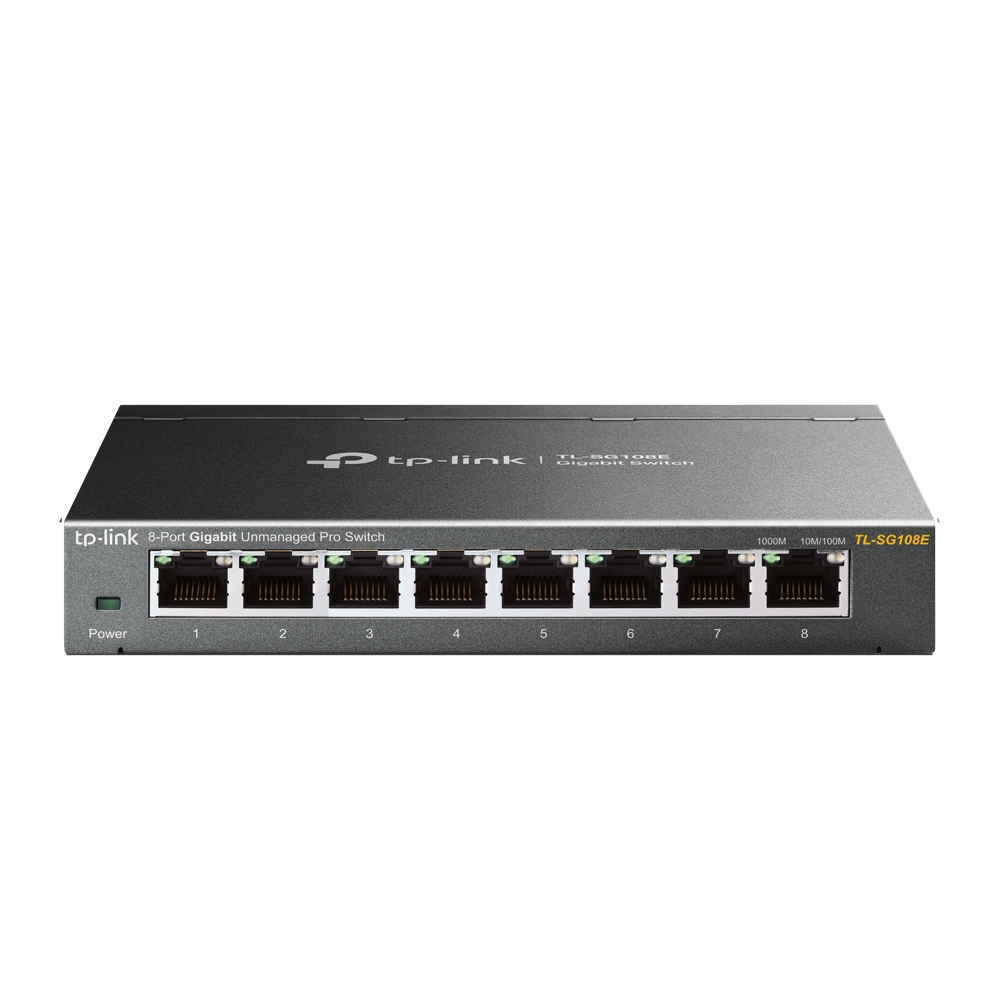

TP-LINK EasySmart TL-SG108E 8 Ports Ethernet Switch - 8 x Network (RJ-45) Ports - 10/100/1000Base-T
|
37,90 EUR |
|
|
( 45,10 EUR incl. VAT ) ≈ £32.14 | ≈ $42.49 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 14. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 682611 |
| Mfg Part No: | TL-SG108E |
| UPC/EAN: | 6935364021856 |
| Weight: | 0.663 kg |
| Type: | PERP |
Further up to 8 ports from TP-LinkFurther products in category up to 8 ports
All products of TP-Link
Product information for TP-Link TL-SG108E:
Der 8-Port-Gigabit-Easy-Smart-Switch TL-SG108E von TP-LINK bietet eine einfache Möglichkeit, den Übergang zu Managed Switches zu wagen. Der Datenverkehr lässt sich dank Port-Mirroring, Loop-Detection und Kabeldiagnose bequem überwachen, zur Optimierung der Datenübertragung steht dem Administrator Port-/Tag-basiertes QoS zur Verfügung. Weiterhin sorgt Port-/Tag-/MTU-basiertes VLAN durch eine Segmentierung des Netzes für Sicherheitsgewinn.
Highlights
- 8 Gigabit-RJ45-Ports für schnelle Datentransfers
- Die innovative Green-IT spart bis zu 80% Energie ein
- Unterstützt Flusskontrolle nach IEEE802.3x für zuverlässige Datenübertragung
- Unterstützung von 16k-Jumbo-Frames verbessert die Übertragung großer Datenmengen
- Effektive Überwachung mittels Port-Mirroring, Loop-Erkennung und Kabeldiagnose
- Port- und Tag-basiertes QoS für ruckelfreien Transport zeitkritischer Daten
- Mehrere VLAN-Funktionen ermöglichen Sicherheitsgewinn durch Segmentierung
- IGMP-Snooping verbessert die Übertragung von Multicast-Daten
- Zentrales Management all Ihrer Easy-Smart-Switches über das Easy-Smart-Configuration-Utility
- 8 Ports Cu 10/100/1000
- Lüfterlos
- Layer 2 Funktionen - 802.1q (VLAN-Tagging)
- QoS - 802.1p
- Tischmontage
- Color: Black
- Höhe: 25 mm
- Breite: 101 mm
- Tiefe: 158 mm
- Produkttyp: Switch
- TL-SG108E
- Spannungskabel
- Installationsanleitung
- CD
- Gummifüßchen
Switch
Basic Properties
Delivery
| Certificates | |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| Throughput | 11.9 Mpps |
| MAC address table | 4000 entries |
| Number of queues | 4 |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Multicast features | |
| Number of multicast groups filtered | 128 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Number of VLANs | 32 |
| Port mirroring | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 12.55 BTU/h |
| Packaging content | |
| Cables included | AC |
| User guide | |
| Packaging data | |
| Package type | Box |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 9 V |
| Input current | 0.6 A |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Security | |
| IGMP snooping | |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of TP-LINK EasySmart TL-SG108E 8 Ports Ethernet Switch - 8 x Network (RJ-45) Ports - 10/100/1000Base-T?
The article TP-LINK EasySmart TL-SG108E 8 Ports Ethernet Switch - 8 x Network (RJ-45) Ports - 10/100/1000Base-T is currently in stock
According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of TP-Link TL-SG108E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you TP-LINK EasySmart TL-SG108E 8 Ports Ethernet Switch - 8 x Network (RJ-45) Ports - 10/100/1000Base-T always at the best possible price. We can give you a discount of 2% on TP-LINK EasySmart TL-SG108E 8 Ports Ethernet Switch - 8 x Network (RJ-45) Ports - 10/100/1000Base-T if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
